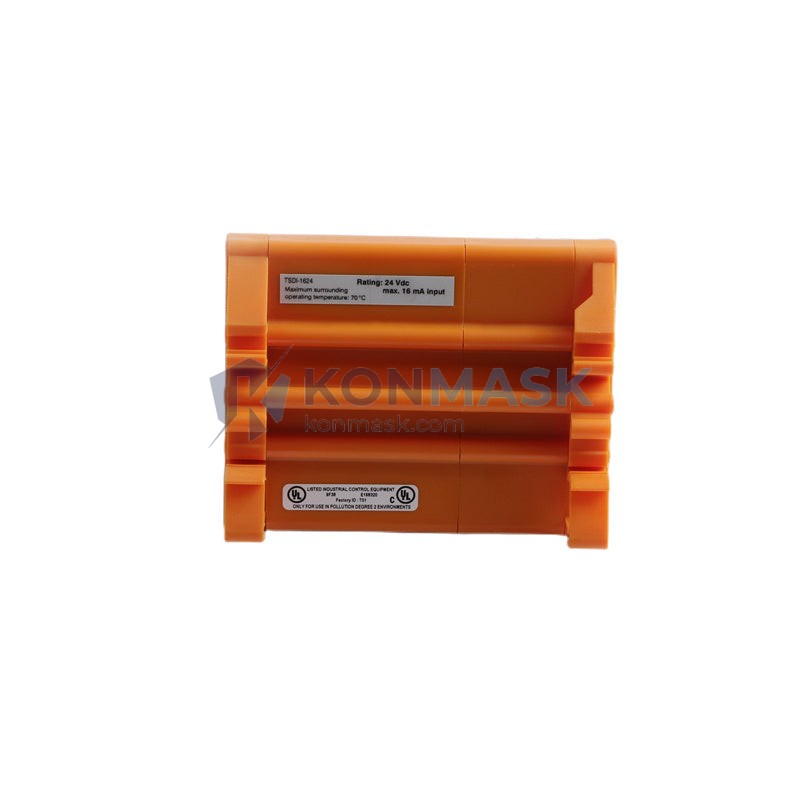

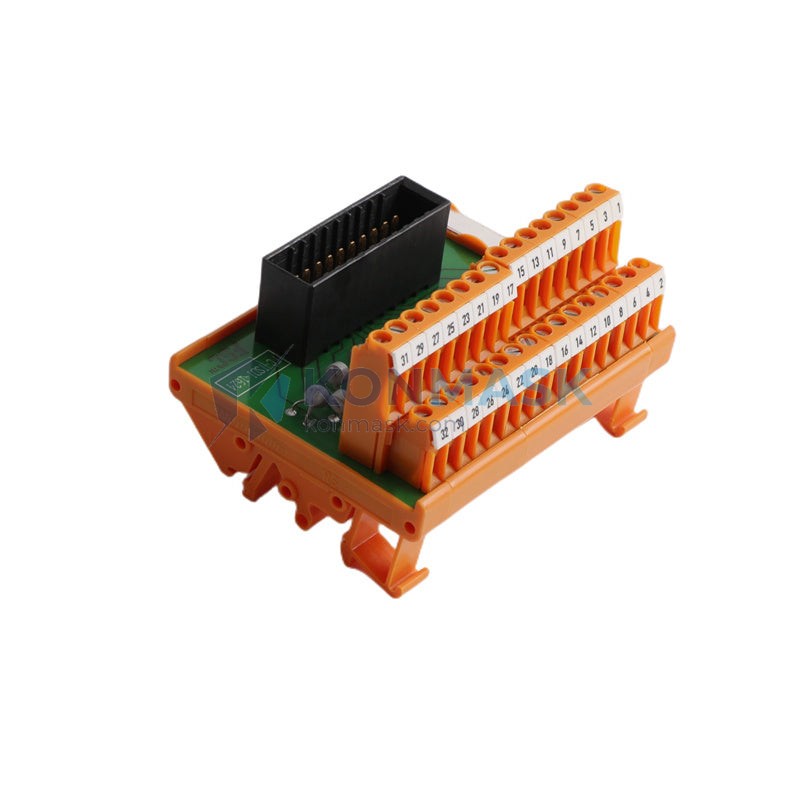

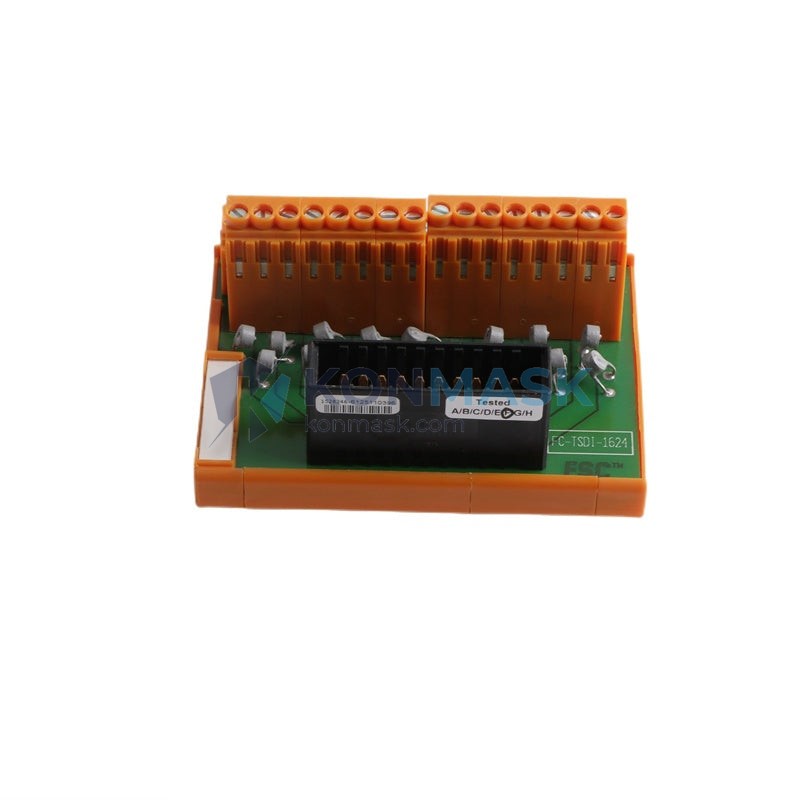

Digital Input Module Solution – Honeywell FC-TSDI-1624 | TotalPlant Solution Series
In large-scale process plants — refineries, chemical complexes, and power generation facilities — field signal integrity is the foundation of safe and efficient operation. Yet engineers routinely face a critical challenge: legacy DCS platforms must reliably acquire hundreds of discrete 24 VDC field signals from valves, switches, and interlock devices, often in electrically noisy environments where signal degradation or false triggering can trigger unplanned shutdowns costing upward of $50,000 per hour. Aging input cards with poor isolation, inadequate diagnostics, and no hot-swap capability compound the risk, forcing maintenance windows that modern continuous-process operations cannot afford.
The Honeywell FC-TSDI-1624 16-channel digital input module was engineered specifically to eliminate these failure modes within the TotalPlant Solution (TPS) DCS architecture. By delivering optically isolated, individually supervised 24 VDC inputs with on-board diagnostics and seamless integration into the Honeywell FTA (Field Termination Assembly) ecosystem, the FC-TSDI-1624 converts raw field signals into high-confidence data streams — enabling control engineers to act on accurate process state information rather than troubleshoot instrumentation faults.
Where This Product Is Used
Oil & Gas Refining
– Crude distillation unit (CDU) pump seal-leak detection: monitors 24 VDC dry-contact switches in Class I Div 2 areas, sustaining signal integrity at ambient temperatures up to 60 °C and with cable runs exceeding 300 m.
– Emergency shutdown (ESD) valve position feedback: acquires open/closed status from solenoid-operated valves per IEC 61511 SIL 2 loop requirements, providing the DCS with sub-100 ms state updates.
– Flare header pressure-switch monitoring: handles high-frequency contact bounce from vibration-prone field devices without false state transitions.
Chemical & Petrochemical Processing
– Reactor interlock permissive chains: collects discrete permissive signals from agitator run-confirm relays and cooling-water flow switches, feeding the TPS logic solver with validated inputs.
– Batch sequence step confirmation: verifies valve-open/closed feedback across multi-train batch reactors, supporting ISA-88 batch control architectures.
– Toxic-gas detector alarm aggregation: interfaces with 24 VDC alarm relay outputs from fixed-gas detectors in accordance with ATEX Zone 1 installation requirements.
Power Generation & Utilities
– Turbine auxiliary system monitoring: acquires lube-oil pressure-switch and bearing-temperature-switch states in high-vibration environments (IEC 60068-2-6 tested).
– Boiler drum-level high/low switch inputs: provides redundant signal acquisition for drum-level protection loops, supporting NFPA 85 boiler safety requirements.
– Grid-tie breaker status feedback: monitors 125 VDC substation breaker auxiliary contacts via external signal conditioning, feeding plant DCS with switchgear state.
Pulp, Paper & Continuous Web Processes
– Digester chip-level switch monitoring: handles wet, high-humidity environments (up to 95% RH non-condensing) without contact corrosion or leakage current issues.
– Press-section nip-load confirmation: acquires hydraulic-pressure switch states at scan rates compatible with TPS controller cycle times of 100–500 ms.
– Broke-chest agitator run-confirm: integrates motor-run relay contacts into the DCS sequence logic for automated broke-handling systems.
Water & Wastewater Treatment
– Pump station wet-well level switch arrays: monitors float-switch and electrode-type level switches across multiple lift stations via a single 16-channel card, reducing panel footprint.
– UV disinfection system status: acquires lamp-on/off and door-interlock signals for compliance reporting under EPA 40 CFR Part 136.
– Chlorination system permissive interlocks: collects flow-switch and pressure-switch states required before chemical dosing pumps are enabled.
Pharmaceutical & Food & Beverage
– CIP (Clean-In-Place) sequence valve feedback: verifies valve position in sanitary piping systems where 316L SS actuators provide 24 VDC NAMUR-compatible outputs.
– Autoclave door-seal confirmation: acquires safety-interlock switch states in high-temperature steam environments (up to 121 °C process area ambient).
– Filling-line product-present detection: interfaces with photoelectric sensor relay outputs for batch counting and OEE data collection within the TPS historian.
Technical Specifications
| Parameter | Value | Application Relevance |
|---|---|---|
| Model Number | FC-TSDI-1624 | Direct replacement for TPS I/O subsystem |
| Manufacturer | Honeywell Process Solutions | OEM part — full TPS firmware compatibility |
| Series | TotalPlant Solution (TPS) | Integrates with TPN, HPM, and APM controllers |
| Number of Channels | 16 discrete input channels | Reduces card count vs. 8-ch alternatives by 50% |
| Input Voltage | 24 VDC nominal (18–30 VDC range) | Compatible with standard plant 24 VDC marshalling |
| Input Type | Dry contact / wet contact (sourcing) | Supports both relay outputs and NAMUR sensors |
| Optical Isolation | Channel-to-backplane isolated | Eliminates ground-loop interference in noisy plants |
| On-State Voltage Threshold | ≥ 11 VDC | Reliable detection despite long cable voltage drop |
| Off-State Voltage Threshold | ≤ 5 VDC | Rejects leakage current from parallel field devices |
| Input Current (On-State) | Approx. 8 mA per channel | Compatible with low-power NAMUR relay outputs |
| Scan / Update Rate | Synchronized with TPS controller cycle (100–500 ms) | Meets IEC 61511 response-time requirements for SIL 2 |
| Diagnostics | Open-wire detection, module health LED | Reduces MTTR by enabling fault isolation without field walk |
| Operating Temperature | 0 °C to +60 °C | Suitable for non-air-conditioned marshalling rooms |
| Relative Humidity | 5% to 95% RH, non-condensing | Covers coastal and tropical plant environments |
| Backplane Connector | TPS standard card-edge connector | Hot-swap capable with TPS I/O carrier |
| FTA Compatibility | FC-FTDI-1624 or equivalent Honeywell FTA | Maintains full channel-to-field wiring continuity |
| Dimensions (H × W × D) | Standard TPS module form factor | Fits existing TPS I/O enclosures without modification |
| Weight | Approx. 120 g | No additional structural support required |
| Certifications | CE, UL 508, FM (Class I Div 2) | Accepted by AHJ in North American and EU plants |
Why Engineers Specify This Model
- In emergency shutdown (ESD) applications, the FC-TSDI-1624 delivers sub-100 ms discrete state acquisition because its scan cycle is hardware-synchronized with the TPS controller, meeting IEC 61511 SIL 2 response-time requirements without external timing hardware.
- In electrically noisy refinery environments, the FC-TSDI-1624 delivers false-trigger-free operation because each channel is optically isolated from the backplane and adjacent channels, meeting IEC 61000-4-4 Level 3 electrical fast transient immunity requirements.
- In continuous-process plants where unplanned downtime is unacceptable, the FC-TSDI-1624 delivers hot-swap replacement capability because it uses the TPS standard card-edge backplane interface, meeting plant maintenance procedures that prohibit controller shutdown for I/O card replacement.
- In long cable-run installations (300 m+), the FC-TSDI-1624 delivers reliable on-state detection because its 11 VDC minimum on-state threshold accommodates the voltage drop of 1.5 mm² cable at full run length, meeting IEC 60228 Class 2 conductor specifications.
- In pharmaceutical and food-grade facilities, the FC-TSDI-1624 delivers audit-ready diagnostic data because its module-health status is logged in the TPS historian with timestamp resolution, meeting FDA 21 CFR Part 11 electronic records requirements.
- In multi-train chemical plants requiring standardized spares, the FC-TSDI-1624 delivers single-SKU inventory consolidation because one module type covers all 24 VDC discrete input applications across TPN, HPM, and APM controller platforms, meeting plant spare-parts rationalization objectives.
Complete System Bill of Materials
The following components form a complete, field-ready digital input subsystem around the FC-TSDI-1624:
- FC-TSDI-1624 — This module. 16-channel 24 VDC digital input card; the primary signal acquisition device.
- FC-FTDI-1624 (Honeywell FTA) — Field Termination Assembly; provides screw-terminal field wiring interface and routes signals to the FC-TSDI-1624 via the TPS cable harness.
- TPS I/O Carrier / Slot — Backplane carrier housing the FC-TSDI-1624; provides power, communications bus, and mechanical retention.
- TPS Cable Harness (FC-CABLE-xx) — Ribbon or discrete cable connecting the FTA to the I/O carrier; length selected per cabinet layout (0.5 m, 1 m, 2 m options).
- 24 VDC Power Supply (redundant pair recommended) — Supplies field-side loop power; Honeywell or third-party 24 VDC / ≥ 5 A DIN-rail PSU per IEC 60950-1.
- Surge Protection Devices (SPDs) — Installed at FTA terminal blocks for field cables exceeding 30 m; rated per IEC 61643-11 for 24 VDC signal circuits.
- Cable Duct & DIN Rail Hardware — 35 mm DIN rail sections and cable management duct for FTA mounting in marshalling cabinet.
- TPS Controller (HPM / TPN / APM) — Host controller that reads the FC-TSDI-1624 data over the TPS I/O bus and executes control logic.
Compliance & Industry Standards
- CE Marking (EU) — Issued under EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. Significance: legally required for installation in EU member-state plants; confirms EMC and safety compliance without additional testing.
- UL 508 (Industrial Control Equipment) — Issued by Underwriters Laboratories. Significance: accepted by North American Authorities Having Jurisdiction (AHJ) for panel installations; eliminates field-inspection delays.
- FM Class I Division 2 (Groups A–D) — Issued by FM Approvals. Significance: permits installation in areas where flammable gases may be present under abnormal conditions; covers the majority of refinery and chemical plant I/O room classifications.
- IEC 61511 (Functional Safety — SIS) — Compliance supported by module diagnostics and documented failure-rate data. Significance: enables use in Safety Instrumented System (SIS) loops up to SIL 2 with appropriate architecture.
- IEC 61000-4 Series (EMC Immunity) — Tested to EFT (Level 3), surge (Level 3), and conducted RF immunity. Significance: confirms reliable operation in high-noise industrial environments without additional shielding.
- RoHS 2 Directive (2011/65/EU) — Restricts hazardous substances in electronic equipment. Significance: required for import into EU and many Asian markets; supports corporate environmental compliance reporting.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the FC-TSDI-1624 exclusively from authorized Honeywell distributors, certified surplus dealers with documented chain-of-custody, and direct plant decommissioning projects with full asset history. We do not source from unverified secondary markets.
4-Step Inspection Process:
- Visual & Physical Inspection — Board-level examination for corrosion, component damage, burnt traces, and connector-pin integrity. Modules with any physical anomaly are rejected.
- Firmware & Revision Verification — Firmware version and hardware revision confirmed against Honeywell TPS compatibility matrix to ensure controller compatibility.
- Functional Bench Test — Each channel exercised with a calibrated 24 VDC signal source; on-state and off-state thresholds verified against OEM specification. Diagnostic LED behavior confirmed.
- Burn-In & Final QC — Module operated at rated voltage for minimum 24 hours; final inspection and serialization before packaging in anti-static ESD bag with desiccant.
Documentation Available Upon Request: Test report, firmware revision record, certificate of conformance (CoC), original OEM datasheet, and export compliance documentation (ECCN / HTS classification).
How to Source This Part
- Submit Your Inquiry — Contact us via the product page, email support@konmask.com, or WhatsApp +0086 19859288691 with your required quantity, delivery timeline, and any documentation requirements.
- Receive Quotation & Availability Confirmation — Our team responds within 24 hours with stock status, lead time, unit price (volume discounts available for 5+ units), and available documentation package.
- Order, Test Report & Global Shipping — Payment confirmed; module ships with full QC test report, CoC, and ESD-safe packaging via DHL / FedEx / UPS Express. Export documentation prepared for all major markets including EU, North America, Southeast Asia, and the Middle East. Typical transit: 3–7 business days worldwide.
Application-Specific FAQ
Q: Can the FC-TSDI-1624 be used in a Safety Instrumented System (SIS) loop rated for SIL 2?
A: Yes, with appropriate system architecture. The FC-TSDI-1624 provides the diagnostic coverage and documented failure-rate data required for SIL 2 assessment per IEC 61511. Your functional safety engineer must verify the complete SIL 2 loop architecture including the controller, FTA, and field device. We can provide the module’s PFD data and FMEDA summary upon request.
Q: We have an existing TPS installation with FC-FTDI-1624 FTAs already wired. Is the FC-TSDI-1624 a direct plug-in replacement for our failed input card?
A: Yes. The FC-TSDI-1624 is designed for the TPS I/O carrier and mates directly with the FC-FTDI-1624 FTA via the standard TPS cable harness. No field wiring changes are required. The replacement can be performed hot (with the carrier powered) following Honeywell’s TPS hot-swap procedure, eliminating the need for a controller shutdown.
Q: Our plant is in a Class I Division 2 area. Does the FC-TSDI-1624 require an intrinsically safe barrier or Zener barrier for field wiring?
A: The FC-TSDI-1624 itself carries FM Class I Div 2 approval, meaning the module can be installed in the Div 2 area without additional barriers for the module itself. However, if your field devices are located in Class I Division 1 areas, IS barriers or galvanic isolators must be installed in the field wiring circuit between the Div 1 field device and the FTA terminal blocks. Consult your plant electrical area classification drawings and NEC Article 504 for specific installation requirements.
