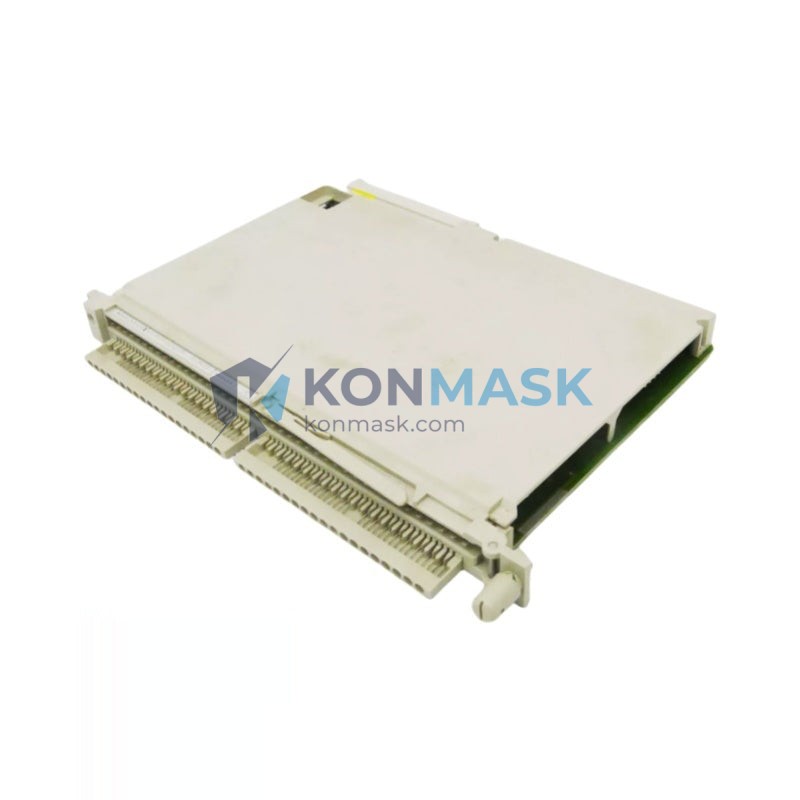

SIEMENS 6ES5420-4UA13 – 32-Channel 24VDC Digital Output Module | SIMATIC S5 Platform
Engineering Background: The 6ES5420-4UA13 is a high-density digital output module engineered for SIEMENS SIMATIC S5 programmable logic controllers. Designed for demanding industrial environments, this module delivers reliable 24VDC transistor outputs across 32 channels, enabling precise control of actuators, solenoids, relays, and indicator systems in process automation and discrete manufacturing applications.
Product Positioning: As a core I/O expansion component for the SIMATIC S5-115U, S5-135U, and S5-155U controller families, the 6ES5420-4UA13 is the preferred choice for procurement engineers seeking a proven, field-tested digital output solution with full backward compatibility in legacy S5 installations and brownfield modernization projects.
Complete Technical Specifications
- Part Number / SKU: 6ES5420-4UA13
- Manufacturer: SIEMENS AG
- Product Family: SIMATIC S5
- Module Type: Digital Output Module (DO)
- Number of Outputs: 32 channels
- Output Voltage: 24VDC
- Output Current per Channel: 0.5A
- Total Output Current: Up to 16A (aggregate)
- Output Type: Transistor (sourcing / PNP)
- Short-Circuit Protection: Yes, electronic
- Isolation: Optocoupler isolation between field and backplane
- Backplane Bus: SIMATIC S5 parallel I/O bus
- Compatible Controllers: S5-115U, S5-135U, S5-155U
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +70°C
- Relative Humidity: 5% to 95% (non-condensing)
- Degree of Protection: IP20
- Dimensions (W×H×D): Standard S5 single-width module form factor
- Weight: Approx. 500g
- Certifications: CE, UL (per SIEMENS product documentation)
- Country of Origin: Germany
Proven Application Environments
- Automotive body-shop and assembly-line control systems
- Chemical and petrochemical plant DCS integration
- Water and wastewater treatment SCADA systems
- Steel mill and rolling-mill process control
- Pharmaceutical batch manufacturing (FDA-regulated environments)
- Power generation and substation automation
- Brownfield S5 system maintenance and spare-parts replenishment
- OEM machine builders requiring high-channel-density DO expansion
Engineering Advantages
- High Channel Density: 32 outputs in a single module slot minimizes rack space and wiring complexity.
- Robust Transistor Outputs: Electronic short-circuit protection eliminates fuse replacement downtime.
- Optocoupler Isolation: Protects the CPU backplane from field-side voltage transients and ground loops.
- Drop-in Replacement: 100% pin-compatible with earlier 6ES5420 variants; no firmware changes required.
- Proven Longevity: Designed for 24/7 continuous operation in harsh industrial environments.
- Diagnostic LED Indicators: Per-channel status LEDs enable rapid fault localization without test equipment.
System Architecture & Signal Flow
The 6ES5420-4UA13 interfaces directly with the SIMATIC S5 parallel I/O bus via the module’s edge connector. The CPU writes output data to the module’s internal register through the backplane. Each output channel drives a transistor switch that sources 24VDC to the connected field device. Optocouplers on every channel provide galvanic isolation, ensuring that field-side faults do not propagate to the controller backplane. The module supports both centralized and distributed rack configurations within the S5 system architecture.
Sourcing & Quality Verification
- Source: Sourced from authorized distributors and verified industrial surplus channels.
- Inspection: Every unit undergoes visual inspection, label verification, and functional power-on testing before shipment.
- Authenticity: SIEMENS holographic labels and date codes are verified against manufacturer records.
- Condition: New, refurbished, and tested-used grades available — condition specified at time of quotation.
- Warranty: 12-month replacement warranty against manufacturing defects and functional failure.
- Traceability: Full lot traceability documentation available upon request for regulated industries.
Procurement Process
- Submit RFQ: Contact support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive Quotation: Formal quotation with unit price, lead time, and condition grade issued within 24 business hours.
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing.
- Quality Hold & Dispatch: Units are inspected, photographed, and packed to IEC 60068 transport standards.
- Shipping: DHL / FedEx / UPS express worldwide; EXW Xiamen or CIF destination available.
- After-Sales Support: Technical support and warranty claims handled directly by Konmask engineering team.
Technical FAQ
Q: Is the 6ES5420-4UA13 compatible with the S5-100U?
A: No. This module is designed for the S5-115U, S5-135U, and S5-155U central racks. The S5-100U uses a different bus architecture.
Q: Can I mix 6ES5420-4UA13 with 6ES5420-4UA14 in the same rack?
A: Yes. Both variants share the same slot addressing scheme and are fully interchangeable within the same rack.
Q: What is the maximum cable length for field wiring?
A: SIEMENS recommends a maximum of 600m for shielded cable at 24VDC; actual limits depend on load current and cable cross-section.
Q: Do you provide STEP 7 configuration files?
A: Hardware configuration for this module is handled natively within STEP 5 (COM PROFIBUS / S5 for Windows). No additional GSD file is required.
Q: What is the lead time for bulk orders (>10 units)?
A: Typical lead time is 3–7 business days for stock items; 2–4 weeks for sourced units. Contact us for firm availability.
