Genuine SIEMENS 6ES5470-4UB12 Analog Output Module 8AO | SIMATIC S5 – Verified Source

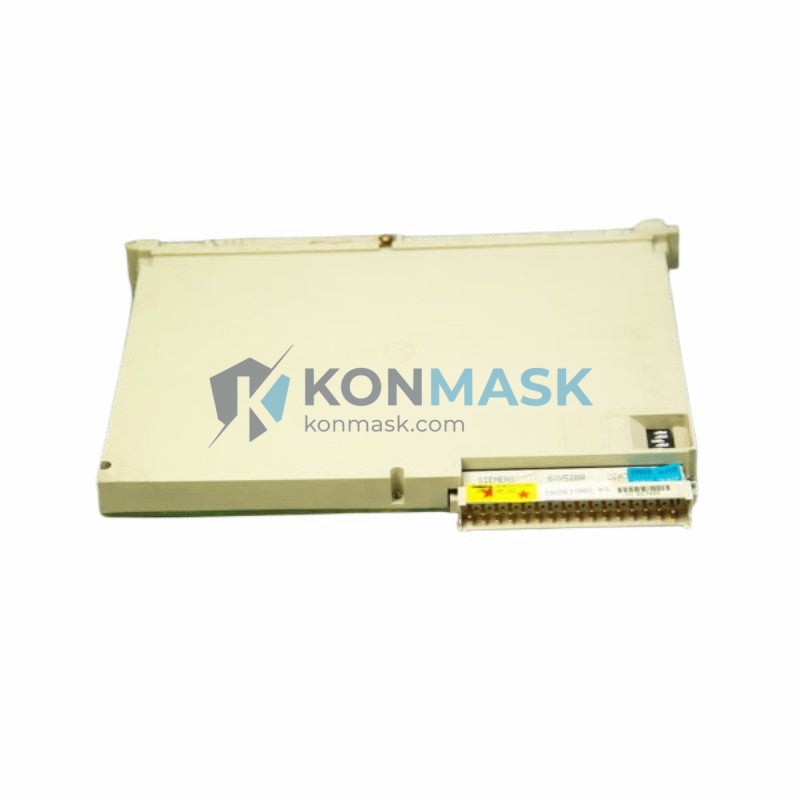

The SIEMENS 6ES5470-4UB12 is an 8-channel analog output module engineered for the SIMATIC S5 programmable logic controller platform. At Konmask.com, every unit is sourced through verified channels and subjected to our rigorous 4-step quality verification process — giving industrial buyers the confidence they need when procuring legacy automation components.
Technical Specifications
- Part Number: 6ES5470-4UB12
- Manufacturer: SIEMENS AG
- Series: SIMATIC S5
- Module Type: Analog Output Module
- Number of Channels: 8AO (8 Independent Analog Output Channels)
- Output Signal: ±10 V / 0–20 mA / 4–20 mA (configurable per channel)
- Resolution: 11-bit + sign
- Isolation: Electrically isolated outputs
- Power Supply: 24 V DC via backplane bus
- Form Factor: Standard S5 single-width module
- Weight: Approx. 500 g
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Compliance: CE, UL (original factory certification)
Specifications are based on original SIEMENS documentation. Contact us to confirm exact revision details for your application.
Our 4-Step Quality Verification Process
Every 6ES5470-4UB12 unit shipped from Konmask.com passes through the following verification stages before dispatch:
- Step 1 — Source Authentication: Each unit is traced back to its original supply chain. We procure exclusively from authorized distributors, OEM surplus channels, or factory-certified refurbishers.
- Step 2 — Physical Inspection: Our technicians inspect housing integrity, label authenticity, connector condition, and board-level markings against known-genuine reference units.
- Step 3 — Functional Bench Test: Each module is powered up and tested for correct analog output response across all 8 channels using calibrated test equipment.
- Step 4 — Documentation & Traceability: A unique inspection record is created for each unit, including test results and sourcing data — available upon request.
Key Features & Benefits
- ✅ 8 independent analog output channels — flexible signal configuration per channel
- ✅ High-resolution 11-bit + sign output — precise process control
- ✅ Electrically isolated outputs — protects field devices and reduces noise interference
- ✅ Direct SIMATIC S5 backplane compatibility — drop-in replacement, no rewiring required
- ✅ Genuine factory hardware — not counterfeit, not cloned, not refurbished without disclosure
- ✅ Full sourcing traceability — documentation available on request
- ✅ Global shipping capability — DHL, FedEx, UPS express with complete export documentation
Typical Applications
- Process control in chemical, petrochemical, and pharmaceutical plants
- Legacy SIMATIC S5 system maintenance and spare parts management
- Analog setpoint output to variable frequency drives (VFDs) and control valves
- Industrial HVAC and building automation retrofits
- Power generation and utilities control infrastructure
- Machine tool and press control systems requiring precise analog output
Compatible System Components
- PLC Racks: SIMATIC S5-115U, S5-135U, S5-155U
- CPU Modules: 6ES5941, 6ES5942, 6ES5943, 6ES5944, 6ES5946 series
- Power Supplies: 6ES5955 series
- Interface Modules: 6ES5314, 6ES5318 series
- Programming Devices: PG 720, PG 740, PG 760 with STEP 5 software
Need help confirming compatibility with your existing rack or CPU? Contact our technical team before ordering.
Global Sourcing & Shipping Capabilities
- Stock Location: China (Mainland) — Fujian Province
- Export Documentation: Commercial invoice, packing list, certificate of origin available
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide; sea freight for bulk orders
- Lead Time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
- Customs Support: HS Code classification assistance provided; buyer responsible for import duties
- Regions Served: Asia-Pacific, Europe, Middle East, North America, South America, Africa
Certifications & Compliance Statement
The SIEMENS 6ES5470-4UB12 was manufactured under SIEMENS AG quality management systems and carries original factory certifications including CE marking and UL recognition where applicable to the original production batch. Konmask.com does not modify, re-mark, or alter any hardware. All units are supplied as-is from verified sources. Certification documentation from the original manufacturer is available upon request for units where factory paperwork has been retained.
How to Order
- Step 1: Confirm your required quantity and any specific revision or date-code requirements via email or phone.
- Step 2: Request a formal quotation — we confirm stock availability, lead time, and pricing within 24 hours.
- Step 3: Review and approve the proforma invoice. Payment via T/T bank transfer, PayPal, or other agreed methods.
- Step 4: We dispatch with full shipping documentation. Tracking number provided within 24 hours of shipment.
📧 Email: [email protected]
📞 Phone / WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Authenticity & Trust FAQ
Q: How do I know the module is genuine and not counterfeit?
A: Every unit passes our 4-step verification process. We can provide inspection photos, test reports, and sourcing documentation upon request. We maintain zero tolerance for counterfeit goods.
Q: Do you offer a warranty?
A: Yes. We offer a 90-day DOA (Dead on Arrival) warranty. If a unit fails within 90 days of receipt under normal operating conditions, we will replace or refund it. Extended warranty options are available for bulk orders.
Q: Can I request a specific date code or hardware revision?
A: Yes. Please specify your requirements at the time of inquiry. We will do our best to match your revision requirements from available stock.
Q: What if I need multiple units or a long-term supply agreement?
A: We welcome OEM, MRO, and project-based procurement partnerships. Contact us to discuss volume pricing and priority sourcing arrangements.
Q: Are you an authorized SIEMENS distributor?
A: Konmask.com is an independent specialist supplier of industrial automation components. We are not an authorized SIEMENS distributor. All products are sourced from legitimate secondary market channels and verified for authenticity before sale.
