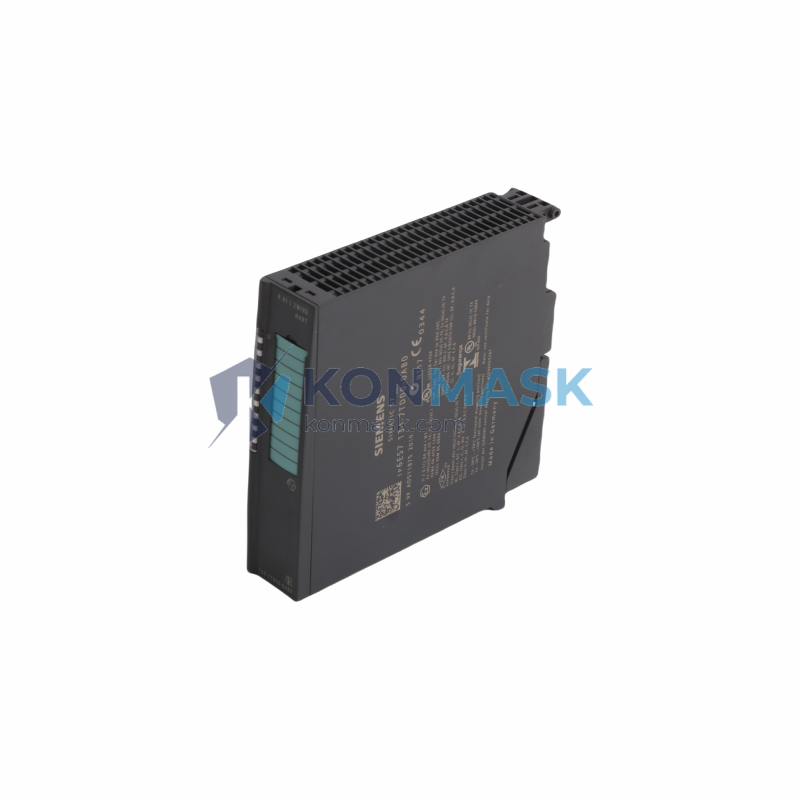

Temperature Measurement & Process Control Solution – SIEMENS 6ES7134-7TD00-0AB0 | ET 200SP Series
Where This Product Is Used
The SIEMENS 6ES7134-7TD00-0AB0 is a 4-channel analog input module for the ET 200SP distributed I/O system, purpose-built for high-precision temperature acquisition in demanding industrial environments. Engineers specify this module across a wide range of process-critical applications:
- Furnace & Kiln Temperature Control — Continuous monitoring of thermocouple signals in metallurgical furnaces, ceramic kilns, and heat-treatment chambers where ±0.1% accuracy is non-negotiable.
- Chemical & Petrochemical Plants — Reactor temperature profiling and safety interlock systems requiring IEC 61511-compliant signal acquisition.
- Food & Beverage Processing — Pasteurization and sterilization lines where FDA-traceable temperature records are mandatory.
- Pharmaceutical Manufacturing — Cleanroom HVAC and autoclave monitoring integrated into SIMATIC S7-1500 / S7-1200 control architectures.
- Power Generation — Turbine exhaust and boiler drum temperature loops feeding SCADA historian systems.
- Plastics & Rubber Extrusion — Barrel zone temperature control with fast-response thermocouple inputs for tight process windows.
Technical Specifications
| Part Number | 6ES7134-7TD00-0AB0 |
| Series | SIMATIC ET 200SP |
| Module Type | Analog Input Module (AI) |
| Number of Channels | 4 (thermocouple / RTD / resistance) |
| Supported Sensor Types | TC: J, K, E, N, T, B, R, S; RTD: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000; Resistance |
| Measurement Resolution | 16-bit |
| Conversion Time (per channel) | 27 ms (standard); 400 ms (high-accuracy mode) |
| Supply Voltage | 24 V DC (via backplane bus) |
| Current Consumption (backplane) | ≤ 70 mA |
| Dimensions (W × H × D) | 15 mm × 73 mm × 58 mm |
| Weight | approx. 50 g (module only) |
| Operating Temperature | -30 °C to +60 °C |
| Protection Class | IP20 |
| Mounting | ET 200SP BaseUnit BU type A0 (e.g., 6ES7193-6BP00-0BA0) |
| Firmware | V1.0 and above |
| MLFB | 6ES7134-7TD00-0AB0 |
Why Engineers Specify This Model
- Universal Sensor Compatibility — A single module handles thermocouples, RTDs, and resistance sensors, reducing spare-parts inventory and simplifying BOM management.
- Compact 15 mm Pitch — ET 200SP’s ultra-slim form factor maximizes channel density in space-constrained control cabinets.
- Integrated Cold-Junction Compensation — On-board CJC eliminates external compensation hardware for thermocouple inputs.
- Seamless TIA Portal Integration — Plug-and-play configuration in STEP 7 / TIA Portal V13 SP1 and above; no manual parameter entry required.
- Diagnostics & Wire-Break Detection — Channel-level diagnostics with wire-break and overrange/underrange alarms reduce MTTR during commissioning and production.
- Hot-Swap Capable — Modules can be replaced under power without shutting down the ET 200SP station, maximizing plant uptime.
Complete System Bill of Materials
A typical ET 200SP temperature acquisition station requires the following components:
- Interface Module — e.g., 6ES7155-6AU01-0BN0 (PROFINET) or 6ES7155-6BA01-0BN0 (PROFIBUS)
- BaseUnit — 6ES7193-6BP00-0BA0 (BU type A0, light-colored) — one per AI module
- AI Module — 6ES7134-7TD00-0AB0 (this item)
- Server Module — 6ES7193-6PA00-0AA0 (terminates the ET 200SP station)
- 24 V DC Power Supply — e.g., SITOP PSU100S 6EP1334-2BA20
- DIN Rail — 35 mm standard rail, minimum 160 mm per station
Compliance & Industry Standards
- CE Marking — EU Low Voltage Directive & EMC Directive
- UL / cUL Listed
- IEC 61131-2 (Programmable Controllers — Equipment Requirements)
- IEC 61000-4 (EMC Immunity)
- ATEX / IECEx — consult Siemens for zone-specific variants
- RoHS 2 Compliant
- REACH Compliant
Quality Assurance & Sourcing
Every 6ES7134-7TD00-0AB0 unit shipped by Konmask.com undergoes a multi-point verification process:
- Visual inspection against Siemens OEM packaging standards (holographic label, date code, firmware sticker)
- Functional power-on test with SIMATIC ET 200SP test rig
- Traceability documentation available upon request (batch number, country of manufacture)
- Sourced from authorized distribution channels and verified surplus stock — no counterfeit risk
- 30-day return policy; 12-month warranty against manufacturing defects
How to Source This Part
Ready to order or need a formal quotation for your procurement team?
- Online Order — Add to cart and check out directly at Konmask.com
- RFQ / Bulk Pricing — Email support@konmask.com with your quantity and required delivery date
- Phone / WhatsApp — +0086 19859288691 (Mon–Sat, 09:00–18:00 CST)
- Lead Time — In-stock units ship within 1–3 business days; EXW Xiamen, China
- Export Documentation — Commercial invoice, packing list, and CO available for international shipments
Application-Specific FAQ
Q: Can the 6ES7134-7TD00-0AB0 be used with a SIMATIC S7-1200 CPU?
A: Yes. The ET 200SP system connects to S7-1200 via PROFINET. The AI module is fully supported in TIA Portal V13 SP1 and later.
Q: How many 6ES7134-7TD00-0AB0 modules can be installed in one ET 200SP station?
A: Up to 32 I/O modules per station (subject to backplane bus current budget). Consult the ET 200SP system manual (6ES7151-8FB01-8AB0) for detailed power calculations.
Q: Is cold-junction compensation automatic for thermocouple inputs?
A: Yes. The module includes an integrated CJC sensor. No external compensation terminal block is required.
Q: What BaseUnit color code is required for this module?
A: Light-colored BaseUnit (BU type A0), e.g., 6ES7193-6BP00-0BA0. Dark BaseUnits are not compatible with analog modules.
Q: Can channels be individually configured for different sensor types?
A: Yes. Each of the 4 channels is independently configurable for TC type, RTD type, or resistance measurement via TIA Portal parameter assignment.
