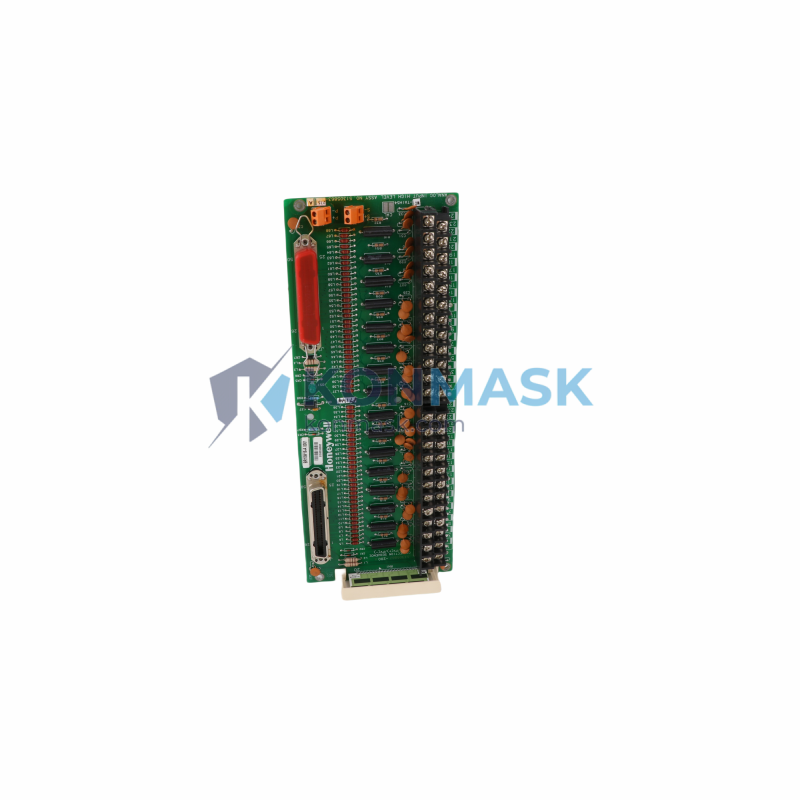

Honeywell MC-TAIH54 (51305863-275) – Analog Input High-Level Thermocouple Module | Experion PKS / TPS DCS Platform
Engineering Background
The Honeywell MC-TAIH54 (Part No. 51305863-275) is a high-density analog input module engineered for thermocouple and high-level millivolt signal acquisition within Honeywell’s TotalPlant Solution (TPS) and Experion PKS distributed control system architectures. Designed to operate within the Process Manager I/O (PM I/O) subsystem, this module delivers precision multi-channel temperature measurement with cold-junction compensation, making it a cornerstone component in refinery, petrochemical, and power generation control loops.
Product Positioning
As a certified OEM replacement and spare part, the MC-TAIH54 is sourced and verified by Konmask.com to meet original Honeywell factory specifications. It is the preferred choice for maintenance engineers seeking a drop-in replacement that eliminates re-engineering costs and minimizes plant downtime.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | MC-TAIH54 / 51305863-275 |
| Module Type | Analog Input – High-Level Thermocouple |
| Compatible Platform | Honeywell Experion PKS, TPS (TotalPlant Solution) |
| Subsystem | Process Manager I/O (PM I/O) |
| Number of Channels | Up to 40 channels (multiplexed) |
| Input Signal Types | Thermocouple (J, K, T, E, R, S, B, N types), mV high-level |
| Cold Junction Compensation | Automatic, internal reference |
| Input Range | -100 mV to +100 mV (thermocouple); configurable per channel |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% of full scale (typical) |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Power Supply | Supplied via PM I/O backplane (24 VDC bus) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | 520 g (approx.) |
| Country of Origin | United States |
| HS Code | 853710 |
| Compliance | CE, UL, FM (Class I, Div. 2) |
Proven Application Environments
- Oil & Gas Refining: Crude distillation unit temperature profiling across multiple thermocouple zones
- Petrochemical Plants: Reactor temperature monitoring with redundant measurement loops
- Power Generation: Boiler and turbine exhaust gas temperature acquisition
- Pulp & Paper: Dryer section temperature control integrated with Experion PKS supervisory layer
- Pharmaceutical Manufacturing: Validated temperature logging in GMP-compliant batch processes
- LNG Terminals: Cryogenic zone monitoring with extended thermocouple type support
Engineering Advantages
- High Channel Density: Up to 40 multiplexed thermocouple inputs per module slot — reduces cabinet footprint and wiring complexity
- Universal TC Type Support: Configurable per channel via Experion Control Builder; no hardware jumpers required
- Automatic Cold Junction Compensation: Eliminates external reference junction hardware, improving measurement accuracy in variable ambient conditions
- Hot-Swap Capable: Supports online replacement within PM I/O chassis without process shutdown (with redundant configuration)
- Diagnostics & HART Transparency: Built-in open-wire detection and channel-level fault reporting to Experion operator station
- Backward Compatibility: Direct replacement for legacy TPS PM I/O installations; no firmware upgrade required in most configurations
System Architecture & Signal Flow
The MC-TAIH54 installs into a standard Honeywell PM I/O chassis and communicates over the proprietary I/O Link bus to the Process Manager (PM) controller card. Signal flow is as follows:
- Field thermocouple wires terminate at the module’s field termination assembly (FTA) or marshalling cabinet
- Multiplexer sequentially samples each channel at the configured scan rate
- 16-bit ADC converts the millivolt signal with cold-junction compensation applied
- Linearized engineering-unit value transmitted over I/O Link to PM controller
- PM controller executes configured control strategy (PID, cascade, ratio) and reports to Experion server
- Operator station displays real-time trend and alarm status via Experion HMI
Sourcing & Quality Verification
Every MC-TAIH54 unit supplied by Konmask.com undergoes the following verification process before shipment:
- ✅ Visual Inspection: PCB, connector pins, and housing checked for physical damage or counterfeit indicators
- ✅ Label & Firmware Verification: Part number, revision level, and date code confirmed against Honeywell documentation
- ✅ Functional Bench Test: Power-on self-test (POST) and channel continuity verified where test equipment is available
- ✅ Anti-Static Packaging: Shipped in ESD-safe bags with foam cushioning and moisture barrier
- ✅ Traceability Documentation: Certificate of conformance and inspection report available upon request
Procurement Process
- Confirm Part Number: Verify MC-TAIH54 and revision suffix 51305863-275 match your existing system BOM
- Request Quote: Contact support@konmask.com with quantity, required delivery date, and destination port
- Order Confirmation: Pro-forma invoice issued within 24 hours; payment via T/T, PayPal, or trade assurance
- Shipment: DHL / FedEx express (3–7 business days) or sea freight for bulk orders; tracking number provided
- Incoming Inspection: Recommended to perform incoming QC against supplied documentation before installation
Technical FAQ
Q: Is the MC-TAIH54 compatible with Experion R500 and later releases?
A: Yes. The module is backward compatible with Experion PKS R400 through R500+ when used within a PM I/O chassis. Consult Honeywell release notes for any firmware dependencies.
Q: Can this module replace the MC-TAIH52 or MC-TAIH51?
A: The MC-TAIH54 is a higher-density variant. Physical form factor is identical, but channel count and firmware configuration differ. Verify compatibility with your PM controller revision before substitution.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. For out-of-stock items, typical lead time is 2–4 weeks depending on sourcing channel.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all modules. Extended warranty options are available upon request.
Q: Can I return a module if it does not fit my system?
A: Returns are accepted within 30 days of receipt for unused, unopened modules in original packaging. Contact support@konmask.com to initiate an RMA.
