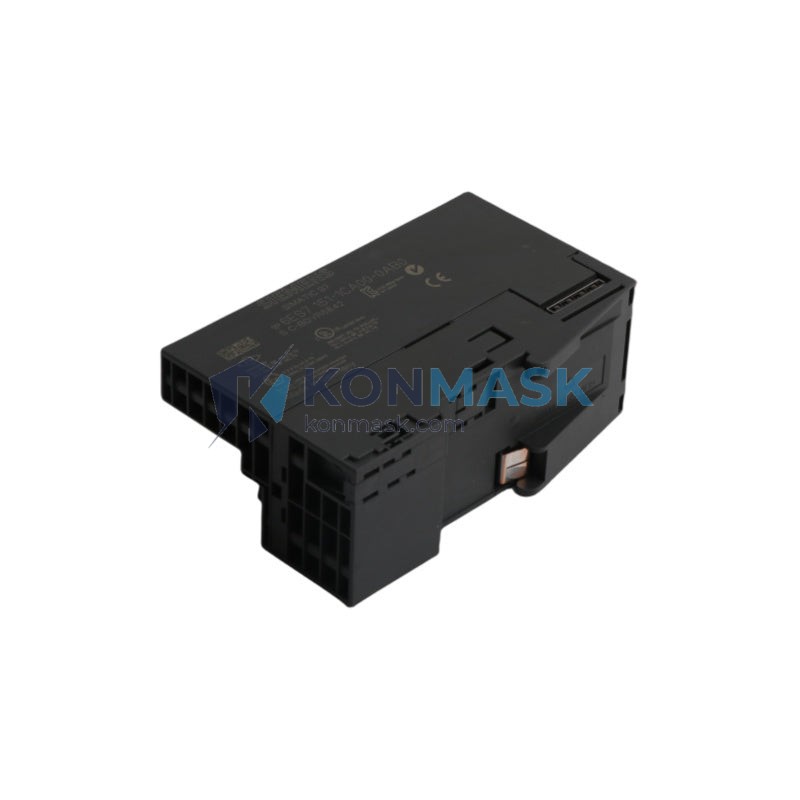

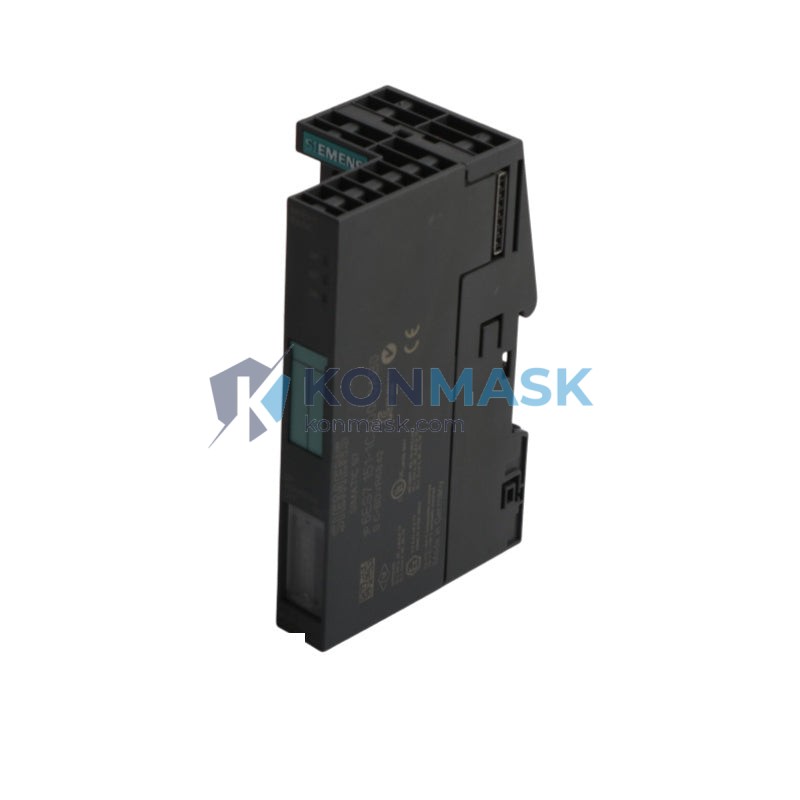

SIEMENS 6ES7151-1CA00-0AB0 – IM 151-1 Standard Interface Module | SIMATIC ET 200S PROFIBUS DP
The SIEMENS 6ES7151-1CA00-0AB0 is the IM 151-1 Standard Interface Module for the SIMATIC ET 200S distributed I/O system. Designed for procurement engineers and system integrators who demand deterministic fieldbus communication, this module serves as the PROFIBUS DP slave head station for ET 200S terminal blocks, enabling modular, high-density I/O expansion at the machine level.
Product Positioning: The IM 151-1 (6ES7151-1CA00-0AB0) is the entry-level standard interface module in the ET 200S family, optimized for cost-sensitive applications requiring reliable PROFIBUS DP connectivity without isochronous or high-speed extensions. It is the preferred choice for OEM machine builders and panel integrators standardizing on SIMATIC S7-300/S7-400/S7-1500 architectures.
Complete Technical Specifications
- Part Number / SKU: 6ES7151-1CA00-0AB0
- Module Type: IM 151-1 Standard Interface Module
- Platform / Series: SIMATIC ET 200S
- Fieldbus Protocol: PROFIBUS DP (Slave)
- PROFIBUS DP Transfer Rate: 9.6 kbps – 12 Mbps (auto-detect)
- Max. I/O Modules per Station: 63 modules
- Max. I/O Data: 244 bytes input / 244 bytes output
- Supply Voltage: DC 24 V (via bus terminal module)
- Current Consumption (backplane bus): ≤ 100 mA at 5 V DC
- Current Consumption (24 V supply): ≤ 100 mA
- Dimensions (W × H × D): 30 × 81 × 52 mm
- Weight: approx. 120 g
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Degree of Protection: IP20
- Mounting: S7-200 / ET 200S terminal module (TM-IM/IM)
- Country of Origin: Germany
- MLFB / Order Number: 6ES7151-1CA00-0AB0
- Firmware: Compatible with STEP 7 V5.x and TIA Portal
- Certifications: CE, UL, cULus, ATEX (Zone 2), FM, C-Tick
Proven Application Environments
- Automotive Assembly Lines: Distributed I/O for body-in-white welding cells and conveyor control panels using S7-300/S7-400 PLCs.
- Packaging Machinery: High-module-count ET 200S stations for servo drive enable signals, sensor inputs, and pneumatic valve outputs.
- Process Industry Panels: PROFIBUS DP slave stations in chemical, pharmaceutical, and food & beverage plants requiring IP20 cabinet-mounted I/O.
- Machine Tool Control: CNC auxiliary I/O expansion via ET 200S with PROFIBUS DP master on SINUMERIK or S7-300 CPU.
- Building Automation & Infrastructure: Distributed field I/O for HVAC, pump control, and energy management systems.
- OEM Panel Builders: Standard head station for modular ET 200S I/O racks in custom control cabinets.
Engineering Advantages
- Plug-and-Play PROFIBUS DP Slave: Auto-detects baud rate from 9.6 kbps to 12 Mbps — no manual DIP switch configuration required for baud rate.
- High Module Density: Supports up to 63 ET 200S I/O modules per station, maximizing cabinet space utilization.
- Hot-Swap Ready: ET 200S architecture supports module replacement under power (with appropriate terminal modules), minimizing downtime.
- Seamless TIA Portal & STEP 7 Integration: GSD file available; fully supported in HW Config and TIA Portal device catalog.
- Compact Form Factor: 30 mm width enables high-density I/O station design in space-constrained enclosures.
- Wide Certification Coverage: CE, UL, ATEX Zone 2 — suitable for global machine export and hazardous area panel installations.
System Architecture & Signal Flow

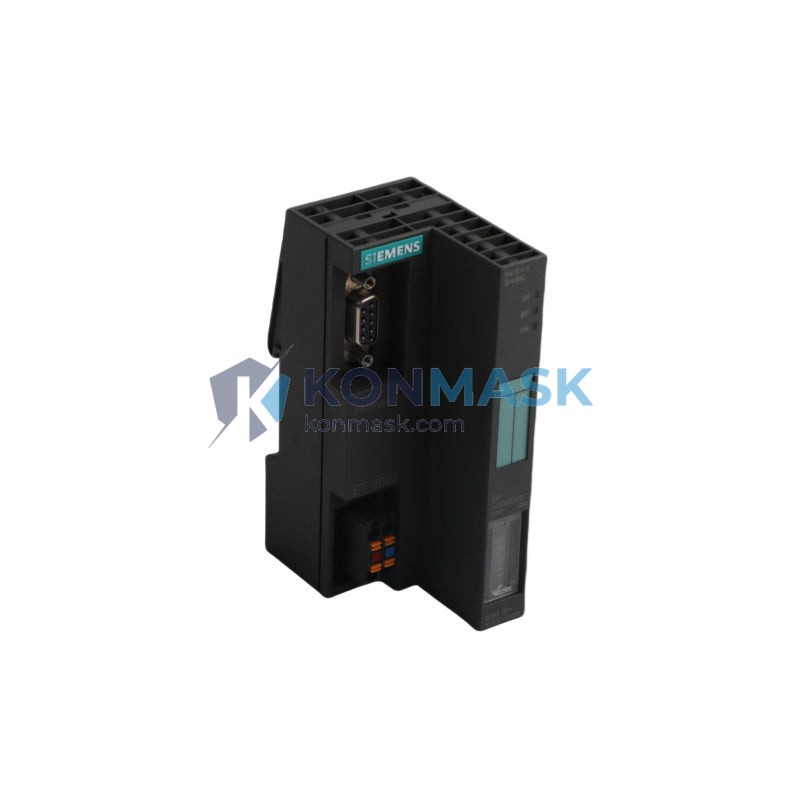

The 6ES7151-1CA00-0AB0 mounts on a dedicated TM-IM/IM terminal module (order: 6ES7193-4CA20-0AA0) at the leftmost position of the ET 200S station. The PROFIBUS DP network cable connects via the integrated 9-pin Sub-D connector on the IM 151-1. The module communicates with the PROFIBUS DP master (e.g., CP 342-5, S7-300 CPU with integrated DP, or S7-1500 CM 1542-5) and manages cyclic data exchange with all downstream ET 200S I/O modules via the internal backplane bus. Power is supplied through the PM-E power module (e.g., 6ES7138-4CA01-0AA0) inserted adjacent to the IM.
Typical Station Build: TM-IM/IM → IM 151-1 (6ES7151-1CA00-0AB0) → PM-E Power Module → Digital/Analog I/O Modules (up to 63) → End Cover
Sourcing & Quality Verification
- Origin: Genuine SIEMENS product, manufactured in Germany.
- Condition: New / Refurbished / Tested — specify requirement at inquiry.
- Traceability: Each unit ships with original SIEMENS labeling, date code, and firmware version visible on the housing label.
- Inspection: All units undergo functional power-on verification and visual inspection prior to dispatch.
- Packaging: Anti-static ESD bag + foam-lined carton; original SIEMENS packaging where available.
- Documentation: SIEMENS product datasheet and EU Declaration of Conformity available on request.
Procurement Process
- Submit RFQ: Contact support@konmask.com with quantity, required condition (new/refurbished), and delivery timeline.
- Quotation: Receive itemized quote with unit price (HKD/USD), lead time, and shipping options within 24 business hours.
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing.
- Quality Check & Dispatch: Unit inspected, photographed, and dispatched with tracking number via DHL / FedEx / SF Express.
- After-Sales Support: Technical support available post-delivery for integration questions and warranty claims.
Technical FAQ
Q: Is the 6ES7151-1CA00-0AB0 compatible with S7-1500 PROFIBUS DP masters?
A: Yes. The IM 151-1 operates as a standard PROFIBUS DP slave and is fully compatible with any DP master, including S7-1500 with CM 1542-5 or CB 1542-5 communication modules.
Q: What is the difference between 6ES7151-1CA00-0AB0 and 6ES7151-1BA02-0AB0?
A: The -1CA00 is the standard IM 151-1 without isochronous mode support. The -1BA02 supports isochronous PROFIBUS DP for motion control applications. Choose -1CA00 for standard I/O applications.
Q: Can I replace the IM 151-1 without removing the terminal module?
A: Yes. The IM 151-1 separates from the TM-IM/IM terminal module, allowing replacement without rewiring field connections.
Q: What GSD file is required for STEP 7 HW Config?
A: Use GSD file SI008F10.GSD (or the TIA Portal HSP for ET 200S). Available from the SIEMENS Industry Online Support portal or on request from Konmask.
Q: What is the maximum PROFIBUS DP cable length with this module?
A: At 12 Mbps, maximum segment length is 100 m. At 1.5 Mbps, up to 200 m. At 93.75 kbps, up to 1200 m per segment (with repeaters for longer runs).
