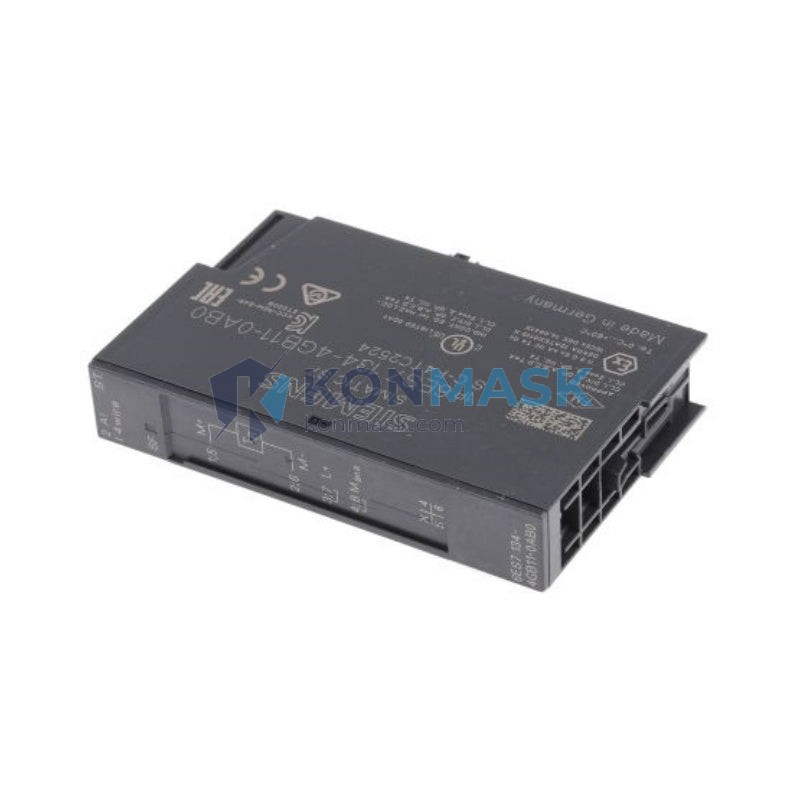

Process Automation & Field I/O Solution — Siemens 6ES7134-4GB11-0AB0 | ET 200S Series
Where This Product Is Used
The Siemens 6ES7134-4GB11-0AB0 is a 2-channel analog input electronics module designed for the ET 200S distributed I/O system. It is widely deployed in demanding industrial environments where precise current-loop signal acquisition is critical:
- Process Plants & Chemical Facilities — Reads 4–20 mA signals from flow transmitters, pressure sensors, and level gauges in continuous process loops.
- Water & Wastewater Treatment — Interfaces with 2-wire transmitters monitoring pump pressure, tank levels, and dosing flow rates.
- Oil & Gas Upstream/Midstream — Acquires field instrument signals in remote terminal units (RTUs) and distributed control panels.
- Automotive & Assembly Lines — Monitors torque, force, and position transducers in precision manufacturing cells.
- Building Automation & HVAC — Integrates with 2-wire temperature and pressure transmitters in BMS architectures.
- Food & Beverage Processing — Captures analog signals from hygienic sensors in CIP/SIP-compatible control cabinets.
Technical Specifications
| Part Number | 6ES7134-4GB11-0AB0 |
| Series | SIMATIC ET 200S |
| Module Type | Electronics Module — Analog Input |
| Number of Channels | 2 AI (Analog Input) |
| Sensor Connection | 2-wire transmitter |
| Measuring Range | 4–20 mA (current input) |
| Resolution | 13-bit + sign |
| Conversion Time | ≥ 6 ms per channel |
| Supply Voltage (L+) | 24 V DC |
| Current Consumption | Max. 60 mA from backplane bus |
| Isolation | Galvanically isolated from backplane bus |
| Dimensions (W×H×D) | 15 × 81 × 52 mm |
| Weight | Approx. 50 g (module only) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Degree of Protection | IP20 |
| Mounting | Plugs into ET 200S terminal module (TM-E) |
| Compatible Interface Module | IM 151-x series |
Why Engineers Specify This Model
- 2-Wire Transmitter Ready — Directly powers and reads 2-wire (loop-powered) 4–20 mA field devices without external power supplies, simplifying wiring.
- High-Density Distributed I/O — ET 200S modular architecture allows mixing analog and digital modules in a single station, reducing panel footprint.
- Galvanic Isolation — Protects the PROFIBUS/PROFINET network from ground loops and field-side transients common in industrial environments.
- Hot-Swap Capable — Electronics module can be replaced without removing field wiring from the terminal module, minimizing downtime.
- Seamless TIA Portal Integration — Fully supported in STEP 7 and TIA Portal V13+, with pre-configured hardware catalog entries for rapid commissioning.
- Proven Field Reliability — Part of Siemens’ long-lifecycle ET 200S platform with global installed base across millions of I/O points.
Complete System Bill of Materials
To build a functional ET 200S analog input station, the following components are typically required:
- 6ES7134-4GB11-0AB0 — This electronics module (2AI, 2-wire, 4–20 mA)
- 6ES7193-4CA40-0AA0 — Terminal Module TM-E15S24-A1 (required carrier for this electronics module)
- 6ES7151-1BA02-0AB0 — IM 151-1 Standard Interface Module (PROFIBUS DP)
- 6ES7138-4CA01-0AA0 — PM-E 24 VDC Power Module for ET 200S
- 6ES7193-4GA00-0AA0 — End Module for ET 200S station
- 24 VDC DIN-rail power supply (e.g., Siemens SITOP PSU100S)
- PROFIBUS DP cable and connectors (or PROFINET patch cable for PN variants)
Compliance & Industry Standards
- CE Marking — EU Low Voltage Directive & EMC Directive compliant
- UL Listed — UL 508 (Industrial Control Equipment)
- IEC 61131-2 — Programmable Controllers: Equipment Requirements & Tests
- PROFIBUS DP — IEC 61158 / EN 50170 fieldbus standard
- RoHS Compliant — Restriction of Hazardous Substances Directive 2011/65/EU
- ATEX / IECEx — Suitable for use in Zone 2 hazardous areas when installed per Siemens guidelines (verify with project-specific documentation)
Quality Assurance & Sourcing
At Konmask.com, every unit of the 6ES7134-4GB11-0AB0 undergoes a structured verification process before dispatch:
- Authenticity Check — Visual inspection of Siemens holographic labels, date codes, and factory markings.
- Functional Pre-Test — Bench-tested on an ET 200S rack with live 4–20 mA signal injection to verify channel accuracy and communication.
- Packaging Integrity — Anti-static ESD packaging with humidity indicator cards for long-distance shipping.
- Traceability — Batch records maintained for all stocked units; certificates of conformity available on request.
- Warranty — 12-month replacement warranty against manufacturing defects.
How to Source This Part
Konmask.com maintains ready stock of the Siemens 6ES7134-4GB11-0AB0 for immediate dispatch. To place an order or request a quote:
- Online — Add to cart directly on this page. Secure checkout with T/T, PayPal, and major credit cards accepted.
- Email RFQ — Send your BOM or purchase order to support@konmask.com for volume pricing and lead-time confirmation.
- Phone / WhatsApp — Call or message +0086 19859288691 for urgent requirements and expedited shipping options.
- Bulk Orders — Discounts available for quantities ≥ 5 units. Contact us for a formal quotation.
Application-Specific FAQ
Q: Can the 6ES7134-4GB11-0AB0 read 0–20 mA signals?
A: No. This model is factory-configured for 4–20 mA (2-wire) only. For 0–20 mA or voltage inputs, specify the 6ES7134-4FB01-0AB0 (4AI U/I) variant instead.
Q: Which terminal module is required?
A: This electronics module requires a TM-E type terminal module. The standard pairing is 6ES7193-4CA40-0AA0 (TM-E15S24-A1). Verify compatibility with your ET 200S station layout before ordering.
Q: Is this module compatible with PROFINET?
A: The 6ES7134-4GB11-0AB0 electronics module is fieldbus-agnostic — it connects to the ET 200S backplane. PROFIBUS or PROFINET connectivity is determined by the interface module (IM 151-x) selected for the station.
Q: Can I replace this module while the station is powered (hot-swap)?
A: Yes. The ET 200S electronics module design supports hot-swap replacement. Field wiring remains on the terminal module; only the electronics module is removed and replaced.
Q: What is the maximum cable length for 2-wire transmitters?
A: Siemens specifies a maximum loop resistance of 600 Ω. Cable length depends on wire gauge; for 0.5 mm² cable, this typically allows runs up to 200 m. Consult the module manual (A5E00085586) for full derating curves.
Q: Do you provide the Siemens manual or datasheet?
A: Yes. Contact us at support@konmask.com and we will provide the official Siemens product datasheet and installation manual for the 6ES7134-4GB11-0AB0.
