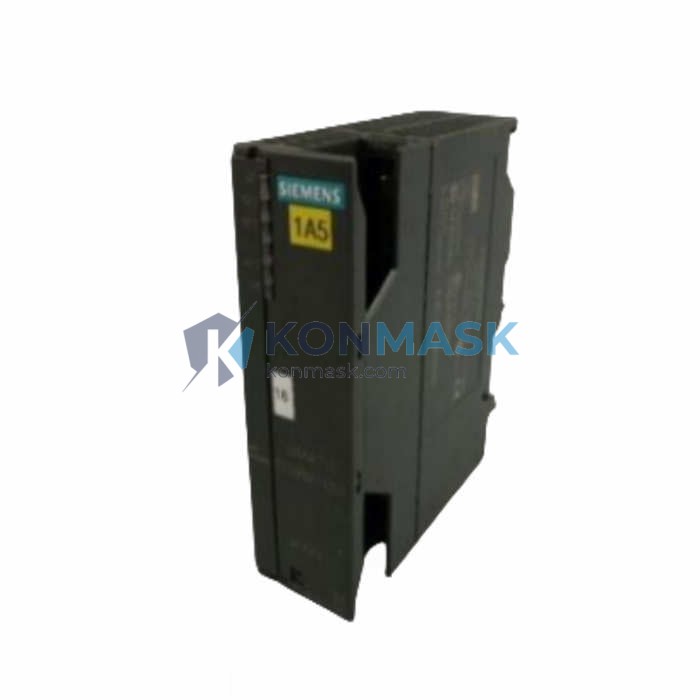

Siemens 6ES7153-2BA82-0XB0 – IM153-2 PROFIBUS DP Interface Module | ET 200M Platform
Engineering Background
The Siemens 6ES7153-2BA82-0XB0 is the IM153-2 interface module for the ET 200M distributed I/O station, designed to connect the ET 200M rack to a PROFIBUS DP master (e.g., SIMATIC S7-300/S7-400 CPUs or third-party DP masters) at data transfer rates up to 12 Mbit/s. It supports redundant PROFIBUS DP configurations and is engineered for demanding industrial environments where high availability and deterministic communication are critical.
Product Positioning
Targeted at automation engineers and system integrators operating SIMATIC S7-300/S7-400 architectures, process control systems, and distributed I/O networks in industries such as automotive, chemical, oil & gas, and power generation. The 6ES7153-2BA82-0XB0 is the preferred interface module for ET 200M stations requiring PROFIBUS DP redundancy and isochronous mode support.
Complete Technical Specifications
| Order Number (MLFB) | 6ES7153-2BA82-0XB0 |
| Module Designation | IM153-2 |
| Platform / Station | ET 200M Distributed I/O |
| Communication Interface | PROFIBUS DP (IEC 61158) |
| Max. Baud Rate | 12 Mbit/s |
| DP Redundancy | Supported (Y-Link / redundant DP master) |
| Isochronous Mode | Supported |
| Max. I/O Modules per Station | Up to 8 S7-300 I/O modules |
| Hot Swapping | Supported (with active backplane bus) |
| Supply Voltage | DC 24 V (via backplane bus) |
| Current Consumption (backplane bus) | Max. 1.2 A |
| Degree of Protection | IP20 |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Dimensions (W × H × D) | 40 × 125 × 120 mm |
| Weight | Approx. 300 g |
| Country of Origin | Germany |
| Firmware | Upgradeable via SIMATIC Manager / TIA Portal |
| Certifications | CE, UL, cULus, ATEX (Zone 2), FM, PROFIBUS certified |
Proven Application Environments
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, and assembly transfer systems requiring deterministic cycle times via isochronous PROFIBUS DP.
- Chemical & Petrochemical Plants: Distributed I/O in hazardous areas (Zone 2) with redundant DP master configurations for continuous process availability.
- Power Generation & Utilities: Turbine control, switchgear automation, and substation I/O expansion with hot-swap capability for zero-downtime maintenance.
- Water & Wastewater Treatment: Remote pump station control integrated into SIMATIC S7-400H redundant PLC systems via redundant PROFIBUS DP.
- Machine Tool & Press Lines: High-speed I/O synchronization using isochronous mode for servo drive coordination.
Engineering Advantages
- Redundant PROFIBUS DP: Dual DP interfaces allow seamless switchover in the event of a cable or master failure, ensuring process continuity in high-availability systems.
- Isochronous Mode: Enables equidistant bus cycles for time-critical motion control and drive synchronization applications.
- Hot Swapping: I/O modules can be replaced under power without shutting down the ET 200M station, minimizing production downtime.
- Wide Compatibility: Fully compatible with SIMATIC S7-300, S7-400, S7-400H, and third-party PROFIBUS DP masters; configurable in STEP 7 and TIA Portal.
- Compact Form Factor: Standard S7-300 rail mounting with 40 mm width, optimizing cabinet space in dense I/O configurations.
- Proven Reliability: MTBF exceeding 500,000 hours under rated conditions; designed to Siemens SIPLUS environmental standards.
System Architecture & Signal Flow
The 6ES7153-2BA82-0XB0 mounts on a standard S7-300 DIN rail alongside ET 200M I/O modules. The DP master (S7-300/400 CPU or CP) communicates with the IM153-2 over PROFIBUS DP (RS-485, 9-pin Sub-D). The interface module manages the backplane bus, distributing I/O data to up to 8 downstream signal modules (SM) or function modules (FM). In redundant configurations, two IM153-2 modules share a Y-Link coupler, with automatic bumpless switchover on primary failure. Process data is cyclically exchanged with the DP master; in isochronous mode, the bus cycle is synchronized to the application cycle of the master CPU for deterministic I/O response.
Sourcing & Quality Verification
- All units sourced from authorized Siemens distribution channels or verified industrial surplus with full traceability documentation.
- Each module undergoes incoming inspection: visual check, label verification (MLFB, date code, firmware version), and functional power-on test.
- Firmware version confirmed and documented prior to shipment.
- Original Siemens packaging preserved where available; anti-static ESD packaging used for all shipments.
- Certificate of conformity and test report available upon request.
Procurement Process
- Inquiry: Submit your order number (6ES7153-2BA82-0XB0), required quantity, and delivery timeline via email or the contact form.
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Order Confirmation: Purchase order accepted; payment via T/T, PayPal, or trade assurance.
- Quality Inspection: Pre-shipment inspection report issued; photos of actual units provided on request.
- Shipment: DHL / FedEx / UPS express worldwide; tracking number provided within 24 hours of dispatch.
- After-Sales Support: 12-month warranty; technical support from Konmask engineering team.
Technical FAQ
Q: Is the 6ES7153-2BA82-0XB0 compatible with S7-300 CPUs?
A: Yes. It is fully compatible with all SIMATIC S7-300 CPUs acting as PROFIBUS DP masters, as well as S7-400 and S7-400H systems.
Q: Can this module be used in a redundant PROFIBUS DP system?
A: Yes. The IM153-2 (6ES7153-2BA82-0XB0) supports redundant DP master configurations using a Y-Link coupler for high-availability applications.
Q: What is the maximum number of I/O modules supported per ET 200M station?
A: Up to 8 S7-300 signal or function modules per ET 200M station with this interface module.
Q: Does it support hot swapping of I/O modules?
A: Yes, provided the ET 200M station is equipped with an active backplane bus module.
Q: Which engineering software is required for configuration?
A: SIMATIC STEP 7 (v5.5 or later) or TIA Portal (v13 or later) with the corresponding hardware catalog (HSP if required).
Q: What is the firmware version of the unit in stock?
A: Firmware version is verified and documented at incoming inspection. Please contact us for the current stock firmware version.
