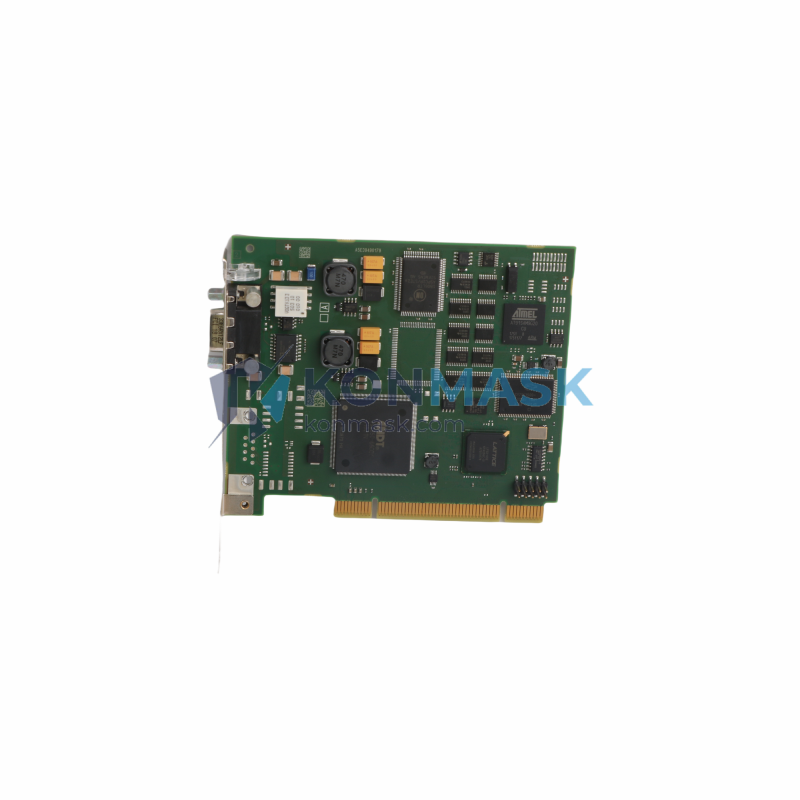

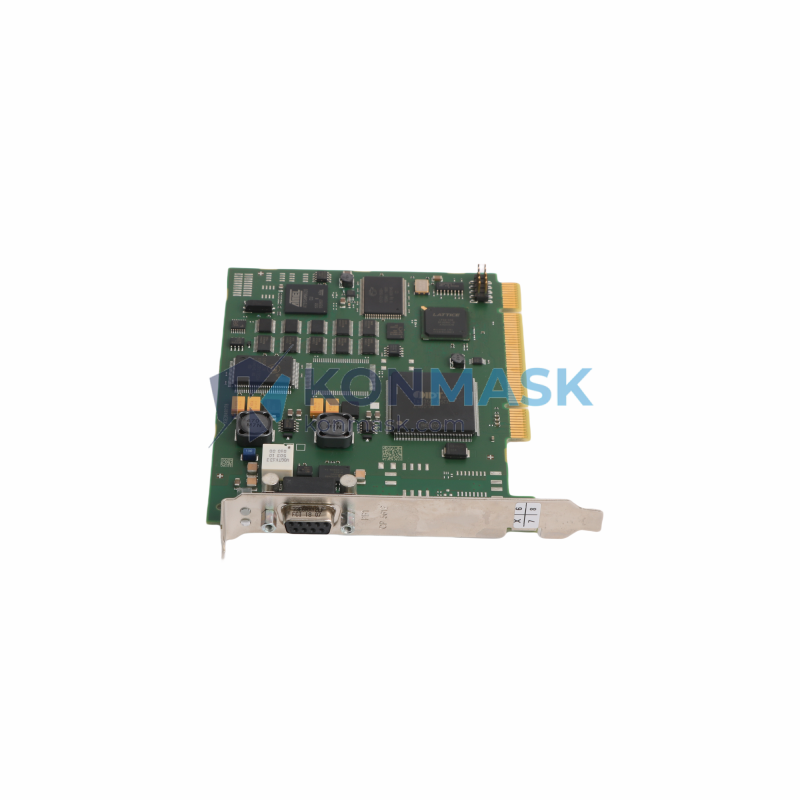

PROFIBUS/MPI Industrial Networking Solution – SIEMENS 6GK1561-2AA00 | CP 5612 A2
Where This Product Is Used
The SIEMENS CP 5612 A2 (6GK1561-2AA00) is a PCIe-based communication processor engineered for demanding industrial environments where a PC or server must participate directly in PROFIBUS DP or MPI networks. Typical deployment scenarios include:
- Automotive Assembly Lines – Connects supervisory PCs to SIMATIC S7 PLCs controlling robotic welding cells and conveyor systems via PROFIBUS DP.
- Process Plant SCADA Stations – Integrates engineering workstations into MPI segments for live parameter monitoring and program upload/download in chemical and petrochemical plants.
- Machine Tool & CNC Environments – Provides a high-speed, deterministic link between CNC controllers and SIMATIC-based safety PLCs on the shop floor.
- Water & Wastewater Treatment – Enables operator stations to communicate with distributed PROFIBUS DP field devices (drives, valves, sensors) across large plant footprints.
- Power Generation & Utilities – Supports real-time data acquisition from PROFIBUS-connected protection relays and energy meters into historian servers.
- Building Automation & HVAC – Links BMS servers to SIMATIC ET 200 distributed I/O stations for centralized monitoring of HVAC, lighting, and access control.
Technical Specifications
| Part Number | 6GK1561-2AA00 |
| Firmware / HW Revision | A5E39492452-AA |
| Series | CP 5612 A2 |
| Form Factor | PCIe x1 (Low Profile) |
| Supported Protocols | PROFIBUS DP (Master/Slave), MPI |
| Max. PROFIBUS Baud Rate | 12 Mbit/s |
| Interface | 9-pin Sub-D (RS-485) |
| Operating System Support | Windows 10/11 (64-bit), Windows Server 2016/2019/2022 |
| Software | STEP 7, TIA Portal, SIMATIC NET (CP 5612 driver package) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Power Consumption | ≤ 3.5 W |
| Dimensions (L × H) | 167.6 mm × 68.9 mm (Low Profile bracket included) |
| Weight | approx. 100 g |
| Certifications | CE, UL, cUL, RCM |
Why Engineers Specify This Model
- Native SIMATIC NET Integration – Works seamlessly with STEP 7 and TIA Portal without third-party middleware, reducing commissioning time.
- Full 12 Mbit/s PROFIBUS DP Speed – Supports the highest standard baud rate, ensuring cycle-time compatibility with fast I/O devices and drives.
- PCIe x1 Low-Profile Form Factor – Fits both full-height and low-profile industrial PCs and rack servers; includes both bracket types.
- Dual Protocol Support (DP + MPI) – A single card covers both PROFIBUS DP field-level communication and MPI programming/monitoring, eliminating the need for a separate programming adapter.
- Proven Long-Term Availability – Established SIEMENS catalog item with documented hardware revision (A5E39492452-AA), simplifying spare-parts planning and lifecycle management.
- Deterministic Real-Time Performance – Offloads PROFIBUS protocol processing from the host CPU, ensuring consistent cycle times even under high PC load.
Complete System Bill of Materials
For a fully operational PROFIBUS DP master station based on this card, engineers typically specify:
- SIEMENS 6GK1561-2AA00 – CP 5612 A2 PCIe Communication Processor (this item)
- SIEMENS 6GK1900-0AB00-0AA0 – PROFIBUS bus connector (90° cable exit, 12 Mbit/s rated)
- SIEMENS 6XV1830-0EH10 – PROFIBUS DP standard cable (sold per meter)
- SIMATIC NET CD / TIA Portal SIMATIC NET license – CP 5612 driver and configuration software
- Industrial PC with PCIe x1 slot (e.g., SIEMENS IPC427E / IPC547G or equivalent)
- SIMATIC S7-300/400 or ET 200 DP slave devices (application-dependent)
Compliance & Industry Standards
- IEC 61158 / EN 50170 – PROFIBUS standard
- CE Marking – EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- UL 508 / cUL – Industrial Control Equipment (North America)
- RCM – Australian/New Zealand EMC compliance
- RoHS 2 (2011/65/EU) – Restriction of Hazardous Substances compliant
- REACH – No substances of very high concern above threshold
Quality Assurance & Sourcing
Konmask.com sources the SIEMENS 6GK1561-2AA00 exclusively through authorized industrial distribution channels and verified OEM surplus networks. Every unit undergoes the following before dispatch:
- Visual inspection for physical damage, corrosion, and counterfeit indicators
- Label and firmware revision verification against SIEMENS factory records (A5E39492452-AA)
- Anti-static packaging with humidity indicator card
- Batch traceability documentation available on request
We do not sell gray-market, refurbished-as-new, or unverified product. All items ship with a Konmask quality inspection certificate.
How to Source This Part
- Request a Quote – Email support@konmask.com with your required quantity and delivery timeline.
- Phone / WhatsApp – Call or message +0086 19859288691 for urgent requirements.
- Add to Cart – In-stock units ship within 1–3 business days; lead time for sourced units is quoted individually.
- Bulk / Project Orders – Volume pricing available for orders of 5+ units. Contact us for a project BOM review.
Application-Specific FAQ
Q: Can the CP 5612 A2 operate as a PROFIBUS DP slave?
A: Yes. The card supports both DP master (Class 1 & 2) and DP slave modes, configurable via SIMATIC NET software.
Q: Is this card compatible with TIA Portal V17/V18/V19?
A: Yes, provided the corresponding SIMATIC NET CP 5612 driver package for the TIA Portal version is installed. Always verify the SIMATIC NET compatibility matrix for your specific TIA Portal release.
Q: Can I use this card for S7 online programming (PG/PC function)?
A: Yes. The MPI interface allows direct STEP 7 / TIA Portal online access to SIMATIC S7-300/400 CPUs without a separate MPI adapter.
Q: Does it work in a virtual machine (VM)?
A: PCIe passthrough to a VM is technically possible but not officially supported by SIEMENS for real-time PROFIBUS DP applications. Physical host installation is recommended for production use.
Q: What is the maximum number of DP slaves supported?
A: Up to 125 DP slaves per PROFIBUS segment (per PROFIBUS DP specification); practical limits depend on baud rate and network topology.
Q: Is a low-profile bracket included?
A: Yes. The 6GK1561-2AA00 ships with both a standard full-height bracket and a low-profile bracket for compact industrial PCs.
