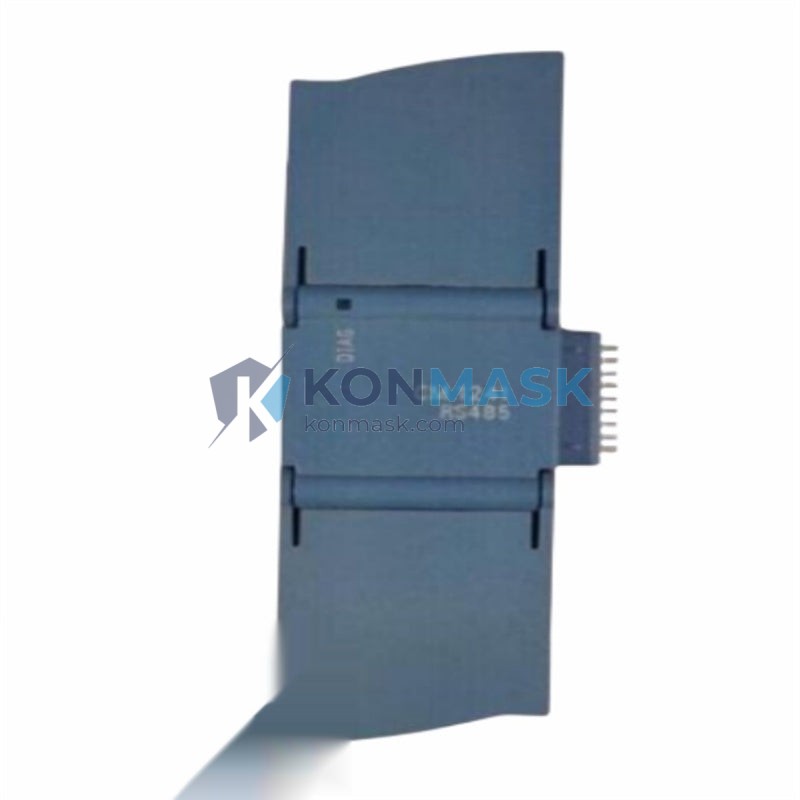

SIEMENS 6ES7241-1CH30-0XB0 – RS422/485 Serial Communication Module | S7-1200 Platform
Engineering Background
The CM 1241 RS422/485 (6ES7241-1CH30-0XB0) is a dedicated serial communication module engineered for the SIEMENS SIMATIC S7-1200 compact PLC platform. Designed to extend the S7-1200’s native communication capabilities, this module enables reliable point-to-point and multi-drop serial connectivity in environments where legacy field devices, drives, meters, and third-party controllers must be integrated into modern automation architectures. It is fully compliant with IEC 61131-2 and supports both RS-422 (4-wire full-duplex) and RS-485 (2-wire half-duplex) electrical standards.
Product Positioning
Targeted at control system engineers and OEM integrators who require deterministic serial communication alongside Ethernet-based PROFINET, the 6ES7241-1CH30-0XB0 bridges the gap between legacy serial field devices and contemporary S7-1200 control architectures. It is the preferred choice for retrofit projects, distributed I/O expansion, and multi-vendor system integration where RS-485 Modbus RTU or freeport protocols are mandated.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Order Number | 6ES7241-1CH30-0XB0 |
| Product Family | SIMATIC S7-1200 CM 1241 |
| Interface Standard | RS-422 (4-wire, full-duplex) / RS-485 (2-wire, half-duplex) |
| Connector Type | 9-pin D-Sub (DB9) female |
| Baud Rate | 300 bps – 115,200 bps (selectable) |
| Data Bits | 7 or 8 |
| Parity | None, Even, Odd, Mark, Space |
| Stop Bits | 1 or 2 |
| Flow Control | XON/XOFF (software); RTS/CTS (hardware) |
| Supported Protocols | Freeport (ASCII/binary), Modbus RTU Master/Slave, USS Drive Protocol |
| Max. Cable Length (RS-485) | 1,000 m (at 9,600 bps) |
| Max. Nodes (RS-485) | 32 (without repeater) |
| Supply Voltage | 5 VDC (via S7-1200 backplane bus) |
| Current Consumption (5 VDC) | ≤ 200 mA |
| Isolation | Galvanic isolation between serial port and backplane bus |
| Operating Temperature | 0 °C to +60 °C (horizontal mounting); 0 °C to +50 °C (vertical) |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Protection Rating | IP20 |
| Dimensions (W × H × D) | 30 mm × 100 mm × 75 mm |
| Weight | approx. 100 g |
| Mounting | DIN rail (35 mm), left-side expansion of S7-1200 CPU |
| Firmware Compatibility | S7-1200 CPU FW V2.0 and above; TIA Portal V11 SP2 and above |
| Certifications | CE, UL, cULus, ATEX Zone 2 (with appropriate housing) |
| MTBF | > 500,000 hours (per Siemens reliability data) |
Proven Application Environments
- Modbus RTU Networks: Master/slave integration with VFDs, energy meters, temperature controllers, and weighing systems using standardized Modbus RTU over RS-485.
- USS Protocol Drives: Direct communication with SIEMENS SINAMICS and MICROMASTER drive families for speed setpoint and status feedback without additional gateways.
- Barcode / RFID Readers: Freeport ASCII mode for reading serial data streams from barcode scanners and RFID readers on production lines.
- Legacy DCS Migration: Bridging older DCS serial outputs into modern S7-1200 PROFINET architectures during phased plant upgrades.
- Building Automation (BAS): Integration with HVAC controllers, BMS gateways, and smart meters via RS-485 multi-drop topology.
- Water & Wastewater: Remote pump station monitoring with long-distance RS-485 cabling in electrically noisy environments.
Engineering Advantages
- Galvanic Isolation: Protects the S7-1200 CPU from ground loops and transient surges common in industrial field wiring.
- Dual-Mode Flexibility: Single module supports both RS-422 and RS-485 — configurable in TIA Portal without hardware changes.
- Native TIA Portal Integration: Configured entirely within TIA Portal using standard instruction blocks (SEND_P2P, RCV_P2P, Modbus_Comm_Load, Modbus_Master/Slave) — no third-party software required.
- Compact Form Factor: 30 mm width preserves panel space; snaps directly onto S7-1200 CPU left-side expansion bus.
- Deterministic Latency: Hardware-buffered UART ensures consistent cycle-time performance independent of CPU scan load.
- Hot-Swap Ready: Supports module replacement without full system shutdown when used with compatible S7-1200 CPU firmware.
System Architecture & Signal Flow
The 6ES7241-1CH30-0XB0 mounts directly to the left side of any S7-1200 CPU (CPU 1211C through CPU 1217C) via the integrated expansion bus connector. The module draws power exclusively from the 5 VDC backplane bus — no external 24 VDC supply is required. Signal flow is as follows:
- TIA Portal Configuration: Engineer assigns COM port parameters (baud rate, parity, protocol) and loads P2P or Modbus instruction blocks into the CPU program.
- CPU Scan Cycle: On each scan, the CPU writes transmit data to the CM 1241 send buffer and reads received data from the receive buffer via the backplane bus.
- Serial Transmission: The CM 1241 UART serializes data and drives the RS-422/RS-485 line driver, managing bus arbitration (RTS/CTS or XON/XOFF) automatically.
- Field Device Response: Remote devices (drives, meters, sensors) respond; the CM 1241 receives, buffers, and signals the CPU via interrupt or polling.
Up to 3 CM 1241 modules can be stacked on a single S7-1200 CPU, enabling simultaneous multi-protocol serial communication on independent ports.
Sourcing & Quality Verification
- Origin: Genuine SIEMENS product, sourced through authorized distribution and verified supply chains.
- Inspection: Each unit undergoes visual inspection, label authenticity verification, and functional power-on testing prior to shipment.
- Packaging: Ships in original SIEMENS anti-static packaging with factory seal intact.
- Documentation: Certificate of conformity and product datasheet available upon request.
- Warranty: 12-month warranty against manufacturing defects; DOA replacement within 7 business days.
Procurement Process
- Submit your RFQ or place order directly on Konmask.com.
- Receive order confirmation and proforma invoice within 1 business day.
- Payment via T/T, PayPal, or other agreed terms.
- Shipment within 3–5 business days (in-stock items); tracking number provided.
- Post-delivery technical support available via email or phone.
Technical FAQ
Q: Can the 6ES7241-1CH30-0XB0 operate as both Modbus Master and Slave simultaneously?
A: No. Each CM 1241 port operates in a single role per program cycle. Use two modules if simultaneous Master and Slave roles are required on separate networks.
Q: What is the maximum number of CM 1241 modules per S7-1200 CPU?
A: Up to 3 communication modules (CM) can be connected to the left side of any S7-1200 CPU.
Q: Is an external power supply required?
A: No. The module is fully powered by the S7-1200 backplane 5 VDC bus. No additional 24 VDC wiring is needed.
Q: Which TIA Portal version is required?
A: TIA Portal V11 SP2 minimum; TIA Portal V16 or later is recommended for full feature support and latest firmware compatibility.
Q: Can this module replace the older 6ES7241-1CH31-0XB0?
A: Yes. The -0XB0 suffix denotes the current production revision and is backward-compatible with all S7-1200 CPUs that supported the previous revision.
Q: Is the RS-485 port isolated?
A: Yes. The serial port is galvanically isolated from the S7-1200 backplane bus, providing protection against common-mode voltage differences and ground loops in field wiring.
