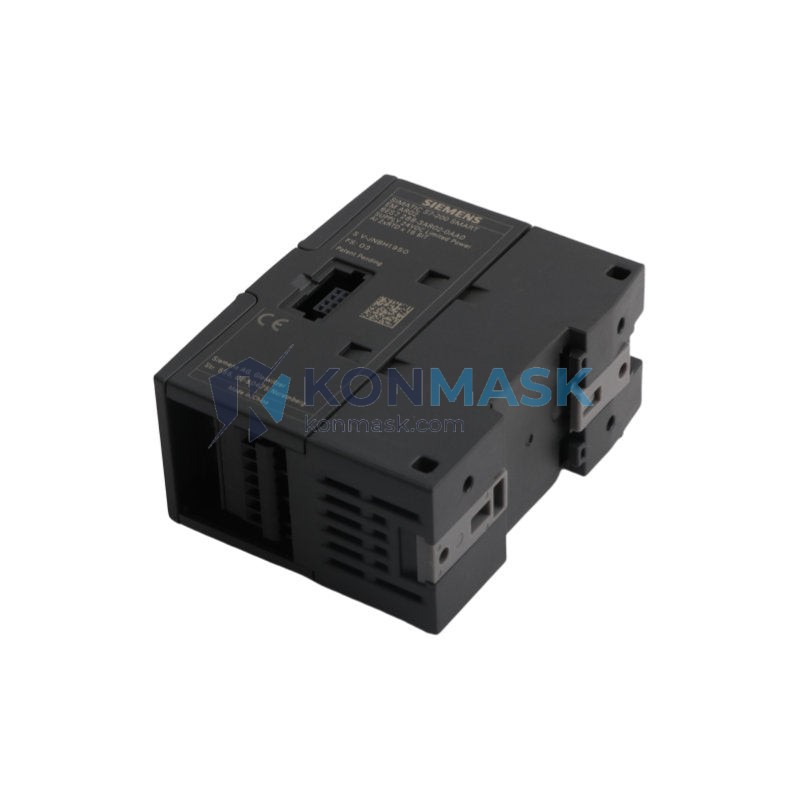

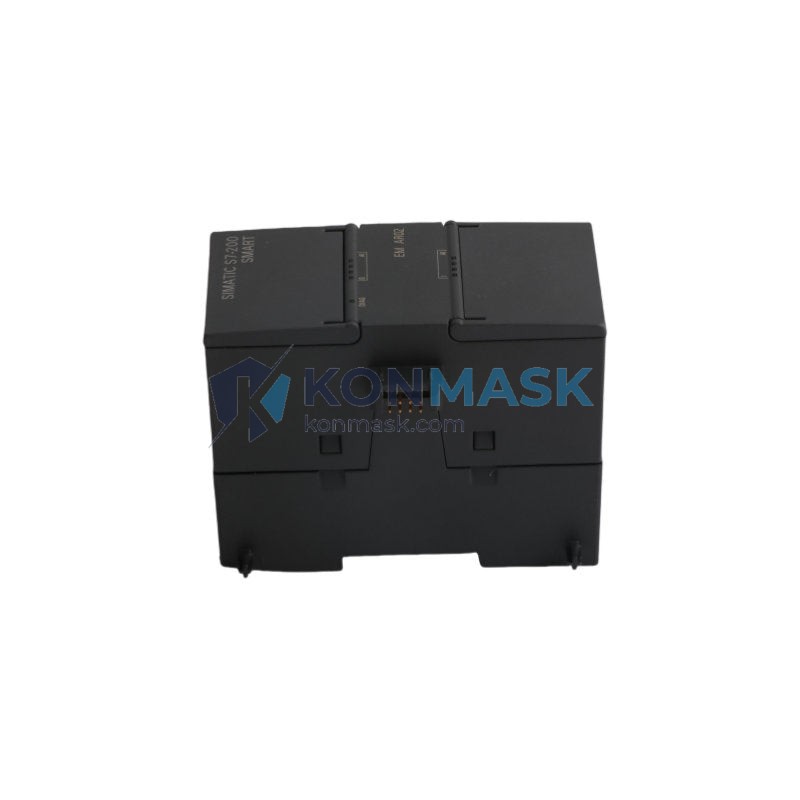

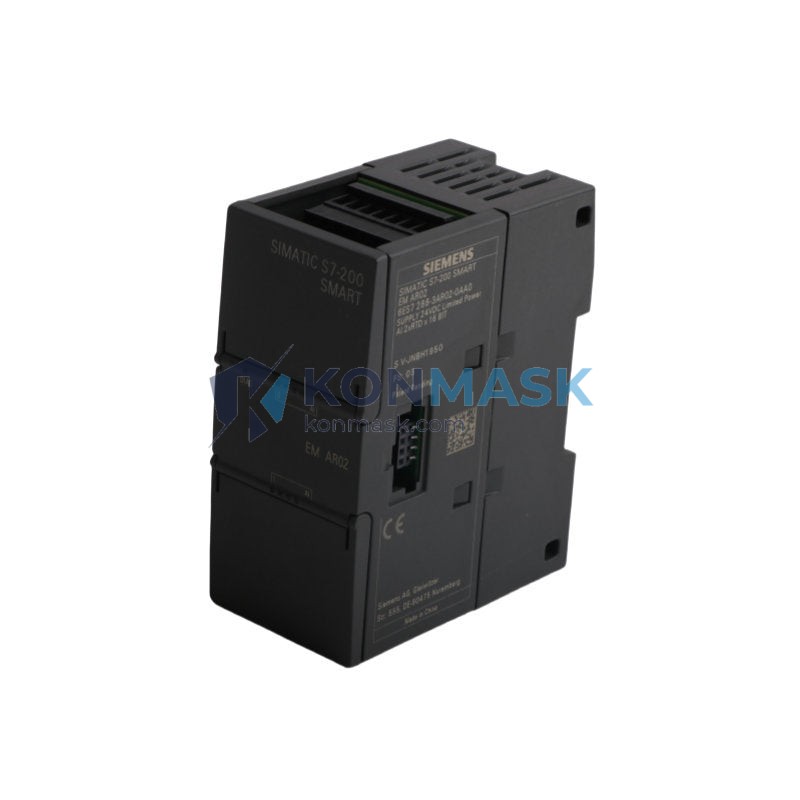

SIEMENS 6ES7288-3AR02-0AA0 Analog Output Module | Replacement, Equivalent & Selection Guide
The Siemens 6ES7288-3AR02-0AA0 is a 2-channel analog output expansion module designed for the SIMATIC S7-200 SMART PLC series. It delivers high-resolution voltage/current output signals for precise process control in industrial automation systems. This page provides full technical specifications, compatible replacement models, selection guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | 6ES7288-3AR02-0AA0 |
| Brand | Siemens |
| Series | SIMATIC S7-200 SMART |
| Module Type | Analog Output Expansion Module (AQ) |
| Output Channels | 2 × Analog Output |
| Output Signal Type | Voltage: ±10 V DC / Current: 0–20 mA, 4–20 mA |
| Resolution | 12-bit |
| Output Range (Voltage) | ±10 V DC |
| Output Range (Current) | 0–20 mA / 4–20 mA |
| Load Impedance (Voltage) | ≥ 1 kΩ |
| Load Impedance (Current) | ≤ 500 Ω |
| Supply Voltage | 24 V DC (via CPU or expansion bus) |
| Power Consumption | ≤ 2 W |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Protection Rating | IP20 |
| Dimensions (W × H × D) | Approx. 45 × 100 × 81 mm |
| Weight | Approx. 160 g |
| Certifications | CE, UL, cULus |
| Connection Type | Removable screw terminal |
Compatible Replacement & Equivalent Models
The following modules are functionally compatible or serve as direct/near-direct replacements for the 6ES7288-3AR02-0AA0. Always verify electrical and mechanical compatibility before substitution.
| Model | Brand | Channels | Output Type | Compatibility Notes |
|---|---|---|---|---|
| 6ES7288-3AQ02-0AA0 | Siemens | 2 AQ | Voltage / Current | Same series, verify firmware version |
| 6ES7288-3AQ04-0AA0 | Siemens | 4 AQ | Voltage / Current | Expanded channel count; pin-compatible bus |
| FX2N-2DA | Mitsubishi | 2 AQ | Voltage / Current | Cross-brand; requires wiring adaptation |
| CP1W-DA021 | Omron | 2 AQ | Voltage / Current | Cross-brand; different bus protocol |
| XM0-2DA | Kinco | 2 AQ | Voltage / Current | Budget alternative; verify signal accuracy |
Note: Cross-brand replacements require independent wiring and software configuration. Konmask recommends using original Siemens modules for mission-critical applications.
Why Choose the Original Model
- Seamless Integration: Plug-and-play expansion with S7-200 SMART CPUs via the proprietary expansion bus — no additional configuration required.
- High Accuracy: 12-bit resolution ensures precise analog output for demanding process control loops.
- Dual Output Mode: Supports both voltage (±10 V) and current (0/4–20 mA) output on each channel, selectable per channel.
- Compact Form Factor: Slim DIN-rail design minimizes panel space while maintaining full industrial-grade performance.
- Proven Reliability: Backed by Siemens’ global quality standards, CE/UL certifications, and long-term spare parts availability.
- STEP 7-Micro/WIN SMART Support: Fully supported by Siemens’ official programming software with pre-built function blocks.
Typical Applications
- Variable frequency drive (VFD) speed reference signal output
- Proportional valve and actuator control in hydraulic/pneumatic systems
- Temperature setpoint transmission to PID controllers
- Flow and pressure regulation in process industries
- Conveyor and packaging line speed control
- Building automation: HVAC damper and valve positioning
- Water treatment and chemical dosing systems
System Compatibility
| Compatible CPU | Max Expansion Modules | Notes |
|---|---|---|
| CPU SR20 / ST20 | Up to 6 | Standard compact CPUs |
| CPU SR30 / ST30 | Up to 6 | Mid-range CPUs |
| CPU SR40 / ST40 | Up to 6 | High I/O count CPUs |
| CPU SR60 / ST60 | Up to 6 | Large-scale applications |
| CPU CR40 / CR60 | Not supported | Economy CPUs — no expansion bus |
Maximum of 6 expansion modules per S7-200 SMART system. Analog modules consume additional 5 V DC bus current — verify total bus current budget before configuration.
Selection Guide
Use the following criteria to confirm the 6ES7288-3AR02-0AA0 is the right module for your application, or to identify a suitable alternative:
- Channel Count: Need more than 2 analog outputs? Consider the 4-channel 6ES7288-3AQ04-0AA0.
- Signal Type: Confirm whether your field device requires voltage (±10 V) or current (4–20 mA) — both are supported on this module.
- CPU Compatibility: Verify your CPU model supports expansion modules (CR-series CPUs do not).
- Bus Current Budget: Each analog module draws from the 5 V expansion bus. Check total current consumption against your CPU’s rated output.
- Mixed I/O: If you need both analog input and output, consider pairing with the 6ES7288-3AM06-0AA0 (4AI/2AQ combo module) to reduce module count.
- Environment: For harsh environments (dust, vibration), confirm IP20 rating is sufficient or add appropriate enclosure protection.
Quality Assurance & Sourcing
- Authentic Origin: All Siemens modules at Konmask.com are sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Pre-shipment Inspection: Each unit undergoes visual inspection and packaging integrity checks before dispatch.
- Warranty: 12-month warranty against manufacturing defects. Replacement or refund within warranty period.
- Documentation: Datasheet, wiring diagram, and STEP 7-Micro/WIN SMART configuration guide available upon request.
- Lead Time: In-stock units ship within 1–3 business days. Contact us for bulk order lead times.
How to Order
- Confirm your CPU model and available expansion bus slots.
- Verify required output channel count and signal type (voltage/current).
- Add 6ES7288-3AR02-0AA0 to cart or contact us for a formal quotation.
- Provide your shipping address and preferred freight method at checkout.
- For bulk orders (>5 units) or OEM projects, email support@konmask.com for volume pricing.
Replacement & Compatibility FAQ
Q: Can I use 6ES7288-3AR02-0AA0 with an S7-200 (classic) CPU?
A: No. This module is designed exclusively for the S7-200 SMART series. It is not compatible with the legacy S7-200 (6ES7 2xx-xxxx-xxxx classic) expansion bus.
Q: Is the output voltage and current selectable per channel?
A: Yes. Each channel can be independently configured for voltage or current output via STEP 7-Micro/WIN SMART software.
Q: What happens to the analog output if the CPU stops or faults?
A: Outputs default to 0 V / 0 mA (or a user-defined substitute value) upon CPU STOP or fault, depending on software configuration.
Q: Can I stack multiple 6ES7288-3AR02-0AA0 modules?
A: Yes, up to the system limit of 6 expansion modules total per CPU. Monitor total 5 V bus current consumption.
Q: Do you provide a certificate of conformity (CoC) or test report?
A: Yes, available upon request for orders of 3 or more units. Contact support@konmask.com.
