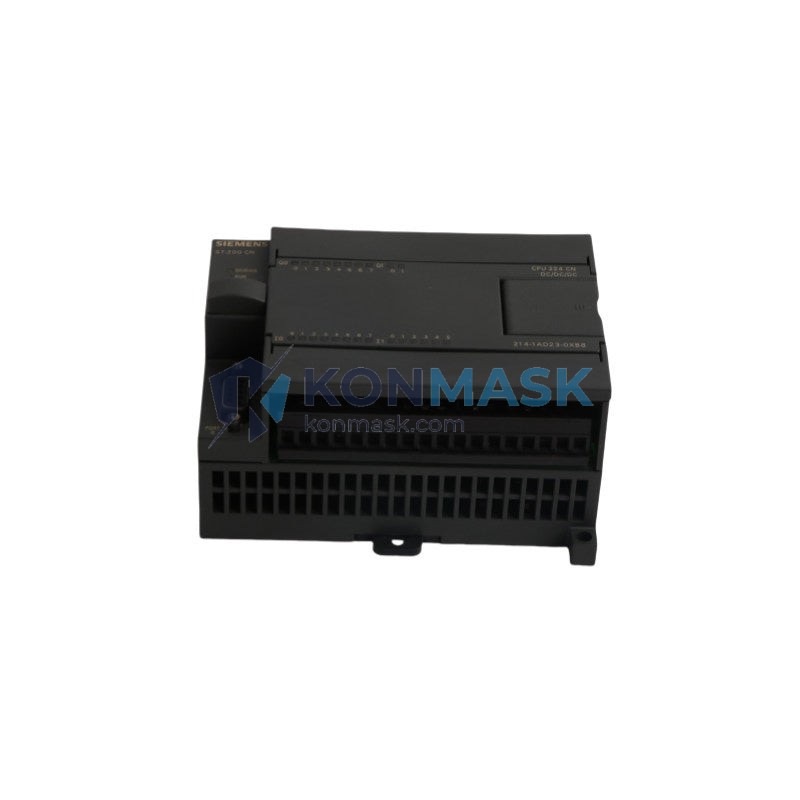

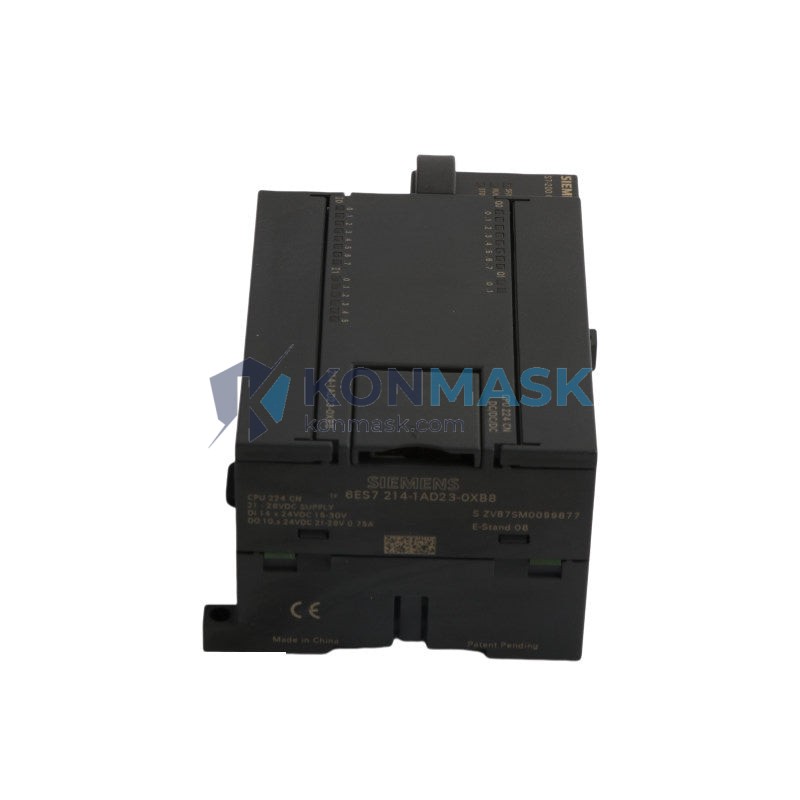

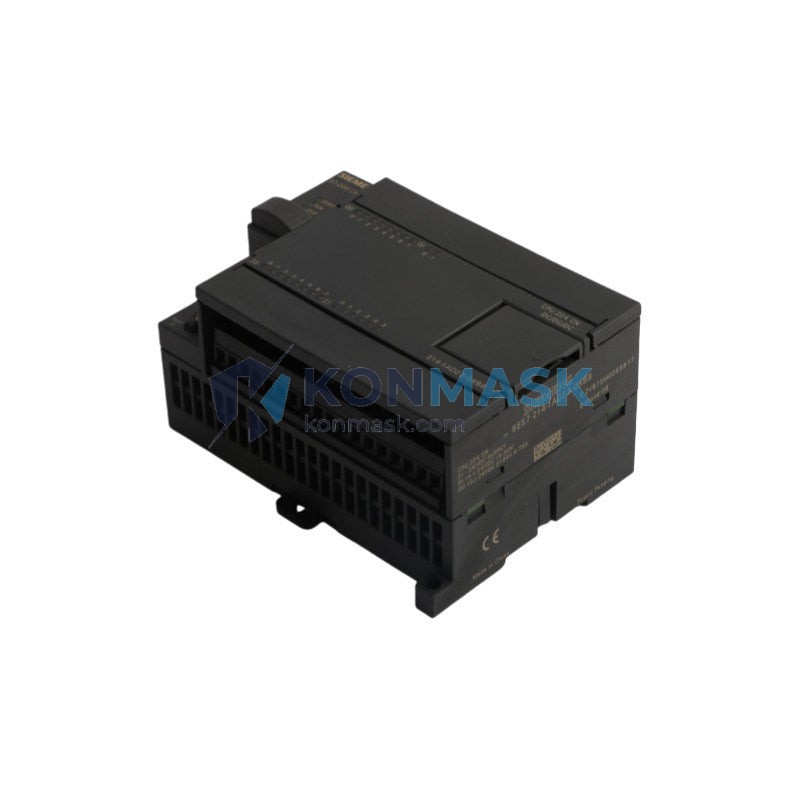

Genuine Siemens 6ES7214-1AD23-0XB8 CPU 224XP DC/DC/DC | SIMATIC S7-200 – Verified Source
The Siemens 6ES7214-1AD23-0XB8 is a high-performance compact PLC CPU from the SIMATIC S7-200 series. Featuring integrated analog I/O and DC/DC/DC power configuration, this unit is engineered for demanding industrial automation environments. Konmask.com supplies only genuine, factory-traceable Siemens components — backed by our 4-step verification process.
Technical Specifications
| Part Number (SKU) | 6ES7214-1AD23-0XB8 |
| Product Family | SIMATIC S7-200 |
| CPU Type | CPU 224XP |
| Power Supply | DC 24V |
| Input Type | DC (Digital) |
| Output Type | DC Transistor |
| Digital Inputs | 14 × DC 24V |
| Digital Outputs | 10 × DC 24V Transistor |
| Analog Inputs | 2 × (0–10V / 0–20mA) |
| Analog Outputs | 1 × (0–10V) |
| Program Memory | 12 KB |
| Data Memory | 8 KB |
| Communication Ports | 2 × RS-485 (PPI/MPI/Freeport) |
| Expansion Modules | Up to 7 |
| Operating Temperature | 0°C to +55°C |
| Protection Rating | IP20 |
| Dimensions (W×H×D) | 140 × 90 × 62 mm |
| Weight | Approx. 300 g |
| Country of Origin | China (Siemens-manufactured) |
Our 4-Step Quality Verification Process
Every unit shipped from Konmask.com passes through our rigorous internal verification protocol before dispatch:
- Source Authentication — Units are procured exclusively from authorized Siemens distribution channels or verified OEM surplus with full traceability documentation.
- Physical Inspection — Label integrity, hologram verification, housing condition, and connector pin inspection are performed on 100% of units.
- Functional Power-On Test — Each CPU module is powered on and communication port responsiveness is confirmed prior to packaging.
- Packaging & Documentation Check — Original or equivalent protective packaging is used; batch/lot numbers are recorded and available upon request.
Key Features & Benefits
- Integrated analog I/O eliminates the need for additional analog expansion modules in small-scale applications
- Dual RS-485 ports enable simultaneous HMI communication and network connectivity
- Compact DIN-rail form factor simplifies panel integration
- Compatible with STEP 7-Micro/WIN programming software
- Supports PPI, MPI, and Freeport communication protocols
- Real-time clock (RTC) built-in for time-stamped data logging
- High-speed pulse output (2 × 20 kHz) for stepper/servo positioning
Typical Applications
- Conveyor and material handling systems
- Packaging machinery and filling lines
- HVAC and building automation
- Water treatment and pump control
- Small-scale motion control with stepper drives
- OEM machine builders requiring compact, cost-effective PLC solutions
Compatible System Components
- Expansion I/O: EM 221, EM 222, EM 223 digital modules; EM 231, EM 232, EM 235 analog modules
- Communication: CP 243-1 Ethernet module, EM 277 PROFIBUS-DP module
- HMI: Siemens TD 200, TP 177 Micro, and compatible third-party panels via PPI
- Programming Cable: PC/PPI cable (USB or RS-232 adapter)
- Software: STEP 7-Micro/WIN V4.0 SP9 or later
Global Sourcing & Shipping Capabilities
Konmask.com maintains stock of S7-200 series components to support urgent MRO (Maintenance, Repair & Operations) requirements worldwide. We ship to Asia-Pacific, Europe, Middle East, and the Americas via DHL Express, FedEx International, and sea freight for bulk orders.
- Standard lead time: 1–3 business days (in-stock items)
- Express same-day dispatch available for orders placed before 14:00 CST
- Bulk and project quantity inquiries welcome — contact us for volume pricing
- Export documentation (CO, packing list, commercial invoice) provided upon request
Certifications & Compliance Statement
- CE Marked — compliant with EU Machinery Directive and EMC Directive
- UL Listed (File E85972)
- RoHS compliant
- Manufactured under ISO 9001 quality management system
- All units supplied by Konmask.com are genuine Siemens products; we do not sell counterfeit, refurbished-as-new, or grey-market goods without explicit disclosure
How to Order
- Add the 6ES7214-1AD23-0XB8 to your cart and proceed to checkout
- For bulk orders (>5 units) or project quotations, email support@konmask.com with your quantity and delivery timeline
- Payment accepted: T/T (Bank Transfer), PayPal, and major credit cards
- A proforma invoice can be issued upon request for procurement approval workflows
Authenticity & Trust FAQ
Q: Are these units genuine Siemens products?
A: Yes. All units are sourced from verified supply chains. We provide batch documentation upon request.
Q: Can I verify the serial number with Siemens?
A: Yes. The serial number on the unit can be cross-referenced via Siemens Industry Online Support (SIOS). We encourage buyers to verify.
Q: Do you offer a warranty?
A: We offer a 12-month warranty against manufacturing defects. DOA (Dead on Arrival) units are replaced at no cost within 7 days of receipt.
Q: What if I order the wrong part?
A: Contact us within 48 hours of delivery. Unused, unopened units may be returned subject to our returns policy.
Q: Is the S7-200 series still supported by Siemens?
A: The S7-200 series reached end-of-sale, but Konmask.com maintains stock to support legacy system maintenance. For new projects, we also supply S7-1200 and S7-1500 series.
