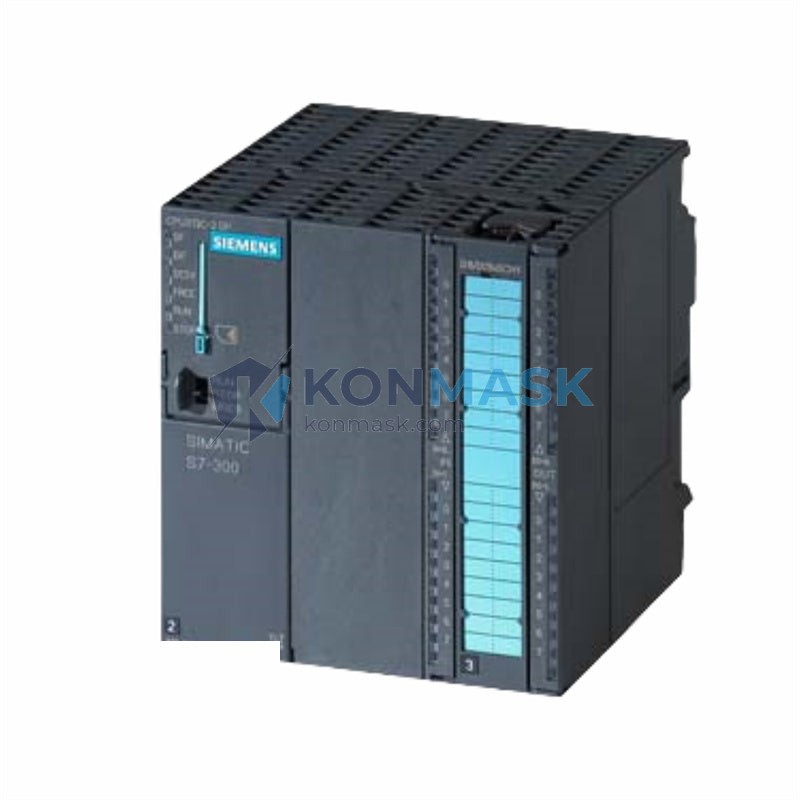

Industrial Automation Solution – Siemens 6ES7313-6CF03-0AB0 | S7-300 CPU 313C-2 DP
Where This Product Is Used
The Siemens 6ES7313-6CF03-0AB0 CPU 313C-2 DP is a compact programmable logic controller (PLC) CPU designed for mid-range automation tasks across a wide range of industrial environments. Typical deployment scenarios include:
- Automotive manufacturing lines – body-in-white welding cells, conveyor sequencing, and robotic cell coordination via PROFIBUS DP
- Water & wastewater treatment plants – pump station control, dosing systems, and SCADA integration
- Food & beverage processing – filling lines, pasteurization control, and CIP (Clean-In-Place) automation
- Pharmaceutical production – batch process control compliant with GMP documentation requirements
- Building automation & HVAC – chiller plant sequencing, AHU control, and BMS integration
- Material handling & logistics – sortation systems, palletizers, and AGV coordination
- Machine tool & packaging OEM – standalone machine controllers requiring compact footprint with integrated I/O
Technical Specifications
- Part Number / SKU: 6ES7313-6CF03-0AB0
- Series: SIMATIC S7-300
- CPU Type: CPU 313C-2 DP (Compact CPU with PROFIBUS DP)
- Work Memory: 192 KB
- Load Memory: 128 KB integrated (expandable via MMC)
- Processing Speed: 0.1 ms / 1000 instructions (binary)
- Integrated Digital Inputs: 16 × DI (24 V DC)
- Integrated Digital Outputs: 16 × DO (24 V DC / 0.5 A)
- Integrated Analog Inputs: 4 × AI (12-bit resolution)
- Integrated Analog Outputs: 2 × AO (12-bit resolution)
- Communication Interfaces: 1 × MPI/PROFIBUS DP (DP master/slave), 1 × PROFIBUS DP (DP master)
- Max. I/O Modules: 32 modules per rack/segment
- Power Supply: 24 V DC (via backplane bus)
- Operating Temperature: 0 °C to +60 °C
- Protection Rating: IP20
- Dimensions (W×H×D): 80 × 125 × 130 mm
- Weight: approx. 580 g (CPU only)
- MLFB / Order Number: 6ES7313-6CF03-0AB0
- Firmware Version: V3.3 (latest for this variant)
Why Engineers Specify This Model
- Dual PROFIBUS DP ports – acts simultaneously as DP master on two independent networks, enabling distributed I/O and drive integration without additional CP modules
- Compact integrated I/O – eliminates the need for separate SM modules in small-to-mid-scale applications, reducing panel space and BOM cost
- 192 KB work memory – sufficient for complex ladder/FBD/SCL programs including PID loops, motion sequences, and data logging
- Proven S7-300 ecosystem – fully compatible with STEP 7 v5.x and TIA Portal (via legacy mode), with extensive library support
- Hot-swap MMC – program backup and firmware update without PC connection, critical for field service scenarios
- Long product lifecycle – Siemens extended support availability; widely stocked as a spare for existing installed base
Complete System Bill of Materials
A typical S7-300 control panel built around the 6ES7313-6CF03-0AB0 includes:
- Power Supply: 6ES7307-1EA01-0AA0 (PS 307, 5 A, 24 V DC)
- CPU: 6ES7313-6CF03-0AB0 (this unit)
- Rack: 6ES7390-1AE80-0AA0 (UR2, 9-slot)
- Digital I/O Expansion: 6ES7323-1BL00-0AA0 (SM 323, 16 DI / 16 DO)
- Analog I/O Expansion: 6ES7334-0CE01-0AA0 (SM 334, 4 AI / 2 AO)
- Memory Card: 6ES7953-8LJ31-0AA0 (MMC 4 MB)
- PROFIBUS Cable: 6XV1830-0EH10 (per meter)
- PROFIBUS Connector: 6ES7972-0BB52-0XA0 (90° with PG socket)
- Programming Cable: 6ES7972-0CB20-0XA0 (PC Adapter USB)
Compliance & Industry Standards
- CE Marking – EU Machinery Directive 2006/42/EC & EMC Directive 2014/30/EU
- UL Listed – UL 508 (Industrial Control Equipment)
- IEC 61131-2 – Programmable Controllers Hardware Requirements
- PROFIBUS International – DP-V0 / DP-V1 certified
- RoHS 2 Compliant – Directive 2011/65/EU
- ATEX / IECEx – suitable for use in Zone 2 with appropriate enclosure (consult Siemens documentation)
Quality Assurance & Sourcing
Every unit listed on Konmask.com undergoes a structured verification process before dispatch:
- Visual inspection: housing integrity, connector condition, label authenticity check
- Functional power-on test: CPU RUN/STOP cycle, I/O channel verification
- Firmware version confirmation against Siemens MLFB database
- Anti-static packaging with humidity indicator card
- Traceable sourcing: units are procured from authorized distributors or verified industrial surplus with full chain-of-custody documentation
How to Source This Part
To place an order or request a quotation for the Siemens 6ES7313-6CF03-0AB0:
- Online: Add to cart directly on this page – stock levels are updated in real time
- RFQ / Bulk Orders: Email support@konmask.com with quantity, required delivery date, and destination country
- Phone / WhatsApp: +0086 19859288691 (Mon–Sat, 09:00–18:00 CST)
- Lead Time: In-stock units ship within 1–2 business days; sourced units typically 5–10 business days
- Export: We ship worldwide with DHL Express, FedEx, and UPS; full export documentation (commercial invoice, packing list, CO) provided
Application-Specific FAQ
Q: Can the 6ES7313-6CF03-0AB0 replace a 6ES7313-6CE01-0AB0?
A: Yes, the -6CF03 is the successor to the -6CE01 with identical pinout and expanded work memory (192 KB vs 128 KB). Programs are fully compatible after recompilation in STEP 7.
Q: Does this CPU support PROFINET?
A: No. The 313C-2 DP supports PROFIBUS DP only. For PROFINET connectivity, consider the 6ES7315-2EH14-0AB0 (CPU 315-2 PN/DP) or add a CP 343-1 communication processor.
Q: What programming software is required?
A: SIMATIC STEP 7 v5.5 SP4 or higher (classic), or TIA Portal V13 SP2+ with the S7-300 legacy option pack. IEC 61131-3 languages supported: LAD, FBD, STL, SCL, GRAPH.
Q: Is an MMC (Micro Memory Card) required for operation?
A: Yes. The CPU requires an MMC to retain the program after power loss. The 6ES7953-8LJ31-0AA0 (4 MB) is the recommended card for this CPU.
Q: Can this unit be used in a redundant (H-system) configuration?
A: No. Redundant S7-300 H-systems require the CPU 317H or CPU 319-3 PN/DP. The 313C-2 DP is a standard (non-redundant) CPU.
