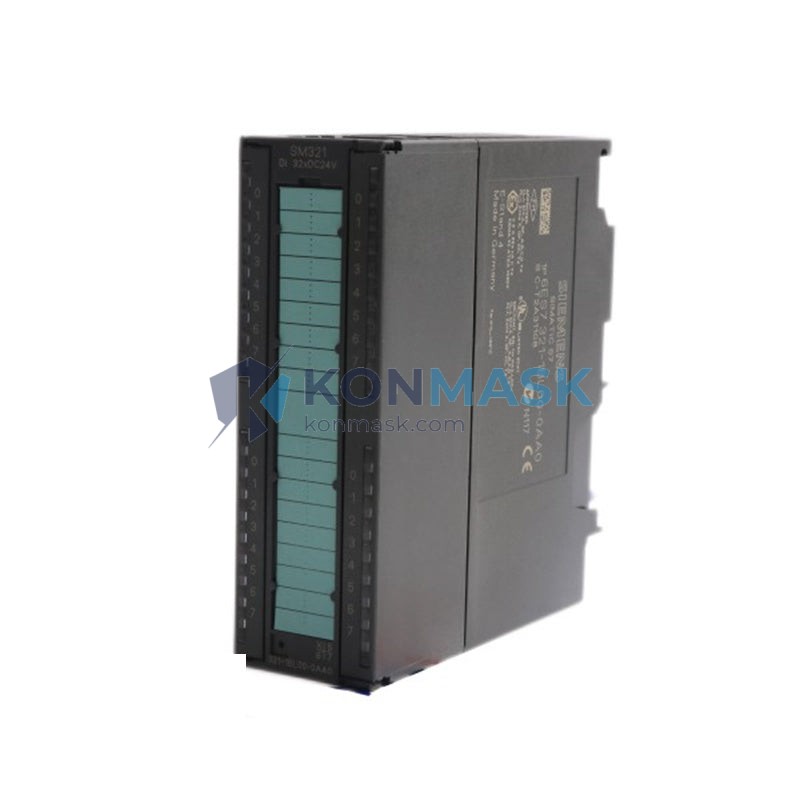

SIEMENS 6ES7321-1FH00-0AA0 — 16-Point 24VDC Digital Input Module | SIMATIC S7-300
Engineering Background
The SIMATIC S7-300 series has been the backbone of industrial automation for over three decades, deployed across automotive assembly lines, chemical processing plants, power generation facilities, and discrete manufacturing cells worldwide. The SM321 signal module family provides the critical I/O interface layer between field devices and the CPU, and the 6ES7321-1FH00-0AA0 represents the standard 16-point 24 VDC digital input variant — one of the most widely specified modules in the S7-300 ecosystem.
Product Positioning
Designed for procurement engineers and system integrators who require a proven, specification-compliant digital input module for new builds, capacity expansions, or MRO replacement, the 6ES7321-1FH00-0AA0 delivers deterministic signal acquisition with galvanic isolation, making it suitable for both greenfield installations and direct drop-in replacements in existing S7-300 racks.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Order Number (MLFB) | 6ES7321-1FH00-0AA0 |
| Module Type | SM321 Digital Input Module |
| Number of Inputs | 16 × DI |
| Rated Input Voltage | 24 VDC |
| Input Voltage Range (“1” signal) | 13 … 30 VDC |
| Input Voltage Range (“0” signal) | -3 … +5 VDC |
| Input Current (“1” signal) | Typ. 7 mA at 24 VDC |
| Input Delay | Configurable: 0.1 / 0.5 / 3 / 15 ms |
| Galvanic Isolation | Yes — groups of 16 |
| Isolation Test Voltage | 500 VAC |
| Backplane Bus Current Consumption | Max. 50 mA (5 VDC) |
| Power Dissipation | Max. 2.8 W |
| Dimensions (W × H × D) | 40 × 125 × 120 mm |
| Weight | Approx. 200 g |
| Operating Temperature | 0 … +60 °C (horizontal) / 0 … +40 °C (vertical) |
| Storage Temperature | -40 … +70 °C |
| Relative Humidity | 10 … 95% (non-condensing) |
| Degree of Protection | IP20 |
| Certifications | CE, UL, cULus, ATEX (Zone 2) |
| Compatible CPUs | All S7-300 CPUs (CPU 312 – CPU 319) |
| Front Connector | 20-pin, not included (order separately) |
| HS Code | 8537.10 |
| Country of Origin | Germany |
Proven Application Environments
- Automotive Manufacturing — Body-in-white welding cells, conveyor interlocks, press safety circuits
- Chemical & Petrochemical — Valve position feedback, pump run/stop status, ATEX Zone 2 installations
- Power Generation & Utilities — Switchgear status monitoring, protection relay feedback, substation automation
- Food & Beverage — Filling line sensors, CIP cycle monitoring, packaging machine interlocks
- Water & Wastewater Treatment — Pump station control, level switch inputs, SCADA interface nodes
- MRO / Spare Parts — Direct replacement for failed SM321 modules in existing S7-300 installations
Engineering Advantages
- Galvanic Isolation — Full electrical isolation between field wiring and backplane bus eliminates ground loop interference and protects the CPU from field-side transients.
- Configurable Input Delay — Software-selectable debounce times (0.1 ms to 15 ms) allow optimization for both high-speed encoder inputs and slow mechanical contacts without hardware changes.
- Diagnostic Capability — Supports process interrupts and diagnostic interrupts when configured via STEP 7 / TIA Portal, enabling predictive maintenance workflows.
- Hot-Swap Compatible — Modules can be replaced without powering down the rack when using CPUs that support online module replacement.
- Compact Form Factor — 40 mm wide single-slot design maximizes rack density in space-constrained control cabinets.
- Wide Temperature Range — Rated to 60 °C horizontal mounting, suitable for non-air-conditioned industrial enclosures.
System Architecture & Signal Flow
The 6ES7321-1FH00-0AA0 occupies a single slot on the S7-300 rail and communicates with the CPU via the K-bus (backplane bus). Field devices connect to the 20-pin front connector (6ES7392-1AJ00-0AA0 or equivalent). Signal flow is as follows:
- Field device (sensor, switch, relay contact) applies 24 VDC to input terminal.
- Optocoupler stage provides galvanic isolation and converts signal to logic level.
- Configurable input filter suppresses contact bounce and EMI noise.
- Status LED (green) illuminates to confirm active input state.
- Digital value is transferred to CPU process image input (PII) via K-bus on each scan cycle.
- CPU ladder logic / FBD / STL program reads %I address and executes control logic.
Wiring note: All 16 inputs share a common ground (M terminal). Ensure field power supply common is connected to the module’s M terminal for correct operation.
Sourcing & Quality Verification
- Authenticity — All units sourced through verified industrial distribution channels. Each module is inspected for genuine SIEMENS labeling, firmware version consistency, and physical condition prior to dispatch.
- Condition — New-in-box (NIB) and factory-refurbished (FR) grades available. Grade is clearly stated on the order confirmation. NIB units include original SIEMENS packaging and documentation.
- Traceability — Batch records and supplier documentation available upon request for regulated industries (pharmaceutical, nuclear, rail).
- Warranty — 12-month Konmask warranty on all units. Covers manufacturing defects and functional failure under normal operating conditions.
- Export Compliance — HS Code 8537.10 declared. Export licensing requirements are the buyer’s responsibility for restricted destinations.
Procurement Process
- Inquiry — Submit your BOM or part number via email to support@konmask.com or WhatsApp +0086 19859288691. Include required quantity, delivery timeline, and preferred condition grade.
- Quotation — Formal quotation issued within 1 business day, including unit price, lead time, shipping options (DHL / FedEx / sea freight), and payment terms.
- Order Confirmation — Purchase order or online checkout accepted. Proforma invoice issued for T/T wire transfer orders.
- Quality Inspection — Pre-shipment inspection report provided on request. Third-party inspection (SGS, BV) can be arranged at buyer’s cost.
- Dispatch & Tracking — ESD-safe packaging. Tracking number provided within 24 hours of shipment. Typical transit: 3–7 days (express), 15–30 days (sea freight).
- After-Sales — Technical support available for installation and commissioning queries. RMA process initiated within 48 hours for warranty claims.
Technical FAQ
Q: Is the 6ES7321-1FH00-0AA0 compatible with TIA Portal?
A: Yes. The module is fully supported in TIA Portal V13 and later via the HSP (Hardware Support Package) for S7-300. It is also natively supported in STEP 7 V5.x.
Q: What front connector is required?
A: The 20-pin screw-type front connector 6ES7392-1AJ00-0AA0 (0.25–0.75 mm²) or spring-type 6ES7392-1BJ00-0AA0 is required and must be ordered separately.
Q: Can this module be used in a fail-safe (F) application?
A: No. The 6ES7321-1FH00-0AA0 is a standard (non-fail-safe) module. For SIL 2/3 applications, use the F-DI module 6ES7326-1BK02-0AB0.
Q: What is the maximum cable length for field wiring?
A: SIEMENS recommends a maximum of 600 m for unshielded cables and 1000 m for shielded cables at 24 VDC input voltage.
Q: Is the module available with ATEX certification?
A: Yes. The 6ES7321-1FH00-0AA0 carries ATEX Zone 2 certification (II 3 G Ex nA IIC T4 Gc) when installed in a suitable enclosure per EN 60079-15.
Q: What is the difference between 6ES7321-1FH00-0AA0 and 6ES7321-1BH02-0AA0?
A: The -1FH00 variant has 16 inputs at 24 VDC with configurable input delay. The -1BH02 variant also has 16 inputs at 24 VDC but includes additional diagnostic functions and supports process interrupts natively without additional configuration.
