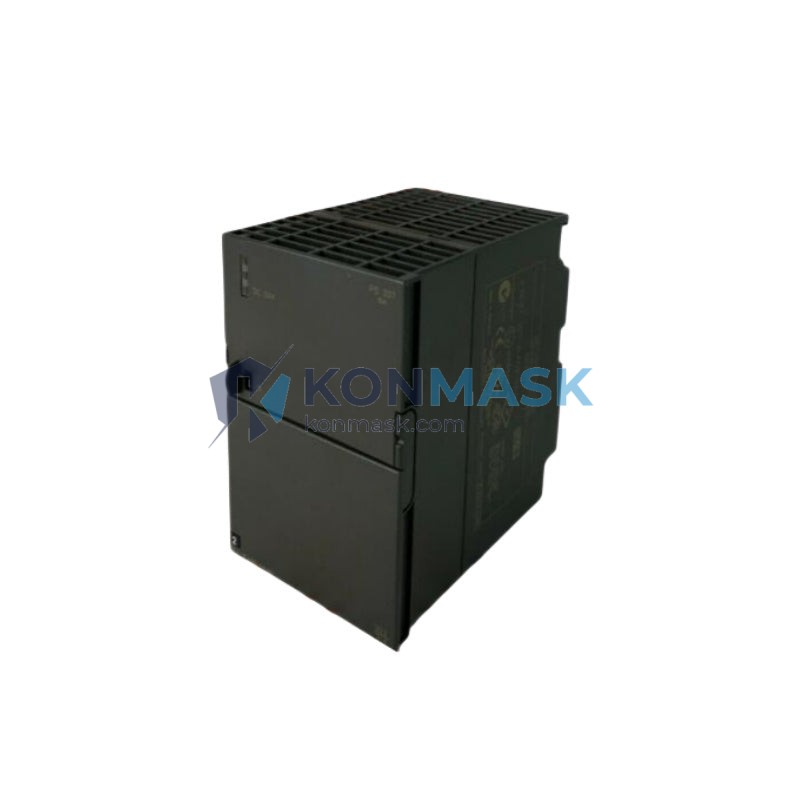

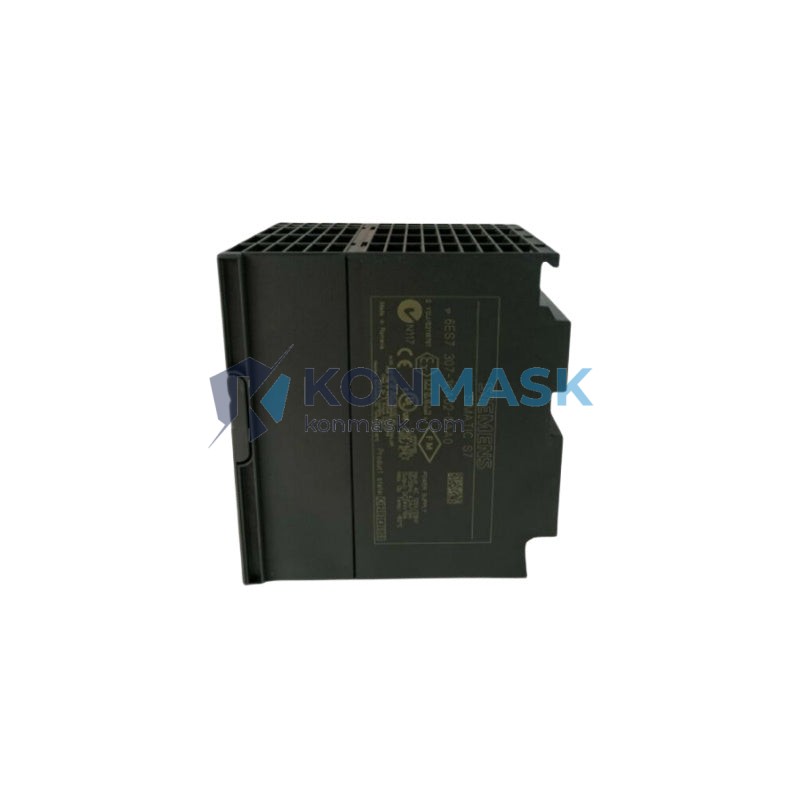

SIEMENS 6ES7307-1KA02-0AA0 10A Regulated Power Supply – SIMATIC S7-300 Series
When a SIMATIC S7-300 rack loses its regulated DC power, the consequences cascade instantly: CPUs halt mid-cycle, I/O modules drop their process signals, and the entire production line freezes without warning. In process-critical environments—automotive assembly, chemical dosing, or water treatment—an unplanned shutdown caused by an inadequate or failed power supply can mean hours of costly downtime, scrapped batches, and safety incidents. The SIEMENS 6ES7307-1KA02-0AA0 eliminates that risk by delivering stable, regulated 24 V DC at up to 10 A directly to the S7-300 backplane, keeping every module powered and every process running.
Within the SIMATIC S7-300 power supply family, the 6ES7307-1KA02-0AA0 occupies the high-current tier, offering twice the output capacity of the 5 A variant (6ES7307-1EA01-0AA0) while sharing the same compact rail-mount form factor. Its wide-range AC input (120/230 V AC, auto-sensing) makes it the preferred choice for global OEM machine builders and system integrators who need a single SKU that ships to any plant worldwide. Since its introduction, this module has become one of the most widely deployed S7-300 power supplies in global industrial automation infrastructure.
Technical Specifications
- Part Number: 6ES7307-1KA02-0AA0
- Series: SIMATIC S7-300
- Input Voltage: 120 / 230 V AC (wide-range, auto-sensing)
- Input Frequency: 47 – 63 Hz
- Output Voltage: 24 V DC (regulated)
- Output Current: 10 A (max)
- Output Power: 240 W
- Backplane Bus Supply: 5 V DC / 2 A (for S7-300 bus)
- Degree of Protection: IP20
- Operating Temperature: 0 °C to +60 °C (horizontal installation)
- Storage Temperature: -40 °C to +70 °C
- Dimensions (W × H × D): 80 × 125 × 120 mm
- Weight: approx. 600 g
- Mounting: S7-300 DIN rail, slot 1 (leftmost)
- Certifications: CE, UL, cUL
Key Features & Benefits
- Wide-Range AC Input: Auto-senses 120 V or 230 V AC, eliminating manual voltage selection and reducing mis-wiring risk on global deployments.
- 10 A / 240 W Output: Sufficient headroom to power fully populated S7-300 racks with high-density I/O, communication processors, and function modules simultaneously.
- Integrated Short-Circuit & Overload Protection: Electronic protection with automatic restart prevents cascading failures and protects downstream modules.
- LED Status Indicators: On-board DC OK and fault LEDs enable rapid visual diagnostics without opening the panel.
- Galvanic Isolation: Input-to-output isolation enhances noise immunity in electrically harsh industrial environments.
- Plug-In Terminal Block: Pre-wired connectors can be swapped during module replacement without re-terminating field wiring, minimizing MTTR.
- Compact DIN-Rail Form Factor: 80 mm wide profile fits standard S7-300 racks without consuming additional slots.
Industry & Equipment Applications
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, and engine assembly test benches powered by S7-300 PLCs.
- Chemical & Pharmaceutical: Batch reactor control, dosing systems, and clean-room HVAC automation requiring stable 24 V DC rails.
- Food & Beverage: Filling, capping, and labeling machines with high I/O counts demanding full 10 A supply capacity.
- Water & Wastewater Treatment: Pump station control panels and SCADA-connected RTUs in remote, harsh environments.
- Oil & Gas: Wellhead control panels and pipeline monitoring systems requiring wide-temperature operation.
- Machine Tool & Packaging: CNC auxiliary control and high-speed packaging lines with dense S7-300 I/O configurations.
System Integration & Compatible Parts
The 6ES7307-1KA02-0AA0 is designed to slot into position 1 of any SIMATIC S7-300 rack and is compatible with the full S7-300 CPU and I/O portfolio. Commonly paired components include:
- CPUs: 6ES7315-2EH14-0AB0, 6ES7317-2EK14-0AB0, 6ES7318-3EL01-0AB0
- Digital I/O: 6ES7321-1BL00-0AA0 (DI 32×DC24V), 6ES7322-1BL00-0AA0 (DO 32×DC24V)
- Analog I/O: 6ES7331-7KF02-0AB0 (AI 8×12Bit), 6ES7332-5HF00-0AB0 (AO 8×12Bit)
- Communication: 6GK7343-1EX30-0XE0 (CP 343-1 Ethernet), 6ES7341-1CH02-0AE0 (CP 341 Serial)
- Racks: 6ES7390-1AE80-0AA0 (UR1, 18-slot), 6ES7390-1AF30-0AA0 (UR2, 9-slot)
Our Quality Assurance Process
Every 6ES7307-1KA02-0AA0 unit sourced by Konmask.com passes through a structured inspection protocol before dispatch:
- Authenticity Verification: Label, hologram, and date-code cross-checked against SIEMENS factory records.
- Visual Inspection: PCB, connectors, and housing examined for damage, corrosion, or counterfeit indicators.
- Functional Power-On Test: Output voltage and current verified under load conditions.
- ESD-Safe Packaging: Anti-static bags and foam-lined cartons protect modules during international transit.
- Documentation: Test report and certificate of conformity available on request.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page.
- Provide your required quantity, delivery timeline, and destination country.
- Our team responds with availability, lead time, and a formal quotation within 24 hours (business days).
- Upon PO confirmation, we arrange secure packaging and international freight (DHL / FedEx / sea freight).
- Tracking number and shipping documents (commercial invoice, packing list) provided upon dispatch.
📧 support@konmask.com | 📞 +0086 19859288691
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: Focused exclusively on PLC, DCS, HMI, and drive components — not a generalist marketplace.
- ✅ Global Export Experience: Serving buyers in 40+ countries with compliant export documentation and reliable logistics partners.
- ✅ Competitive Pricing: Direct sourcing relationships enable pricing that beats typical distributor markups.
- ✅ Fast Response: Dedicated B2B inquiry team with <24-hour quotation turnaround.
- ✅ Warranty Support: DOA replacement policy and post-sale technical assistance.
Frequently Asked Questions
Q1: Is the 6ES7307-1KA02-0AA0 compatible with both 120 V and 230 V AC supplies?
Yes. The module features an auto-sensing wide-range input that automatically adapts to 120 V or 230 V AC (47–63 Hz) without any manual switching, making it suitable for installations worldwide.
Q2: Can this power supply run a fully populated 18-slot S7-300 rack?
In most configurations, yes. The 10 A / 240 W output provides sufficient capacity for a fully loaded UR1 rack. However, total current draw depends on the specific mix of CPU and I/O modules installed. We recommend calculating the rack’s total power budget using the SIEMENS SIMATIC S7-300 system manual before finalizing your configuration.
Q3: What is the difference between 6ES7307-1KA02-0AA0 and 6ES7307-1KA01-0AA0?
The -0AA0 suffix denotes the current hardware revision. The -1KA02 supersedes the -1KA01 with minor hardware improvements. Both are functionally equivalent and pin-compatible; the -1KA02 is the current production version recommended for new installations and replacements.
Q4: Do you supply new or refurbished units?
Konmask.com supplies both new (factory-sealed) and professionally tested used/refurbished units depending on availability. The condition is clearly stated in the quotation. All units pass our QA inspection regardless of condition.
Q5: How long does international shipping take?
Typically 3–7 business days via DHL/FedEx express, or 15–35 days via sea freight for larger orders. Lead time varies by destination country and customs clearance. We provide tracking and full shipping documentation for every shipment.
Q6: Can I get a datasheet or technical manual?
Yes. Contact us at support@konmask.com and we will provide the official SIEMENS datasheet and, where available, the installation manual for the 6ES7307-1KA02-0AA0.
