Genuine SIEMENS 6ES7322-1BP00-0AA0 Digital Output Module SM 322 | SIMATIC S7-300 – Verified Source

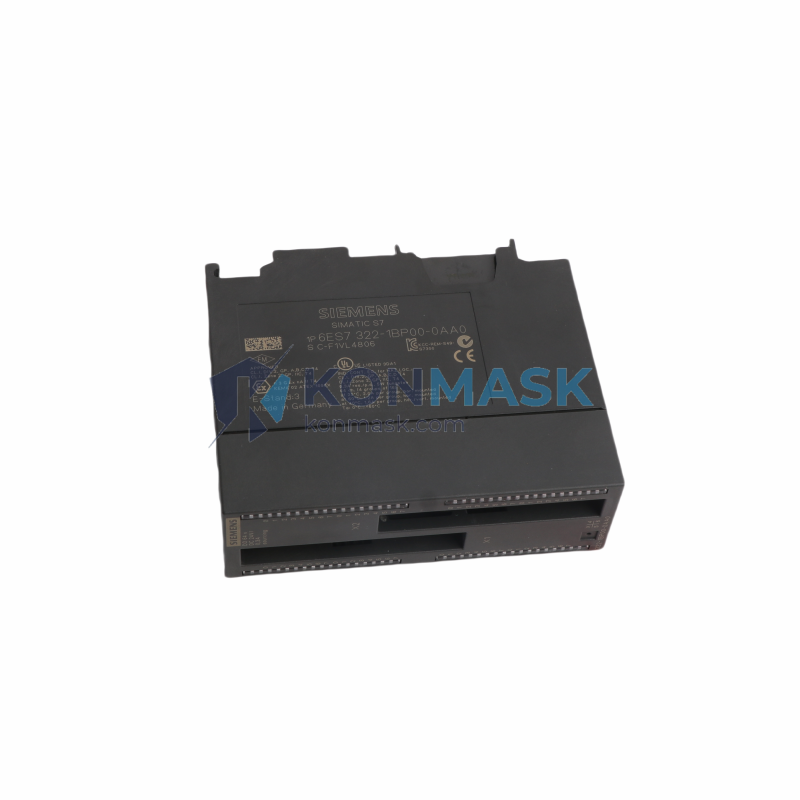

The SIEMENS 6ES7322-1BP00-0AA0 is a high-performance digital output module (SM 322) designed for the SIMATIC S7-300 programmable logic controller platform. Sourced directly through verified industrial supply channels, every unit sold by Konmask.com undergoes a rigorous 4-step quality verification process to ensure authenticity and operational reliability for your automation systems.
Technical Specifications
- Part Number / SKU: 6ES7322-1BP00-0AA0
- Series: SIMATIC S7-300 SM 322
- Module Type: Digital Output Module
- Number of Outputs: 32 DO
- Output Voltage: 24 V DC
- Output Current per Channel: 0.5 A
- Total Current per Module: 4 A
- Isolation: Optocoupler isolation between channels and backplane bus
- Backplane Bus Interface: S7-300 standard backplane bus
- Dimensions (W × H × D): 40 × 125 × 120 mm
- Weight: Approx. 260 g
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Degree of Protection: IP 20
- Certifications: CE, UL, cULus, ATEX (Zone 2)
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All units are procured exclusively from authorized SIEMENS distributors or verified OEM surplus channels. No grey-market or counterfeit sources are accepted.
- Step 2 – Physical Inspection: Each module is inspected for label integrity, housing condition, connector pin alignment, and firmware version consistency against SIEMENS factory standards.
- Step 3 – Functional Bench Test: Modules are powered up and tested for correct I/O response, bus communication, and output switching under load conditions before dispatch.
- Step 4 – Documentation Verification: Serial numbers are cross-referenced with SIEMENS production records where available. Full traceability documentation is provided upon request.
Key Features & Benefits
- 32 individually addressable 24 V DC digital outputs for high-density control applications
- Optocoupler isolation protects the CPU and backplane from field-side voltage transients
- Plug-and-play compatibility with all SIMATIC S7-300 racks — no additional configuration hardware required
- Compact 40 mm width minimizes rack space consumption in panel installations
- Robust industrial-grade design rated for continuous operation in harsh environments
- Supports STEP 7 and TIA Portal programming environments for seamless integration
Typical Applications
- Factory automation and discrete manufacturing control
- Conveyor and material handling systems
- Packaging machinery and bottling lines
- Building automation and HVAC control panels
- Water treatment and utility infrastructure
- Oil & gas process control skids
- Automotive assembly line control
Compatible System Components
- CPUs: SIMATIC S7-300 series (e.g., CPU 314, CPU 315-2 DP, CPU 317-2 PN/DP)
- Racks: UR1 (6ES7390-1AE80-0AA0), UR2 (6ES7390-1AF30-0AA0)
- Power Supplies: PS 307 series (e.g., 6ES7307-1BA01-0AA0, 6ES7307-1EA01-0AA0)
- Front Connectors: 6ES7392-1BM01-0AA0 (40-pin screw-type front connector)
- Programming Software: SIMATIC STEP 7 V5.x, TIA Portal V13 and above
Global Sourcing & Shipping Capabilities
Konmask.com operates as a global industrial automation parts supplier headquartered in China, with established logistics partnerships covering major markets including North America, Europe, Southeast Asia, the Middle East, and Australia. We offer:
- Express air freight (DHL / FedEx / UPS) — typical transit 3–7 business days worldwide
- Sea freight consolidation for bulk orders
- Export documentation support: commercial invoice, packing list, certificate of origin
- Customs HS Code: 8537.10 (Boards, panels, consoles for electric control)
- Minimum order quantity: 1 unit
- Bulk pricing available for orders of 5+ units — contact us for a quote
Certifications & Compliance Statement
The SIEMENS 6ES7322-1BP00-0AA0 is manufactured in compliance with the following international standards and directives:
- CE Marking: Compliant with EU Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU)
- UL / cULus Listed: Recognized for use in North American industrial installations
- ATEX Zone 2: Suitable for use in potentially explosive atmospheres (gas group IIC, temperature class T4)
- RoHS Compliant: Restriction of Hazardous Substances Directive 2011/65/EU
- IEC 61131-2: Programmable controllers — equipment requirements and tests
Konmask.com does not alter, re-label, or modify any hardware. All products are sold in original manufacturer condition.
How to Order
- Add the SIEMENS 6ES7322-1BP00-0AA0 to your cart and proceed to checkout, or
- Contact our sales team directly for bulk orders, custom lead times, or export documentation requirements.
- Provide your shipping address and preferred freight method (express / economy / sea freight).
- Receive order confirmation with tracking number within 1 business day of payment clearance.
Payment Methods Accepted: T/T Bank Transfer, PayPal, Credit Card (Visa / Mastercard), Western Union for verified accounts.
Authenticity & Trust FAQ
Q: How do I know the module is genuine SIEMENS?
A: Every unit passes our 4-step verification process. We provide serial number documentation and can arrange third-party inspection for large orders upon request.
Q: What is your return policy?
A: We offer a 30-day return window for DOA (Dead on Arrival) units. Functional units that have been installed are non-returnable. Please contact support@konmask.com within 48 hours of receipt if you suspect a defect.
Q: Do you provide a warranty?
A: Yes. All modules carry a 12-month Konmask.com seller warranty covering manufacturing defects. This is in addition to any remaining SIEMENS factory warranty where applicable.
Q: Can you source other SIMATIC S7-300 modules?
A: Absolutely. We maintain an extensive inventory of S7-300 CPUs, I/O modules, power supplies, and accessories. Submit your BOM (Bill of Materials) to support@konmask.com for a consolidated quote.
Q: Is export to my country permitted?
A: We comply with all applicable Chinese export regulations and international trade laws. Please confirm your country’s import requirements for industrial automation equipment before ordering.
