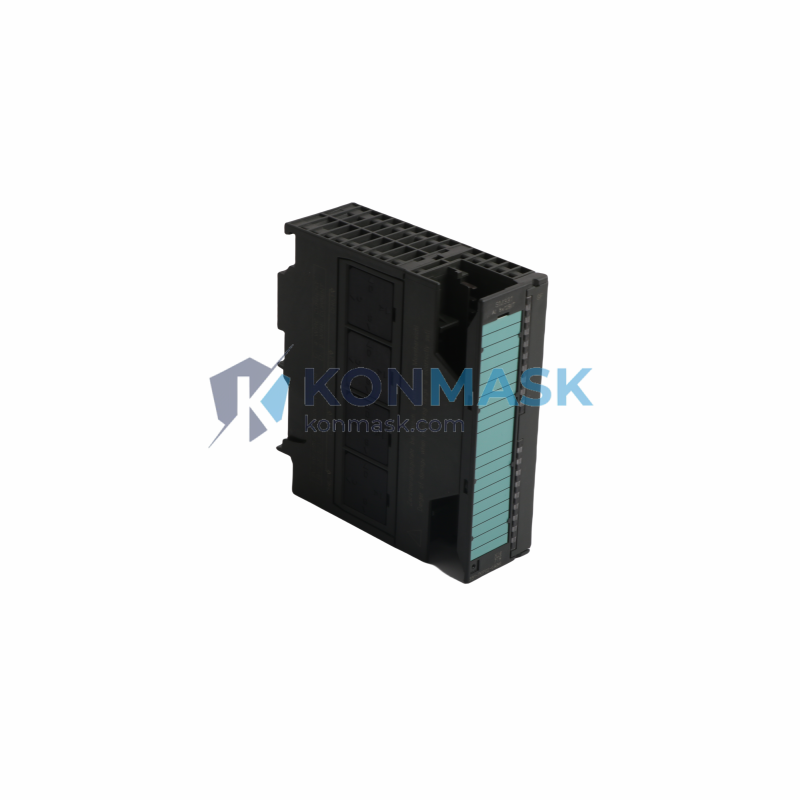

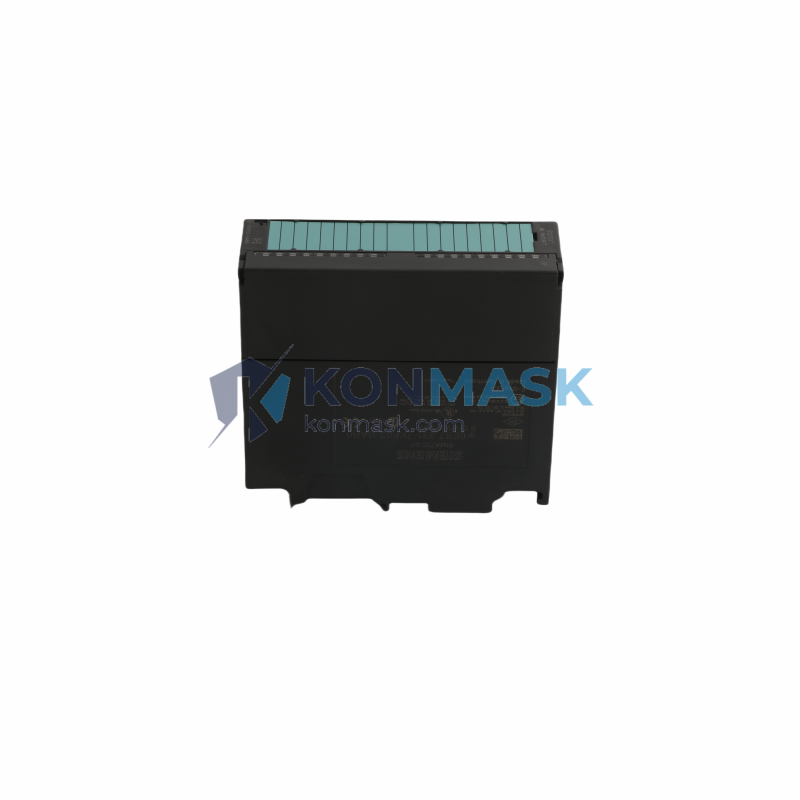

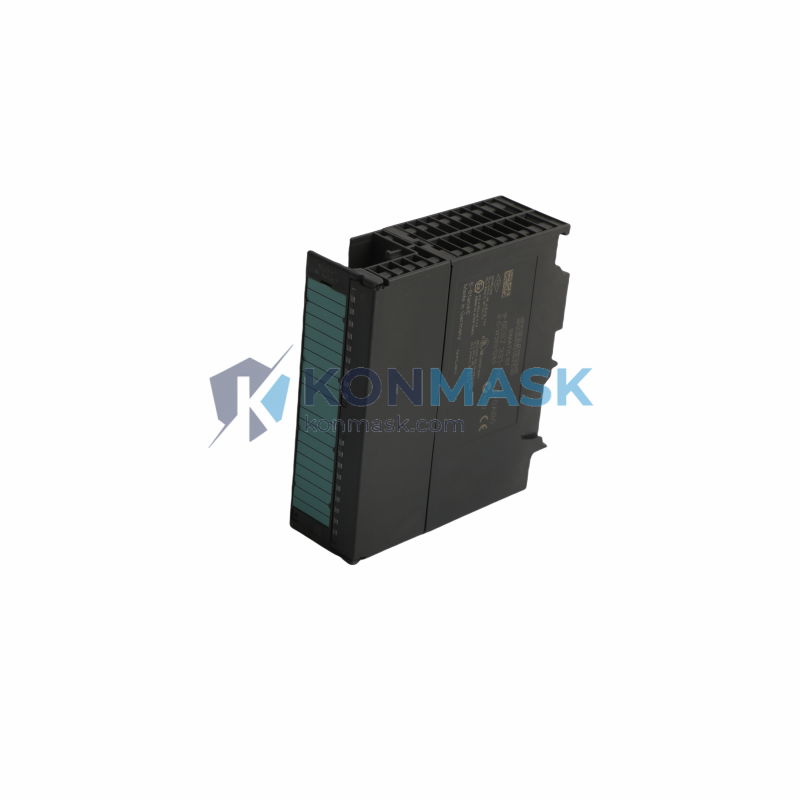

Siemens 6ES7331-7KF02-0AB0 – 8-Channel Analog Input Module | SIMATIC S7-300 Platform
Engineering Background: The SIMATIC S7-300 series has been the backbone of industrial automation for over two decades, deployed across process industries, automotive manufacturing, and critical infrastructure worldwide. The SM331 analog input family represents Siemens’ commitment to precision signal acquisition in demanding environments.
Product Positioning: The 6ES7331-7KF02-0AB0 is a high-resolution 8-channel analog input module designed for the S7-300 rack system. It supports multiple signal types — voltage, current, resistance, and thermocouple — making it the preferred choice for procurement engineers who require a single, flexible module across diverse sensor configurations. At Konmask.com, every unit is sourced through verified supply chains and undergoes multi-point inspection before dispatch.
Complete Technical Specifications
- Part Number: 6ES7331-7KF02-0AB0
- Series / Platform: SIMATIC S7-300
- Module Type: SM331 Analog Input Module
- Number of Channels: 8 (configurable in groups of 2)
- Resolution: Up to 15 bits + sign
- Input Signal Types: Voltage (±10 V, ±5 V, ±2.5 V, 1–5 V), Current (±20 mA, 4–20 mA, 0–20 mA), Resistance (0–600 Ω), Thermocouple (Type B, C, E, J, K, L, N, R, S, T, U)
- Conversion Time: Min. 52 ms (all 8 channels active)
- Supply Voltage: 24 V DC (via backplane bus)
- Power Consumption: Typically 60 mA from backplane
- Isolation: Galvanic isolation between channels and backplane
- Diagnostic Functions: Wire-break detection, overflow/underflow, common-mode error
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Relative Humidity: 10–95% (non-condensing)
- Dimensions (W × H × D): 40 × 125 × 120 mm
- Weight: Approx. 240 g
- Degree of Protection: IP20
- Certifications: CE, UL, cULus, ATEX (Zone 2), FM, C-Tick
- MLFB / Order Number: 6ES7331-7KF02-0AB0
Proven Application Environments
- Process Industry: Temperature and pressure monitoring in chemical plants, refineries, and water treatment facilities using thermocouple and 4–20 mA transmitter inputs
- Automotive Manufacturing: Multi-axis force and torque measurement on assembly lines requiring simultaneous 8-channel acquisition
- Energy & Power Generation: Generator monitoring, turbine control, and grid-tie inverter feedback loops
- Food & Beverage: Hygienic process control with resistance-based temperature sensors (PT100/PT1000)
- Building Automation: HVAC control systems integrating multiple analog sensor types on a single module
- Machine Tool Industry: CNC auxiliary axis feedback and spindle load monitoring
Engineering Advantages
- Universal Signal Compatibility: A single module replaces multiple dedicated input cards, reducing panel space and spare-parts inventory by up to 60%
- High Resolution: 15-bit + sign resolution ensures accurate process variable representation, critical for PID loop stability
- Galvanic Isolation: Protects the CPU and backplane from ground loops and transient surges common in industrial environments
- Integrated Diagnostics: Wire-break and overflow detection reduce mean time to repair (MTTR) by enabling precise fault localization via STEP 7 / TIA Portal
- Flexible Channel Grouping: Channels are configurable in pairs, allowing mixed signal types within a single module — ideal for retrofit projects
- Long-Term Availability: Siemens maintains extended product lifecycle support; Konmask.com stocks both new and refurbished units to support legacy system maintenance
System Architecture & Signal Flow
The 6ES7331-7KF02-0AB0 slots directly into any S7-300 rack (UR1, UR2, ER1, ER2) in signal module positions SM1–SM8. Signal flow proceeds as follows:
- Field Sensor → Front Connector (40-pin): Analog signals enter via the removable front connector, enabling module replacement without rewiring
- Multiplexer & ADC Stage: An internal multiplexer sequentially routes each channel pair through a high-resolution sigma-delta ADC
- Galvanic Isolation Barrier: Optocouplers isolate field-side signals from the backplane bus
- Backplane Bus → CPU: Digitized values are transferred to the CPU via the S7-300 backplane bus and mapped to the process image input (PII) area
- STEP 7 / TIA Portal: Values are accessed in the user program as WORD or INT data types in the peripheral input (PI) address space
Sourcing & Quality Verification
Konmask.com operates a 4-step verification protocol for every SIEMENS module:
- Origin Traceability Check: Serial number and date code verified against Siemens production records where accessible; suspicious batches are quarantined
- Physical Inspection: Label quality, connector pin condition, PCB markings, and housing integrity inspected under magnification
- Functional Power-On Test: Module is installed in an S7-300 test rack; CPU diagnostics confirm module identity, firmware version, and channel self-test pass
- Signal Accuracy Verification: Reference voltage and current sources applied to all 8 channels; output values compared against calibrated reference — tolerance ≤ 0.1% of full scale
Units failing any step are rejected and not listed for sale. Test records are available upon request for critical procurement.
Procurement Process
- Inquiry: Submit your BOM or part number via email to support@konmask.com or WhatsApp +0086 19859288691
- Quotation: Receive a formal quotation with unit price, lead time, and available quantity within 24 hours
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing
- Quality Hold: Your unit is reserved and undergoes final inspection before packaging
- Shipping: Dispatched via DHL / FedEx / UPS with full tracking; EXW Xiamen or CIF destination available
- After-Sales: 12-month warranty on verified new units; 90-day warranty on refurbished units
Technical FAQ
Q: Is 6ES7331-7KF02-0AB0 compatible with S7-300 CPUs using PROFIBUS-DP?
A: Yes. The SM331 communicates via the S7-300 backplane bus and is fully compatible with all S7-300 CPUs regardless of communication interface (MPI, PROFIBUS-DP, PROFINET).
Q: Can I mix thermocouple and 4–20 mA inputs on the same module?
A: Yes, in channel pairs. Channels 0–1 can be configured for thermocouple while channels 2–3 are set for 4–20 mA, providing maximum flexibility.
Q: What is the difference between 6ES7331-7KF02-0AB0 and 6ES7331-7KF01-0AB0?
A: The -0AB0 suffix denotes the current hardware revision with improved EMC performance and extended thermocouple type support. The -0AB0 is the recommended replacement for all earlier revisions.
Q: Do you provide a Certificate of Conformity (CoC)?
A: Yes. A CoC and inspection report are available for all new units. Please request at time of order.
Q: What is the lead time for stock items?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–4 week lead time depending on sourcing channel.
Q: Can I return a module if it fails on arrival?
A: Yes. DOA (Dead on Arrival) claims are accepted within 7 days of receipt. Please contact support@konmask.com with photos and test evidence.
