Industrial Automation Power Solution – Siemens 6ES7307-1KA01-0AA0 | SIMATIC S7-300

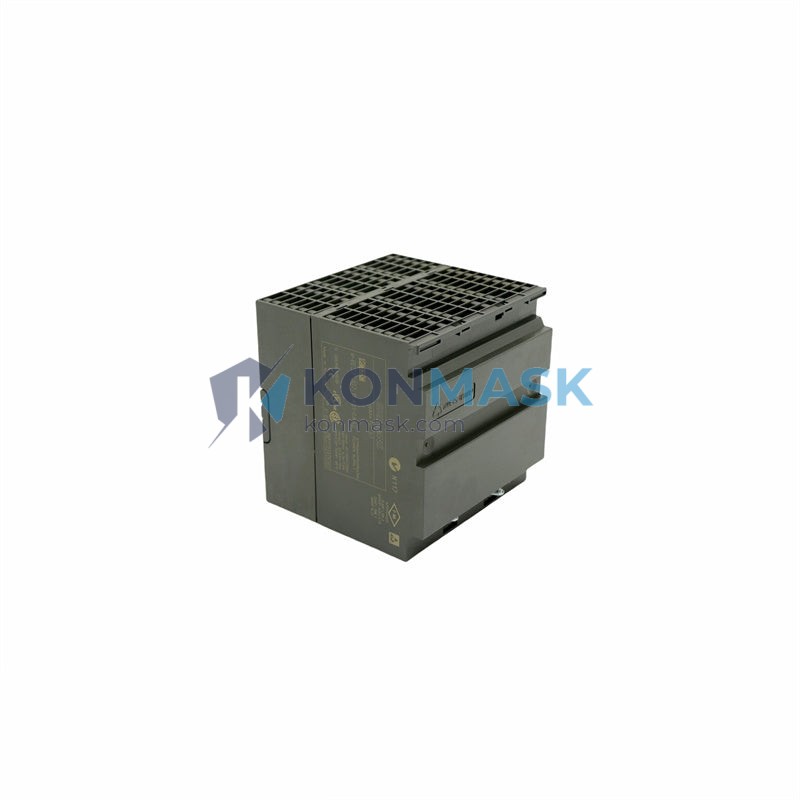

The Siemens 6ES7307-1KA01-0AA0 is a high-reliability 10A / 24VDC regulated power supply module engineered for the SIMATIC S7-300 programmable logic controller platform. Sourced through verified industrial channels and supplied by Konmask.com — your trusted partner for genuine automation components.
Where This Product Is Used
The 6ES7307-1KA01-0AA0 is the backbone power source in demanding industrial environments where stable 24VDC rail power is non-negotiable:
- Automotive Assembly Lines — Powers S7-300 racks controlling robotic welding, body-in-white conveyors, and paint-shop automation.
- Water & Wastewater Treatment Plants — Sustains continuous PLC operation for pump control, dosing systems, and SCADA integration.
- Food & Beverage Processing — Meets hygienic-area panel requirements; supports filling, labeling, and packaging line controllers.
- Oil & Gas Upstream / Midstream — Deployed in remote RTU panels and compressor station control cabinets.
- Building Automation & HVAC — Drives BMS controllers managing chillers, AHUs, and energy metering systems.
- Pharmaceutical Manufacturing — Supports GMP-compliant control panels for batch reactors and clean-room HVAC.
- Pulp, Paper & Printing — Powers high-cycle S7-300 systems on web-tension and dryer-section drives.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 6ES7307-1KA01-0AA0 |
| Product Family | SIMATIC S7-300 |
| Module Type | Regulated Power Supply (PS 307) |
| Input Voltage | 120 / 230 VAC (auto-ranging) |
| Output Voltage | 24 VDC (stabilized) |
| Output Current | 10 A |
| Output Power | 240 W |
| Mounting | DIN Rail (S7-300 profile rail) |
| Dimensions (W×H×D) | 80 × 125 × 120 mm |
| Weight | approx. 1,100 g |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +60 °C |
| Certifications | CE, UL, cULus |
| MLFB / Order No. | 6ES7307-1KA01-0AA0 |
Why Engineers Specify This Model
- 10A Output — Sufficient headroom to power a fully populated S7-300 rack plus field I/O loads without derating.
- Auto-Ranging AC Input — Single SKU covers 120 VAC (North America) and 230 VAC (Europe/Asia) installations.
- Integrated Short-Circuit & Overload Protection — Electronic current limiting prevents cascade failures across the 24VDC bus.
- Parallel Operation Ready — Two units can be paralleled for redundant N+1 power architectures in critical applications.
- Direct Backplane Feed — Plugs directly into the S7-300 profile rail bus connector; no external wiring to CPU or SM modules.
- Long Production Lifecycle — Siemens SIMATIC S7-300 platform has an extended support horizon; spare parts availability is well-documented.
Complete System Bill of Materials
Typical S7-300 control system components compatible with this power supply:
- Profile Rail — 6ES7390-1AE80-0AA0 (482 mm) / 6ES7390-1AF30-0AA0 (530 mm)
- CPU Modules — 6ES7314-1AG14-0AB0 (CPU 314), 6ES7315-2EH14-0AB0 (CPU 315-2 PN/DP)
- Digital Input SM — 6ES7321-1BL00-0AA0 (SM 321, 32×DI 24VDC)
- Digital Output SM — 6ES7322-1BL00-0AA0 (SM 322, 32×DO 24VDC/0.5A)
- Analog Input SM — 6ES7331-7KF02-0AB0 (SM 331, 8×AI)
- Bus Connectors — 6ES7390-0AA00-0AA0
- Front Connectors — 6ES7392-1AM00-0AA0 (20-pin screw type)
Contact Konmask.com for bundle pricing on complete rack assemblies.
Compliance & Industry Standards
- CE Marking — EU Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL 508 / cULus Listed — Industrial Control Equipment
- IEC 61131-2 — Programmable Controllers: Equipment Requirements & Tests
- RoHS 2 Compliant — Directive 2011/65/EU
- ATEX / IECEx — Suitable for use in Zone 2 with appropriate enclosure (consult Siemens documentation)
Quality Assurance & Sourcing
Every unit shipped by Konmask.com undergoes a documented 4-step verification process:
- Origin Traceability — Part number, date code, and country of manufacture verified against Siemens factory records.
- Physical Inspection — Label integrity, housing condition, connector pins, and seal authenticity checked on receipt.
- Functional Bench Test — Output voltage regulation, current limiting, and ripple measured under load before dispatch.
- Packaging & ESD Protection — Anti-static bag, foam insert, and double-wall carton used for all shipments.
We maintain full traceability documentation available upon request for MRO and OEM procurement teams.
How to Source This Part
- Add to cart directly on this page for standard stock orders.
- Email support@konmask.com with your PO number for B2B invoicing and NET payment terms.
- Request a formal quotation for quantities ≥ 5 units — volume pricing available.
- Urgent requirement? Call / WhatsApp +0086 19859288691 for same-day response.
- Lead time: In-stock units ship within 1–3 business days; ETA provided at order confirmation.
Application-Specific FAQ
Q: Can the 6ES7307-1KA01-0AA0 power both the S7-300 backplane and external 24VDC field devices?
A: Yes. The 10A output is shared between the backplane bus and the L+ / M terminals on the front connector. Size your field load budget accordingly — Siemens recommends leaving ≥ 20% headroom.
Q: Is this module compatible with the S7-300 failsafe (F-series) CPUs?
A: Yes. The PS 307 10A is the standard power supply for all S7-300 variants including CPU 315F-2 PN/DP and CPU 317F-2 DP safety controllers.
Q: What is the difference between 6ES7307-1KA01-0AA0 and 6ES7307-1KA02-0AA0?
A: The -0AA0 suffix denotes the standard version; the -0AA2 is a later hardware revision with minor internal improvements. Both are functionally interchangeable as drop-in replacements.
Q: Do you supply the matching S7-300 profile rail and bus connectors?
A: Yes. Contact us with your rack length and slot count for a complete BOM quotation.
Q: Can this unit be used outside a Siemens S7-300 rack as a standalone 24VDC PSU?
A: Technically yes — the L+ / M terminals provide regulated 24VDC. However, it is optimized for S7-300 rail mounting and backplane power delivery.
