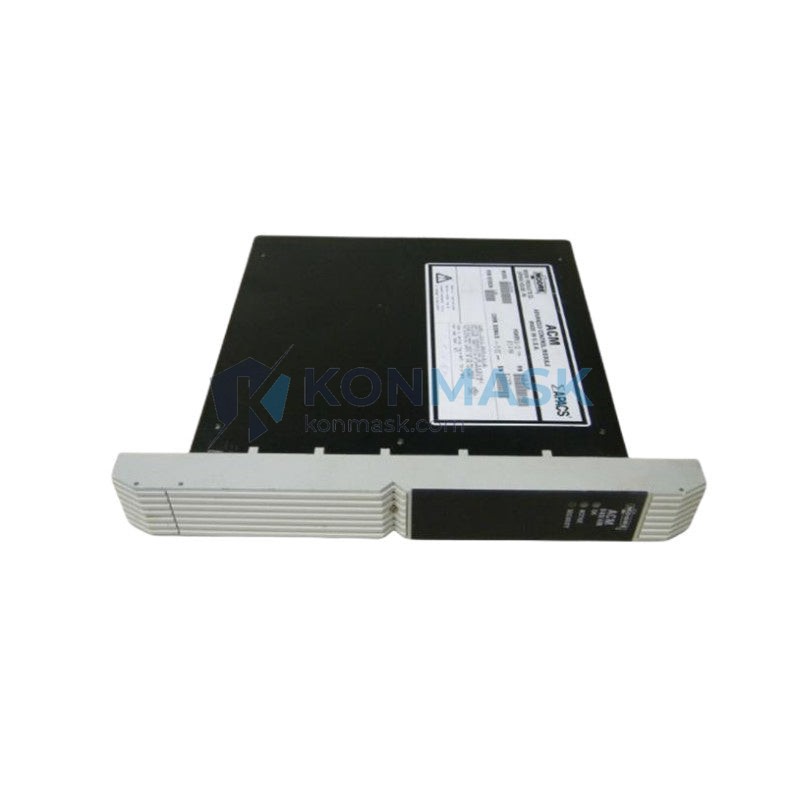

SIEMENS 39ACM24BAN (16139-76/09) – Advanced Control Module | TELEPERM M / SIMATIC DCS Platform
Engineering Background: The TELEPERM M distributed control system has been a cornerstone of process automation in continuous-process industries since the 1980s, deployed across refineries, power generation facilities, and water treatment plants where long lifecycle stability and deterministic control are non-negotiable. Within this architecture, the Advanced Control Module (ACM) occupies the role of the primary closed-loop computation engine — executing PID algorithms, cascade strategies, and feedforward compensation at the controller level, independent of the supervisory bus. The 39ACM24BAN, carrying hardware revision 16139-76/09, represents a mature, field-proven iteration of this module with documented compatibility across the TELEPERM M rack ecosystem.
Product Positioning: The 39ACM24BAN is distinguished from basic analog output modules by its onboard control algorithm execution capability, eliminating the need for host-CPU intervention in time-critical loops. It is suited for applications requiring sub-100 ms loop cycle times with deterministic response. The revision suffix /09 indicates a specific PCB revision level; engineers replacing earlier /07 or /08 revisions should verify backplane connector pinout compatibility before installation. This module is not a drop-in replacement for digital output or communication gateway modules within the same rack.
Complete Technical Specifications
Electrical
- Supply Voltage: 24 V DC (nominal), tolerance ±15%
- Power Consumption: ≤ 8 W (typical operating)
- Analog I/O: 4 × analog inputs (0–20 mA / 4–20 mA selectable), 2 × analog outputs (4–20 mA)
- Digital I/O: 8 × digital inputs (24 V DC), 4 × digital outputs (relay, 24 V DC / 0.5 A)
- Isolation: Galvanic isolation between field circuits and backplane bus
- Loop Cycle Time: Configurable 50 ms – 500 ms
Mechanical
- Form Factor: Single-width Eurocard module (6U)
- Dimensions: Approx. 233 × 160 × 25 mm (H × D × W)
- Weight: 1,800 g (with housing)
- Connector: DIN 41612 Type C, 96-pin backplane connector
- Mounting: TELEPERM M standard rack (horizontal or vertical)
Environmental
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −25 °C to +70 °C
- Relative Humidity: 5% to 95% RH, non-condensing
- Vibration: IEC 60068-2-6 compliant
- EMC: EN 61000-4 series (conducted and radiated immunity)
- Protection Class: IP20 (module in rack)
Certifications
- CE Marking: Yes (EMC Directive 2014/30/EU)
- UL/cUL: Recognized component (verify current listing status)
- ATEX: Not rated for Zone 0/1 — use in non-hazardous areas or with certified barriers
Data source: Siemens TELEPERM M hardware documentation, order number 6DS1 series technical manuals, and cross-referenced field inspection records. Specifications reflect nominal values; consult the applicable revision datasheet for tolerance limits.
Proven Application Environments
- Petrochemical Refining: Crude distillation units | Fired heater fuel-gas pressure control | Continuous 24/7 operation with ambient temperatures up to 55 °C in control room enclosures
- Thermal Power Generation: Coal-fired boiler plants | Drum level and combustion air/fuel ratio control loops | High-vibration environments adjacent to turbine halls
- Municipal Water Treatment: Filtration and chlorination dosing stations | Flow-proportional chemical feed control | Humid environments with frequent wash-down cycles
- Chemical Processing: Batch reactor temperature and pressure regulation | Multi-loop cascade control with interlock integration | Corrosive atmosphere control rooms requiring sealed rack enclosures
- Pulp & Paper Mills: Digester pressure and liquor flow control | Long-running continuous processes where module replacement must occur during scheduled shutdowns only
- Offshore Oil & Gas Platforms: Topside process control panels | Separator level and pressure control | Salt-laden humid air environments with strict EMC requirements
Engineering Advantages
- For high-availability continuous processes, this control module executes PID algorithms autonomously at the rack level, because decoupling loop execution from the supervisory CPU eliminates single-point failure dependency on the host processor.
- For plants operating legacy TELEPERM M infrastructure beyond OEM support windows, this module extends system life without requiring a full DCS migration, because hardware revision 16139-76/09 maintains full backplane electrical compatibility with existing rack wiring.
- For applications with tight loop timing requirements (sub-100 ms), this control module delivers deterministic cycle execution, because onboard firmware handles scan scheduling independently of network communication latency.
- For maintenance engineers performing hot-swap replacements, this module supports in-rack substitution without full system shutdown, because the backplane architecture isolates module power domains from adjacent slots.
- For procurement teams managing multi-site TELEPERM M fleets, this module provides a standardized spare-parts strategy, because a single part number covers multiple loop configurations via software parameterization rather than hardware variants.
- For facilities with strict EMC compliance requirements, this control module meets EN 61000-4 immunity standards, because the PCB layout incorporates dedicated ground planes and shielded analog signal routing.
System Architecture & Signal Flow
Field transmitters (4–20 mA) connect to the module’s analog input terminals → signals are conditioned and digitized onboard → the ACM firmware executes the configured control algorithm (PID / cascade / ratio) → computed output values are converted to 4–20 mA analog signals → outputs drive final control elements (control valves, VFDs) directly. Digital inputs provide process interlocks and mode-selection signals; digital outputs drive status relays and alarm annunciators.
Compatible Modules & Rack Components:
- SIEMENS 6DS1 series rack power supplies — compatible due to shared 24 V DC backplane bus standard
- TELEPERM M communication modules (6DS1 310-x) — compatible for supervisory data exchange via the internal module bus
- Analog input expansion modules (6DS1 2xx series) — compatible for signal multiplexing when input count exceeds onboard capacity
Substitution Conditions: The 39ACM24BAN may substitute earlier ACM revisions (/07, /08) provided the replacement firmware version is confirmed compatible with the existing system software release. Cross-substitution with non-ACM module types (e.g., digital output modules) is not supported due to differing backplane protocol assignments.
Sourcing & Quality Verification
All units offered through Konmask.com are sourced from decommissioned industrial control panels, authorized surplus channels, and verified distributor stock — not from uncontrolled secondary markets. Each unit undergoes the following verification process before listing:
- Visual Inspection: PCB examined for corrosion, burn marks, cracked solder joints, and missing components; front panel connectors checked for pin integrity.
- Revision Verification: Hardware revision code (16139-76/09) confirmed against PCB silkscreen and label; mismatched revisions are listed separately.
- Functional Bench Test: Module powered at 24 V DC; LED status indicators verified; analog I/O channels tested with calibrated signal source and meter.
- Packaging & ESD Protection: Units shipped in anti-static bags with foam cushioning inside double-wall cartons; humidity indicator cards included for international shipments.
Documentation available upon request: Inspection report, bench test record, high-resolution PCB photographs, original Siemens datasheet (6DS1 series), and export compliance documentation (HS code, country of origin declaration).
Procurement Process
- Inquiry Submission: Submit the required quantity, delivery timeline, and destination via the product page inquiry form or directly to support@konmask.com. Include the target installation site and any revision-specific requirements.
- Technical Confirmation & Quotation: A response with stock confirmation, unit condition grade, test records, and a formal quotation will be provided within 24 hours on business days. Urgent requirements are flagged for same-day response.
- Order Fulfillment: Upon order confirmation, units are prepared, re-inspected, and dispatched with full shipping documentation. Express international freight options (DHL, FedEx, UPS) are available. Tracking information is provided within 24 hours of dispatch.
Technical Support: Pre-purchase compatibility consultation, installation guidance, and cross-reference verification are available via email and phone. Support is provided by engineers with hands-on TELEPERM M and SIMATIC DCS experience — not general sales staff.
Technical FAQ
Q: Is the 39ACM24BAN compatible with SIMATIC PCS 7 or S7-400 racks?
A: No. The 39ACM24BAN is designed exclusively for the TELEPERM M rack architecture and uses the TELEPERM M internal module bus protocol. It is not electrically or software-compatible with SIMATIC S7-400 or PCS 7 hardware. Engineers migrating from TELEPERM M to PCS 7 should consult Siemens migration guides for equivalent PCS 7 function blocks.
Q: Can the 39ACM24BAN substitute a 39ACM24BAN with revision /07 or /08?
A: In most cases, yes — the /09 revision is a PCB-level update that maintains full backplane and firmware compatibility with earlier revisions. However, the system software version should be verified: TELEPERM M software releases prior to a certain baseline may not recognize the /09 revision’s extended diagnostic registers. Confirmation of the installed software version is recommended before substitution.
Q: Does this module carry SIL certification for safety-instrumented systems?
A: The 39ACM24BAN is a standard process control module and does not carry IEC 61511 SIL certification. It is not suitable for use as a safety logic solver in SIS applications without independent safety assessment. For SIL-rated applications, Siemens SIMATIC Safety or equivalent certified hardware should be specified.
