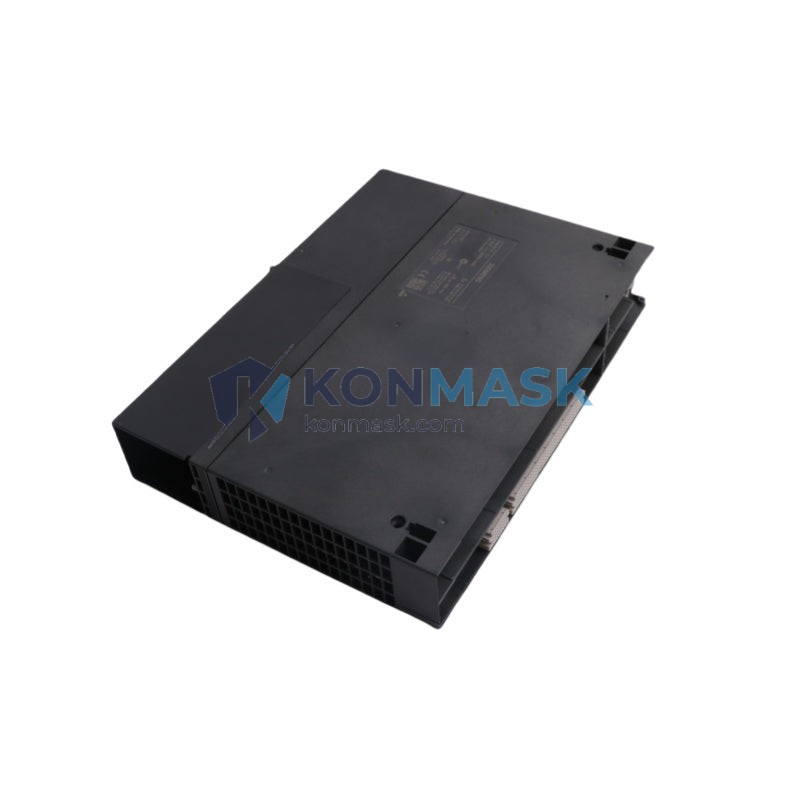

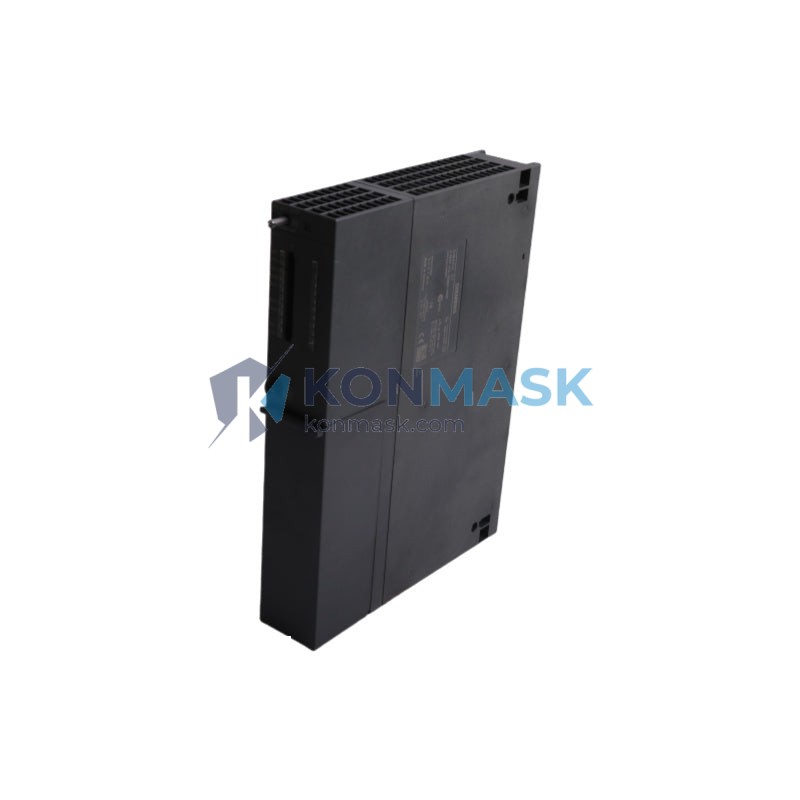

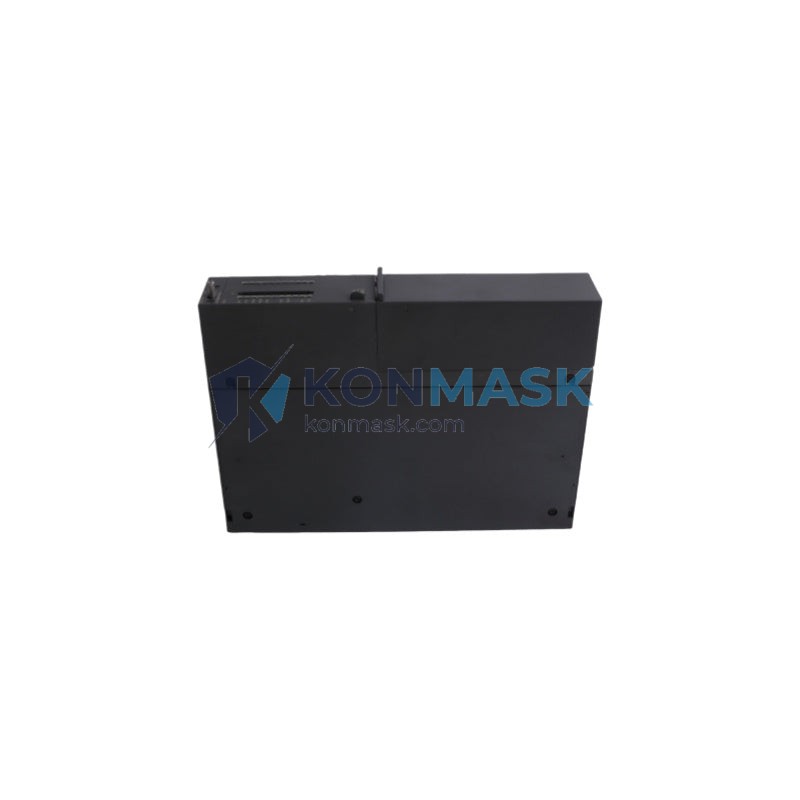

SIEMENS 6ES7414-3EM05-0AB0 CPU 414-3 S7-400 PLC Module | Replacement, Equivalent & Selection Guide
The SIEMENS 6ES7414-3EM05-0AB0 is a high-performance central processing unit (CPU 414-3) designed for the SIMATIC S7-400 programmable logic controller (PLC) platform. It is widely deployed in complex manufacturing automation, process control, and large-scale distributed I/O systems. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make informed decisions.
Technical Specifications
- Part Number: 6ES7414-3EM05-0AB0
- Product Family: SIMATIC S7-400
- CPU Type: CPU 414-3
- Work Memory: 4 MB (expandable)
- Load Memory: Integrated 256 KB RAM + MMC slot
- Processing Speed: 0.1 ms / 1000 instructions (binary)
- Communication Interfaces: MPI/DP (PROFIBUS), 2× PROFIBUS DP master/slave
- I/O Addresses: 16 KB input / 16 KB output
- Counters / Timers: 2048 / 2048
- Data Blocks: Up to 8191
- Supply Voltage: DC 5 V (via S7-400 backplane bus)
- Operating Temperature: 0 °C to +60 °C
- Dimensions (W×H×D): 25 mm × 290 mm × 210 mm
- Weight: Approx. 820 g
- Firmware Version: V5.0 (EM05)
- MLFB / Order Number: 6ES7414-3EM05-0AB0
- Certifications: CE, UL, cULus, ATEX (Zone 2)
Compatible Replacement & Equivalent Models
The following models are functionally compatible or serve as direct/near-direct replacements for the 6ES7414-3EM05-0AB0. Always verify firmware compatibility and backplane slot requirements before substitution.
- 6ES7414-3EM06-0AB0 — Successor firmware revision (V6.0); pin-compatible, recommended upgrade path
- 6ES7414-3XM05-0AB0 — CPU 414-3 PN/DP variant with integrated PROFINET interface; suitable when Ethernet connectivity is required
- 6ES7416-3ES06-0AB0 — CPU 416-3 PN/DP; higher memory and processing capacity for expanded projects
- 6ES7412-2XK07-0AB0 — CPU 412-2 DP; cost-effective downgrade for smaller I/O configurations
- 6ES7414-2XK05-0AB0 — CPU 414-2 DP; single PROFIBUS DP port, suitable for simpler topologies
Note: Third-party or clone CPUs are not recommended for safety-critical applications. Contact Konmask for OEM-sourced units.
Why Choose the Original Model
- Proven Reliability: The 6ES7414-3EM05-0AB0 has an established track record in automotive, chemical, and energy industries with MTBF exceeding 100,000 hours.
- Dual PROFIBUS DP: Two independent DP master/slave interfaces enable complex distributed I/O architectures without additional communication modules.
- Large Work Memory: 4 MB work memory supports extensive ladder logic, function block diagrams, and structured text programs without memory expansion cards.
- Seamless TIA Portal & STEP 7 Integration: Fully supported by both SIMATIC STEP 7 V5.x and TIA Portal V13+, protecting existing engineering investments.
- Hot-Swap Capable: Supports online program changes and CPU hot-standby configurations (with CP 444 or H-system setup).
Typical Applications
- Automotive body-in-white (BIW) assembly lines
- Chemical and petrochemical process control (DCS integration)
- Power generation and grid substation automation
- Water treatment and municipal infrastructure SCADA
- Pharmaceutical batch processing (FDA 21 CFR Part 11 environments)
- Steel mill rolling and continuous casting control
- Airport baggage handling and logistics sortation systems
System Compatibility
- Backplane / Rack: SIMATIC S7-400 UR1, UR2, UR2-H, CR2, CR3 racks
- Power Supply: PS 405 / PS 407 (4 A or 10 A variants)
- Programming Software: SIMATIC STEP 7 V5.4 and above; TIA Portal V13 SP1 and above
- Communication Processors: CP 443-1, CP 443-5 (PROFIBUS/PROFINET extension)
- I/O Modules: All standard S7-400 SM 421/422/431/432 signal modules
- HMI: SIMATIC WinCC, WinCC flexible, TP/MP series panels via MPI or PROFIBUS
- PROFIBUS DP Slaves: ET 200M, ET 200S, ET 200SP (with IM 155-6 DP), third-party DP devices
Selection Guide
Use the criteria below to determine whether the 6ES7414-3EM05-0AB0 is the right CPU for your project, or to identify a more suitable alternative:
- Program size < 2 MB, single DP port needed → Consider CPU 412-2 DP (6ES7412-2XK07-0AB0) for cost savings
- Program size 2–4 MB, dual DP ports needed → 6ES7414-3EM05-0AB0 is the optimal choice
- Program size 2–4 MB + PROFINET required → Upgrade to CPU 414-3 PN/DP (6ES7414-3XM05-0AB0)
- Program size > 4 MB or > 2 DP ports needed → Step up to CPU 416-3 PN/DP (6ES7416-3ES06-0AB0)
- High-availability / redundancy required → Consider S7-400H system with CPU 414-5H or CPU 417-5H
- Migrating to newer platform → Evaluate SIMATIC S7-1500 with TIA Portal migration tool
Quality Assurance & Sourcing
- Origin: OEM-sourced from authorized SIEMENS distribution channels
- Inspection: Each unit undergoes functional power-on test and firmware version verification before shipment
- Packaging: Original SIEMENS anti-static packaging with serial number label intact
- Warranty: 12-month replacement warranty against manufacturing defects
- Counterfeit Prevention: Holographic authenticity label verified; batch traceability records available on request
- Export Compliance: ECCN EAR99 / AT-controlled items handled per applicable regulations
How to Order
- Confirm your exact part number: 6ES7414-3EM05-0AB0
- Specify required quantity and delivery timeline
- Contact us via email or phone for bulk pricing and lead time
- Receive proforma invoice → confirm payment → dispatch within 1–3 business days
- Tracking number provided upon shipment; DHL / FedEx / UPS international express available
📧 [email protected] | 📞 +0086 19859288691 | 🌐 https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I replace 6ES7414-3EM05-0AB0 with 6ES7414-3EM06-0AB0 directly?
A: Yes. The EM06 is the direct firmware successor. The hardware footprint and backplane connector are identical. A project download via STEP 7 or TIA Portal is required after swap.
Q: Is the 6ES7414-3EM05-0AB0 compatible with S7-300 racks?
A: No. This CPU is exclusively designed for the S7-400 backplane bus. It is not physically or electrically compatible with S7-300 racks.
Q: Can I use a CPU 414-3 PN/DP as a drop-in replacement?
A: Functionally yes, but the PN/DP variant adds a PROFINET port which requires additional configuration. Slot dimensions are the same (25 mm wide).
Q: What happens to the program if the CPU battery fails?
A: Work memory contents are lost on power cycle without battery backup. Use a SIMATIC Micro Memory Card (MMC) to store the program persistently — the MMC retains data without battery power.
Q: Do you supply refurbished units?
A: We supply new OEM units only. Refurbished units are not offered to ensure reliability in production environments.
