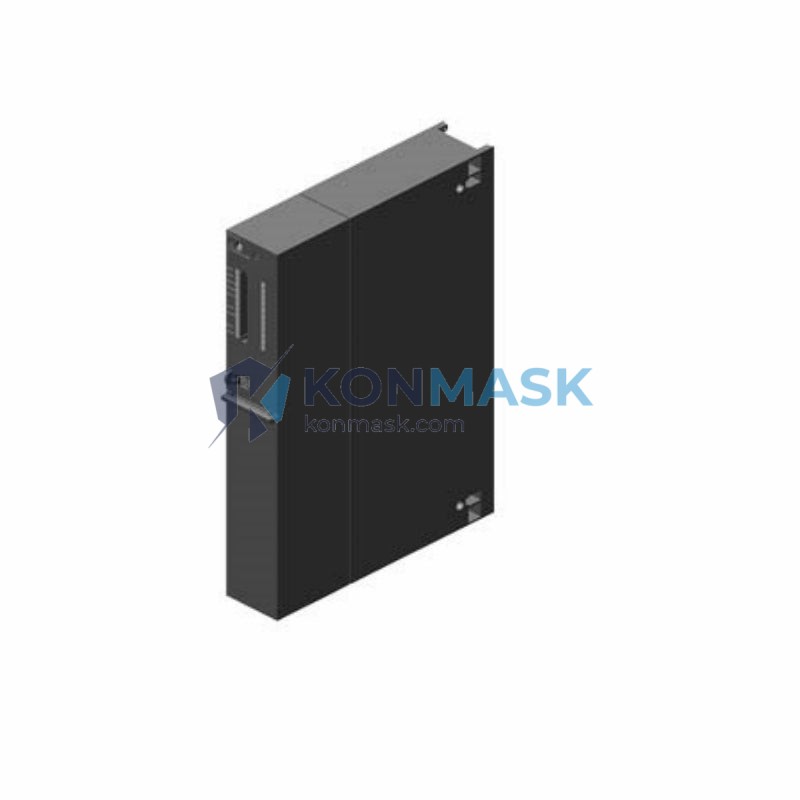

Siemens 6ES7414-3XM05-0AB0 – CPU 414-3 Interface Plug-in Module (IFM) | SIMATIC S7-400
The Siemens 6ES7414-3XM05-0AB0 is a factory-original Interface Module (IFM) designed exclusively for the SIMATIC S7-400 CPU 414-3 series. This plug-in expansion card extends the CPU’s communication and I/O interface capabilities, enabling seamless integration into complex distributed control architectures. Sourced directly from authorized Siemens channels and verified OEM stock, this module is the preferred choice for procurement engineers requiring traceable, specification-compliant components for mission-critical automation systems.
Complete Technical Specifications
- Part Number / SKU: 6ES7414-3XM05-0AB0
- Product Family: SIMATIC S7-400
- Compatible CPU: CPU 414-3 (6ES7414-3 series)
- Module Type: Interface Plug-in Module (IFM)
- Manufacturer: Siemens AG
- Country of Origin: Germany
- HS Code: 853710
- Weight: approx. 900 g
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Degree of Protection: IP20
- Supply Voltage: Via CPU backplane bus
- Standards Compliance: CE, UL, IEC 61131-2
- Form Factor: Plug-in card for S7-400 CPU slot
Proven Application Environments
- Large-scale process automation (oil & gas, chemical, power generation)
- Distributed Control Systems (DCS) with multi-rack S7-400 configurations
- High-availability redundant PLC architectures
- Automotive body-shop and press-line automation
- Water treatment and utility SCADA integration
- Steel mill and heavy-industry drive coordination
- Pharmaceutical batch processing (FDA 21 CFR Part 11 environments)
Engineering Advantages
- Expanded Interface Capacity: Adds additional communication or I/O interface ports to the CPU 414-3 without requiring an additional CPU module, reducing rack footprint and cost.
- Hot-swap Compatible: Designed for the S7-400’s modular architecture, supporting maintenance without full system shutdown in appropriate configurations.
- Deterministic Performance: Maintains the S7-400’s real-time cycle consistency even under high I/O load, critical for process-critical control loops.
- Long-term Availability: Siemens S7-400 platform components are supported under Siemens’ extended lifecycle program, ensuring spare-part availability for installed base protection.
- OEM Traceability: Each unit supplied by Konmask.com carries full OEM documentation and batch traceability records upon request.
System Architecture & Signal Flow
The 6ES7414-3XM05-0AB0 IFM module plugs directly into the designated interface slot on the CPU 414-3 module body. It communicates via the internal S7-400 backplane bus, extending the CPU’s native interface count. In a typical multi-rack configuration, the IFM enables the CPU to manage additional IM (Interface Module) send/receive connections, expanding the addressable I/O range across distributed racks. Signal integrity is maintained through Siemens’ proprietary backplane protocol, ensuring deterministic data exchange between the CPU and all connected peripheral racks.
Sourcing & Quality Verification
- Origin: OEM-sourced, Germany-manufactured Siemens components
- Condition: New / Refurbished-to-OEM-spec (specify at inquiry)
- Inspection: Each unit undergoes functional verification prior to dispatch
- Documentation: Certificate of Conformity, OEM datasheet, and batch records available on request
- Anti-counterfeit: Konmask.com sources exclusively from verified Siemens distribution channels; counterfeit screening applied to all inbound stock
- Warranty: 12-month limited warranty against manufacturing defects
Procurement Process
- Submit RFQ: Email [email protected] with your required quantity, delivery timeline, and project details.
- Receive Quotation: Our technical sales team responds within 1 business day with pricing, lead time, and availability confirmation.
- Order Confirmation: Issue PO against our proforma invoice; payment terms available for qualified accounts.
- Dispatch & Tracking: Units are packed to IEC transport standards and shipped with full tracking; export documentation (CO, packing list, commercial invoice) included.
- After-sales Support: Technical support available via email or phone throughout the warranty period.
Technical FAQ
Q: Is the 6ES7414-3XM05-0AB0 compatible with CPU 414-2 or CPU 416 series?
A: No. This IFM is specifically designed for the CPU 414-3 slot geometry and backplane interface. It is not interchangeable with other S7-400 CPU variants.
Q: Can this module be used in a redundant S7-400H system?
A: The CPU 414-3 is not a member of the S7-400H redundancy family. For redundant architectures, please inquire about CPU 414-5H or CPU 417-5H compatible IFM options.
Q: What is the firmware/OS version requirement?
A: Refer to the Siemens SIMATIC S7-400 CPU 414-3 product manual (A5E00111189) for firmware compatibility matrix. Konmask.com can supply the relevant documentation upon request.
Q: Do you offer exchange/repair services for faulty units?
A: Yes. Contact our technical team with the fault description and serial number for an exchange or repair quotation.
Q: What export regulations apply to this product?
A: This product is classified under HS 853710. Export may be subject to dual-use regulations depending on destination country. Buyers are responsible for compliance with applicable export control laws.
