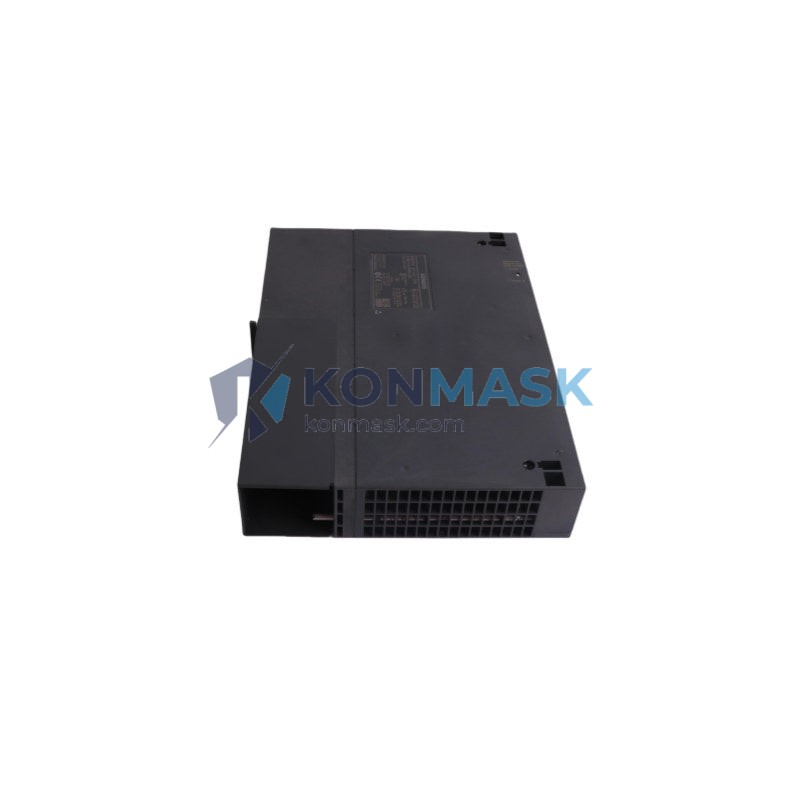

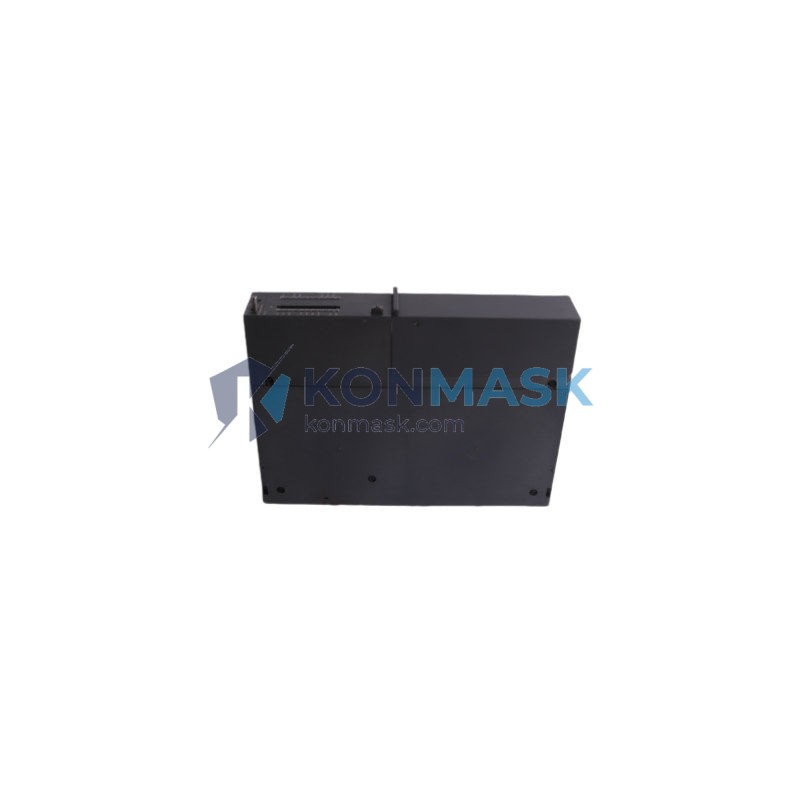

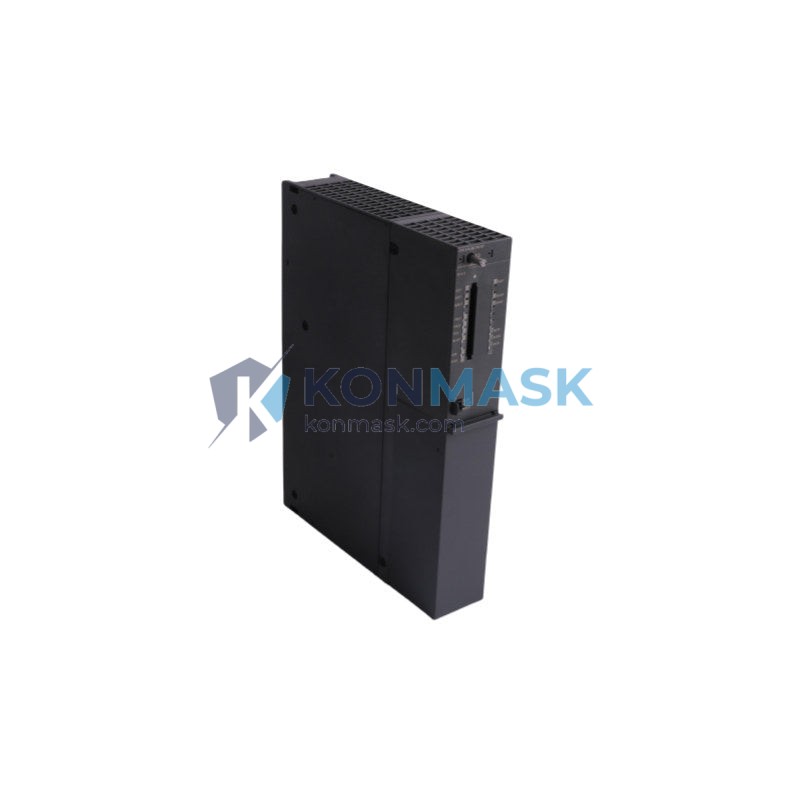

SIEMENS 6ES7414-5HM06-0AB0 – CPU 414-5H Redundant Fault-Tolerant Processor | SIMATIC S7-400H
Engineering Background: The SIMATIC S7-400H series represents Siemens’ flagship high-availability programmable logic controller platform, engineered specifically for process industries where unplanned downtime carries catastrophic operational and financial consequences. The CPU 414-5H is the core processing unit of this redundant architecture, designed to operate in synchronized hot-standby pairs.
Product Positioning: The 6ES7414-5HM06-0AB0 is a production-grade redundant CPU module targeting mission-critical continuous process control in oil & gas, chemical, power generation, and water treatment facilities. It delivers deterministic execution with automatic bumpless switchover in the event of a primary CPU fault — ensuring zero process interruption.
Complete Technical Specifications
| Order Number (MLFB) | 6ES7414-5HM06-0AB0 |
| Product Family | SIMATIC S7-400H / S7-400F/FH |
| CPU Type | CPU 414-5H |
| Firmware Version | V6.0 (HM06 designation) |
| Work Memory | 4 MB (code + data, expandable via memory card) |
| Load Memory | Integrated 512 KB RAM; expandable via MMC up to 64 MB |
| Processing Speed (Bit) | 0.06 µs per bit operation |
| Processing Speed (Word) | 0.12 µs per word operation |
| Processing Speed (Float) | 0.6 µs per floating-point operation |
| Max. I/O Addresses | 16 KB inputs / 16 KB outputs |
| Communication Interfaces | MPI/DP (12 Mbit/s), PROFIBUS DP Master/Slave, Sync module interface (fiber optic) |
| Sync Interface | 2× fiber-optic sync ports for H-system redundancy coupling |
| Max. Number of S7 Connections | 44 |
| Integrated Functions | PID control, IEC timers/counters, diagnostic buffer |
| Redundancy Mode | Hot-standby (1-of-2 redundancy), bumpless switchover <1 ms |
| Safety Integrity | Compatible with F-CPU safety extensions (S7-400F/FH) |
| Supply Voltage | DC 24 V (via backplane bus) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 10% to 95%, non-condensing |
| Degree of Protection | IP20 |
| Dimensions (W×H×D) | 50 × 290 × 219 mm |
| Weight | Approx. 1,120 g |
| Certifications | CE, UL, cUL, FM, ATEX (zone 2), IECEx |
| Country of Origin | Germany |
| SIMATIC Manager / TIA Portal | STEP 7 V5.5 SP4+; TIA Portal V13 SP1+ (limited) |
Proven Application Environments
- Oil & Gas: Pipeline SCADA, compressor station control, emergency shutdown systems (ESD)
- Chemical & Petrochemical: Continuous reactor control, distillation column automation, batch process management
- Power Generation: Turbine governor control, boiler management systems (BMS), grid synchronization
- Water & Wastewater: Pumping station redundancy, treatment plant process control
- Pharmaceutical: GMP-compliant batch control, clean-in-place (CIP) automation
- Steel & Metals: Rolling mill drive coordination, furnace temperature control
Engineering Advantages
- Zero-Downtime Switchover: Bumpless hot-standby redundancy with <1 ms failover — process continuity guaranteed even during CPU fault or planned maintenance
- High-Speed Execution: 0.06 µs bit processing enables deterministic real-time control of fast-response processes
- Scalable Memory Architecture: 4 MB work memory with MMC expansion supports large, complex control programs without performance degradation
- Fiber-Optic Sync Coupling: Immune to electromagnetic interference; sync cables up to 10 km for geographically distributed redundant systems
- Integrated Safety Compatibility: Seamlessly upgrades to F/FH safety configuration for SIL 2/3 applications without hardware replacement
- Proven Longevity: S7-400H platform with 20+ years of industrial deployment; extensive spare parts ecosystem and engineering expertise globally
System Architecture & Signal Flow
In an S7-400H redundant system, two 6ES7414-5HM06-0AB0 CPUs operate in parallel within separate racks, synchronized via fiber-optic cables connected to the dedicated sync module interfaces. Both CPUs execute identical programs simultaneously. The active CPU controls I/O; the standby CPU mirrors all data in real time. Upon detection of a primary CPU fault (hardware failure, watchdog timeout, or power loss), the standby assumes control within one PLC scan cycle — transparent to the field devices and operator HMI.
Communication to engineering stations and HMI is via MPI or PROFIBUS DP. Field I/O is connected through ET 200 distributed I/O or direct S7-400 I/O modules on the central rack. The system supports PROFIBUS PA for process instrumentation integration.
Sourcing & Quality Verification
- All units sourced from authorized Siemens distribution channels or verified industrial surplus with full traceability
- Pre-shipment inspection: visual examination, firmware version verification, functional power-on test
- Original Siemens packaging, labels, and documentation preserved where available
- Counterfeit screening performed on every unit — holographic labels, PCB markings, and serial number validation against Siemens databases
- Warranty: 12 months from date of shipment; DOA replacement within 7 business days
Procurement Process
- Inquiry: Submit your RFQ with required quantity, delivery timeline, and destination via email or the contact form
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 hours
- Order Confirmation: Purchase order accepted; payment via T/T, L/C, or agreed terms
- Quality Check & Packing: Pre-shipment inspection completed; anti-static packaging with shock-absorbing foam
- Shipment: DHL / FedEx / sea freight with full tracking; export documentation (commercial invoice, packing list, COO) provided
- After-Sales: Technical support available post-delivery; warranty claims processed within 48 hours
Technical FAQ
Q: Can the 6ES7414-5HM06-0AB0 be used as a standalone (non-redundant) CPU?
A: Yes. It can operate as a standard S7-400 CPU in simplex mode, though its redundancy features will be inactive. This is useful for staged system upgrades.
Q: What sync cable length is supported between the two H-CPUs?
A: Fiber-optic sync cables support distances up to 10 km, enabling geographically separated redundant control rooms.
Q: Is this CPU compatible with TIA Portal?
A: Limited support is available via TIA Portal V13 SP1 and later. Full feature support and recommended programming environment is STEP 7 V5.5 SP4 or higher.
Q: What memory card is compatible?
A: Siemens SIMATIC Micro Memory Card (MMC) — order numbers 6ES7953-8Lxx0-0AA0 series, up to 64 MB.
Q: What is the difference between S7-400H and S7-400F/FH?
A: S7-400H provides hardware redundancy (high availability). S7-400F adds functional safety (SIL). S7-400F/FH combines both — the 6ES7414-5HM06-0AB0 is compatible with all three configurations.
Q: Do you provide Siemens certificates of conformity?
A: Original Siemens documentation is provided where available. For new stock, full Siemens CoC is included. For surplus stock, we provide our own inspection report and traceability documentation.
