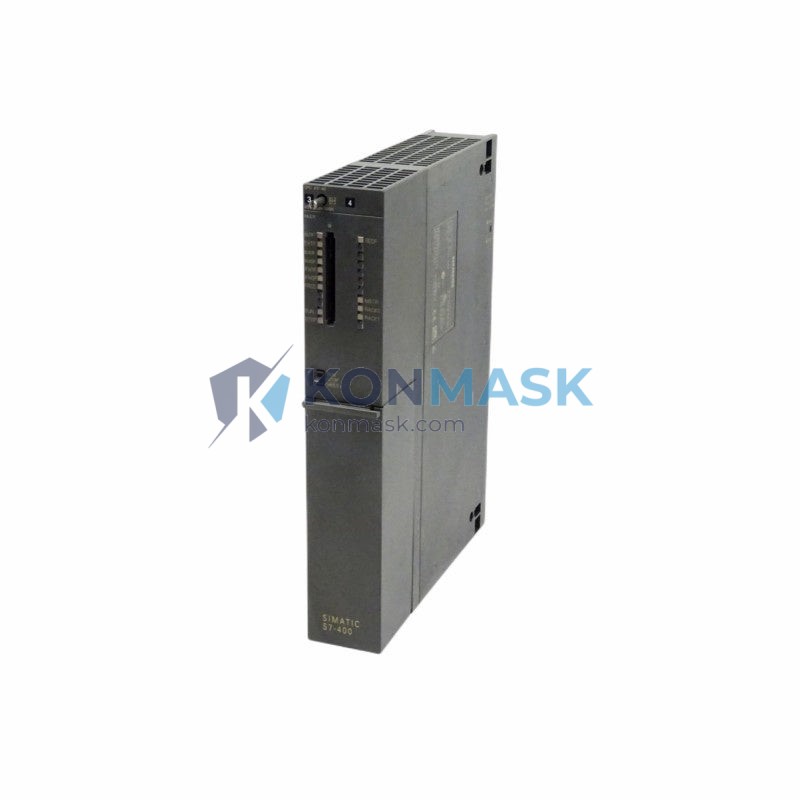

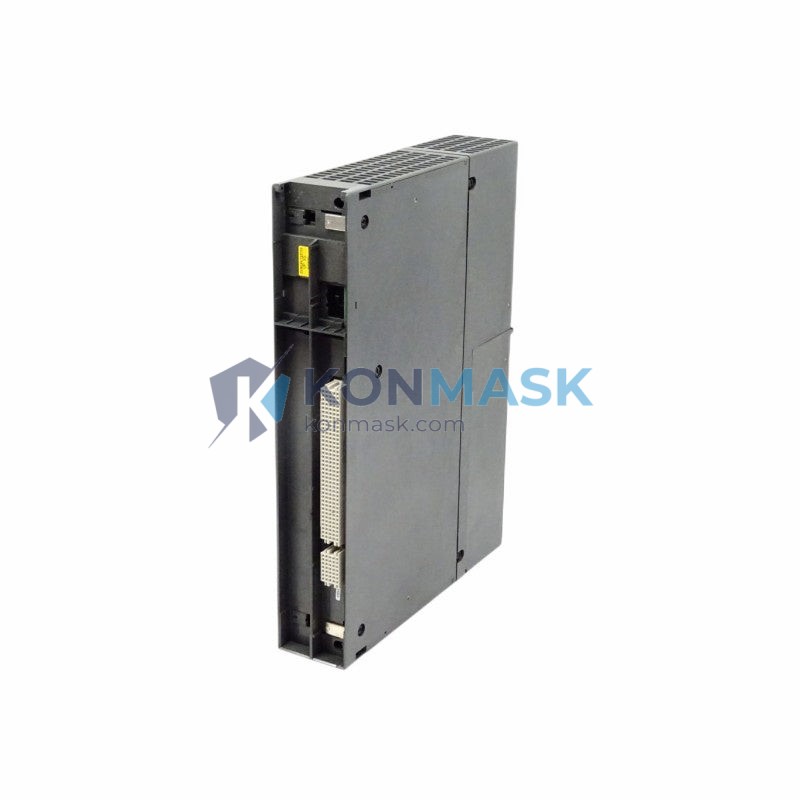

SIEMENS 6ES7417-4HL04-0AB0 — High-Availability Redundant Central Processor | SIMATIC S7-400H Platform
Engineering Background
The SIMATIC S7-400H series represents Siemens’ flagship solution for fault-tolerant process automation. Designed for industries where unplanned downtime carries catastrophic operational or safety consequences — petrochemical, power generation, water treatment, and pharmaceutical manufacturing — the S7-400H architecture pairs two synchronized CPUs in a hot-standby configuration. The 6ES7417-4HL04-0AB0 (CPU 417H) is the highest-performance member of this redundant family, delivering the processing headroom required for large-scale, time-critical control programs.
Product Positioning
The CPU 417H is engineered for mission-critical applications demanding both maximum throughput and continuous availability. It operates as one half of a redundant CPU pair, with both units executing the same control program in lockstep. Upon detection of any fault in the active CPU, bumpless switchover to the standby unit occurs within milliseconds — transparent to the field devices and the operator. Konmask.com supplies this module as genuine Siemens hardware, sourced through verified industrial channels, with full traceability documentation available on request.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Order Number (MLFB) | 6ES7417-4HL04-0AB0 |
| Product Family | SIMATIC S7-400H |
| CPU Designation | CPU 417H |
| Firmware Version | V6.0 (HL04 revision) |
| Work Memory (RAM) | 30 MB (code + data combined) |
| Load Memory | Integrated 1 MB Flash; expandable via Memory Card (max 64 MB) |
| Processing Speed — Bit Operations | 0.025 µs |
| Processing Speed — Word Operations | 0.025 µs |
| Processing Speed — Floating Point | 0.08 µs |
| Max. I/O Addresses (Digital) | 262,144 bits (32,768 bytes) |
| Max. I/O Addresses (Analog) | 16,384 channels |
| Timers / Counters | 2,048 / 2,048 |
| Data Blocks | Up to 8,191 DBs |
| Integrated PROFIBUS DP Interfaces | 2 × DP Master/Slave (up to 12 Mbit/s) |
| MPI Interface | 1 × MPI (187.5 kbit/s default) |
| Sync Module Interface | 2 × fiber-optic sync ports for H-system redundancy |
| Max. Expansion Racks | 21 (CR3 central rack + 20 ERs) |
| OB Support | OB1, OB10–OB47, OB55–OB57, OB60, OB70–OB73, OB80–OB87, OB100–OB102, OB121–OB122 |
| Redundancy Switchover Time | < 100 ms (typical < 10 ms) |
| Supply Voltage | 24 V DC (via backplane bus) |
| Power Consumption | Approx. 4.5 W |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Relative Humidity | 10 % to 95 % (non-condensing) |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 50 × 290 × 219 mm |
| Weight | Approx. 1,000 g |
| Certifications | CE, UL, cUL, FM, ATEX Zone 2 |
| Programming Software | STEP 7 V5.x / TIA Portal V13 SP1 and above |
Proven Application Environments
- Oil & Gas: Pipeline SCADA, compressor station control, emergency shutdown systems (ESD) requiring SIL 2/3 compliance via redundant architecture.
- Power Generation: Turbine governor control, boiler management, and grid synchronization where CPU failure cannot be tolerated.
- Chemical & Petrochemical: Continuous process control with bumpless CPU switchover ensuring no process upset during maintenance or fault events.
- Water & Wastewater: Large-scale WWTP automation with distributed I/O over PROFIBUS DP, requiring 24/7 uptime guarantees.
- Pharmaceutical & Food: GMP-compliant batch control systems where audit trails and fault-free operation are regulatory requirements.
- Automotive Manufacturing: Body-in-white and powertrain assembly lines where line stoppage costs exceed thousands of USD per minute.
Engineering Advantages
- Bumpless Hot-Standby Redundancy: Both CPUs execute the program simultaneously; switchover is transparent to field devices — no output glitch, no process interruption.
- Highest S7-400H Processing Performance: 30 MB work memory and 0.025 µs bit-operation speed support the most demanding control programs in the S7-400 family.
- Dual PROFIBUS DP Masters: Enables redundant PROFIBUS ring topologies, eliminating the fieldbus as a single point of failure.
- Online Program Modification: Supports program changes and I/O expansion while the system is running — zero planned downtime for engineering changes.
- Fiber-Optic Sync Link: High-speed synchronization between the two CPUs via dedicated fiber ports ensures data consistency with minimal latency.
- Extensive OB Library: Full support for time-of-day interrupts, hardware interrupts, synchronous error OBs, and H-specific OBs (OB70–OB73) for redundancy event handling.
- TIA Portal Compatible: Fully supported in TIA Portal V13 SP1+, enabling modern engineering workflows alongside legacy STEP 7 V5.x projects.
System Architecture & Signal Flow
In an S7-400H system, two CPU 417H modules are installed in separate central racks (CR3), interconnected via a pair of fiber-optic synchronization cables. The active CPU (Master) executes the user program and drives all outputs. The standby CPU (Reserve) receives a continuous synchronization data stream and mirrors the process image in real time. Upon detection of a fault — hardware failure, power loss, or watchdog timeout — the Reserve CPU assumes Master status within one OB1 cycle, typically under 10 ms. Field devices connected via PROFIBUS DP or PROFINET (with appropriate CP modules) experience no communication interruption. The operator station (WinCC / SCADA) logs the switchover event but process control continues uninterrupted.
Sourcing & Quality Verification
- Genuine Siemens Hardware: All units supplied by Konmask.com are sourced from authorized industrial distributors or verified surplus channels with full chain-of-custody documentation.
- Pre-Shipment Inspection: Each module undergoes visual inspection for physical damage, label authenticity verification (holographic Siemens label, MLFB barcode scan), and firmware version confirmation.
- Serialization Traceability: Serial numbers are recorded and cross-referenced against Siemens’ product authenticity database where applicable.
- Packaging: Shipped in ESD-safe anti-static bags with foam cushioning inside double-wall corrugated cartons. Shock indicators included for international shipments.
- Warranty: 12-month Konmask.com operational warranty covering manufacturing defects. Siemens OEM warranty terms apply where original factory seal is intact.
Procurement Process
- Inquiry & Quotation: Submit your RFQ via support@konmask.com or WhatsApp +0086 19859288691 with required quantity, delivery timeline, and destination country.
- Order Confirmation: Proforma invoice issued within 24 hours. Payment via T/T bank transfer, PayPal, or trade assurance platforms.
- Lead Time: In-stock units ship within 3–5 business days. Ex-stock availability confirmed at time of order.
- Export Documentation: Commercial invoice, packing list, certificate of origin, and HS code 8537.10 declaration provided for customs clearance.
- Logistics: DHL Express, FedEx International Priority, or sea freight consolidation available. Incoterms EXW/FOB/CIF negotiable.
- After-Sales Support: Technical commissioning guidance available via email or video call. Replacement unit dispatched within 48 hours under warranty claim.
Technical FAQ
Q: Can the CPU 417H be used in a non-redundant (standard) S7-400 configuration?
A: No. The CPU 417H is designed exclusively for S7-400H redundant systems. For non-redundant applications, the CPU 417-4 (6ES7417-4XT05-0AB0) is the appropriate choice.
Q: What synchronization cables are required?
A: The H-system requires Siemens fiber-optic sync modules (6ES7960-1AA04-0XA0 or equivalent) and standard 62.5/125 µm multimode fiber cables. Maximum sync cable length is 10 m for copper or up to 10 km for fiber variants.
Q: Is online modification (OLM) supported?
A: Yes. The CPU 417H fully supports online program modification, I/O reconfiguration, and expansion of the distributed I/O while the H-system is in RUN mode — without interrupting process control.
Q: What is the maximum PROFIBUS DP network size?
A: Each of the two integrated DP interfaces supports up to 125 slave stations. With both interfaces active, up to 250 DP slaves can be connected to a single CPU 417H.
Q: How do I verify authenticity of the module received?
A: Check the holographic Siemens product label on the module housing, scan the MLFB barcode to confirm it matches 6ES7417-4HL04-0AB0, and verify the serial number via Siemens Industry Online Support (support.industry.siemens.com). Konmask.com provides a pre-shipment inspection report with photos upon request.
Q: What TIA Portal version is required?
A: TIA Portal V13 SP1 or higher is required for full CPU 417H support. STEP 7 Classic V5.5 SP4 or higher is also supported for legacy projects.
