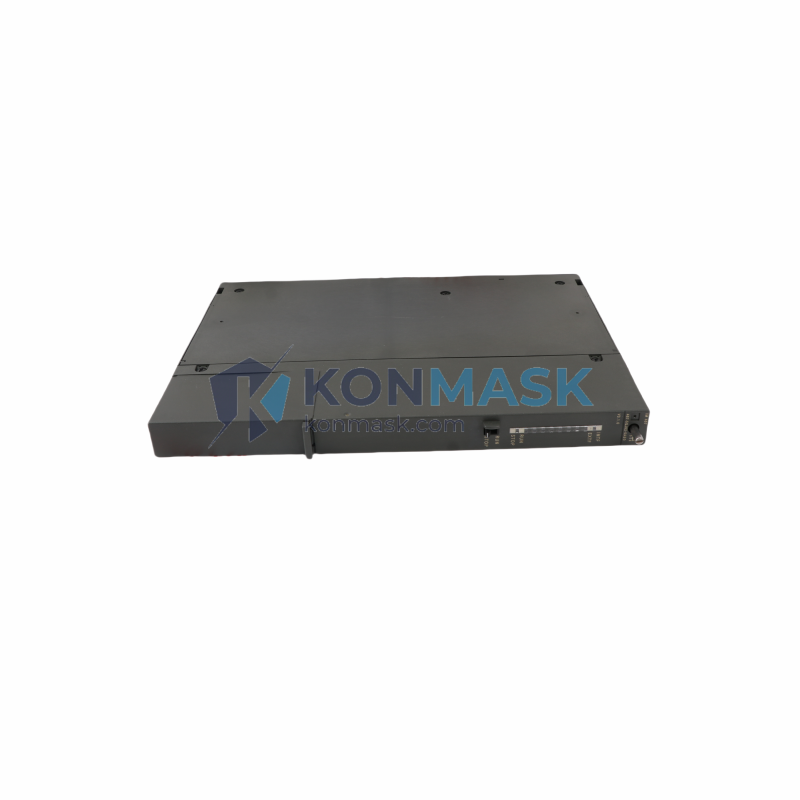

SIEMENS 6ES7467-5GJ02-0AB0 – PROFIBUS DP Master Interface Module | SIMATIC S7-400
Engineering Background: The 6ES7467-5GJ02-0AB0 is a PROFIBUS DP Master Interface Module designed for the SIEMENS SIMATIC S7-400 programmable logic controller platform — one of the most robust and widely deployed process automation architectures in heavy industry. This module enables the S7-400 CPU to act as a Class 1 DP Master on a PROFIBUS network, orchestrating real-time communication with distributed I/O slaves, drives, and field devices across complex plant environments.
Product Positioning: Engineered for mission-critical applications in process manufacturing, power generation, automotive assembly, and infrastructure control, this interface module delivers deterministic fieldbus communication with high noise immunity and proven long-term reliability. It is the preferred choice for procurement engineers who require OEM-grade hardware with full SIEMENS compatibility and traceable provenance.
Complete Technical Specifications
- Part Number / SKU: 6ES7467-5GJ02-0AB0
- Product Family: SIMATIC S7-400
- Module Type: PROFIBUS DP Master Interface (CP 467)
- Fieldbus Protocol: PROFIBUS DP (EN 50170 / IEC 61158)
- DP Master Class: Class 1 DP Master
- Max. DP Slaves: Up to 125 slaves per segment
- Transmission Rate: 9.6 kbps – 12 Mbps (auto-negotiated)
- Interface Connector: 9-pin Sub-D (RS-485)
- Supply Voltage: 5 VDC (via S7-400 backplane bus)
- Power Consumption: Typically ≤ 2.0 W
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: -40 °C to +70 °C
- Relative Humidity: 10% – 95% (non-condensing)
- Degree of Protection: IP20
- Dimensions (W × H × D): 25 mm × 290 mm × 210 mm (approx.)
- Weight: 680 g
- Country of Origin: Germany
- HS Code: 853710
- Certifications: CE, UL, cULus, ATEX (zone 2 capable with appropriate housing)
- Compatible CPUs: SIMATIC S7-400 series (CPU 412, 414, 416, 417 and variants)
- Configuration Software: STEP 7 V5.x / TIA Portal with S7-400 support package
Proven Application Environments
- Process industries: oil & gas, chemical, pharmaceutical, water treatment
- Power generation and grid automation substations
- Automotive body-in-white and powertrain assembly lines
- Steel and metals production with high EMI environments
- Building automation and large-scale HVAC control systems
- Railway signaling and infrastructure control
- Retrofit and lifecycle extension of existing S7-400 PROFIBUS networks
Engineering Advantages
- Deterministic Real-Time Communication: PROFIBUS DP cyclic data exchange ensures predictable scan times critical for process control loops.
- High Noise Immunity: RS-485 physical layer with optical isolation options provides robust operation in electrically noisy plant environments.
- Scalable Network Topology: Supports up to 125 slaves per segment with repeaters; integrates seamlessly with existing PROFIBUS infrastructure.
- Plug-and-Play Integration: Recognized natively by STEP 7 and TIA Portal — no third-party drivers required.
- Long Product Lifecycle: SIEMENS S7-400 platform is supported under the SIEMENS Industry Lifecycle Management program, ensuring spare parts availability.
- Hot-Swap Capable: Designed for insertion and removal under power in compatible S7-400 racks (verify with specific rack model).
System Architecture & Signal Flow
The 6ES7467-5GJ02-0AB0 occupies a dedicated slot in the S7-400 central rack or expansion rack. It communicates with the S7-400 CPU via the internal backplane bus (P-bus / K-bus), exchanging process image data and diagnostic information. On the field side, the module drives the PROFIBUS DP segment via its Sub-D connector, polling configured slave devices in a cyclic master-slave protocol. Acyclic services (MSAC1/MSAC2) support parameterization and alarm handling for intelligent field devices such as SIEMENS SINAMICS drives and ET 200 distributed I/O.
Typical Signal Flow: S7-400 CPU → Backplane Bus → 6ES7467-5GJ02-0AB0 → PROFIBUS DP Cable → Field Slaves (ET 200, Drives, Valves, Sensors)
Sourcing & Quality Verification
- Source: Sourced from authorized SIEMENS distribution channels and verified industrial surplus with full traceability.
- Inspection: Each unit undergoes visual inspection, firmware version verification, and functional power-on testing prior to shipment.
- Authenticity: SIEMENS holographic labels, date codes, and factory markings verified against SIEMENS product databases.
- Packaging: Ships in anti-static ESD packaging with original or equivalent protective foam insert.
- Warranty: 12-month Konmask operational warranty covering manufacturing defects and functional failures.
Procurement Process
- Step 1 – Inquiry: Submit your BOM or part number via the product page or email support@konmask.com for availability confirmation and lead time.
- Step 2 – Quotation: Receive a formal quotation with unit price, quantity, lead time, and shipping options within 24 business hours.
- Step 3 – Order Confirmation: Place order via the Konmask.com checkout or via purchase order (PO) for approved B2B accounts.
- Step 4 – Quality Check & Dispatch: Unit is inspected, tested, and dispatched with packing list and test report upon request.
- Step 5 – After-Sales Support: Technical support available via email and phone for installation, configuration, and compatibility queries.
Technical FAQ
Q: Is the 6ES7467-5GJ02-0AB0 compatible with TIA Portal?
A: Yes, with the SIMATIC S7-400 support package installed in TIA Portal V13 SP1 and later. Full functionality is available in STEP 7 V5.5 and above.
Q: Can this module operate as a DP Slave?
A: No. The 6ES7467-5GJ02-0AB0 is configured exclusively as a Class 1 DP Master. For slave functionality, refer to the CP 443-5 Extended or IM 467 variants.
Q: What is the maximum cable length per PROFIBUS segment?
A: At 1.5 Mbps, maximum segment length is 200 m. At 93.75 kbps, up to 1,200 m. Use SIEMENS PROFIBUS cable (6XV1830-0EH10 or equivalent) for optimal performance.
Q: Is a firmware update required upon installation?
A: Firmware is factory-loaded and version-locked. Verify compatibility with your CPU firmware version via the SIEMENS Industry Online Support portal before installation.
Q: Do you provide a Certificate of Conformity (CoC)?
A: Yes. A CoC and inspection report are available upon request for all orders. Contact support@konmask.com.
