Siemens 6ES7421-1BL00-0AA0 – 32-Channel Digital Input Module | SIMATIC S7-400 Platform
Engineering Background
The SIMATIC S7-400 is Siemens’ flagship high-performance PLC platform, engineered for demanding process automation, manufacturing execution, and safety-critical applications. The SM 421 signal module family provides the digital I/O backbone for S7-400 rack systems, enabling reliable field signal acquisition across industrial environments.
Product Positioning

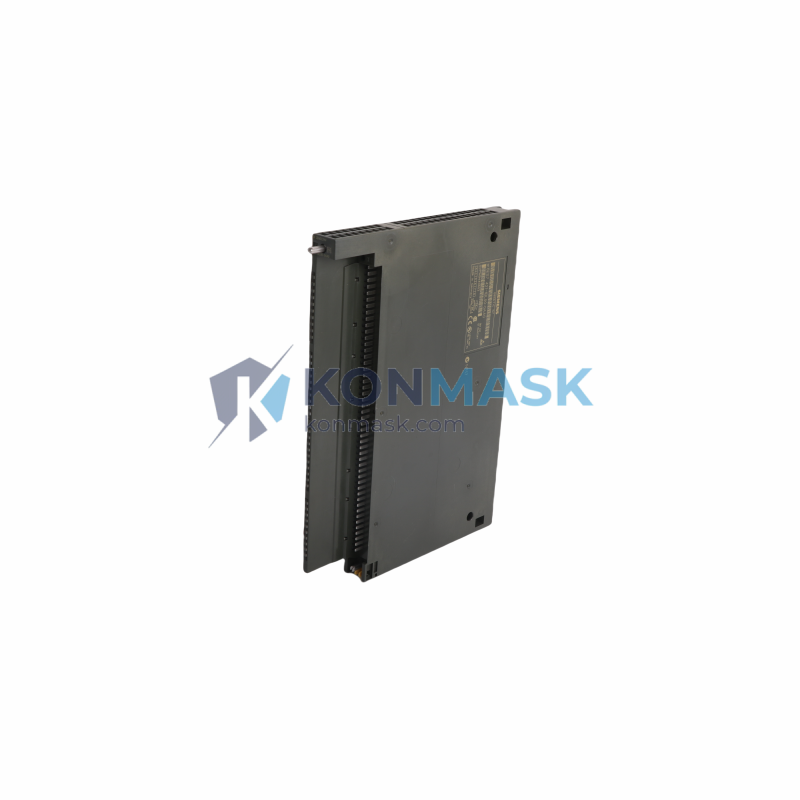

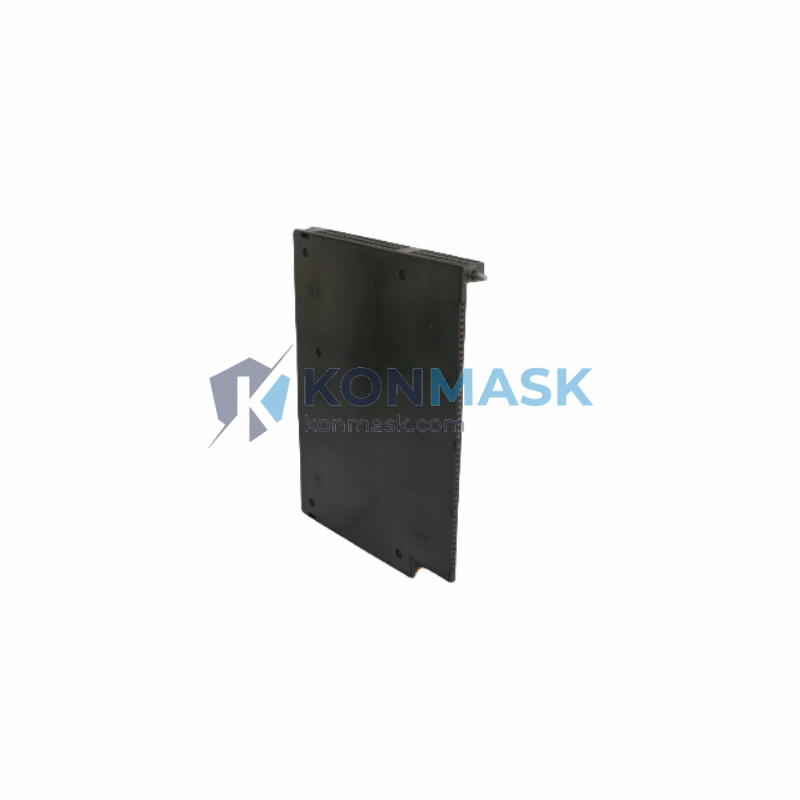

The 6ES7421-1BL00-0AA0 is a 32-channel, 24 VDC digital input module designed for the SIMATIC S7-400 central rack. It delivers high-density signal acquisition with group isolation, making it the preferred choice for procurement engineers specifying large-scale discrete I/O in process plants, automotive lines, and infrastructure control systems.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Siemens Part Number | 6ES7421-1BL00-0AA0 |
| Module Type | SM 421 Digital Input Module |
| Platform | SIMATIC S7-400 |
| Number of Inputs | 32 DI |
| Input Voltage (Rated) | 24 VDC |
| Input Voltage Range | 20.4 – 28.8 VDC |
| Signal “1” Level | 13 – 30 VDC |
| Signal “0” Level | -30 – 5 VDC |
| Input Current (Typ.) | 7 mA at 24 VDC |
| Input Delay (Configurable) | 0.1 / 0.5 / 3 / 15 ms |
| Galvanic Isolation | Yes – groups of 16 |
| Backplane Bus Current Draw | Max. 110 mA (5 VDC) |
| Power Dissipation | Max. 5.5 W |
| Connector Type | 40-pin front connector (not included) |
| Dimensions (W × H × D) | 25 × 290 × 210 mm |
| Weight | Approx. 600 g |
| Operating Temperature | 0 – 60 °C |
| Storage Temperature | -40 – 70 °C |
| Relative Humidity | 10 – 95% (non-condensing) |
| Protection Class | IP 20 |
| Certifications | CE, UL, cULus, ATEX (Zone 2) |
| MLFB / Order Number | 6ES7421-1BL00-0AA0 |
Proven Application Environments
- Process Industry: Chemical plants, oil & gas terminals, water treatment facilities requiring high-density discrete signal acquisition
- Automotive Manufacturing: Body-in-white lines, press shops, and assembly conveyor control with high I/O point counts
- Power Generation & Utilities: Substation automation, turbine control, and grid monitoring systems
- Infrastructure & Building Automation: Tunnel ventilation, airport baggage handling, and large HVAC control panels
- Pharmaceutical & Food Processing: GMP-compliant production lines requiring validated PLC hardware
Engineering Advantages
- High Channel Density: 32 inputs in a single 25 mm-wide slot minimizes rack space and reduces wiring complexity
- Group Isolation (16-ch groups): Protects the CPU and adjacent modules from field-side voltage transients
- Configurable Input Delay: Software-selectable debounce (0.1–15 ms) eliminates false triggering from mechanical contacts
- Broad Voltage Tolerance: 20.4–28.8 VDC operating range accommodates real-world field supply variations
- Hot-Swap Compatible: Supports module replacement under power in redundant S7-400H configurations
- STEP 7 & TIA Portal Integration: Full hardware catalog support with automatic parameter assignment
System Architecture & Signal Flow
The 6ES7421-1BL00-0AA0 mounts directly into any S7-400 central rack (CR) or expansion rack (ER) slot. Field sensors connect via the 40-pin front connector to the 32 input channels, organized in two isolated groups of 16. The module reads signal states and transfers them across the S7-400 backplane bus to the CPU at each scan cycle. Input filtering is configured in STEP 7 HW Config or TIA Portal Device Configuration, with no additional hardware required. The module draws 5 VDC logic power from the backplane; field-side 24 VDC is supplied externally through the front connector.
Sourcing & Quality Verification
- All units sourced from authorized Siemens distribution channels or verified industrial surplus with full traceability
- Each module undergoes incoming inspection: visual check, label verification (MLFB, date code, firmware version), and functional power-on test
- Firmware version and hardware revision documented and disclosed prior to shipment
- Original Siemens packaging preserved where available; repackaged units clearly identified
- Certificate of conformity and test report available upon request for regulated industries
Procurement Process
- Confirm Compatibility: Verify your S7-400 rack type (CR / ER), CPU firmware version, and STEP 7 / TIA Portal version support for 6ES7421-1BL00-0AA0
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and availability confirmation
- Place Order: Add to cart and complete checkout, or submit a purchase order via email for B2B net-terms arrangements
- Shipping: DHL / FedEx international express standard; EXW Xiamen available for freight forwarder arrangements
- Documentation: Commercial invoice, packing list, and optional CoC / test report included with shipment
Technical FAQ
Q: Is the 6ES7421-1BL00-0AA0 compatible with S7-400H redundant systems?
A: Yes. The module is fully supported in S7-400H configurations and supports hot-swap replacement without system shutdown.
Q: What front connector is required?
A: The 40-pin front connector (e.g., 6ES7492-1AL00-0AA0 screw-type or 6ES7492-1BL00-0AA0 spring-type) must be ordered separately.
Q: Can input delay be changed without hardware modification?
A: Yes. Input delay (0.1 / 0.5 / 3 / 15 ms) is configured entirely in software via STEP 7 HW Config or TIA Portal.
Q: What is the difference between -0AA0 and other SM 421 variants?
A: The -1BL00-0AA0 variant provides 32 inputs at 24 VDC with group isolation. Other variants differ in channel count, voltage level (120/230 VAC), or isolation architecture.
Q: Do you provide a warranty?
A: Yes. All units carry a 12-month warranty against manufacturing defects. Contact support@konmask.com for warranty claims.
