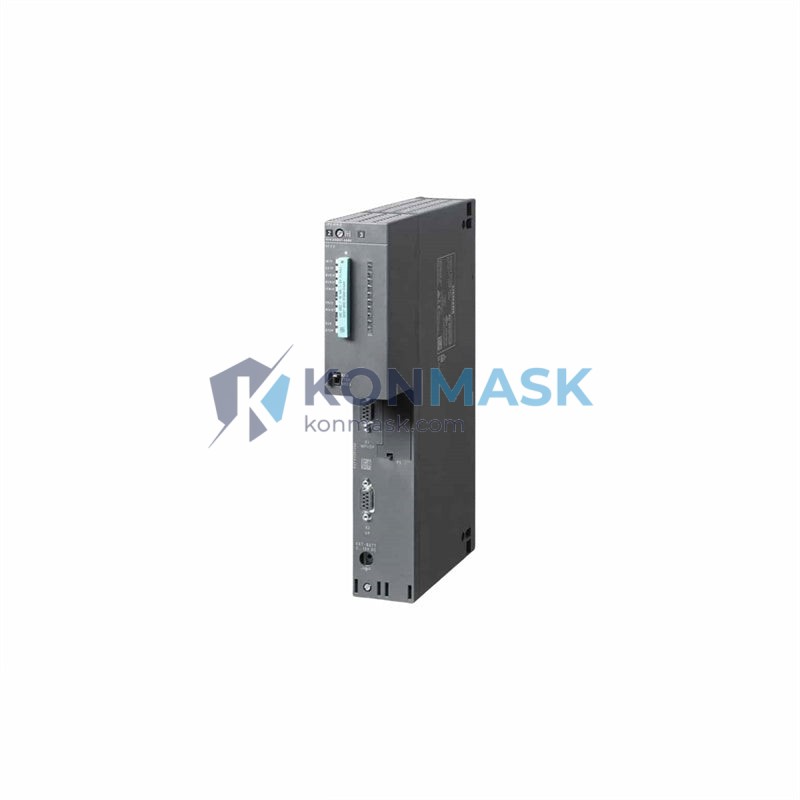

SIEMENS 6ES7414-3XJ00-0AB0 – High-Performance CPU 414-3 Processor Module | SIMATIC S7-400 Platform
Engineering Background
The SIEMENS 6ES7414-3XJ00-0AB0 is a high-performance central processing unit designed for the SIMATIC S7-400 programmable logic controller platform — Siemens’ flagship modular PLC system engineered for demanding process automation, manufacturing execution, and large-scale distributed control applications. The S7-400 series has been the backbone of critical infrastructure worldwide for over two decades, trusted in power generation, chemical processing, automotive assembly, and water treatment facilities.
Product Positioning
The CPU 414-3 (6ES7414-3XJ00-0AB0) occupies the mid-to-high tier of the S7-400 CPU lineup, delivering the processing throughput and communication flexibility required for complex multi-axis coordination, high-density I/O management, and real-time PROFIBUS-DP master/slave configurations. It is the preferred choice for procurement engineers who need proven reliability without over-specifying to the CPU 416/417 class.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Order Number (MLFB) | 6ES7414-3XJ00-0AB0 |
| Product Family | SIMATIC S7-400 |
| CPU Type | CPU 414-3 |
| Work Memory (RAM) | 4 MB (2 MB code / 2 MB data) |
| Load Memory | Expandable via MMC (max. 64 MB) |
| Processing Speed (Bit) | 0.1 µs per bit operation |
| Processing Speed (Word) | 0.1 µs per word operation |
| Processing Speed (Float) | 0.3 µs per floating-point operation |
| Timers / Counters | 2048 / 2048 |
| Data Blocks | Max. 8191 |
| MPI Interface | 1× MPI (187.5 kbps – 12 Mbps) |
| PROFIBUS-DP Interface | 2× DP (Master/Slave, up to 12 Mbps) |
| Max. I/O Addresses | 16 KB inputs / 16 KB outputs |
| Max. Racks | 21 (1 central + 20 expansion) |
| Max. Modules per System | 300 |
| Supply Voltage | DC 24 V (via backplane bus) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 10% – 95% (non-condensing) |
| Protection Class | IP 20 |
| Dimensions (W×H×D) | 50 × 290 × 219 mm |
| Weight | Approx. 2.1 kg |
| Country of Origin | Germany |
| HS Code | 8537.10 |
| CE / UL Certified | Yes |
Proven Application Environments
- Process Automation: Chemical plants, oil & gas refineries, and pharmaceutical batch processing requiring deterministic scan cycles and high I/O density.
- Power Generation & Utilities: Turbine control, substation automation, and water/wastewater SCADA integration via PROFIBUS-DP.
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, and press shop sequencing with multi-rack S7-400 configurations.
- Building Automation & Infrastructure: Airport baggage handling, tunnel ventilation, and large-scale HVAC control systems.
- Discrete Manufacturing: High-speed packaging lines, palletizing systems, and assembly test benches requiring fast floating-point computation.
Engineering Advantages
- Dual DP Master/Slave Ports: Enables simultaneous PROFIBUS-DP master and slave operation — ideal for hierarchical distributed I/O architectures without additional CP modules.
- 4 MB Work Memory: Sufficient for large structured programs (SCL, LAD, FBD, STL) with extensive data logging and recipe management.
- Hot-Swap Capability: S7-400 backplane supports module replacement under power in redundant configurations, minimizing unplanned downtime.
- Isochronous Mode Support: Synchronizes CPU cycle with DP cycle for motion control and high-precision process applications.
- STEP 7 & TIA Portal Compatible: Fully programmable via Siemens STEP 7 V5.x; also supported in TIA Portal V13+ with legacy migration tools.
- Proven MTBF: Industrial-grade components rated for continuous 24/7 operation in harsh electromagnetic environments (EMC Class A).
System Architecture & Signal Flow
The 6ES7414-3XJ00-0AB0 slots into the central rack (CR) of an S7-400 system alongside the PS 407 power supply module. The CPU communicates with distributed I/O via its integrated DP interfaces — Interface 1 (X1) serves as MPI/DP, Interface 2 (X2) and Interface 3 (X3) provide dedicated DP channels. Program execution follows a cyclic OB1 scan supplemented by interrupt-driven OBs (OB35 cyclic interrupt, OB40 hardware interrupt, OB82/86 diagnostic interrupts). Data exchange with SCADA/HMI systems is handled via MPI or PROFIBUS-DP without requiring additional communication processors for standard configurations.
Sourcing & Quality Verification
- Origin: Genuine Siemens production, manufactured in Germany. Each unit carries the Siemens holographic authenticity label.
- Condition Options: New-in-box (NIB) sealed OEM stock; tested refurbished units available — clearly labeled and priced separately.
- Inspection Protocol: All units undergo functional power-on test, firmware version verification, and visual inspection for connector integrity before dispatch.
- Documentation: Siemens product datasheet, EU Declaration of Conformity, and test report available upon request.
- Traceability: Batch and serial number recorded at point of sale for full supply chain traceability.
Procurement Process
- Confirm Part Number: Verify the MLFB 6ES7414-3XJ00-0AB0 matches your BOM or existing system configuration.
- Request Quote: Contact us via support@konmask.com or +0086 19859288691 for volume pricing, lead time, and availability confirmation.
- Place Order: Purchase directly through this listing or submit a PO for NET-30 terms (approved accounts).
- Shipping: DHL Express / FedEx International Priority standard. Export documentation (commercial invoice, packing list, COO) included. Typical dispatch: 1–3 business days.
- After-Sales: 12-month warranty on new units. Technical support available for integration and commissioning queries.
Technical FAQ
Q: Is the 6ES7414-3XJ00-0AB0 compatible with TIA Portal?
A: Yes, with TIA Portal V13 SP1 or later using the STEP 7 Professional add-on. Native STEP 7 V5.5/5.6 is the primary programming environment.
Q: Can this CPU act as both DP Master and DP Slave simultaneously?
A: Yes. Interface X2 can be configured as DP Master while X3 operates as DP Slave (or vice versa), enabling flexible hierarchical network topologies.
Q: What MMC (Micro Memory Card) is required?
A: Any Siemens SIMATIC MMC (6ES7953-8Lxx0-0AA0 series) up to 64 MB. The MMC is required for program storage and retentive data — the CPU will not start without it.
Q: Is this module compatible with S7-400H (High Availability) systems?
A: No. The CPU 414-3 is a standard (non-redundant) CPU. For H-system configurations, the CPU 414-5H (6ES7414-5HM06-0AB0) is required.
Q: What is the firmware version of this unit?
A: Firmware version is confirmed at inspection. Please contact us if a specific firmware revision is required for your project.
