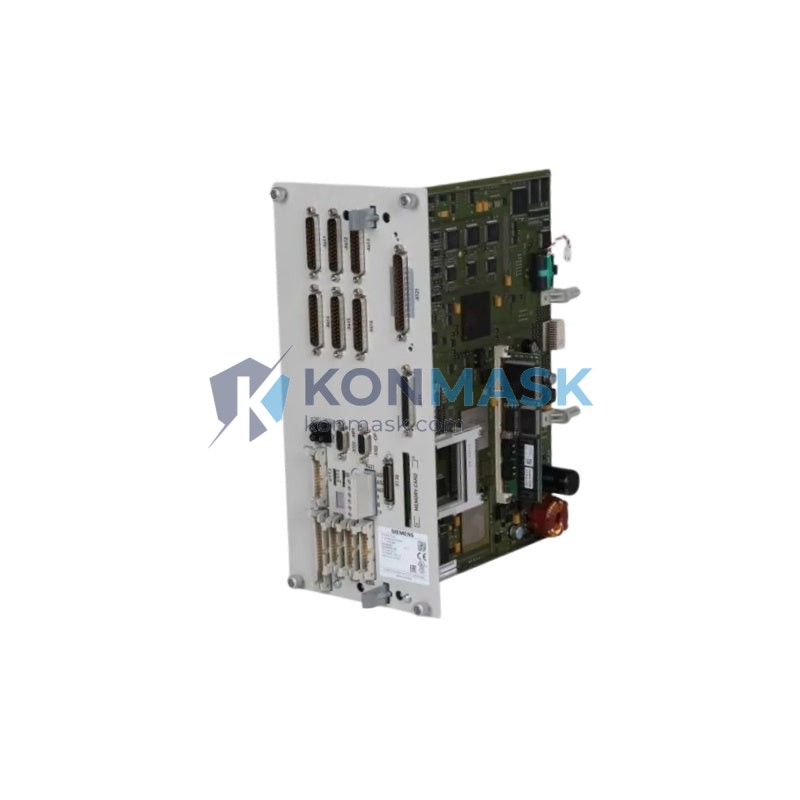

CNC Machine Tool Control Solution – Siemens 6ES7646-0BC20-0AA0 | SINUMERIK PCU Series
The Siemens 6ES7646-0BC20-0AA0 (cross-reference: 6FC5410-0AY03-0AA2) is a SINUMERIK Panel Control Unit (PCU) module engineered for high-precision CNC machine tool environments. Designed to integrate seamlessly with SINUMERIK 840D sl / 828D control systems, this module serves as the computational and communication backbone for demanding machining operations.
Where This Product Is Used
- CNC Machining Centers – Drives multi-axis milling, turning, and grinding operations requiring real-time interpolation and sub-micron positioning accuracy.
- Automotive Manufacturing Lines – Deployed in transfer lines and flexible manufacturing cells producing engine blocks, transmission housings, and structural components.
- Aerospace Precision Machining – Controls 5-axis machining of titanium and aluminum airframe components where surface finish and dimensional tolerance are critical.
- Die & Mold Production – Enables high-speed contour milling for injection mold cavities and stamping dies with complex 3D geometries.
- Medical Device Manufacturing – Supports ISO 13485-compliant machining of implants and surgical instruments requiring validated process control.
- Energy Sector Equipment – Used in machining turbine blades, pump housings, and valve bodies for power generation and oil & gas applications.
Technical Specifications
- Part Number: 6ES7646-0BC20-0AA0
- Cross-Reference / Alternate PN: 6FC5410-0AY03-0AA2
- Product Family: SINUMERIK PCU (Panel Control Unit)
- Compatible Systems: SINUMERIK 840D sl, SINUMERIK 828D
- Manufacturer: Siemens AG
- Module Type: Panel Control Unit / Operator Panel Interface
- Operating Voltage: 24 V DC
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -20 °C to +70 °C
- Protection Class: IP20 (module), IP65 (front panel when installed)
- Weight: Approx. 100 g (module only)
- Country of Origin: Germany
- HS Code: 8537.10
Why Engineers Specify This Model
- Dual-PN Compatibility: The 6ES7646-0BC20-0AA0 and 6FC5410-0AY03-0AA2 are functionally equivalent, simplifying cross-referencing across Siemens SINUMERIK and SIMATIC documentation.
- Proven SINUMERIK Ecosystem Integration: Native compatibility with SINUMERIK 840D sl ensures zero-compromise integration with NCU, drive, and HMI components.
- High-Speed Real-Time Processing: Supports demanding interpolation cycles required for 5-axis simultaneous machining and high-speed cutting (HSC) applications.
- Long-Term Availability: Siemens SINUMERIK platform components are supported with long product lifecycles, reducing obsolescence risk for machine builders and end users.
- Compact Form Factor: Panel-mount design minimizes cabinet footprint while maintaining full I/O and communication capability.
Complete System Bill of Materials
For a complete SINUMERIK 840D sl CNC control system, engineers typically specify the following alongside the 6ES7646-0BC20-0AA0:
- SINUMERIK 840D sl NCU 720.3 PN – 6FC5372-0AA30-0AA0
- SINAMICS S120 Drive Module – 6SL3120-1TE21-0AA3
- SINUMERIK OP 010 Operator Panel – 6FC5203-0AF02-0AA1
- SIMATIC S7-300 I/O Module (if hybrid architecture) – 6ES7321-1BL00-0AA0
- 24 V DC Power Supply (SITOP) – 6EP1334-3BA10
- Profibus / PROFINET Communication Cable – per installation layout
Compliance & Industry Standards
- CE Marking – Compliant with EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU
- UL Listed – Recognized for use in North American industrial control panels
- IEC 61131-2 – Programmable controller hardware standard compliance
- ISO 9001:2015 – Manufactured under Siemens AG certified quality management system
- RoHS Compliant – Meets EU Directive 2011/65/EU on restriction of hazardous substances
- REACH Compliant – Conforms to EU REACH Regulation (EC) No 1907/2006
Quality Assurance & Sourcing
At Konmask.com, every unit of the Siemens 6ES7646-0BC20-0AA0 undergoes a structured verification process before dispatch:
- Visual inspection for physical damage, label integrity, and connector condition
- Firmware version verification against Siemens release documentation
- Functional power-on test where applicable
- Anti-counterfeit screening using Siemens holographic label and serial number validation
- Secure ESD-safe packaging with humidity indicator card
We source from authorized Siemens distribution channels and verified industrial surplus inventories. All units are supplied with a 12-month warranty against manufacturing defects.
How to Source This Part
- In Stock: Contact us for real-time availability confirmation before placing your order.
- Lead Time: In-stock units ship within 1–3 business days. Special-order units: 4–8 weeks.
- Minimum Order Quantity: 1 unit (no MOQ for standard orders).
- Volume Pricing: Discounts available for orders of 5+ units — contact our sales team.
- Export & Customs: We handle export documentation, ECCN classification, and customs declarations for international shipments.
- Payment: T/T (Bank Transfer), PayPal, and major credit cards accepted.
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://konmask.com
Application-Specific FAQ
Q: Is the 6ES7646-0BC20-0AA0 compatible with SINUMERIK 828D?
A: The PCU module is primarily designed for SINUMERIK 840D sl architecture. For 828D applications, please confirm compatibility with your system integrator or contact our technical team.
Q: What is the difference between 6ES7646-0BC20-0AA0 and 6FC5410-0AY03-0AA2?
A: These are cross-reference part numbers used across different Siemens product documentation sets (SIMATIC vs. SINUMERIK catalog numbering). They refer to the same physical module.
Q: Can this module be used as a direct replacement in an existing SINUMERIK 840D sl system?
A: Yes, provided the firmware version matches your existing system configuration. We recommend verifying the firmware revision with your OEM documentation before installation.
Q: Do you provide installation support?
A: We provide technical documentation and pre-sales consultation. For on-site commissioning, we can refer you to certified Siemens system integrators in your region.
Q: What is the lead time for bulk orders?
A: For orders of 10+ units, please contact us directly for lead time and pricing. We maintain relationships with multiple authorized distributors to fulfill large-volume requirements.
