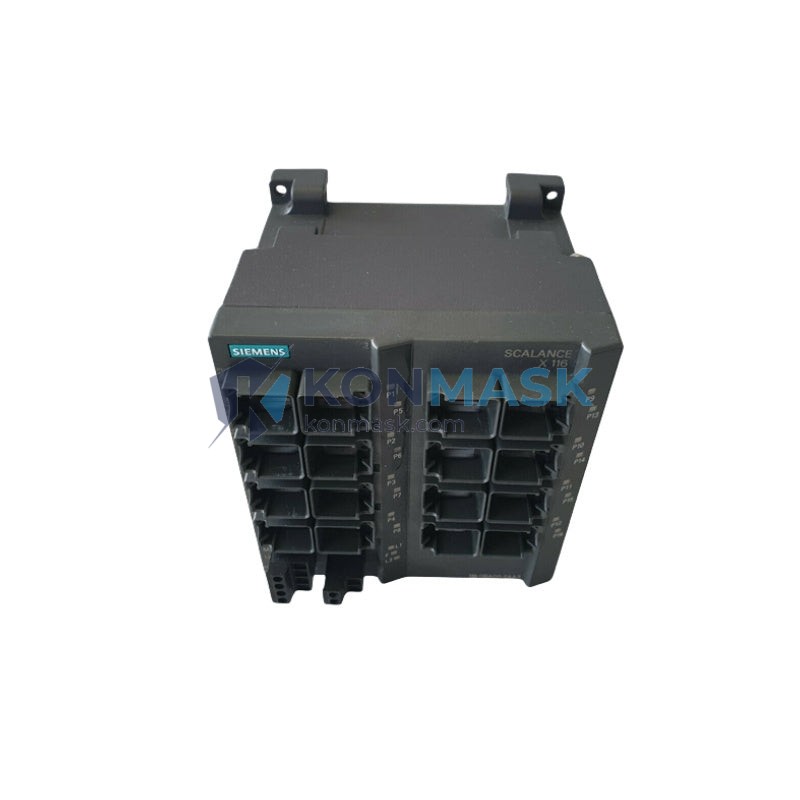

Siemens 6GK5116-0BA00-2AA3 — 16-Port Unmanaged Industrial Ethernet Switch | SCALANCE X-100 Series
Engineering Background
Industrial automation networks demand deterministic communication, rugged hardware, and zero-configuration reliability at the field level. The Siemens SCALANCE X-100 series was engineered specifically for these environments — delivering plug-and-play Ethernet switching in the harshest industrial conditions without the overhead of managed network administration.
Product Positioning
The 6GK5116-0BA00-2AA3 is a 16-port unmanaged Fast Ethernet switch designed for PROFINET, PROFIBUS-over-Ethernet, and general industrial LAN topologies. It is the preferred choice for procurement engineers building cost-effective, high-reliability field-level networks in manufacturing, process automation, and machine-building applications.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Order Number (MLFB) | 6GK5116-0BA00-2AA3 |
| Series | SCALANCE X-100 |
| Switch Type | Unmanaged |
| Number of Ports | 16 × RJ45 (10/100 Mbps, auto-negotiation) |
| Transmission Rate | 10 / 100 Mbps (Fast Ethernet) |
| Duplex Mode | Half / Full duplex, auto-sensing |
| Supply Voltage | 24 V DC (18–32 V DC) |
| Power Consumption | Max. 5.5 W |
| Operating Temperature | −40 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Degree of Protection | IP30 |
| Mounting | DIN rail (35 mm) / S7-300 rail |
| Dimensions (W × H × D) | 60 × 125 × 124 mm |
| Weight | Approx. 400 g |
| Certifications | CE, UL, cUL, ATEX Zone 2, FM Class I Div 2 |
| EMC Standard | EN 61000-6-2 / EN 61000-6-4 |
| Shock / Vibration | IEC 60068-2-27 / IEC 60068-2-6 |
| MTBF | > 300,000 hours |
| Diagnostic LEDs | Per-port Link/Activity + Power/Fault |
| Configuration | None required (true plug-and-play) |
Proven Application Environments
- PROFINET IO networks — field-level device connectivity for Siemens S7-300/400/1200/1500 PLCs
- Automotive assembly lines — deterministic Ethernet for robot controllers and HMI panels
- Process plants — DCS field-bus extension in chemical, oil & gas, and water treatment facilities
- Machine building — OEM panel integration with DIN-rail mounting and compact footprint
- Building automation — BACnet/IP and DALI gateway networking in HVAC and access control systems
- Power distribution — substation LAN segments compliant with IEC 61850 topology requirements
Engineering Advantages
- Zero configuration — no IP address, no firmware, no management overhead; reduces commissioning time to minutes
- Extended temperature range — −40 °C to +70 °C qualifies for outdoor cabinets and Arctic-rated installations
- ATEX / FM certified — approved for Zone 2 / Class I Div 2 hazardous area deployment
- Store-and-forward switching — eliminates runt frames and ensures data integrity across all 16 ports
- Redundant power input — dual 24 V DC terminals with fault signaling relay for high-availability architectures
- Compact DIN-rail form factor — 60 mm width fits standard control cabinet layouts without additional adapters
- Siemens TIA Portal compatibility — recognized as a network node in STEP 7 and TIA Portal topology views
System Architecture & Signal Flow
The 6GK5116-0BA00-2AA3 operates as a transparent Layer 2 bridge. Incoming Ethernet frames are received on any RJ45 port, stored in the internal frame buffer, and forwarded to the destination port based on MAC address table lookup (4K MAC address capacity). The switch learns MAC addresses dynamically with a 300-second aging timer. All 16 ports share a non-blocking switching fabric at full wire speed, ensuring <10 µs port-to-port latency — critical for PROFINET RT (Real-Time) Class 1 compliance.
Power is supplied via the front-terminal 24 V DC connector. A fault relay output (floating contact) signals power loss or internal fault to the PLC or SCADA system, enabling automated alarm escalation without additional monitoring hardware.
Sourcing & Quality Verification
- All units sourced through authorized Siemens distribution channels or verified surplus with full traceability documentation
- Each unit inspected for: authentic Siemens holographic label, correct MLFB engraving, firmware version consistency, and physical port integrity
- Certificate of Conformity (CoC) and test report available upon request for regulated industries
- Shelf life managed under ESD-safe, climate-controlled storage per IEC 61340-5-1
- Counterfeit-risk mitigation: serial number cross-referenced against Siemens Industry Online Support (SIOS) database prior to dispatch
Procurement Process
- Step 1 — Inquiry: Submit your BOM or single-line requirement to support@konmask.com with quantity and required delivery date
- Step 2 — Quote: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours
- Step 3 — Order Confirmation: Purchase order accepted via email; proforma invoice issued for prepayment or net terms (approved accounts)
- Step 4 — Dispatch: Units shipped with packing list, CoC, and tracking number; DHL / FedEx / SF Express available
- Step 5 — After-Sales: 12-month warranty against manufacturing defects; RMA process initiated within 48 hours of fault report
Technical FAQ
Q: Is the 6GK5116-0BA00-2AA3 compatible with PROFINET IRT (Isochronous Real-Time)?
A: No. Unmanaged switches do not support IRT. For IRT topologies, use SCALANCE X-200 or X-300 managed switches with PROFINET IRT forwarding.
Q: Can I use this switch in a ring topology for redundancy?
A: No. Ring redundancy (MRP/HRP) requires a managed switch. This unit supports only star and line topologies.
Q: What is the maximum cable length per port?
A: 100 m per segment using Cat5e or Cat6 UTP/STP cable per IEEE 802.3 specification.
Q: Does the switch support PoE (Power over Ethernet)?
A: No. The 6GK5116-0BA00-2AA3 does not provide PoE. For PoE requirements, refer to the SCALANCE XP-200 series.
Q: Is a Siemens software license required?
A: No software license is required. The switch is fully operational out of the box with no configuration tools needed.
Q: What is the replacement / successor model?
A: The SCALANCE XB116 (6GK5116-0BA00-2AB2) is the current production successor with identical port count and improved diagnostics.
