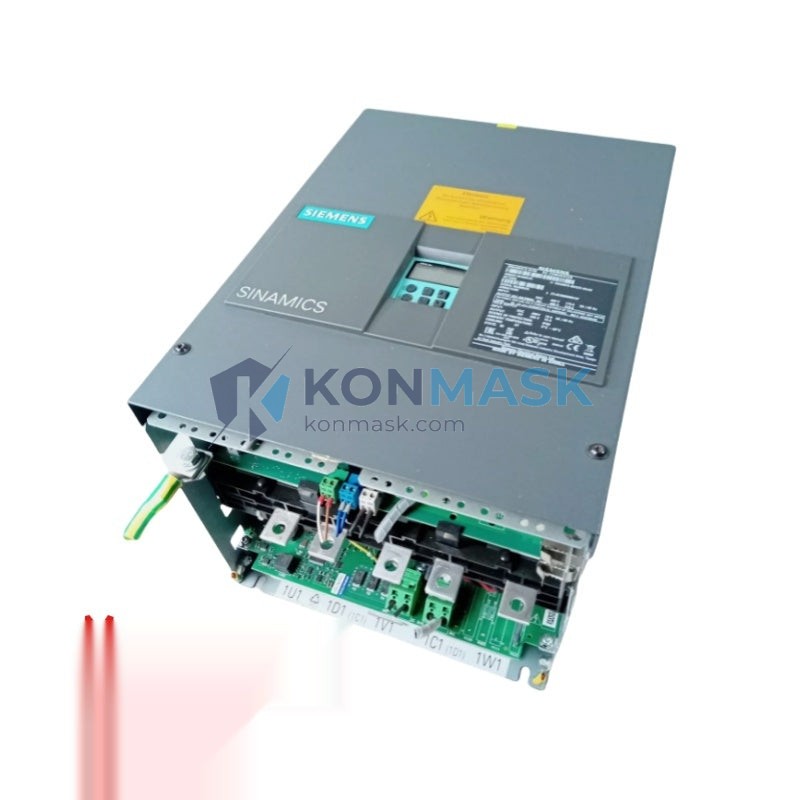

SIEMENS 6RA8075-6DS22-0AA0 Fully Digital Rectifier Module – SINAMICS DCM DC Converter Series
When a DC drive rectifier module fails on the production floor, the consequences are immediate and severe: conveyor lines halt, rolling mills stop mid-process, and paper machines lose tension control — costing thousands of dollars per hour in unplanned downtime. The SIEMENS 6RA8075-6DS22-0AA0 is the precision rectifier module engineered to prevent exactly this scenario, delivering rock-solid DC bus power conversion for demanding industrial drive applications.
Within the SINAMICS DCM (DC Master) product family — Siemens’ flagship fully digital DC drive platform — the 6RA8075-6DS22-0AA0 occupies a critical position as a high-current, fully controlled 6-pulse rectifier module. The SINAMICS DCM series has established itself as the global standard for DC drive retrofits and new installations across steel, paper, plastics, and mining industries, with installations in over 100 countries. This specific module variant is engineered for applications requiring robust, regenerative-capable DC power conversion with full digital parameterization via PROFIBUS or PROFINET.
Technical Specifications
- Part Number / SKU: 6RA8075-6DS22-0AA0
- Brand: SIEMENS
- Series: SINAMICS DCM (DC Converter / DC Master)
- Module Type: Fully Controlled 6-Pulse Rectifier Module
- Topology: 4-Quadrant (Regenerative) DC Drive
- Supply Voltage: 3-phase AC input (refer to nameplate for exact voltage range)
- Armature Current Rating: 75 A DC (nominal)
- Field Supply: Integrated single-phase fully controlled bridge
- Control Interface: PROFIBUS DP / USS protocol ready
- Protection Class: IP20
- Cooling: Forced air cooling (internal fan)
- Weight: Approx. 12 kg
- Compliance: CE, UL listed
Note: All specifications are based on Siemens published documentation. Always verify against the official Siemens datasheet for your specific application.
Key Features & Benefits
- Fully Digital Control: Microprocessor-based firing angle control ensures precise, repeatable DC output with minimal harmonic distortion.
- 4-Quadrant Operation: Supports both motoring and regenerative braking, enabling energy recovery and smooth deceleration in demanding cycles.
- Integrated Field Supply: Eliminates the need for a separate field excitation unit, reducing panel space and wiring complexity.
- PROFIBUS/USS Communication: Seamless integration into Siemens TIA Portal environments and legacy SIMATIC S7 PLC networks.
- Adaptive Current Control: Fast-response current regulators protect the motor armature during transient overloads.
- Comprehensive Diagnostics: Onboard fault memory and LED status indicators accelerate troubleshooting and reduce MTTR.
- Wide Ambient Temperature Range: Designed for harsh industrial environments with reliable operation across a broad temperature spectrum.
Industry & Equipment Applications
- Steel & Metals: Rolling mill main drives, coiler/uncoiler tension control, leveler drives
- Paper & Printing: Winder/unwinder drives, calendar roll drives, coating line drives
- Plastics & Rubber: Extruder main drives, calender drives, haul-off units
- Mining & Minerals: Conveyor belt drives, crusher drives, hoist systems
- Marine & Offshore: Winch drives, anchor windlass, thruster control
- Test Stands: Dynamometer loading units, regenerative test bench drives
System Integration & Compatible Parts
The 6RA8075-6DS22-0AA0 is designed for seamless integration within the SINAMICS DCM ecosystem. Compatible and commonly paired components include:
- SINAMICS DCM Control Unit (CUD): 6RA8091-0DS22-0AA0
- SINAMICS DCM Supplementary Board: 6RA8091-0DS22-1AA0
- SIMATIC S7-300/400 PLC with PROFIBUS DP master
- Siemens SIRIUS motor protection circuit breakers (3RV series)
- Siemens line reactors and EMC filters for 6RA80 series
Always consult the SINAMICS DCM Hardware Installation Manual (A5E34888669) to confirm compatibility before ordering.
Our Quality Assurance Process
At Konmask.com, every SIEMENS 6RA8075-6DS22-0AA0 unit we supply undergoes a rigorous multi-stage verification process:
- Source Verification: Units are sourced exclusively from authorized distributors or directly from certified Siemens channel partners.
- Visual Inspection: Each module is inspected for physical integrity — housing, connectors, PCB condition, and label authenticity.
- Functional Pre-check: Where applicable, power-on tests and firmware version verification are performed.
- Anti-Counterfeit Screening: Serial number cross-referencing against Siemens traceability databases.
- Secure Packaging: ESD-safe packaging with moisture barrier bags and shock-absorbing foam inserts for international shipment.
How to Order
- Submit your inquiry via the “Get a Quote” button or email [email protected].
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and issue a formal quotation within 24 hours.
- Upon order confirmation, we arrange secure export packaging and provide full shipping documentation (commercial invoice, packing list, COO).
- Track your shipment with our dedicated logistics support until delivery.
Why Choose Konmask.com?
- ✅ Industrial Automation Specialists: Focused exclusively on PLC, DCS, drives, and automation components — not a generalist marketplace.
- ✅ Global Export Experience: Serving buyers in Europe, Southeast Asia, Middle East, and Americas with compliant export documentation.
- ✅ Technical Pre-sales Support: Our engineers can assist with cross-referencing, compatibility checks, and application guidance.
- ✅ Competitive Lead Times: Extensive supplier network ensures fast sourcing even for discontinued or long lead-time parts.
- ✅ Transparent Communication: No hidden fees. Clear quotations with itemized pricing and shipping costs.
Frequently Asked Questions
Q: Is the SIEMENS 6RA8075-6DS22-0AA0 still in production?
A: The SINAMICS DCM series remains in active production by Siemens. However, specific variant availability may vary. Contact us to confirm current stock and lead time.
Q: Can this module replace an older SIMOREG DC MASTER (6RA70 series) unit?
A: The SINAMICS DCM (6RA80) series is the successor to the SIMOREG DC MASTER (6RA70). Direct drop-in replacement requires careful review of current ratings, voltage class, and communication interfaces. Our technical team can assist with migration planning.
Q: What is the warranty on this product?
A: We offer a standard 12-month warranty against manufacturing defects on all units supplied. Extended warranty options are available upon request.
Q: Do you provide export documentation for customs clearance?
A: Yes. We provide a full set of export documents including commercial invoice, packing list, and certificate of origin. We do not provide HS codes as these must be determined by the importer’s customs broker.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. We welcome both single-unit emergency orders and bulk procurement contracts.
