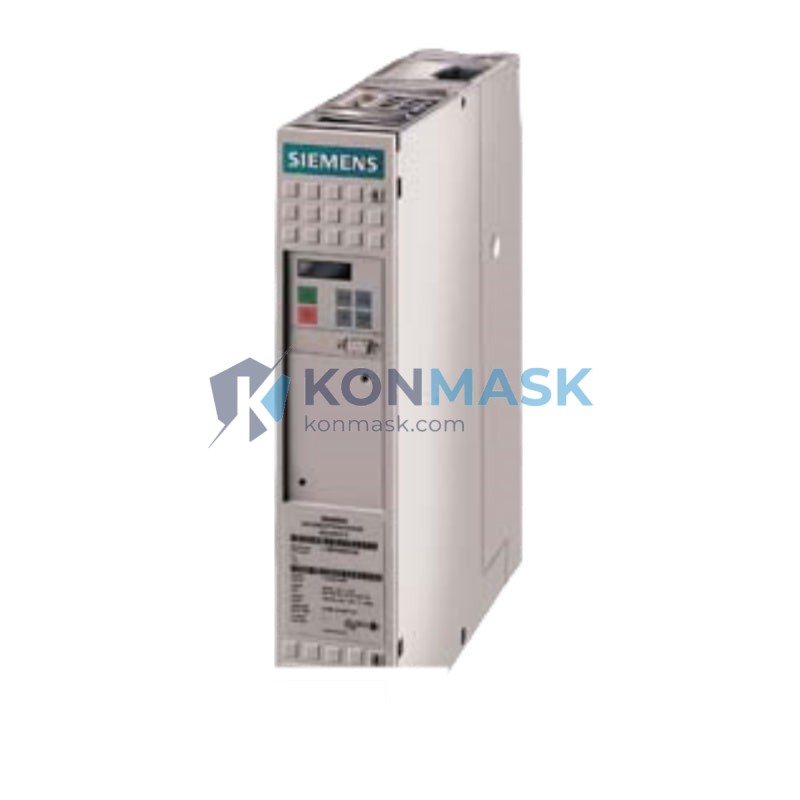

SIEMENS 6SE7027-2TD61-Z G93+K11+L33 Variable Frequency Drive | Replacement, Equivalent & Selection Guide
The SIEMENS 6SE7027-2TD61-Z G93+K11+L33 is a high-performance 75 kW (100 HP) AC Variable Frequency Drive from the SIEMENS MASTERDRIVES MC series, designed for demanding industrial motion control applications. This page provides full technical specifications, compatible replacement models, selection guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Manufacturer: SIEMENS
- Part Number / SKU: 6SE7027-2TD61-Z G93+K11+L33
- Series: SIEMENS MASTERDRIVES MC (6SE70)
- Rated Output Power: 75 kW (100 HP)
- Input Voltage: 3-phase AC 380–480 V (±10%)
- Output Voltage: 3-phase AC 0–480 V
- Output Current: 272 A (rated)
- Input Frequency: 47–63 Hz
- Output Frequency Range: 0–300 Hz
- Control Mode: Vector control (sensorless & encoder feedback)
- Protection Class: IP20
- Cooling Method: Forced air cooling
- Weight: Approx. 35 kg
- Option Codes: G93 (external braking resistor), K11 (customer-specific option), L33 (customer-specific option)
- Communication: PROFIBUS DP (via option board)
- Standards: CE, UL, cUL
Compatible Replacement & Equivalent Models
When the original unit is unavailable or end-of-life, the following models are verified compatible replacements or functional equivalents. Always confirm electrical ratings and option codes before substitution.
- Direct Replacement: SIEMENS 6SE7027-2TD61 (base unit without Z options) — same power stage, options must be re-specified
- Upgraded Equivalent: SIEMENS SINAMICS G150 75 kW — next-generation platform, improved energy efficiency, same power class
- Cross-Brand Equivalent: ABB ACS880-01-145A-3 (75 kW, 380–480 V) — comparable vector control performance
- Cross-Brand Equivalent: Schneider Electric ATV930U75N4 (75 kW) — compatible for general pump/fan/conveyor applications
- Cross-Brand Equivalent: Yaskawa GA800 CIMR-GA4A0139 (75 kW) — suitable for high-dynamic servo-like applications
Note: Cross-brand replacements require parameter re-commissioning and may need adapter cables or mounting modifications.
Why Choose the Original Model
- Proven Reliability: MASTERDRIVES MC series has decades of field-proven performance in heavy industry
- Native SIEMENS Ecosystem: Seamless integration with SIMATIC S7 PLCs, PROFIBUS/PROFINET networks, and SIEMENS HMI panels
- Precise Vector Control: Supports both sensorless and closed-loop encoder vector control for high-torque, low-speed operation
- Factory-Configured Options: G93+K11+L33 option codes are factory-installed and tested — no field modification required
- Long Service Life: Designed for 24/7 continuous industrial duty cycles
Typical Applications
- Heavy-duty conveyor and material handling systems
- Industrial pump and fan control (HVAC, water treatment)
- Compressor and blower drives
- Crane and hoist motion control
- Extruder and mixer drives in process industries
- Steel mill auxiliary drives and rolling mill applications
System Compatibility
- PLC Integration: SIMATIC S7-300, S7-400, S7-1500 via PROFIBUS DP or PROFINET
- HMI: SIEMENS SIMATIC HMI panels (TP, MP series)
- Motor Types: Standard induction motors, synchronous motors (with encoder feedback)
- Braking: Dynamic braking via external resistor (G93 option included)
- Fieldbus: PROFIBUS DP (native); PROFINET, DeviceNet, Modbus via optional communication boards
Selection Guide
Use the following criteria to confirm this model is the right fit for your application:
- Step 1 — Power Match: Confirm motor rated power ≤ 75 kW and rated current ≤ 272 A
- Step 2 — Voltage Match: Verify supply voltage is 3-phase 380–480 V AC
- Step 3 — Control Mode: Determine if open-loop (sensorless) or closed-loop (encoder) vector control is required
- Step 4 — Option Codes: Confirm G93 (braking resistor), K11, and L33 options match your system design
- Step 5 — Communication: Verify PROFIBUS DP is your fieldbus protocol, or specify alternative communication board
- Step 6 — Environment: Confirm IP20 protection is adequate; if higher ingress protection is needed, consider enclosure mounting
Not sure which model fits? Contact our technical team at support@konmask.com for a free selection consultation.
Quality Assurance & Sourcing
- Source: Authorized distribution channels and verified surplus stock
- Inspection: Each unit undergoes visual inspection, label verification, and functional check before shipment
- Authenticity: All SIEMENS products supplied with original manufacturer packaging and documentation where available
- Warranty: 12-month warranty against manufacturing defects
- Traceability: Batch and serial number records maintained for all shipments
How to Order
- Click Add to Cart or Contact Us for bulk/project pricing
- Provide your full part number: 6SE7027-2TD61-Z G93+K11+L33
- Specify quantity and required delivery timeline
- Our team will confirm availability, lead time, and issue a formal quotation within 24 hours
- Payment via T/T, PayPal, or credit card; DDP/DAP shipping available worldwide
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace 6SE7027-2TD61-Z with a SINAMICS G120 or G150?
A: Yes, with engineering review. The SINAMICS G150 75 kW is the recommended upgrade path. Parameter migration and wiring adaptation are required.
Q: What do the option codes G93, K11, L33 mean?
A: G93 indicates an external braking resistor connection kit. K11 and L33 are customer-specific factory options — contact us with your original order documentation to confirm exact configuration.
Q: Is this drive compatible with non-SIEMENS PLCs?
A: Yes. Via optional communication boards, the drive supports Modbus RTU, DeviceNet, and EtherNet/IP, enabling integration with Allen-Bradley, Mitsubishi, and other PLC platforms.
Q: Do you supply the matching braking resistor for G93?
A: Yes. Contact us with your duty cycle requirements and we will recommend and supply the correct braking resistor.
Q: What is the lead time for this model?
A: In-stock units ship within 3–5 business days. For out-of-stock units, typical lead time is 4–8 weeks. Contact us for current availability.
