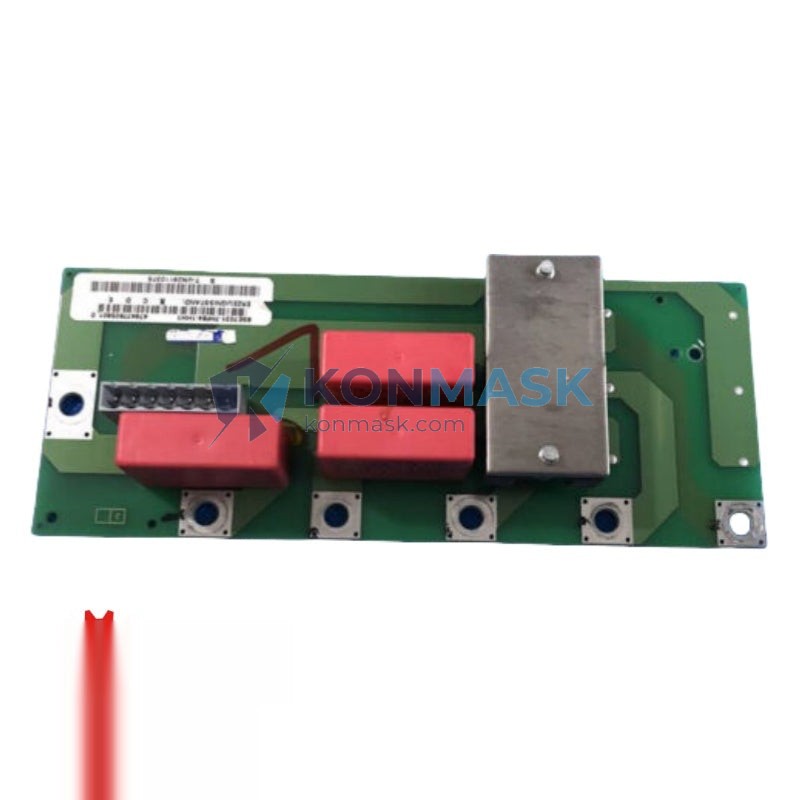

Siemens 6SE7031-7HF84-1HH2 – High-Power Vector Control Frequency Inverter | SIMOVERT MASTERDRIVES
Engineering Background
The Siemens 6SE7031-7HF84-1HH2 is a high-performance AC drive unit from the SIMOVERT MASTERDRIVES Vector Control (VC) platform — Siemens’ flagship industrial drive series engineered for demanding motion-control and process-drive applications. Designed for 3-phase 380–480V AC input environments, this unit delivers 160kW (at 400V) of continuous output power with precision torque and speed regulation, making it the preferred choice for heavy-duty industrial machinery, compressors, pumps, fans, and crane/hoist systems.
Product Positioning
Targeted at procurement engineers and system integrators sourcing proven, specification-grade drives for critical infrastructure, the 6SE7031-7HF84-1HH2 occupies the upper tier of the SIMOVERT MASTERDRIVES compact chassis range. Its modular architecture supports seamless integration into SIMATIC automation environments and third-party PLC systems via PROFIBUS-DP and other fieldbus options.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | 6SE7031-7HF84-1HH2 |
| Manufacturer | Siemens AG |
| Product Series | SIMOVERT MASTERDRIVES Vector Control (VC) |
| Drive Type | AC Frequency Inverter (Variable Speed Drive) |
| Rated Output Power | 160 kW (at 400V AC) |
| Input Voltage | 3-Phase 380–480V AC ±10% |
| Input Frequency | 47–63 Hz |
| Output Voltage | 0–480V AC (3-Phase) |
| Output Current (Rated) | ~310A (refer to datasheet for exact derating) |
| Control Method | Vector Control (VC) — Sensorless & Encoder-based |
| Overload Capacity | 150% for 60 seconds |
| Cooling Method | Forced Air Cooling (Internal Fan) |
| Protection Class | IP20 |
| Ambient Temperature | 0°C to +40°C (derate above 40°C) |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | ≤95% (non-condensing) |
| Altitude | Up to 1000m (derate above) |
| Communication Interface | PROFIBUS-DP (via CB/TB option board) |
| Braking | Dynamic braking via external braking resistor |
| Weight | ~10 kg |
| Country of Origin | Germany |
| Compliance | CE, UL (refer to nameplate) |
Proven Application Environments
- Heavy Industrial Machinery: Rolling mills, extruders, injection molding machines requiring precise torque control at low speed.
- Pump & Fan Systems: Large centrifugal pumps and HVAC fans in water treatment plants and power stations.
- Crane & Hoist Systems: Overhead cranes and port hoisting equipment demanding high dynamic response and regenerative braking.
- Compressor Drives: Oil & gas and chemical plant compressors requiring stable speed regulation under variable load.
- Marine & Offshore: Deck machinery and thruster drives in harsh environments.
- Steel & Mining: Conveyor drives, ball mills, and winders in continuous process lines.
Engineering Advantages
- True Vector Control: Delivers high dynamic torque accuracy (±0.5% speed regulation) without encoder in sensorless mode; encoder feedback enables servo-class performance.
- Modular Option Board Architecture: Supports technology boards (T100/T400), communication boards (CB), and terminal expansion boards for application-specific customization.
- Integrated DC Bus Coupling: Enables energy exchange between multiple drives on a common DC bus, reducing overall energy consumption in multi-drive systems.
- Robust EMC Design: Built-in line filter options and shielded cable compatibility minimize electromagnetic interference in sensitive plant environments.
- Siemens DriveMonitor / STARTER Compatible: Full parameterization, diagnostics, and commissioning via Siemens engineering tools.
- Long Service Life: Industrial-grade IGBT modules and capacitors rated for continuous 24/7 operation in demanding environments.
System Architecture & Signal Flow
The 6SE7031-7HF84-1HH2 follows the standard SIMOVERT MASTERDRIVES VC architecture:
- Power Section: 3-phase rectifier → DC link capacitor bank → IGBT inverter bridge → motor output terminals (U2/V2/W2).
- Control Section: PMU (Parameterization Unit) or AOP30 operator panel → CU (Control Unit) → PWM signal generation → gate driver boards.
- Fieldbus Layer: PROFIBUS-DP CB board connects to SIMATIC S7 PLC or third-party master for speed/torque setpoints and status feedback.
- Feedback Loop: Optional HTL/TTL encoder input on SBP board for closed-loop vector control; analog tachometer input also supported.
- Braking Circuit: External braking chopper (6SE70 series) and resistor connected to DC bus terminals for regenerative energy dissipation.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels with full traceability.
- Each unit undergoes incoming inspection: visual check, nameplate verification (part number, serial number, firmware version), and functional power-on test where applicable.
- Original Siemens packaging, manuals, and accessories preserved where available.
- Certificates of conformity and test reports available upon request for critical procurement.
- Konmask.com maintains a curated inventory of Siemens SIMOVERT MASTERDRIVES components to support urgent MRO and project procurement needs.
Procurement Process
- Step 1 – Inquiry: Contact us via email or phone with your project requirements, quantity, and delivery timeline.
- Step 2 – Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 hours.
- Step 3 – Order Confirmation: Submit purchase order; payment terms confirmed (T/T, L/C, or credit terms for qualified accounts).
- Step 4 – Inspection & Dispatch: Unit inspected, photographed, and securely packaged for international freight.
- Step 5 – Delivery & Support: Tracking provided; post-delivery technical support available for commissioning assistance.
Technical FAQ
Q: Is the 6SE7031-7HF84-1HH2 compatible with Siemens SIMATIC S7-300/S7-400 PLCs?
A: Yes. With the PROFIBUS-DP CB board installed, the drive integrates natively with S7-300, S7-400, and S7-1500 systems using standard SIMOVERT MASTERDRIVES GSD files.
Q: Can this drive operate in sensorless vector control mode without an encoder?
A: Yes. The VC platform supports sensorless vector control (SLVC) for most applications. Encoder feedback (SBP board) is recommended for high-precision positioning or very low-speed torque control.
Q: What is the difference between the 1HH2 suffix and other suffix variants?
A: The suffix encodes the option board configuration. 1HH2 indicates specific technology/communication board combinations. Contact our technical team for a full suffix decoder and cross-reference to your application requirements.
Q: Is a line reactor or input filter required?
A: Siemens recommends a line reactor (≥2% impedance) for installations with weak grid supply or long cable runs. An EMC input filter is required for CE compliance in residential/light industrial environments.
Q: What warranty and after-sales support does Konmask.com provide?
A: We offer a standard 12-month warranty against manufacturing defects. Technical support for commissioning, parameter backup, and fault diagnosis is available via email and phone.
