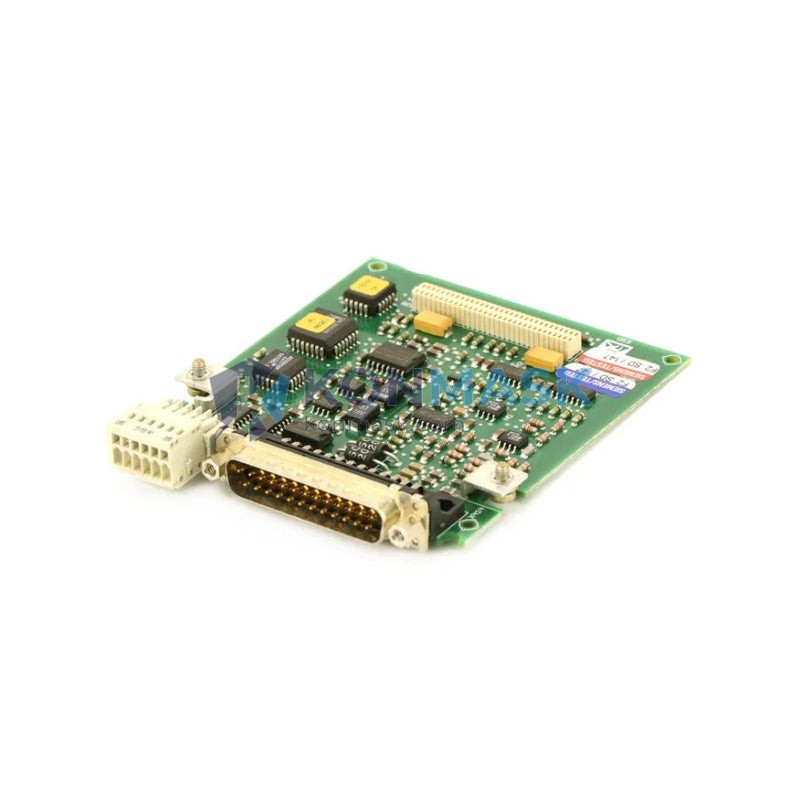

Siemens 6SE7090-0XX84-0FE0 – Absolute Value Encoder Module | SIMOVERT MASTERDRIVES Z Option C41–C47
Engineering Background: The SIMOVERT MASTERDRIVES platform (6SE70 series) is Siemens’ flagship medium-voltage AC drive family, widely deployed in steel mills, paper machines, cranes, and precision positioning systems. Accurate rotor position feedback is critical for closed-loop vector control (VC) and motion control (MC) modes. The 6SE7090-0XX84-0FE0 is the dedicated absolute value encoder interface option board, enabling the drive to read SSI/EnDat/Hiperface absolute encoders directly — eliminating homing cycles and improving restart reliability after power loss.
Product Positioning: This module occupies option slots A through G on the MASTERDRIVES CU (Control Unit) and is ordered as Z option codes C41 through C47, each corresponding to a specific encoder protocol variant. It is an OEM Siemens component manufactured in Germany, fully compatible with the SIMOVERT MASTERDRIVES MC and VC firmware ecosystem.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 6SE7090-0XX84-0FE0 |
| Description | Absolute Value Encoder Module (Z Option Board) |
| Compatible Platform | SIMOVERT MASTERDRIVES 6SE70 Series (MC & VC) |
| Z Option Codes | C41, C42, C43, C44, C45, C46, C47 |
| Slot Positions | A, B, C, D, E, F, G (CU option slots) |
| Encoder Interfaces | SSI, EnDat 2.1/2.2, Hiperface (variant-dependent) |
| Supply Voltage | 5 V DC / 24 V DC (encoder supply via module) |
| Signal Level | RS-422 differential |
| Max Cable Length | Up to 100 m (shielded, twisted-pair) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -25 °C to +70 °C |
| Dimensions (W×H×D) | Standard MASTERDRIVES option card form factor |
| Weight | Approx. 100 g |
| Country of Origin | Germany |
| HS Code | 8537.10 |
| Firmware Compatibility | MASTERDRIVES MC/VC V3.x and above |
Proven Application Environments
- Steel & Rolling Mills — Precise speed/position control of rolling stands and coilers requiring absolute position after E-stop
- Crane & Hoist Systems — Safe load positioning without homing after power restoration
- Paper & Printing Machines — Register accuracy in multi-drive synchronization via absolute feedback
- Machine Tools & Spindle Drives — Closed-loop vector control with EnDat 2.2 high-resolution encoders
- Test Benches & Dynamometers — Torque-controlled applications requiring absolute shaft angle
- Extruders & Compressors — Continuous process drives where restart-on-the-fly demands absolute position
Engineering Advantages
- No Homing Required — Absolute position is available immediately at power-up, reducing downtime in safety-critical restarts
- Multi-Protocol Support — Single hardware platform covers SSI, EnDat, and Hiperface via Z option selection, reducing spare-part SKU count
- Plug-In Option Card — Hot-swap capable in some configurations; no drive replacement needed for encoder interface upgrade
- Noise Immunity — RS-422 differential signaling with on-board termination resistors for industrial EMC environments
- Seamless Firmware Integration — Recognized automatically by MASTERDRIVES CU firmware; parameters P130/P131 encoder type selection
- OEM Traceability — Siemens date code and batch markings for full supply-chain audit compliance
System Architecture & Signal Flow
The 6SE7090-0XX84-0FE0 installs into the CU (Control Unit) option slot of the MASTERDRIVES chassis. The encoder cable connects to the module’s D-sub or terminal connector (variant-dependent). The module converts the absolute encoder serial data stream into the internal MASTERDRIVES position/speed interface, feeding the closed-loop vector controller at the CU’s sampling rate (typically 1–4 ms). The CU firmware reads encoder type from P130 and resolution from P131, then uses the absolute position word for field-oriented control and positioning tasks. No external signal conditioner or gateway is required.
Sourcing & Quality Verification
- ✅ OEM Origin — Sourced from authorized Siemens distribution channels or verified industrial surplus with full traceability
- ✅ Visual & Functional Inspection — Each unit inspected for PCB integrity, connector condition, and label authenticity before shipment
- ✅ Anti-Counterfeit Checks — Siemens holographic labels, date codes, and PCB silk-screen markings verified against OEM references
- ✅ ESD-Safe Packaging — Shipped in anti-static bags with foam cushioning and moisture barrier
- ✅ 90-Day Warranty — Functional warranty covering manufacturing defects and DOA units
Procurement Process
- Confirm Z Option Code — Identify your encoder protocol (SSI / EnDat / Hiperface) and select the corresponding C41–C47 code from your drive order documentation or nameplate
- Verify Slot Availability — Check your MASTERDRIVES CU for a free option slot (A–G); consult the CU hardware manual (6SE7087-6AK85-0AA0)
- Submit Inquiry — Contact [email protected] with your drive model, CU firmware version, and encoder type
- Receive Quotation — Lead time typically 1–3 business days for in-stock units; expedited shipping available
- Installation Support — Konmask technical team provides parameter-setting guidance (P130/P131) at no extra charge
Technical FAQ
Q: What is the difference between Z option C41 and C47?
A: Each C4x code specifies a different encoder protocol variant (e.g., C41 = SSI, C43 = EnDat 2.1, C45 = Hiperface). Confirm your encoder datasheet before ordering.
Q: Can this module be used in MASTERDRIVES MC and VC?
A: Yes. The 6SE7090-0XX84-0FE0 is compatible with both Motion Control (MC) and Vector Control (VC) variants of the MASTERDRIVES 6SE70 platform.
Q: Is the module compatible with incremental encoders?
A: No. This specific option board is designed exclusively for absolute value encoders. For incremental TTL/HTL encoders, refer to the 6SE7090-0XX84-0KA0 option board.
Q: What firmware version is required?
A: MASTERDRIVES CU firmware V3.x or above is required. Earlier firmware versions may not recognize the module automatically.
Q: Do you provide installation documentation?
A: Yes. Konmask provides the relevant Siemens hardware installation manual excerpt and parameter list upon request.
