Industrial Drive Control Solution – SIEMENS 6SL3040-0JA00-0AA0 | SINAMICS S120
Where This Product Is Used

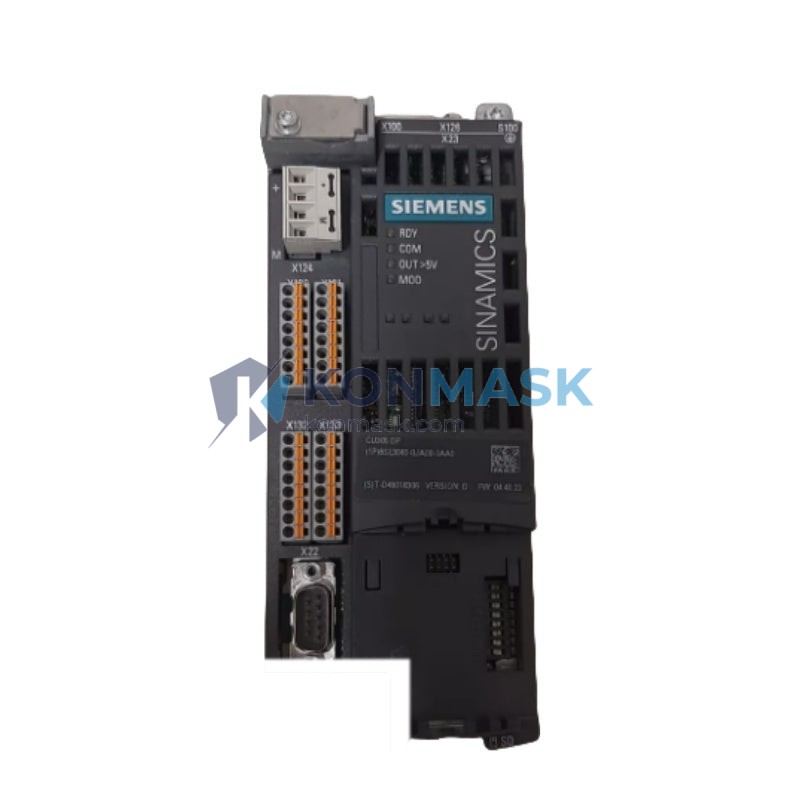

The SIEMENS 6SL3040-0JA00-0AA0 is a Control Unit Adapter Module within the SINAMICS S120 drive system, engineered for demanding multi-axis motion control environments. It is widely deployed in:
- CNC Machine Tools – Coordinating multi-axis servo drives in milling centers, lathes, and grinding machines requiring precise synchronization.
- Automotive Assembly Lines – Managing servo axes in body-in-white welding stations, press transfer systems, and robotic welding cells.
- Packaging Machinery – Enabling high-speed, synchronized motion in form-fill-seal machines, cartoners, and palletizers.
- Printing & Converting Equipment – Providing tension control and register accuracy in web-fed offset and flexographic presses.
- Robotics & Handling Systems – Serving as the drive backbone for 6-axis industrial robots and gantry systems in logistics automation.
- Textile & Fiber Processing – Controlling winding, unwinding, and draw-roll drives in synthetic fiber extrusion lines.
- Test Benches & Dynamometers – Delivering precise torque and speed control in engine and drivetrain test rigs.
Technical Specifications
| Part Number (SKU) | 6SL3040-0JA00-0AA0 |
| Brand / Manufacturer | SIEMENS AG |
| Product Family | SINAMICS S120 |
| Module Type | Control Unit Adapter / Converter Module |
| Compatible Control Units | CU320-2 DP / CU320-2 PN |
| Communication Interface | PROFIBUS DP / PROFINET IO (depending on CU variant) |
| Mounting | Booksize format, DIN rail / panel mount |
| Supply Voltage | 24 V DC (via CU320-2 backplane) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Protection Class | IP20 |
| Weight | Approx. 6.5 kg (packaged) |
| Firmware Compatibility | SINAMICS S120 firmware ≥ V4.x |
| Country of Origin | Germany |
Why Engineers Specify This Model
- Seamless CU320-2 Integration – Designed as a native adapter for the CU320-2 platform, eliminating compatibility risk in multi-axis drive cabinets.
- Deterministic Communication – Supports isochronous PROFIBUS/PROFINET operation for cycle-accurate axis synchronization down to 125 µs.
- Scalable Architecture – One CU320-2 with this adapter can manage up to 6 servo axes or 12 vector axes, reducing cabinet footprint and wiring cost.
- Integrated Safety – Compatible with SINAMICS Safety Integrated functions (STO, SS1, SLS) without external safety relays.
- STARTER / TIA Portal Ready – Full parameterization via SIEMENS STARTER commissioning tool and TIA Portal V15+, reducing engineering time.
- Long-Term Availability – Part of SIEMENS’ long-term supply commitment for SINAMICS S120, ensuring spare-part availability for 10+ year machine lifecycles.
Complete System Bill of Materials
For a fully operational SINAMICS S120 multi-axis drive system, the following components are typically required alongside the 6SL3040-0JA00-0AA0:
- Control Unit CU320-2 DP (6SL3040-1LA01-0AA0) or CU320-2 PN (6SL3040-1MA01-0AA0)
- Active Line Module (ALM) – e.g., 6SL3130-7TE21-6AA3
- Motor Modules (Booksize) – e.g., 6SL3120-1TE21-0AA3 (per axis)
- SIMOTICS S-1FK7 / 1FT7 Servo Motors
- DRIVE-CLiQ cables (6FX2002-1DC00 series)
- Braking resistor or Smart Line Module (if regenerative braking required)
- 24 V DC SITOP power supply (6EP1334-3BA10 or equivalent)
- CompactFlash card with SINAMICS firmware (6SL3054-0EJ00-1BA0)
Compliance & Industry Standards
- CE Marked – EU Machinery Directive 2006/42/EC & Low Voltage Directive 2014/35/EU
- UL Listed – UL 508C (Power Conversion Equipment)
- RoHS Compliant – Directive 2011/65/EU
- IEC 61800-5-1 (Adjustable Speed Electrical Power Drive Systems – Safety)
- IEC 61800-3 (EMC requirements for drive systems)
- ISO 13849-1 / IEC 62061 – Functional Safety (SIL 2 / PLd capable with Safety Integrated)
Quality Assurance & Sourcing
Every unit offered by Konmask.com undergoes a structured verification process before dispatch:
- Authenticity Verification – Serial number and firmware version cross-checked against SIEMENS product databases.
- Visual & Functional Inspection – Connector integrity, label legibility, and housing condition inspected to OEM standards.
- Traceability – Full supply-chain documentation available on request (invoice, packing list, certificate of conformity).
- Packaging – Shipped in original or equivalent ESD-safe packaging with foam cushioning to prevent transit damage.
- Warranty – 12-month warranty against manufacturing defects; DOA replacement within 7 business days.
How to Source This Part
Konmask.com maintains stock of the 6SL3040-0JA00-0AA0 for immediate dispatch. To place an order or request a formal quotation:
- Online: Add to cart directly on this page and proceed to checkout.
- Email RFQ: Send your purchase order or BOM to [email protected] for volume pricing.
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead Time: In-stock orders ship within 1–3 business days; ex-stock lead time 7–15 business days for non-stocked configurations.
- Export: We support DDP, DAP, EXW Incoterms and can arrange customs clearance documentation for international buyers.
Application-Specific FAQ
Q: Is the 6SL3040-0JA00-0AA0 compatible with both CU320-2 DP and CU320-2 PN control units?
A: Yes. The adapter module is mechanically and electrically compatible with both PROFIBUS (DP) and PROFINET (PN) variants of the CU320-2 control unit.
Q: Can this module be used in a SINAMICS S120 Cabinet Module configuration?
A: The 6SL3040-0JA00-0AA0 is designed for the Booksize format. For Cabinet Module configurations, consult the SINAMICS S120 system manual (A5E03263479) for compatible adapter variants.
Q: What firmware version is required on the CU320-2 to use this adapter?
A: SINAMICS S120 firmware V4.7 SP9 or later is recommended for full feature compatibility. Always update firmware via STARTER or TIA Portal before commissioning.
Q: Does this module support SINAMICS Safety Integrated (SIL 2)?
A: Yes, when used with a CU320-2 that has the Safety Integrated license activated, the system supports STO, SS1, SLS, SDI, and SLP safety functions per IEC 62061 SIL 2 / ISO 13849-1 PLd.
Q: Can I use this part as a direct replacement for a failed unit in an existing machine?
A: Yes. Ensure the replacement unit has the same firmware version as the original, or update via STARTER. Back up drive parameters (p0971=1) before swapping hardware.
