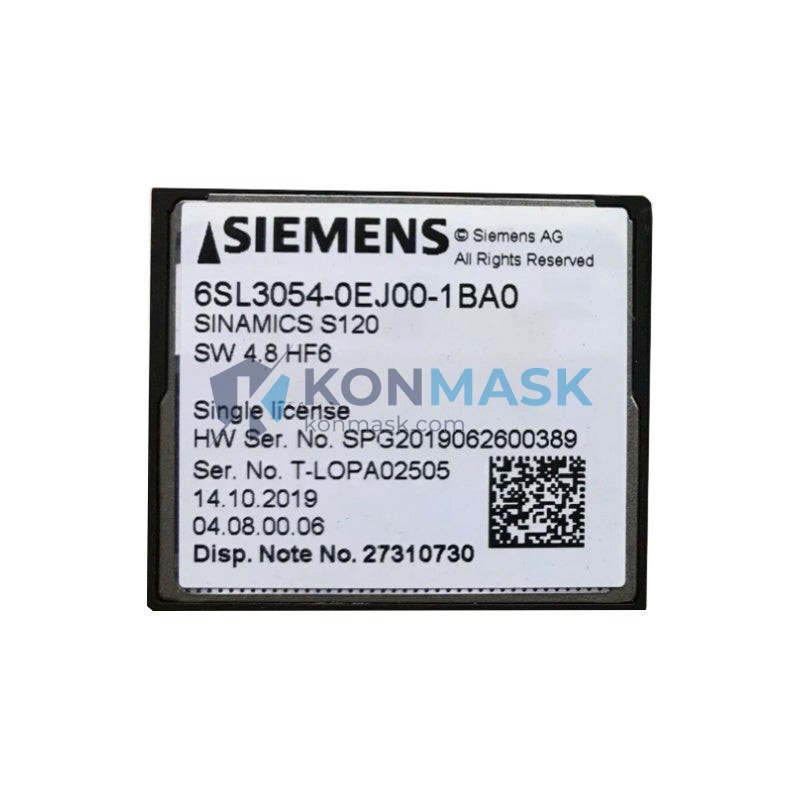

SIEMENS 6SL3054-0EJ00-1BA0 – CompactFlash Parameter Storage Card | SINAMICS S120 Platform
Engineering Background: The SINAMICS S120 drive system is Siemens’ flagship multi-axis servo and vector drive platform, deployed globally in precision motion control, CNC machining centers, printing presses, and high-performance industrial automation lines. Reliable parameter storage is mission-critical: a corrupted or missing CompactFlash card can halt an entire production line.
Product Positioning: The 6SL3054-0EJ00-1BA0 is the OEM-specified CompactFlash (CF) memory card for SINAMICS S120 Control Units (CU320-2, CU310-2, and compatible variants). It stores drive firmware, parameter sets, and project data, enabling rapid commissioning, parameter backup/restore, and firmware updates without a PC connection. Konmask.com supplies this module as a verified OEM component with full traceability.
Complete Technical Specifications
- Part Number: 6SL3054-0EJ00-1BA0
- Manufacturer: Siemens AG
- Product Family: SINAMICS S120 Accessories
- Form Factor: CompactFlash (CF) Type I
- Storage Capacity: As specified by Siemens for S120 CU firmware & parameter sets
- Compatible Control Units: CU320-2 DP, CU320-2 PN, CU310-2 DP, CU310-2 PN
- Interface: CompactFlash slot on SINAMICS S120 Control Unit
- Data Stored: Drive firmware (SINAMICS software), parameter sets (p-parameters), project data
- Operating Temperature: –25 °C to +85 °C (storage); 0 °C to +70 °C (operating)
- Vibration Resistance: Compliant with IEC 60068-2-6
- Weight: Approx. 1.5 kg (packaged)
- Country of Origin: Germany
- SIEMENS Order No.: 6SL3054-0EJ00-1BA0
Proven Application Environments
- CNC Machining Centers: Stores axis-specific parameter sets for multi-spindle SINAMICS S120 configurations
- Printing & Packaging Lines: Enables rapid parameter restore after CF card replacement, minimizing downtime
- Automotive Assembly: Supports fleet-wide parameter standardization across identical drive stations
- Crane & Hoist Systems: Retains safety-relevant parameters (STO, SS1, SLS) across power cycles
- Textile & Winding Machines: Facilitates firmware upgrades without PC/STARTER software on-site
- Semiconductor Fab Equipment: Provides deterministic parameter backup for cleanroom servo axes
Engineering Advantages
- Zero-PC Commissioning: Pre-load parameters onto the CF card; insert into replacement CU for instant restore
- Firmware Version Control: Store specific SINAMICS firmware versions for validated machine configurations
- Hot-Swap Parameter Backup: Clone drive parameters across multiple identical axes using a single CF card
- OEM Compatibility Guarantee: Siemens-specified part — no compatibility risk with third-party alternatives
- Industrial-Grade Reliability: Rated for harsh EMC environments typical of drive cabinets
System Architecture & Signal Flow
In a SINAMICS S120 system, the Control Unit (CU) reads firmware and parameter data from the CompactFlash card at power-up. The CF card interfaces directly with the CU’s onboard CF slot. During operation, parameter changes written via STARTER, TIA Portal, or the operator panel (BOP20/AOP30) are saved to the CF card on command (p0977 = 1) or automatically. On replacement of a faulty CU, inserting the CF card into the new unit restores the complete drive configuration within minutes — no re-commissioning required.
Sourcing & Quality Verification
- Source: Authorized distribution channels and verified OEM surplus stock
- Inspection: Each unit inspected for physical integrity, label authenticity, and firmware readability before dispatch
- Traceability: Batch records and supplier documentation available on request
- Warranty: 12-month Konmask warranty against manufacturing defects
- Counterfeit Prevention: Holographic Siemens labels verified; serial numbers cross-referenced where applicable
Procurement Process
- Submit your RFQ via support@konmask.com or add to cart directly
- Receive stock confirmation and lead time within 24 business hours
- Pro-forma invoice issued; payment via T/T, PayPal, or credit card
- Dispatch within 1–3 business days; DHL / FedEx express available
- Tracking number and commercial invoice provided for customs clearance
Technical FAQ
Q: Can I use a standard commercial CompactFlash card instead of 6SL3054-0EJ00-1BA0?
A: No. Siemens specifies this exact part for SINAMICS S120 CUs. Third-party CF cards may not be recognized or may cause firmware errors.
Q: Does the card come pre-loaded with firmware?
A: Typically supplied blank or with factory firmware. Confirm firmware version requirements when ordering.
Q: Is this compatible with SINAMICS S150 or G120?
A: This card is specified for S120 Control Units. Compatibility with other SINAMICS families must be verified against Siemens documentation.
Q: What happens if the CF card fails during operation?
A: The drive will fault and stop. A replacement card with the correct firmware and parameters must be inserted and the drive re-powered.
Q: Can I order in bulk for a fleet of machines?
A: Yes. Contact us for volume pricing and pre-loaded parameter options.
