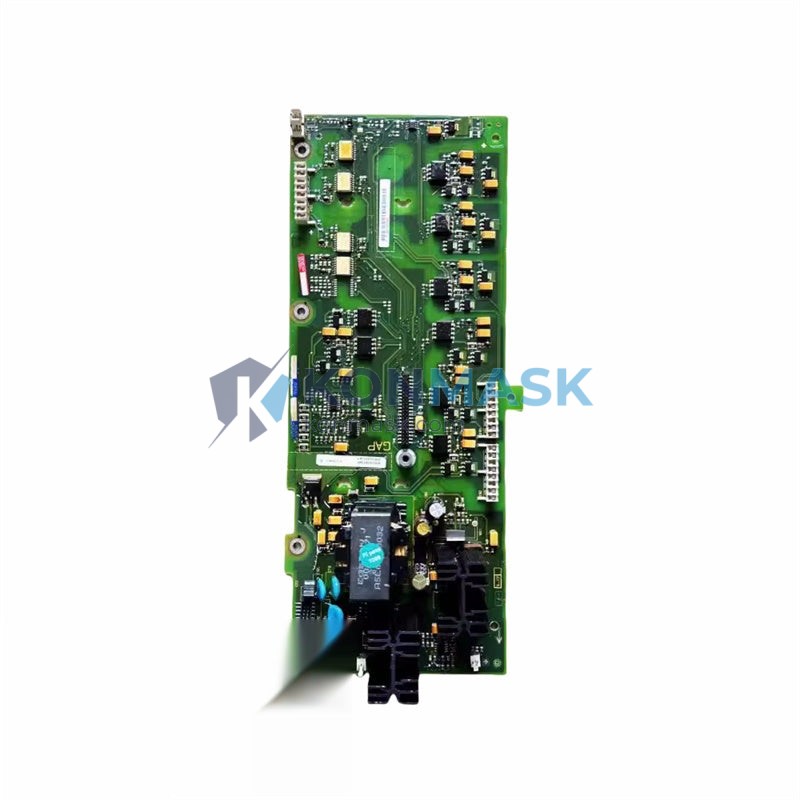

SIEMENS A5E00301347 / A5E00190843 – Drive Power Control Board | SINAMICS S120 Platform
Engineering Background: The SIEMENS A5E00301347 (cross-reference: A5E00190843) is an OEM drive power control board engineered for the SINAMICS S120 modular drive platform. Designed to Siemens’ stringent IEC/EN industrial standards, this board governs the power conversion and regulation logic within S120 booksize and chassis power modules, making it a mission-critical component in high-availability automation systems.
Product Positioning: Targeted at maintenance engineers, OEM integrators, and procurement specialists who require a verified, drop-in replacement for failed or end-of-life drive control boards. Konmask.com supplies this part with full traceability documentation, supporting both emergency repair and planned preventive maintenance programs.
Complete Technical Specifications
- Part Number (Primary): A5E00301347
- Cross-Reference / Alternate PN: A5E00190843
- Manufacturer: SIEMENS AG
- Product Family / Platform: SINAMICS S120
- Component Type: Drive Power Control Board (PCB Assembly)
- Form Factor: Booksize / Chassis module compatible
- Weight: 4,460 g (as shipped)
- Country of Origin: Germany (OEM)
- Compliance: CE, UL, IEC 61800-5-1, EN 55011
- Operating Temperature: 0 °C to +55 °C (derate above 40 °C)
- Storage Temperature: −25 °C to +70 °C
- Humidity: 5–95% RH, non-condensing
- Protection Class: IP20 (board level)
- Bus Interface: DRIVE-CLiQ (internal)
- Firmware Compatibility: SINAMICS S120 firmware V2.x and above
Proven Application Environments
- CNC machine tool spindle and feed axis drives (SINUMERIK integration)
- High-speed packaging and printing line servo systems
- Crane and hoist variable-frequency drive systems
- Petrochemical pump and compressor variable-speed drives
- Automotive assembly line multi-axis coordinated motion control
- Steel rolling mill main drive power regulation
- Semiconductor fab cleanroom HVAC precision drive systems
Engineering Advantages
- Drop-in Replacement: Identical PCB footprint and connector pinout to OEM specification — no firmware re-flashing required in most S120 configurations.
- Dual Part Number Coverage: A5E00301347 and A5E00190843 are functionally equivalent; both are stocked and cross-verified before dispatch.
- Thermal Management: Integrated thermal protection circuitry with hardware over-temperature shutdown to protect downstream power stages.
- EMC Hardened Design: Shielded signal traces and onboard filtering meet EN 55011 Class A emission limits in industrial environments.
- DRIVE-CLiQ Native: Full DRIVE-CLiQ topology support enables automatic component recognition and parameterization via STARTER / TIA Portal.
- Long-Term Availability: Konmask maintains buffer stock for discontinued or allocation-constrained Siemens drive components.
System Architecture & Signal Flow
Within the SINAMICS S120 architecture, the A5E00301347 power control board sits between the Control Unit (CU320-2 / CU310-2) and the Power Module (PM340 / PM250 / chassis units). It processes:
- DC Bus Monitoring: Continuous voltage sensing and regulation feedback to the main control unit via DRIVE-CLiQ.
- Gate Drive Signals: Generates and conditions IGBT gate pulses based on modulation commands from the CU.
- Fault & Diagnostic Reporting: Encodes hardware fault states (overcurrent, overvoltage, thermal trip) into DRIVE-CLiQ diagnostic frames for STARTER/TIA Portal visibility.
- Auxiliary Power Rail: Manages internal 24 VDC and 5 VDC logic supply rails for onboard peripherals.
Sourcing & Quality Verification
- Source: Decommissioned OEM equipment, authorized distributor overstock, and certified refurbishment channels.
- Inspection Protocol: Each board undergoes visual inspection (IPC-A-610 Class 2), functional power-on test, and DRIVE-CLiQ enumeration verification before shipment.
- Packaging: ESD-safe anti-static bag + foam-lined carton; humidity indicator card included.
- Documentation: Test report, traceability certificate, and packing list provided with every order.
- Warranty: 90-day functional warranty against manufacturing defects under normal operating conditions.
Procurement Process
- Inquiry: Submit your part number, required quantity, and delivery timeline to [email protected] or via the product page.
- Quotation: Receive a formal quotation with lead time, unit price (HKD/USD), and shipping options within 1 business day.
- Order Confirmation: Issue PO or confirm via email; proforma invoice issued immediately.
- Quality Hold: Board reserved and re-inspected against your order specifications.
- Dispatch: Ships via DHL Express / FedEx International Priority with full tracking and commercial invoice for customs clearance.
- After-Sales: Technical support available via email for installation and commissioning queries.
Technical FAQ
Q: Is A5E00301347 the same as A5E00190843?
A: Yes. These are dual part numbers assigned by Siemens for the same PCB assembly across different production revisions. Both are functionally interchangeable in SINAMICS S120 applications.
Q: Does this board require firmware update after replacement?
A: In most cases, no. The SINAMICS S120 CU automatically identifies the replacement board via DRIVE-CLiQ. If a firmware mismatch is detected, STARTER or TIA Portal will prompt a guided update.
Q: Can this board be used in SINAMICS S150 or G120 drives?
A: No. This board is specifically designed for the S120 platform. Compatibility with S150 or G120 has not been verified and is not recommended.
Q: What is the lead time for bulk orders (>5 units)?
A: Typically 3–7 business days for stock items. Contact us for availability confirmation on larger quantities.
Q: Do you provide an ICP/export license for international shipments?
A: Yes. All international orders are shipped with full commercial documentation compliant with Chinese export regulations and destination country import requirements.
