Process Safety & Critical Control Solution – Siemens QLCDM024DCBAN | Quadlog 16809-41/5 Series

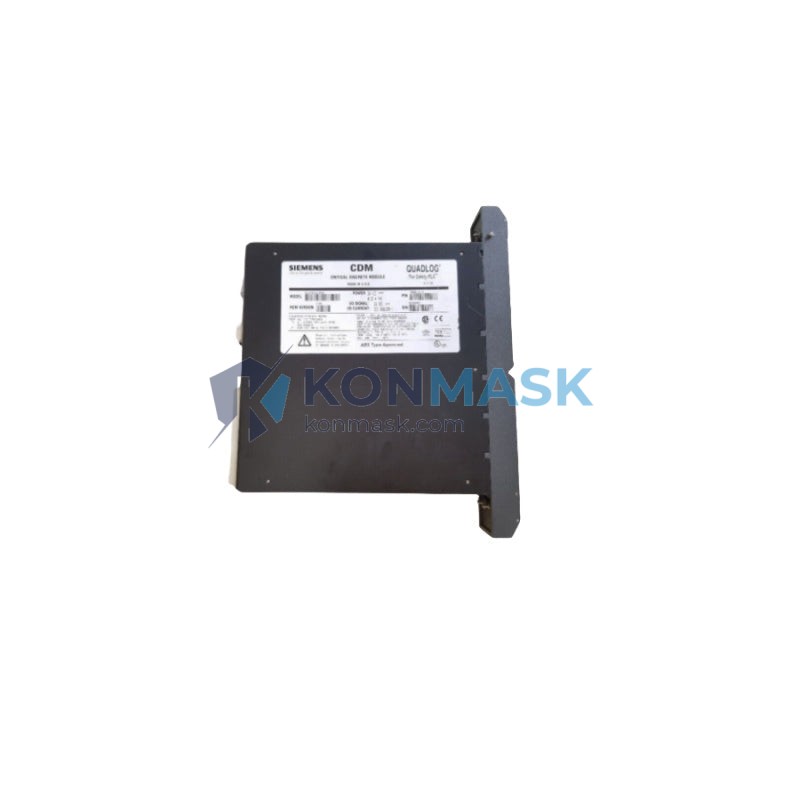

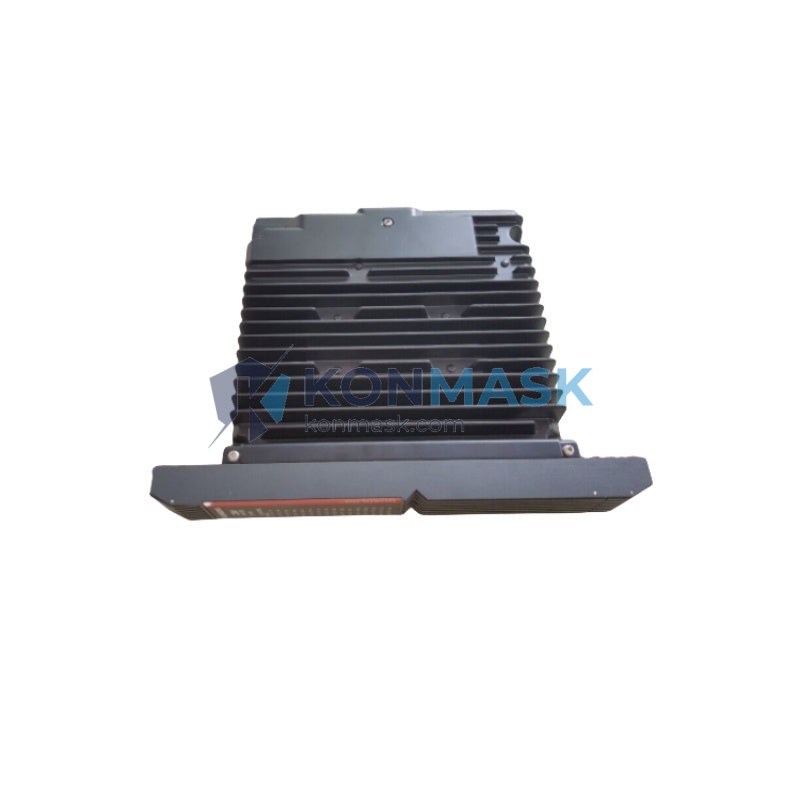

The Siemens QLCDM024DCBAN (16809-41/5) is a safety-rated Critical Discrete Module engineered for the Quadlog Safety PLC platform. Designed to meet the demands of high-integrity process safety systems, this module is the go-to choice for engineers specifying SIL2-capable discrete I/O in hazardous and mission-critical environments. Konmask.com supplies verified units with full traceability documentation to industrial buyers worldwide.
Where This Product Is Used
The QLCDM024DCBAN is deployed wherever discrete safety I/O must meet functional safety standards without compromise:
- Oil & Gas Upstream & Midstream: Emergency Shutdown Systems (ESD) on wellheads, compressor stations, and pipeline isolation valves — where a single missed signal can trigger catastrophic failure.
- Petrochemical & Refinery Plants: Safety Instrumented Systems (SIS) controlling burner management, high-pressure reactor interlocks, and toxic gas detection shutdowns.
- LNG Terminals & Offshore Platforms: Fire & Gas (F&G) logic solvers requiring certified discrete input/output modules with redundant voting architectures (1oo2, 2oo3).
- Power Generation: Turbine trip systems, boiler protection circuits, and generator protection relays where IEC 61511 compliance is mandatory.
- Chemical & Specialty Manufacturing: Exothermic reaction interlocks, pressure relief valve control, and automated emergency depressurization systems.
- Water & Wastewater Infrastructure: Critical pump protection, overflow prevention, and chlorination safety interlocks in municipal treatment facilities.
Technical Specifications
- Part Number: QLCDM024DCBAN
- Siemens Reference: 16809-41/5
- Platform: Siemens Quadlog Safety PLC
- Module Type: Critical Discrete Module (CDM)
- Input Voltage: 24 VDC
- I/O Configuration: Discrete input/output channels with safety-rated diagnostics
- Safety Integrity Level: SIL 2 capable (per IEC 61508 / IEC 61511)
- Diagnostic Coverage: High DC with internal self-test routines
- Communication: Quadlog backplane bus
- Operating Temperature: 0°C to 60°C
- Humidity: 5% to 95% non-condensing
- Weight: Approx. 1,800 g
- Certifications: TÜV-certified, CE, UL (refer to Siemens datasheet 16809-41/5 for full listing)
- Housing: DIN-rail compatible Quadlog chassis module
Why Engineers Specify This Model
- ✅ SIL 2 Certified: Meets IEC 61508 functional safety requirements — accepted by TÜV and third-party safety auditors globally.
- ✅ Proven Quadlog Platform: The Quadlog architecture has decades of field history in safety-critical oil & gas and power applications — not a new or unproven design.
- ✅ High Diagnostic Coverage: Internal self-diagnostics detect dangerous failures before they propagate, reducing spurious trip rates and improving process availability.
- ✅ 24 VDC Discrete I/O: Industry-standard voltage level compatible with the widest range of field devices — solenoid valves, limit switches, proximity sensors, and relay outputs.
- ✅ Redundancy-Ready: Supports 1oo2 and 2oo3 voting configurations for high-availability safety architectures.
- ✅ Long Service Life: Siemens Quadlog modules are designed for 20+ year operational lifespans in continuous process environments.
- ✅ Spare Parts Availability: Konmask.com maintains sourcing channels for legacy and current Quadlog modules — critical for brownfield plant maintenance.
Complete System Bill of Materials
The QLCDM024DCBAN operates within the Siemens Quadlog safety PLC ecosystem. Typical companion components include:
- Siemens Quadlog Controller Module (QLCPU series)
- Quadlog Power Supply Module (QLPSU series)
- Quadlog Chassis / Backplane (QLCHS series)
- Quadlog Communication Module (QLCOM series) for DCS integration
- Siemens SIMATIC PCS 7 or third-party DCS for supervisory control
- Field wiring termination assemblies and marshalling cabinets
- HART or hardwired field devices: solenoid valves, position switches, pressure transmitters
Need a complete BOM for your safety system upgrade or greenfield project? Email support@konmask.com with your system drawing or existing part list — we will source and quote the full package.
Compliance & Industry Standards
- IEC 61508: Functional Safety of E/E/PE Safety-related Systems — SIL 2 rated
- IEC 61511: Functional Safety for the Process Industry Sector
- TÜV Certification: Third-party safety certification for use in certified SIS applications
- CE Marking: Compliant with EU machinery and low-voltage directives
- UL Listing: North American market acceptance for industrial control equipment
- ATEX / IECEx: Consult Siemens datasheet 16809-41/5 for hazardous area classification details
- ISA 84: Aligned with US process safety instrumented system standard
Quality Assurance & Sourcing
Every QLCDM024DCBAN unit shipped by Konmask.com passes through a structured verification process:
- Source Verification: Units are traced to authorized Siemens distribution or verified secondary market channels. No grey-market or unverified origin stock.
- Physical Inspection: Label authenticity, connector integrity, housing condition, and counterfeit screening under controlled inspection conditions.
- Functional Check: Where test fixtures are available, modules are bench-tested for basic communication and I/O response prior to shipment.
- ESD-Safe Packaging: All modules are packed in anti-static bags with foam cushioning and humidity indicator cards for long-distance shipping.
- Documentation Package: Certificate of conformance, inspection record, and packing declaration enclosed. Safety data sheets available on request.
How to Source This Part
- Online Order: Add to cart and check out — we accept T/T bank transfer, PayPal, and major credit cards.
- Project / Bulk Inquiry: Email support@konmask.com with your BOM or quantity requirement for a consolidated quote within 24 hours.
- Urgent Safety Spares: Call or WhatsApp +0086 19859288691 for expedited sourcing on critical plant shutdowns or turnaround maintenance.
- Lead Time: In-stock units ship within 1–3 business days. Sourced units: 7–15 business days. We confirm availability within 24 hours of order.
- Export Documentation: Commercial invoice, packing list, certificate of origin, and ESD handling declaration provided for all international shipments.
Application-Specific FAQ
Q: Can the QLCDM024DCBAN be used in a certified SIL 2 Safety Instrumented Function (SIF)?
A: Yes. The module is TÜV-certified for SIL 2 applications when installed and configured per Siemens’ safety manual for the Quadlog platform. Always verify with your functional safety engineer and the applicable safety manual revision.
Q: Is this module compatible with my existing Quadlog chassis?
A: The QLCDM024DCBAN is designed for the Siemens Quadlog backplane. Compatibility depends on your chassis revision and firmware version. Contact our team with your existing system details and we will confirm fit before you order.
Q: We are doing a brownfield replacement — can you match the exact hardware revision?
A: We will do our best to source the specific revision (16809-41/5) you require. Provide your existing module’s label information and we will confirm revision match prior to shipment.
Q: What is the difference between a Critical Discrete Module and a standard discrete I/O module?
A: A Critical Discrete Module (CDM) incorporates internal diagnostics, fault detection, and safety-rated logic that standard I/O modules do not have. CDMs are specifically designed and certified for use in Safety Instrumented Systems where IEC 61508/61511 compliance is required.
Q: Do you support emergency orders for plant shutdowns?
A: Yes. Contact us via WhatsApp at +0086 19859288691 for same-day response. We maintain sourcing relationships that allow expedited procurement for critical maintenance situations.
Q: Can I return the module if it is not compatible with my system?
A: We offer a 30-day DOA (Dead on Arrival) return policy. We strongly recommend confirming compatibility with our technical team before ordering to avoid unnecessary returns.
