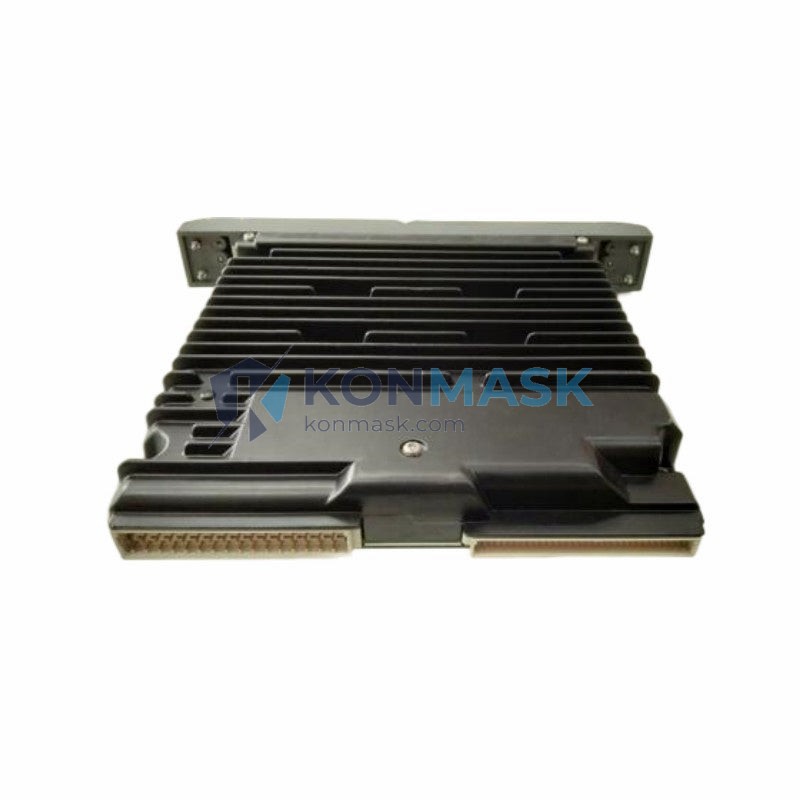

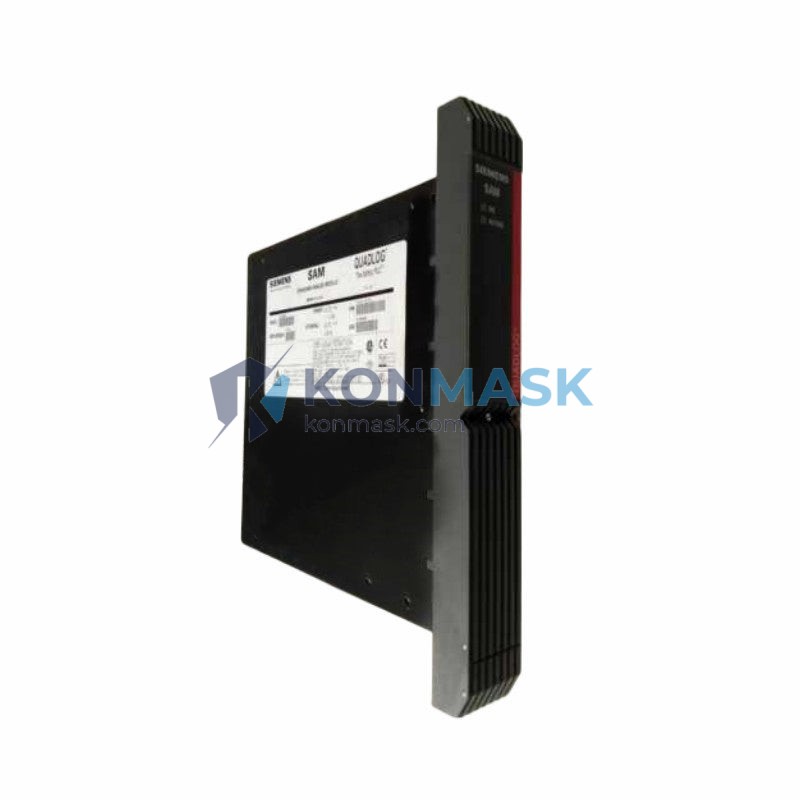

SIEMENS QLSAMBAN — Safety Application Module | QUADLOG Fail-Safe PLC Platform
Engineering Background
The QUADLOG Safety System is Siemens’ dedicated fail-safe programmable logic controller platform engineered for high-integrity process industries including oil & gas, petrochemical, power generation, and offshore installations. Designed to IEC 61508 and IEC 61511 standards, QUADLOG delivers hardware fault tolerance and deterministic response times demanded by Safety Instrumented Systems (SIS).
Product Positioning
The QLSAMBAN (QUADLOG Safety Application Module — BAN variant) serves as the core application execution engine within the QUADLOG chassis. It hosts the safety application program, manages I/O communication across the backplane, and enforces the watchdog and diagnostic routines that maintain SIL-rated integrity. For procurement engineers specifying SIS upgrades, spare-parts pools, or system expansions, the QLSAMBAN is a direct OEM-equivalent replacement with full backward compatibility across QUADLOG rack configurations.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens AG (formerly Moore Products / Siemens Moore) |
| Part Number | QLSAMBAN |
| Module Type | Safety Application Module (SAM) |
| Platform | QUADLOG Fail-Safe PLC System |
| Safety Integrity Level | SIL 2 / SIL 3 capable (per IEC 61508) |
| Processor Architecture | Dual-redundant CPU with cross-checking diagnostics |
| Backplane Interface | QUADLOG proprietary high-speed backplane bus |
| Program Memory | Application-dependent; supports full QUADLOG ladder/function block logic |
| Communication | Backplane I/O bus; optional Modbus / HART gateway via system configuration |
| Watchdog | Hardware watchdog with automatic safe-state transition |
| Diagnostics | Continuous self-test; fault annunciation via system status bus |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Power Consumption | Refer to QUADLOG system power budget documentation |
| Module Weight | 110 g |
| Form Factor | Single-slot QUADLOG rack module |
| Certifications | TÜV-certified; FM approved; CE marked |
| RoHS Compliance | Consult current Siemens product compliance documentation |
Proven Application Environments
- Oil & Gas: Emergency Shutdown (ESD) systems, High Integrity Pressure Protection Systems (HIPPS), burner management
- Petrochemical & Refining: Reactor trip systems, compressor protection, fired heater safety
- Power Generation: Turbine protection, boiler safety interlocks, generator trip logic
- Offshore Platforms: Fire & gas detection integration, process shutdown, wellhead control
- Pipeline & Terminal: Overpressure protection, leak detection logic, pump station ESD
- Chemical Processing: Exothermic reactor safety, toxic release prevention, SIS layer-of-protection compliance
Engineering Advantages
- OEM Authenticity: Genuine Siemens QUADLOG hardware — not third-party clone or remanufactured substitute
- Direct Drop-In Replacement: Full backward compatibility with existing QUADLOG rack and I/O infrastructure — no firmware migration required
- SIL-Rated Integrity: Hardware architecture supports SIL 2 and SIL 3 loop requirements per IEC 61508 / IEC 61511
- Deterministic Execution: Fixed scan-cycle execution ensures predictable response times for safety-critical logic
- Reduced Downtime Risk: Stocking a verified spare eliminates extended lead-time exposure during unplanned outages
- Dual-Path Diagnostics: Continuous self-monitoring detects latent faults before they propagate to process upsets
- Long Service Life: QUADLOG platform designed for 20+ year operational lifecycle in harsh industrial environments
System Architecture & Signal Flow
Within a QUADLOG chassis, the QLSAMBAN occupies the designated SAM slot and communicates with I/O modules via the proprietary backplane bus. The module executes the user safety application at a fixed scan rate, reads process inputs from distributed I/O modules, evaluates safety logic, and drives output modules to maintain or transition to the defined safe state. In redundant configurations, dual SAM modules cross-check execution results on every scan cycle; any discrepancy triggers a controlled safe-state output. The module interfaces upstream to DCS/SCADA systems via the QUADLOG communication gateway, enabling alarm annunciation and operator override under defined permit conditions.
