Industrial WLAN Solution – Siemens SCALANCE W786C-2 | 6GK5786-2HC00-1AA0 | SCALANCE W700 Series

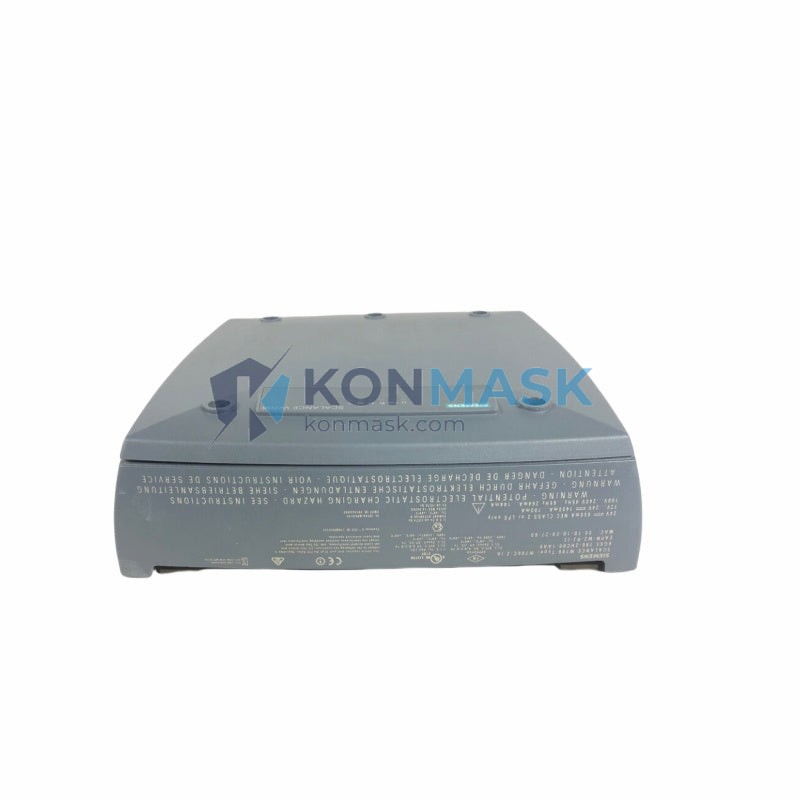

The Siemens SCALANCE W786C-2 (6GK5786-2HC00-1AA0) is a ruggedized industrial wireless access point engineered for demanding factory-floor and outdoor environments. Designed for seamless integration into Siemens PROFINET and TIA Portal ecosystems, it delivers reliable IEEE 802.11 WLAN connectivity where standard commercial access points fail. Procurement engineers and system integrators specify this model for its IP65-rated enclosure, dual-radio capability, and deterministic wireless performance in high-interference industrial settings.
Where This Product Is Used
- Automotive Assembly Lines – Wireless connectivity for AGVs, robotic cells, and conveyor control panels requiring uninterrupted PROFINET over WLAN.
- Outdoor Port & Logistics Terminals – IP65-rated housing withstands rain, dust, and UV exposure for crane control and yard management systems.
- Pharmaceutical & Food Processing Plants – Hygienic-zone wireless backbone for MES/SCADA data collection without cable penetrations.
- Oil & Gas Facilities – Ruggedized WLAN backbone for remote monitoring of pumps, compressors, and pipeline instrumentation.
- Mining & Heavy Industry – Vibration-resistant wireless node for mobile equipment telemetry and operator HMI access.
- Warehouse & Distribution Centers – High-density WLAN for barcode scanners, forklifts, and WMS terminals across large floor areas.
- Water & Wastewater Treatment – Outdoor-rated wireless link between remote pump stations and central SCADA without fiber trenching.
Technical Specifications
| Part Number | 6GK5786-2HC00-1AA0 |
| Model | SCALANCE W786C-2 |
| Series | SCALANCE W700 |
| Manufacturer | Siemens AG |
| Device Type | Industrial Wireless Access Point / Client |
| Radio Standard | IEEE 802.11a/b/g/n/ac (Wi-Fi 5) |
| Frequency Bands | 2.4 GHz & 5 GHz (dual-band) |
| Number of Radios | 2 (simultaneous dual-radio) |
| Antenna Ports | 4 × R-SMA (2 per radio) |
| LAN Ports | 2 × RJ45 10/100/1000 Mbps |
| Power Supply | 24–48 V DC / PoE IEEE 802.3af/at |
| Power Consumption | Max. 20 W |
| Protection Rating | IP65 |
| Operating Temperature | −20 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Humidity | 5–95% RH (non-condensing) |
| Housing Material | Die-cast aluminum |
| Mounting | Wall / mast / DIN rail (with adapter) |
| Dimensions (W×H×D) | Approx. 220 × 155 × 55 mm |
| Weight | ~1,600 g |
| Management | Web UI, SNMP v1/v2c/v3, TIA Portal, SINEMA Remote Connect |
| Security | WPA2/WPA3, 802.1X, RADIUS, MAC filtering, firewall |
| Roaming | iPCF, iPCF-MC (deterministic fast roaming <50 ms) |
| Certifications | CE, FCC, UL, ATEX Zone 2 (check variant), IEC 62443 |
Why Engineers Specify This Model
- Deterministic Roaming (iPCF) – Siemens’ proprietary iPCF protocol guarantees handover latency <50 ms, critical for AGV and crane applications where packet loss causes E-stops.
- Dual-Radio Architecture – Simultaneous 2.4 GHz + 5 GHz operation allows backbone uplink on one radio and client access on the other, eliminating throughput halving common in single-radio APs.
- IP65 Die-Cast Aluminum – Fully sealed against dust ingress and water jets; no additional enclosure required for most outdoor or washdown installations.
- Native TIA Portal Integration – Configurable and diagnosable directly from Siemens engineering environment; no separate NMS license required for basic operations.
- Wide DC Input Range – Accepts 24–48 V DC common in control cabinets, eliminating the need for additional AC/DC converters.
- IEC 62443 Cybersecurity Compliance – Meets industrial cybersecurity standards required by modern plant security policies and insurance audits.
Complete System Bill of Materials
For a complete SCALANCE W786C-2 wireless node, engineers typically specify:
- 6GK5786-2HC00-1AA0 – SCALANCE W786C-2 Access Point (this unit)
- ANT795-4MR – Omnidirectional antenna 2.4/5 GHz, IP67, R-SMA (×2 per radio)
- 6GK5798-8EP00-0AA6 – SCALANCE W PoE injector 48 V (if PoE switch unavailable)
- 6GK5748-1GY01-0AA0 – SCALANCE XB008G unmanaged switch (edge LAN)
- SINEMA Remote Connect – Cloud-based remote access management (software license)
- 6XV1870-3R – Industrial Ethernet cable, pre-assembled, for outdoor runs
Compliance & Industry Standards
- IEEE 802.11a/b/g/n/ac (Wi-Fi 5)
- IEEE 802.3af/at Power over Ethernet
- IEC 61000-6-2 / IEC 61000-6-4 (EMC Industrial)
- IEC 62443-4-2 (Industrial Cybersecurity)
- EN 300 328 / EN 301 893 (Radio Equipment Directive)
- UL 60950-1 / IEC 62368-1 (Safety)
- CE, FCC Part 15, RoHS 2
- PROFINET Conformance Class B
Quality Assurance & Sourcing
Konmask.com sources the Siemens 6GK5786-2HC00-1AA0 exclusively through verified industrial distribution channels. Every unit undergoes the following before dispatch:
- Label and date-code authentication against Siemens OEM packaging standards
- Firmware version verification and factory-reset confirmation
- Physical inspection: connector integrity, housing seal, antenna port condition
- Functional power-on test with DHCP lease and management UI access verification
- Anti-static packaging with humidity indicator card for international shipment
Counterfeit industrial networking equipment poses serious safety and cybersecurity risks. Our sourcing process eliminates gray-market and refurbished units from the supply chain.
How to Source This Part
- Confirm Part Number – Verify 6GK5786-2HC00-1AA0 against your BOM or Siemens SIOS documentation.
- Request a Quote – Contact support@konmask.com with quantity, required delivery date, and destination country.
- Receive Proforma Invoice – We issue PI within 1 business day including lead time, shipping options (DHL/FedEx/sea freight), and payment terms.
- Order Confirmation & QC – Upon payment, unit is pulled, inspected, and documented with photo evidence.
- Shipment & Tracking – Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
- After-Sales Support – Technical assistance available for commissioning, TIA Portal configuration, and warranty claims.
Application-Specific FAQ
Q: Can the W786C-2 operate as both an access point and a client simultaneously?
A: Yes. With dual radios, one radio can operate in AP mode serving field devices while the second operates in client/bridge mode connecting to the backbone network — a common architecture in AGV systems.
Q: What is the maximum throughput in an industrial environment?
A: Under 802.11ac on the 5 GHz radio, theoretical throughput reaches 867 Mbps. In real industrial deployments with interference and iPCF overhead, sustained throughput of 150–300 Mbps is typical per radio.
Q: Is this unit compatible with PROFINET over WLAN (PN-WLAN)?
A: Yes. The W786C-2 supports PROFINET over WLAN using iPCF for deterministic communication, meeting the cycle time requirements of most PROFINET RT applications.
Q: Does it require a SINEMA license for basic configuration?
A: No. Basic configuration via Web UI and TIA Portal is license-free. SINEMA Remote Connect requires a separate software subscription for cloud-based remote management.
Q: What antenna should I use for outdoor long-range coverage?
A: For directional point-to-point links, Siemens ANT795-6DN (directional, 14 dBi) is recommended. For omnidirectional cell coverage, ANT795-4MR (5 dBi) is the standard pairing.
Q: Can I use this in a Zone 2 hazardous area?
A: The standard 6GK5786-2HC00-1AA0 is not ATEX-certified. For Zone 2 applications, consult Siemens for the appropriate SCALANCE W variant with Ex certification.
