Factory Automation HMI Solution – Allen-Bradley 2711P-T10C4D1/A | PanelView Plus 1000 Series

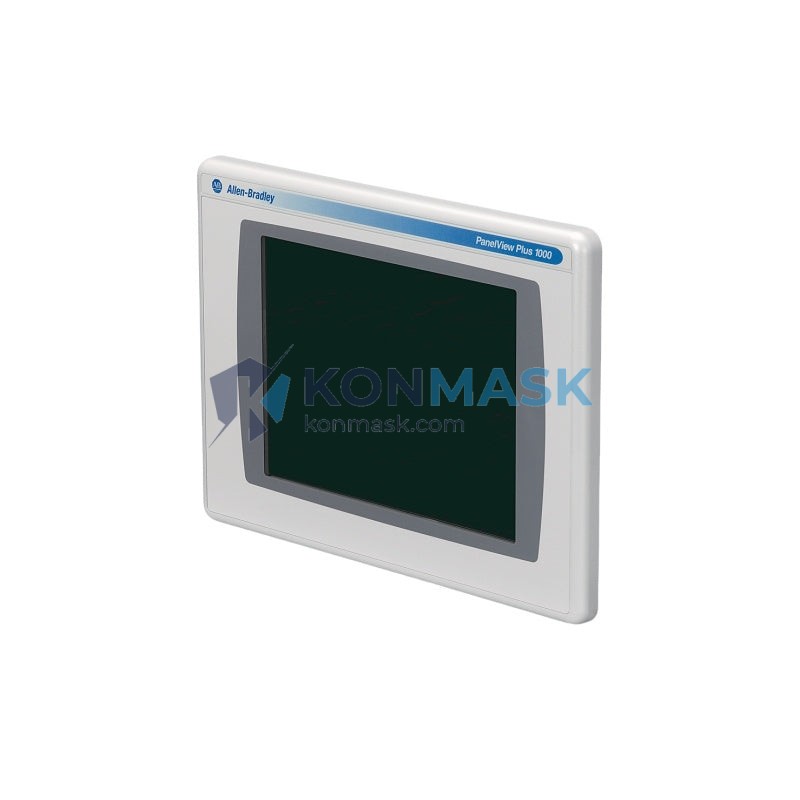

The Allen-Bradley 2711P-T10C4D1/A is a 10.4-inch color touch-screen Human-Machine Interface (HMI) terminal from Rockwell Automation’s PanelView Plus 1000 Series. Engineered for demanding industrial environments, it delivers real-time visualization, operator control, and seamless integration with Allen-Bradley PLC platforms including ControlLogix and CompactLogix.
Where This Product Is Used
The 2711P-T10C4D1/A is deployed across a wide range of industrial sectors where reliable operator interface and process visualization are critical:
- Automotive Manufacturing: Assembly line monitoring, robotic cell control, and conveyor management panels.
- Food & Beverage Processing: Batch control, CIP (Clean-In-Place) systems, and packaging line HMI stations.
- Water & Wastewater Treatment: Pump station control, filtration monitoring, and SCADA front-end terminals.
- Oil & Gas: Wellhead control panels, compressor station interfaces, and pipeline monitoring.
- Pharmaceutical Manufacturing: GMP-compliant process visualization, recipe management, and audit-trail displays.
- Material Handling & Logistics: Warehouse conveyor control, sortation system HMI, and AGV dispatch panels.
- Power Generation & Utilities: Substation operator panels and generator control room displays.
Technical Specifications
| Part Number | 2711P-T10C4D1/A |
| Series | PanelView Plus 1000 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Display Size | 10.4 inch (diagonal) |
| Display Type | Color TFT LCD, Touch Screen |
| Resolution | 640 × 480 (VGA) |
| Input Type | Touch (Analog Resistive) |
| Communication Ports | DH-485, RS-232, USB (Type A & B), Ethernet 10/100 Base-T |
| Operating Voltage | 24V DC |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 70°C |
| Ingress Protection | NEMA 4/4X, 12, 13 (front face) |
| Memory | 512 MB Flash, 128 MB RAM |
| Operating System | Windows CE |
| Software | FactoryTalk View ME |
| Weight | Approx. 2.5 kg |
| Catalog Revision | /A |
Why Engineers Specify This Model
- Native Rockwell Integration: Plug-and-play compatibility with ControlLogix, CompactLogix, MicroLogix, and SLC 500 via EtherNet/IP and DH-485, eliminating custom driver development.
- FactoryTalk View ME Ecosystem: Full support for Rockwell’s FactoryTalk View Machine Edition software — enabling alarm management, trending, recipe control, and multi-language displays.
- NEMA 4/4X Rated Front Face: Suitable for wash-down environments and dusty industrial floors without additional enclosure engineering.
- 10.4″ Operator-Friendly Display: Large enough for complex mimic diagrams and multi-parameter dashboards, reducing operator error in high-stakes environments.
- Dual USB Ports: Enables on-site application updates, data logging to USB drives, and peripheral connectivity without opening the control panel.
- Proven Field Reliability: Part of the PanelView Plus platform with millions of units deployed globally across critical infrastructure since 2003.
Complete System Bill of Materials
For a complete PanelView Plus 1000 operator station, engineers typically specify the following complementary components:
- 2711P-T10C4D1/A — HMI Terminal (this unit)
- 2711P-RN15S — EtherNet/IP Communication Module (if required)
- 2711P-RDT10C — Replacement Display Module
- 2711P-B10C4D1 — Keypad variant (alternative form factor)
- 1756-L71 / 1769-L33ER — ControlLogix / CompactLogix PLC (host controller)
- 1783-US5T — Stratix 2000 Ethernet Switch (panel network)
- 2711P-RSACDIN — DIN Rail Power Supply Adapter
- 9701-VWSTENE — FactoryTalk View ME Software License
Compliance & Industry Standards
- UL Listed (UL 508)
- CE Marked — EMC Directive & Low Voltage Directive
- NEMA 4, 4X, 12, 13 (front panel)
- RoHS Compliant
- cUL Listed (Canadian market)
- EtherNet/IP — ODVA Conformance Tested
Quality Assurance & Sourcing
At Konmask.com, every Allen-Bradley unit undergoes a structured verification process before shipment:
- Visual inspection against OEM cosmetic and label standards
- Firmware version verification and documentation
- Functional power-on test where applicable
- Secure anti-static packaging with humidity indicators
- Full traceability documentation available on request
We source from authorized distributors, certified resellers, and vetted industrial surplus channels. All units are represented accurately by condition (New, Surplus New, or Refurbished) in the product listing.
How to Source This Part
- Request a Quote: Contact us at support@konmask.com or call +0086 19859288691 for pricing and lead time.
- Confirm Compatibility: Share your existing PLC platform and FactoryTalk View ME version — our engineers will verify compatibility.
- Place Order: Orders accepted via purchase order (PO), bank transfer (T/T), or online checkout.
- Shipping: Global shipping via DHL, FedEx, and UPS. Export documentation and customs support available for international orders.
- After-Sales Support: Technical assistance available post-delivery for installation and commissioning queries.
Application-Specific FAQ
Q: Is the 2711P-T10C4D1/A compatible with ControlLogix 5580 series PLCs?
A: Yes. Via EtherNet/IP, the PanelView Plus 1000 communicates natively with all ControlLogix 5500 and 5580 series controllers using FactoryTalk View ME.
Q: What FactoryTalk View ME version is required?
A: FactoryTalk View ME v5.0 or later is recommended. For optimal feature support, v8.x or v9.x is preferred.
Q: Can this terminal be used in a NEMA 4X wash-down environment?
A: The front face is rated NEMA 4/4X. The rear of the unit requires a NEMA 4X rated enclosure for full wash-down protection.
Q: Is the /A revision the latest hardware revision?
A: The /A designates the first hardware revision of this catalog number. Rockwell may release subsequent revisions (/B, /C); confirm the revision requirement with your system integrator before ordering.
Q: Do you offer exchange or repair services for faulty units?
A: Yes. Contact support@konmask.com to discuss exchange, repair, or refurbishment options for your existing 2711P-T10C4D1/A.
Q: What is the typical lead time for in-stock units?
A: In-stock units typically ship within 1–3 business days. Lead time for sourced units is 5–15 business days depending on origin.
