Multi-Axis Servo Drive Solution — SIEMENS 6SL3420-2TE11-7AA1 | SINAMICS S120
Where This Product Is Used

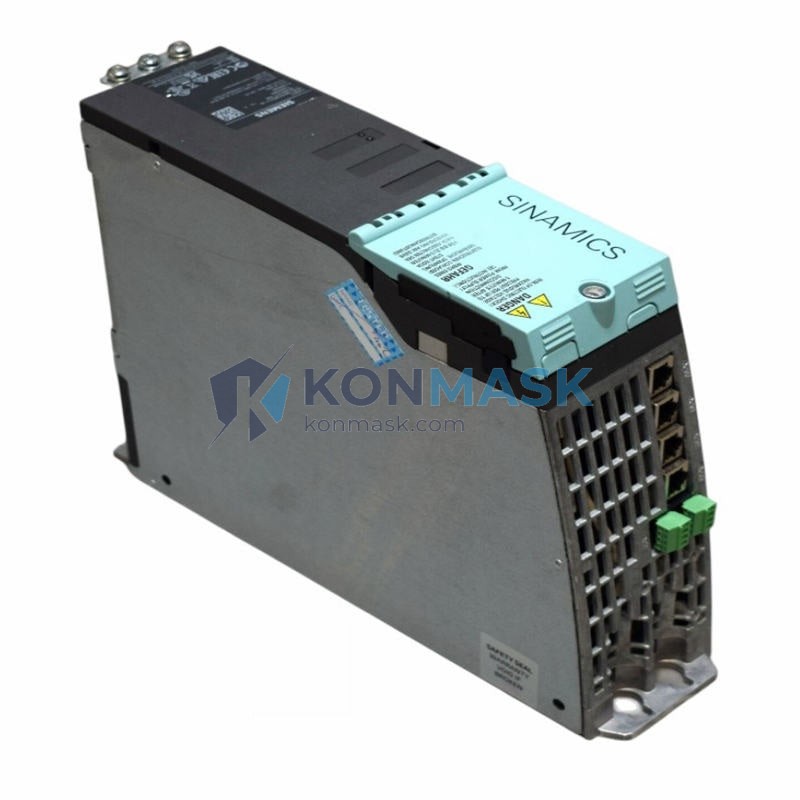

The SIEMENS 6SL3420-2TE11-7AA1 Double Motor Module is a booksize-format power output stage designed for demanding multi-axis motion control applications. Engineers specify this module wherever two servo axes must share a single drive slot, reducing cabinet footprint without sacrificing dynamic performance. Typical deployment environments include:
- CNC Machining Centers — simultaneous X/Y axis control with sub-millisecond torque response
- Industrial Robotics — dual-joint actuation in articulated arm and SCARA configurations
- Textile & Printing Machinery — synchronized feed and tension control across two motor axes
- Packaging Lines — coordinated pick-and-place and conveyor indexing
- Semiconductor & Electronics Assembly — precision positioning stages requiring matched axis performance
- Material Handling & Gantry Systems — dual-drive gantry synchronization for overhead cranes and transfer systems
Technical Specifications
| Part Number | 6SL3420-2TE11-7AA1 |
| Series | SINAMICS S120 Booksize |
| Module Type | Double Motor Module |
| Output Current (per axis) | 1.7 A (continuous) / 3.4 A (peak) |
| DC Link Voltage | 600 V DC |
| Axis Count | 2 (independent servo axes) |
| Communication Interface | DRIVE-CLiQ |
| Cooling Method | Forced air (internal fan) |
| Protection Class | IP20 |
| Ambient Temperature | 0 °C to +40 °C (derating above 40 °C) |
| Weight | Approx. 700 g |
| Mounting | DIN rail / panel mount, booksize format |
| Firmware Compatibility | SINAMICS S120 firmware ≥ V4.x |
Why Engineers Specify This Model
- Space Efficiency — One booksize slot drives two independent servo axes, cutting panel width by up to 40% versus single-axis alternatives.
- DRIVE-CLiQ Integration — Native Siemens DRIVE-CLiQ topology enables automatic motor identification, encoder parameterization, and real-time diagnostics without manual configuration.
- Matched Axis Performance — Both channels share the same DC bus, ensuring identical dynamic response and eliminating inter-axis voltage imbalance in synchronized motion profiles.
- Seamless SINUMERIK / SIMOTION Compatibility — Drop-in integration with Siemens CNC and motion controllers; no additional gateway hardware required.
- Proven Reliability — SINAMICS S120 platform is deployed in millions of axes globally across automotive, aerospace, and process industries.
Complete System Bill of Materials
A fully operational SINAMICS S120 dual-axis drive system typically requires the following components:
- Active Line Module (ALM) — e.g., 6SL3130-7TE21-6AA3 (power infeed & regeneration)
- Control Unit — e.g., CU320-2 PN (6SL3040-1MA01-0AA0) or CU310-2 PN
- Double Motor Module — 6SL3420-2TE11-7AA1 (this unit)
- DRIVE-CLiQ Hub Module — e.g., DMC20 (6SL3055-0AA00-6AA0) for topology expansion
- Servo Motors (×2) — SIMOTICS S-1FK7 or 1FT7 series matched to axis load
- Motor Encoder Cables — DRIVE-CLiQ or resolver cables per motor type
- DC Bus Connector Set — booksize bus adapter kit
- 24 V DC Power Supply — SITOP PSU100S or equivalent
Contact support@konmask.com for a complete BOM quotation tailored to your application.
Compliance & Industry Standards
- CE Marking — Compliant with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
- UL Listed — UL 508C (Power Conversion Equipment)
- IEC 61800-5-1 — Adjustable speed electrical power drive systems — safety requirements
- IEC 61800-3 — EMC requirements for drive systems
- RoHS Compliant — Directive 2011/65/EU
- REACH Compliant — No substances of very high concern (SVHC) above threshold
Quality Assurance & Sourcing
Konmask.com sources SIEMENS automation components through verified industrial distribution channels. Every unit offered on this platform undergoes the following quality process:
- Visual inspection for physical damage, label integrity, and seal condition
- Firmware version verification against Siemens product lifecycle records
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Traceability documentation available upon request (batch/lot records)
We do not list counterfeit, refurbished-as-new, or end-of-life stock without explicit disclosure. If you require a Certificate of Conformance (CoC) or third-party inspection report, please contact us before ordering.
How to Source This Part
Ready to procure the 6SL3420-2TE11-7AA1? Here are your options:
- Add to Cart — Immediate checkout for stocked units. Lead time displayed at checkout.
- Request a Quote (RFQ) — For quantities ≥ 3 units or project-based procurement, email support@konmask.com with your project timeline and quantity.
- WhatsApp / Phone — Reach our technical sales team at +0086 19859288691 for urgent requirements or application consultation.
- Lead Time — Typically 3–7 business days for in-stock units; 2–4 weeks for sourced orders. Expedited shipping available.
Application-Specific FAQ
Q: Can the 6SL3420-2TE11-7AA1 operate both axes simultaneously at full rated current?
A: Yes. Both axes are independently controlled and can run at their rated continuous current simultaneously, provided the DC bus supply (Active Line Module) is sized accordingly for the combined load.
Q: Is this module compatible with third-party motors (non-Siemens)?
A: The module supports third-party motors via the standard encoder interface, but DRIVE-CLiQ automatic identification is only available with Siemens SIMOTICS motors. Manual parameterization is required for third-party motors.
Q: What is the difference between 6SL3420-2TE11-7AA1 and 6SL3420-2TE13-0AA0?
A: The 7AA1 variant is rated at 1.7 A continuous per axis; the 3-0AA0 is a higher-current variant. Selection depends on your motor’s rated current and peak torque requirements. Contact us for axis sizing support.
Q: Can I use this module with SIMOTION D or SINUMERIK 840D?
A: Yes. The 6SL3420-2TE11-7AA1 is fully compatible with SIMOTION D4x5-2 and SINUMERIK 840D sl / 828D control platforms via DRIVE-CLiQ.
Q: Do you provide warranty on this part?
A: All units sold through Konmask.com carry a 90-day functional warranty. Extended warranty and on-site support arrangements are available for project orders.
