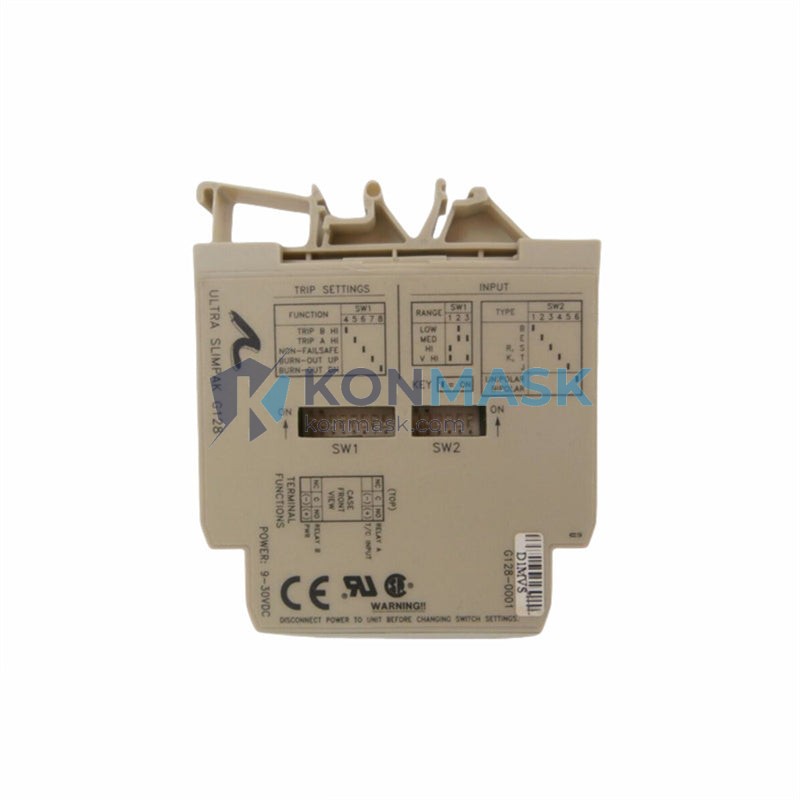

SLIMPAK ULTRA SLIMPAK G128 – Isolated Analog Signal Conditioner | ULTRA SLIMPAK Platform
The SLIMPAK ULTRA SLIMPAK G128 is a high-precision, galvanically isolated signal conditioner module engineered for demanding industrial process control environments. Designed for procurement engineers and system integrators who require reliable, spec-accurate analog signal conditioning within compact DIN-rail architectures, the G128 delivers consistent performance across a wide range of process instrumentation applications.
Product Positioning: The G128 occupies the core of the ULTRA SLIMPAK signal conditioning platform — purpose-built for facilities requiring noise-immune, loop-powered analog signal transmission between field instruments and control systems. It is the preferred choice for engineers specifying components in oil & gas, water treatment, chemical processing, and building automation projects.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model / SKU | ULTRA SLIMPAK G128 |
| Manufacturer | SLIMPAK |
| Product Series | ULTRA SLIMPAK |
| Function | Isolated Analog Signal Conditioner |
| Signal Type | Analog Input (4–20 mA / 0–10 V configurable) |
| Isolation | Galvanic 3-way isolation (Input / Output / Power) |
| Mounting | DIN Rail (35 mm) |
| Housing Width | Ultra-slim profile (6.2 mm typical) |
| Supply Voltage | 24 V DC (loop-powered or external) |
| Operating Temperature | -20°C to +60°C |
| Protection Rating | IP20 |
| Accuracy | ±0.1% of full scale |
| Response Time | ≤ 100 ms |
| Certifications | CE, RoHS compliant |
| Net Weight | ~1390 g (packaged) |
| Country of Origin | Australia |
Proven Application Environments
- Oil & Gas: Transmitter signal isolation in hazardous area boundaries
- Water & Wastewater Treatment: Flow meter and level sensor signal conditioning
- Chemical Processing: Noise-immune analog loop transmission across long cable runs
- Building Automation (BAS/BMS): HVAC sensor signal normalization to BACnet/Modbus controllers
- Power Generation: Turbine and generator monitoring signal buffering
- Pharmaceutical Manufacturing: GMP-compliant process variable isolation
Engineering Advantages
- Ultra-slim 6.2 mm profile — maximizes panel density without sacrificing channel count
- 3-way galvanic isolation — eliminates ground loops and common-mode interference
- Universal analog input — configurable for current (4–20 mA) and voltage (0–10 V) signals without hardware modification
- Loop-powered option — simplifies wiring in 2-wire transmitter installations
- Plug-in screw terminals — enables module swap without rewiring, reducing MTTR
- Wide temperature range — suitable for outdoor enclosures and non-climate-controlled plant rooms
System Architecture & Signal Flow
The G128 operates as a transparent signal bridge within the analog loop. Field instruments (RTDs, thermocouples, pressure transmitters, flow meters) connect to the isolated input stage. The conditioned, galvanically isolated output signal is then transmitted to the PLC/DCS analog input card or SCADA data acquisition system. The 3-way isolation barrier prevents fault propagation between field and control network layers, protecting both instrumentation and control hardware.
Typical Signal Path: Field Sensor → G128 Input (Isolated) → G128 Output (Isolated) → PLC/DCS AI Card → SCADA/HMI
Sourcing & Quality Verification
- All SLIMPAK ULTRA SLIMPAK G128 units supplied by Konmask.com are sourced through verified distribution channels
- Each unit undergoes incoming inspection including functional signal-path verification
- Original manufacturer packaging, labels, and documentation are preserved
- Traceability records available upon request for regulated industries (pharma, nuclear, defense)
- Certificate of Conformance (CoC) available for qualified orders
Procurement Process
- Step 1: Confirm model number (ULTRA SLIMPAK G128) and required quantity with your project BOM
- Step 2: Submit RFQ via support@konmask.com or add to cart for standard orders
- Step 3: Receive quotation with lead time, shipping options, and CoC availability within 1 business day
- Step 4: Order confirmation and pro-forma invoice issued; payment via T/T, PayPal, or credit card
- Step 5: Dispatch with full tracking; express DHL/FedEx available for urgent project requirements
Technical FAQ
Q: Is the G128 compatible with HART-enabled transmitters?
A: The G128 passes the 4–20 mA signal transparently; HART communication superimposed on the loop is preserved in most configurations. Verify with your HART master device for full compatibility.
Q: Can the G128 be used in SIL-rated safety loops?
A: The standard G128 is not SIL-rated. For functional safety applications, consult SLIMPAK’s SIL-certified product range or contact Konmask for alternatives.
Q: What is the maximum cable length supported on the input side?
A: With proper shielding and grounding, cable runs up to 300 m are typical. Longer runs may require additional surge protection.
Q: Are spare plug-in terminal blocks available separately?
A: Yes. Contact support@konmask.com with your terminal block specification for availability and pricing.
Q: What is the standard lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–6 week lead time depending on manufacturer availability.
