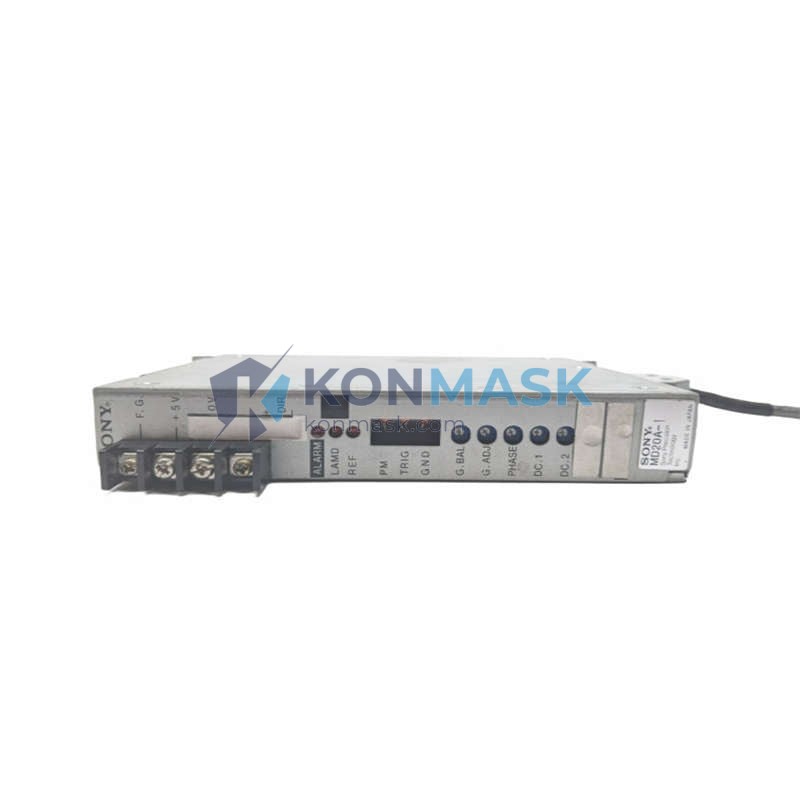

SONY MD20A Position Detection Module

SONY MD20A Position Detection Module | Replacement, Equivalent & Selection Guide

The SONY MD20A is an industrial-grade Position Detection Module designed for precision motion control and automation systems. This page provides full technical specifications, compatible replacement options, equivalent models from alternative manufacturers, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.

Technical Specifications

Manufacturer	SONY
Model	MD20A
Function	Position Detection Module
SKU	MD20A
Weight	2,140 g (approx.)
Application	Industrial automation, motion control, servo systems
Condition Available	New, Refurbished, Used-Tested
Warranty	12 months (new); 6 months (refurbished)

Note: Full datasheet available upon request. Contact support@konmask.com for detailed electrical and mechanical specifications.

Compatible Replacement & Equivalent Models

If the SONY MD20A is discontinued, long lead-time, or outside budget, the following models may serve as functional equivalents depending on your system configuration. Always verify compatibility with your system integrator before substitution.

• SONY MD20B – Next-generation variant with enhanced resolution; pin-compatible in most configurations
• SONY MD15A – Lower-range predecessor; suitable for less demanding positioning tasks
• Heidenhain EXE 610 – High-precision position evaluation electronics; compatible interface in many servo drive setups
• Renishaw RGH24 – Optical encoder readhead; equivalent function for linear position feedback
• Mitutoyo AT715 – Linear encoder with comparable output signal; verify interface protocol before use
• Fagor CNC Position Module – Compatible in open-loop and semi-closed-loop CNC architectures

Konmask.com can assist with cross-reference verification. Contact us with your system model and control architecture for a tailored recommendation.

Why Choose the Original SONY MD20A

• OEM Accuracy: Factory-calibrated for SONY servo and motion control ecosystems — no re-tuning required
• Proven Reliability: Validated in high-cycle industrial environments with documented MTBF performance
• Seamless Integration: Direct drop-in replacement for existing SONY MD20A installations with zero firmware changes
• Regulatory Compliance: Meets applicable CE / RoHS standards for industrial automation equipment
• Long-Term Support: Konmask maintains stock of both new and refurbished units to support legacy system maintenance

Typical Applications

• CNC machine tool position feedback loops
• Robotic arm joint position sensing
• Semiconductor wafer handling and stage positioning
• Precision linear actuator control
• Automated optical inspection (AOI) systems
• Pick-and-place assembly equipment

System Compatibility

The SONY MD20A is designed for integration with SONY motion control platforms and is also compatible with third-party servo drives and CNC controllers that support standard encoder feedback interfaces. Confirmed compatible environments include:

• SONY servo drive series (consult your drive manual for interface pinout)
• Fanuc CNC systems with external encoder input
• Siemens SINUMERIK with appropriate adapter module
• Mitsubishi MELSERVO series (interface adapter may be required)
• Yaskawa Sigma series (verify signal voltage levels)

System compatibility is subject to your specific firmware version and hardware revision. Konmask engineers can provide pre-sale compatibility consultation.

Selection Guide

Use the following criteria to determine whether the SONY MD20A or an equivalent model is the right choice for your application:

• Step 1 – Define Resolution Requirements: Confirm the minimum position resolution (nm or µm) your process demands. The MD20A is optimized for high-resolution applications.
• Step 2 – Verify Interface Protocol: Check whether your controller accepts the MD20A’s output signal type (analog / digital / serial). Mismatched protocols require an interface converter.
• Step 3 – Assess Environmental Conditions: Confirm operating temperature range, IP rating, and vibration tolerance match your installation environment.
• Step 4 – Check Mechanical Dimensions: Verify mounting hole pattern and connector orientation against your machine drawing before ordering.
• Step 5 – Evaluate Lead Time vs. Equivalent: If OEM lead time exceeds your maintenance window, contact Konmask for in-stock equivalent options with same-day quotation.

Quality Assurance & Sourcing

• Source Traceability: All units sourced from authorized distributors, OEM overstock, or certified refurbishers with documented chain of custody
• Incoming Inspection: Every unit undergoes visual inspection, functional power-on test, and parameter verification before dispatch
• Anti-Counterfeit Measures: Serial number verification and OEM label authentication performed on all new units
• Packaging: ESD-safe packaging with desiccant; double-boxed for international shipments
• Certifications: ISO 9001-aligned quality management process; CE / RoHS documentation available on request

How to Order

1. Add the SONY MD20A to your cart and proceed to checkout, or
2. Email support@konmask.com with your PO or RFQ — include quantity, required condition (new / refurbished), and delivery deadline
3. For bulk orders (>5 units) or OEM equivalent sourcing, request a formal quotation for volume pricing
4. Payment: T/T (bank transfer), PayPal, credit card, and trade assurance accepted
5. Shipping: DHL / FedEx / UPS express worldwide; sea freight available for large orders

Lead time: In-stock units ship within 1–3 business days. Out-of-stock units: 7–21 business days depending on sourcing channel.

Replacement & Compatibility FAQ

Q: Is the SONY MD20A still in production?
A: Production status varies by region and period. Konmask maintains stock of both new and refurbished units. Contact us to confirm current availability.

Q: Can I use the MD20B as a direct replacement for the MD20A?
A: In most cases yes, but verify the output signal format and connector pinout with your system documentation before substitution.

Q: Do you provide a warranty on refurbished units?
A: Yes — refurbished units carry a 6-month functional warranty. New units carry a 12-month warranty.

Q: Can Konmask help me identify a compatible equivalent if the MD20A is unavailable?
A: Absolutely. Send us your machine model, controller type, and application details and our engineers will recommend a validated equivalent.

Q: What is the return policy?
A: DOA (Dead on Arrival) units are replaced at no charge within 30 days. Please contact support@konmask.com with photos and test results.

---
