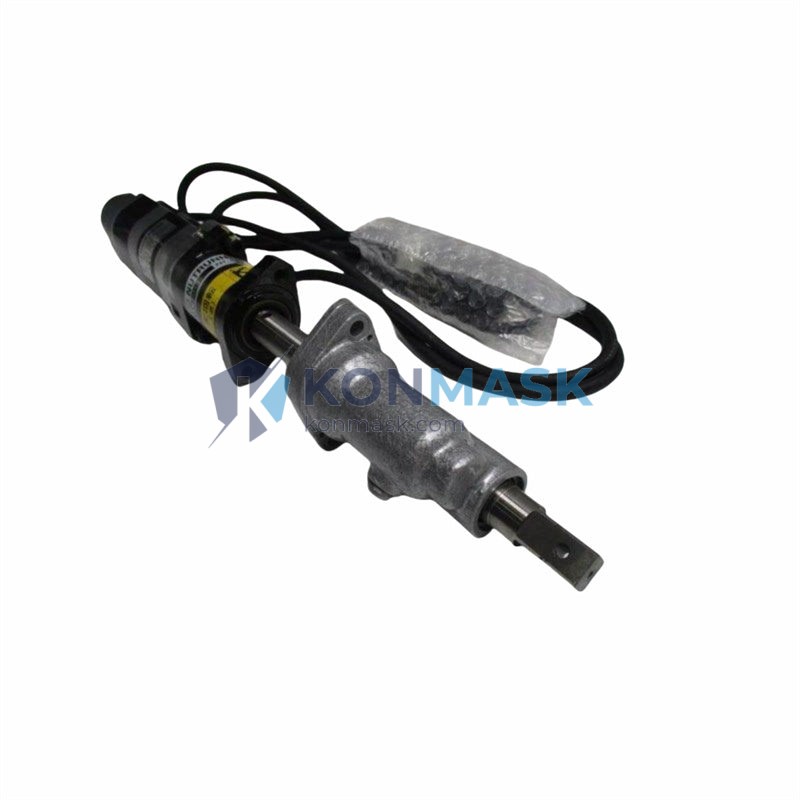

TORQUE TS4617N1920E203 – AC Servo Nutrunner | Precision Torque Control Platform
Engineering Background
The TORQUE TS4617N1920E203 is a high-precision AC servo-driven nutrunner engineered for demanding industrial fastening applications. Designed and manufactured in Japan, this unit integrates servo motor technology with closed-loop torque feedback to deliver repeatable, traceable tightening results across automotive, electronics, and heavy machinery assembly lines.
Product Positioning
As a procurement engineer sourcing mission-critical fastening equipment, the TS4617N1920E203 addresses the core challenge of torque accuracy and process traceability. It is positioned as a production-grade tool for OEM assembly stations, quality-controlled manufacturing cells, and MES-integrated fastening systems where torque data logging is mandatory.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Model / SKU | TS4617N1920E203 |
| Brand | TORQUE (Japan) |
| Drive Type | AC Servo Motor |
| Control Mode | Closed-loop torque & angle control |
| Torque Range | Refer to datasheet (series-dependent) |
| Speed Control | Variable via servo controller |
| Communication Interface | Serial / fieldbus (model-dependent) |
| Power Supply | AC input (confirm voltage with datasheet) |
| Country of Origin | Japan |
| Weight | 200 g (unit only) |
| Condition | New / Surplus New |
Note: Full datasheet available upon request. Contact support@konmask.com for detailed parameter sheets.
Proven Application Environments
- Automotive Assembly: Engine block, transmission, and chassis fastening stations requiring torque traceability per IATF 16949.
- Electronics Manufacturing: PCB enclosure assembly and precision sub-assembly lines with low-torque, high-accuracy requirements.
- Heavy Machinery: Structural bolt tightening with angle monitoring for safety-critical joints.
- MES-Integrated Lines: Stations requiring real-time torque data upload to manufacturing execution systems.
- Quality-Controlled Cells: ISO 9001 / TS-certified facilities mandating 100% fastening verification.
Engineering Advantages
- Servo Precision: AC servo drive eliminates torque overshoot common in pneumatic tools, ensuring ±torque accuracy within specification.
- Closed-Loop Feedback: Real-time torque and angle monitoring with automatic shut-off at target values.
- Process Traceability: Built-in data logging capability supports quality audit requirements and SPC analysis.
- Reduced Rework: Consistent tightening reduces stripped threads and under/over-torque rejects.
- Japanese Engineering: TORQUE brand is recognized for reliability and long service life in high-cycle production environments.
System Architecture & Signal Flow
The TS4617N1920E203 operates as part of a servo nutrunner system comprising three core elements:
- Controller Unit: Receives torque/angle targets from PLC or operator interface; manages servo drive commands.
- AC Servo Drive: Converts controller signals into precise motor current, enabling dynamic torque regulation throughout the fastening cycle.
- Nutrunner Head (Spindle): Transmits rotational force to the fastener via socket; encoder feedback closes the torque loop in real time.
Signal flow: PLC / HMI → Controller → Servo Drive → Spindle Motor → Fastener → Encoder Feedback → Controller
Sourcing & Quality Verification
- All units sourced through verified industrial distribution channels or directly from authorized TORQUE representatives.
- Each unit undergoes visual inspection and functional verification prior to shipment.
- Original manufacturer packaging preserved where available.
- Certificate of conformance and test records available upon request for critical procurement.
- Konmask.com maintains traceability records for all stocked industrial automation components.
Procurement Process
- Inquiry: Submit your RFQ with quantity and delivery requirements to support@konmask.com or via the product page.
- Quote & Lead Time: Receive a formal quotation within 1 business day including availability confirmation.
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing.
- Quality Check & Packing: Unit inspected, photographed, and packed with anti-static and shock-protective materials.
- Shipment: Dispatched via DHL / FedEx / SF Express with full tracking. Export documentation provided for cross-border orders.
- After-Sales: Technical support available post-delivery; warranty claims handled directly by Konmask.com.
Technical FAQ
Q: Is the TS4617N1920E203 compatible with my existing TORQUE controller?
A: Compatibility depends on your controller series. Please share your controller model number and we will confirm compatibility before order.
Q: Can you provide a datasheet or wiring diagram?
A: Yes. Contact support@konmask.com with your inquiry and we will supply available technical documentation.
Q: What is the lead time for this model?
A: Lead time varies by stock status. In-stock units ship within 2–3 business days. Contact us for current availability.
Q: Do you accept purchase orders from international buyers?
A: Yes. We support international procurement with full export documentation, commercial invoice, and packing list.
Q: Is this a new or refurbished unit?
A: Units are listed as new or surplus new unless explicitly stated otherwise. Condition is confirmed at time of quotation.
