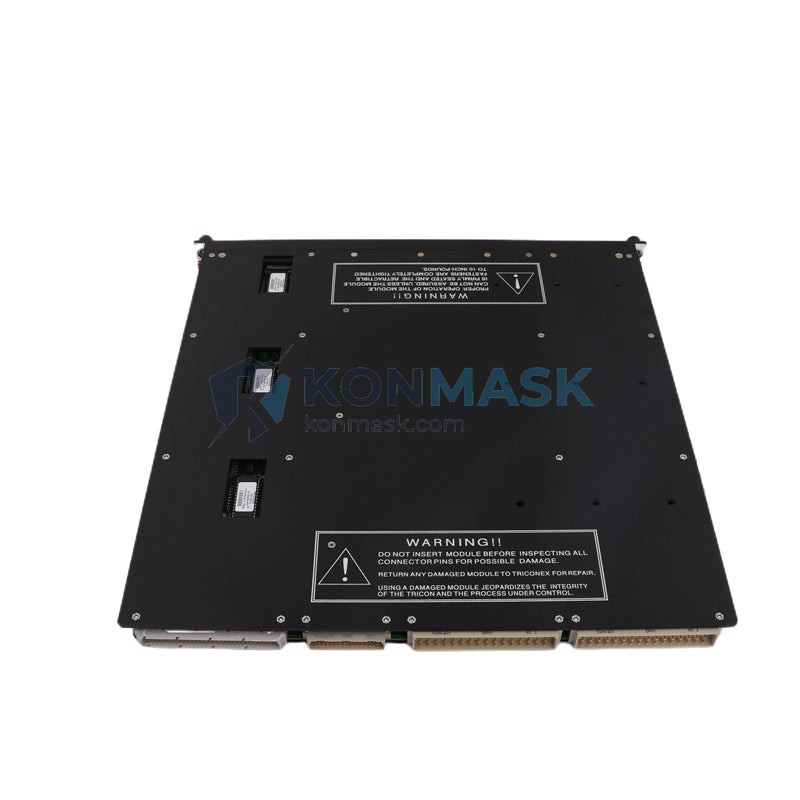

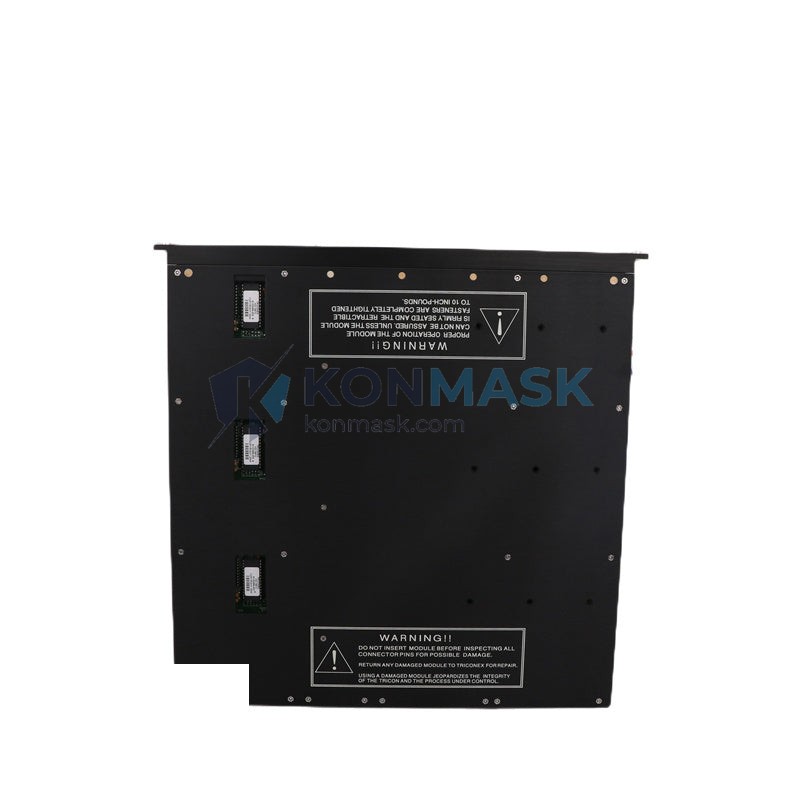

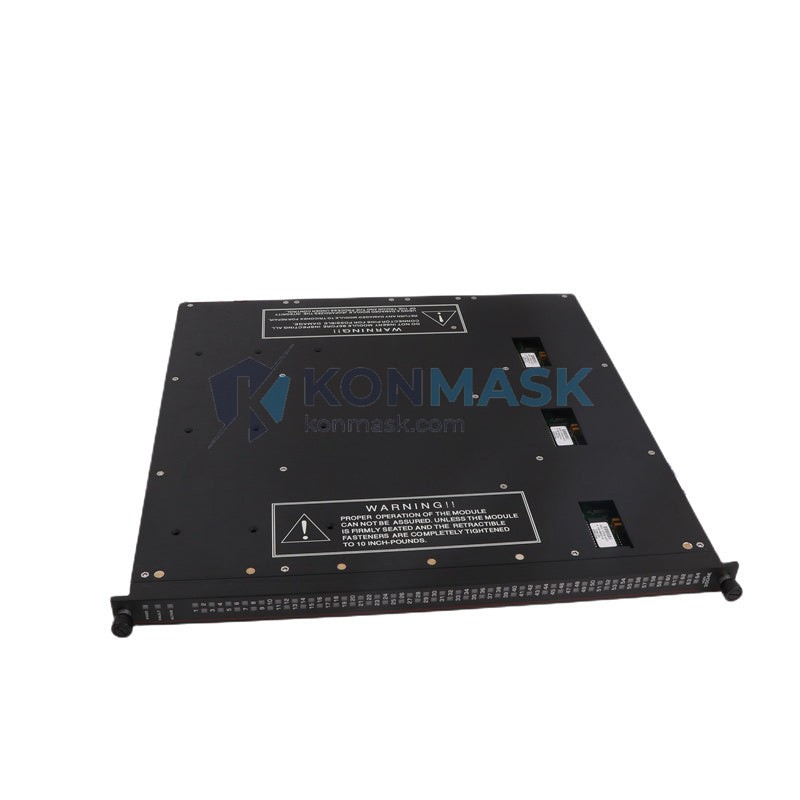

TRICONEX 3511 – Pulse Input Module | Tricon Triple Modular Redundant Safety System
Engineering Background: The Triconex Tricon platform is a Triple Modular Redundant (TMR) Safety Instrumented System (SIS) widely deployed as the de facto standard for Safety Integrity Level (SIL) 2 and SIL 3 applications across petrochemical, power generation, and water/wastewater infrastructure. Within the Tricon architecture, every I/O module operates across three independent processing legs simultaneously, with voting logic ensuring fault tolerance without process interruption. The 3511 Pulse Input Module occupies a critical role in this architecture: it provides the high-speed frequency and pulse counting interface between rotating machinery, flow meters, and turbine speed sensors and the Tricon main chassis, enabling the safety controller to execute protective shutdown logic based on real-time pulse-derived process variables.
Product Positioning: The 3511 is specifically designed for applications requiring pulse/frequency signal acquisition rather than analog (4–20 mA) or discrete (24 VDC) inputs. It is distinguished from the 3501 (Digital Input) and 3805E (Analog Input) modules by its dedicated pulse counting and frequency measurement circuitry. The 3511 is the correct selection when field devices output pulse trains — turbine flow meters, magnetic pickup speed sensors, positive displacement meters — and the safety logic requires rate-of-change or accumulated count data. It is not a substitute for analog input modules in pressure or temperature measurement loops.
Complete Technical Specifications
Electrical
- Module Type: Pulse / Frequency Input
- Number of Input Channels: 8 channels (isolated)
- Input Signal Type: Pulse train, magnetic pickup, proximity switch, TTL-compatible
- Input Voltage Range: 5 VDC to 24 VDC (field-selectable per channel)
- Frequency Range: 0 Hz to 10,000 Hz
- Pulse Count Accumulation: 32-bit counter per channel
- Input Impedance: ≥ 10 kΩ
- Isolation: Channel-to-channel and channel-to-backplane optical isolation
- Power Consumption: ≤ 5 W (from Tricon chassis backplane)
- Backplane Interface: Tricon standard I/O bus, TMR voting architecture
Mechanical
- Form Factor: Single-slot Tricon I/O module
- Dimensions: Standard Tricon module (fits all Tricon chassis generations)
- Weight: Approximately 2,950 g (module + packaging)
- Connector: 40-pin field wiring termination via Tricon terminal panel
- Hot-swap: Supported (online replacement without process shutdown)
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 60068-2-6 compliant
- EMC: CE marked, IEC 61000-4 series immunity
Certifications
- Functional Safety: IEC 61508 SIL 2 / SIL 3 capable (TMR configuration)
- Hazardous Area: Suitable for use in SIS per IEC 61511
- CE Marking: EMC Directive compliant
- UL/cUL Listed (where applicable per installation standard)
Data source: Schneider Electric / Triconex product documentation, Tricon I/O Module Reference Manual. Specifications subject to revision — confirm against current Triconex datasheet for safety-critical applications.
Proven Application Environments
- Petrochemical Refinery – Compressor Train Protection: Installed in SIS cabinets monitoring magnetic pickup speed sensors on centrifugal compressors; the 3511 provides overspeed detection pulse counting under continuous vibration and hydrocarbon atmosphere conditions.
- LNG Terminal – Turbine Flow Metering: Deployed in custody transfer and safety shutdown systems where turbine flow meters output pulse trains; the module’s 32-bit accumulation prevents counter rollover during extended batch operations.
- Thermal Power Plant – Steam Turbine Speed Control: Interfaces with proximity probes on turbine shafts in ESD (Emergency Shutdown) systems, providing the frequency input required for overspeed trip logic at SIL 2 integrity level.
- Water Treatment Facility – Pump Flow Monitoring: Used in SCADA-integrated SIS for municipal water distribution, measuring pulse output from positive displacement meters to detect low-flow conditions triggering pump protection shutdowns.
- Offshore Platform – Gas Lift Compressor SIS: Operates in salt-air, high-humidity environments within Tricon TMR cabinets; hot-swap capability allows module replacement during planned maintenance windows without platform shutdown.
- Chemical Plant – Reactor Feed Rate Control: Provides pulse input from Coriolis and turbine meters feeding reactor charge systems, where accurate flow rate data is safety-critical for exothermic reaction management.
Engineering Advantages
- For overspeed protection applications, this pulse input module delivers sub-millisecond frequency update rates, because its dedicated counting circuitry operates independently of the main CPU scan cycle, ensuring trip response times meet SIL 3 requirements.
- For installations requiring zero-downtime maintenance, this module supports hot-swap replacement under live process conditions, because the Tricon TMR architecture continues voting on the remaining two legs while the third is serviced.
- For high-noise industrial environments, this module maintains signal integrity on pulse inputs up to 10 kHz, because each channel incorporates optical isolation and hardware filtering that rejects common-mode EMI from variable frequency drives and motor starters.
- For multi-meter installations, this module consolidates 8 independent pulse channels into a single chassis slot, because the channel-isolated architecture prevents cross-talk between adjacent flow meter signals, reducing wiring complexity and cabinet footprint.
- For long-term asset management, this module is backward-compatible across Tricon chassis generations, because Triconex maintained I/O bus protocol consistency, allowing 3511 modules to be redeployed when upgrading from older Tricon to current Tricon CX platforms.
- For safety audit compliance, this module provides per-channel diagnostic status readable by the Tricon MP (Main Processor), because the TMR architecture continuously performs self-diagnostics and reports fault conditions to the safety application without requiring external test equipment.
System Architecture & Signal Flow
Signal Flow: Field pulse device (turbine meter / magnetic pickup / proximity switch) → Field terminal panel → 3511 channel input circuitry (optical isolation + hardware filter) → Pulse counting / frequency measurement logic → Tricon I/O backplane (three independent legs) → TMR voting in Main Processor → Safety application logic → Output modules / ESD actuation.
Compatible Modules & Chassis:
- Tricon Main Chassis (3700 / 3700A / 3706 / 3721): Direct slot compatibility; the 3511 occupies any I/O slot in these chassis without adapter hardware.
- Tricon MP (3008 / 3006): Main Processors that natively support 3511 pulse input configuration via TriStation 1131 programming environment.
- Tricon Communication Module (4351B / 4352): Enables remote diagnostics and module status monitoring via Modbus or OPC-DA without interrupting pulse acquisition.
- Terminal Panels (3703E / 3703): Standard Triconex field wiring panels providing the 40-pin interface for 3511 field connections.
Substitution Conditions: The 3511 may be considered for replacement by the 3511E (enhanced version with extended diagnostics) where available. Substitution with non-Triconex pulse input modules is not supported within the Tricon TMR architecture due to proprietary backplane protocol. Any module substitution in a certified SIS installation requires re-validation per IEC 61511 Management of Change procedures.
Sourcing & Quality Verification
All TRICONEX 3511 modules offered through Konmask.com are sourced from decommissioned industrial control system upgrades, authorized distributor surplus, and verified secondary market channels. Each unit undergoes the following 4-step verification process before listing:
- Physical Inspection: Visual examination of PCB, connector pins, front panel indicators, and module housing for damage, corrosion, or counterfeit indicators (label inconsistencies, non-standard markings).
- Firmware & Label Verification: Confirmation of firmware revision label against known Triconex revision history; cross-reference of serial number format against manufacturer records where accessible.
- Functional Bench Test: Where test equipment is available, modules are powered in a compatible Tricon chassis and channel response is verified against known pulse input signals.
- Documentation Package Assembly: Collection of available documentation including original datasheet, test records, and decommissioning records from source facility.
Available Documentation (upon request): Original Triconex datasheet, functional test report, decommissioning certificate (where available), high-resolution photographs of actual unit, and packing/shipping records.
Procurement Process
- Submit Inquiry: Contact via [email protected] or +0086 19859288691 with your required quantity, target delivery date, and any specific firmware revision or documentation requirements. Alternatively, proceed directly to checkout for standard stock units.
- Technical Confirmation: A response is provided within 24 hours confirming stock availability, unit condition grade, available documentation, and lead time. For urgent SIS maintenance requirements, expedited response is available — please indicate urgency in the subject line.
- Order & Shipment: Upon order confirmation, units are packaged in anti-static ESD bags with foam protection, shipped via tracked international courier (DHL / FedEx / UPS). Export documentation including commercial invoice and packing list is provided for customs clearance.
Technical Support: Pre-sale technical consultation is available for application compatibility questions, chassis configuration verification, and TriStation 1131 configuration guidance. Post-sale support covers installation verification and documentation requests.
Technical FAQ
Q: Is the TRICONEX 3511 compatible with the Tricon CX (model 3008MP) main processor?
A: Yes. The 3511 is compatible with the Tricon CX platform using the 3008 Main Processor, provided the TriStation 1131 project is configured with the correct I/O module assignment. No hardware adapter is required. Confirm the chassis slot assignment in the TriStation hardware configuration matches the physical slot location before download.
Q: Can the 3511 replace a 3501 Digital Input module in an existing Tricon installation?
A: No — these are functionally distinct module types. The 3501 handles discrete 24 VDC on/off signals, while the 3511 is designed for pulse/frequency inputs. Substituting a 3511 in a slot configured for a 3501 will result in a module type mismatch fault in the Tricon MP. If the field device outputs a pulse signal that was previously wired to a 3501 as a simple contact closure, re-evaluation of the I/O assignment and TriStation configuration is required.
Q: Does the 3511 carry SIL 3 certification for use in high-demand safety loops?
A: The Tricon TMR architecture as a system is certified to IEC 61508 for SIL 3 applications in high-demand mode. The 3511 module, as a component of the Tricon system, participates in this certification when installed and configured per Triconex Safety Manual requirements. Individual module SIL certification documentation is available from Schneider Electric / Triconex. For SIS applications, the end-user’s Functional Safety Assessment must confirm the complete safety loop — including field device, wiring, and logic solver — meets the required SIL target.
