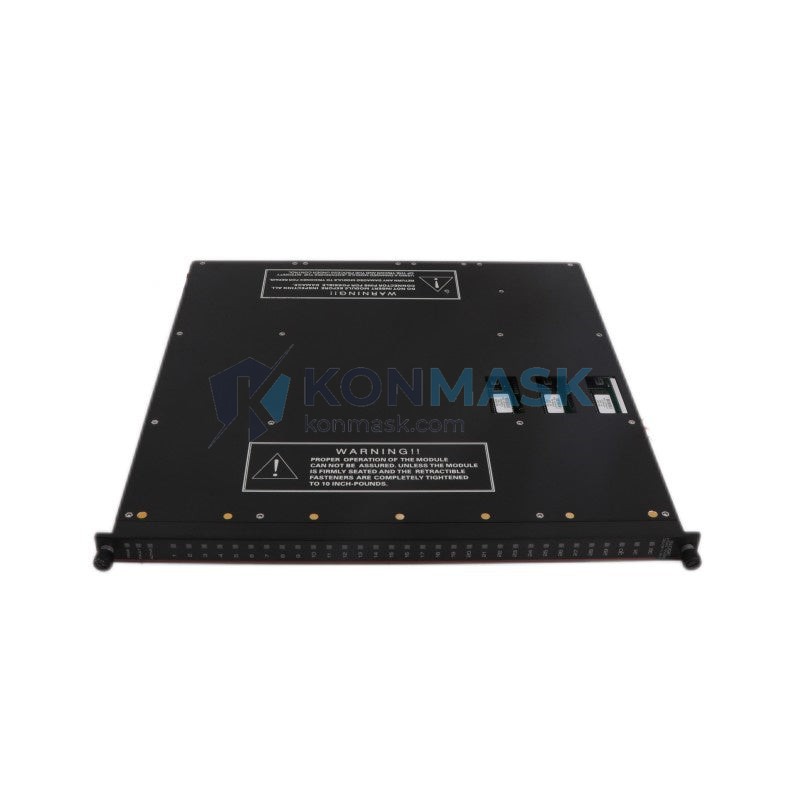

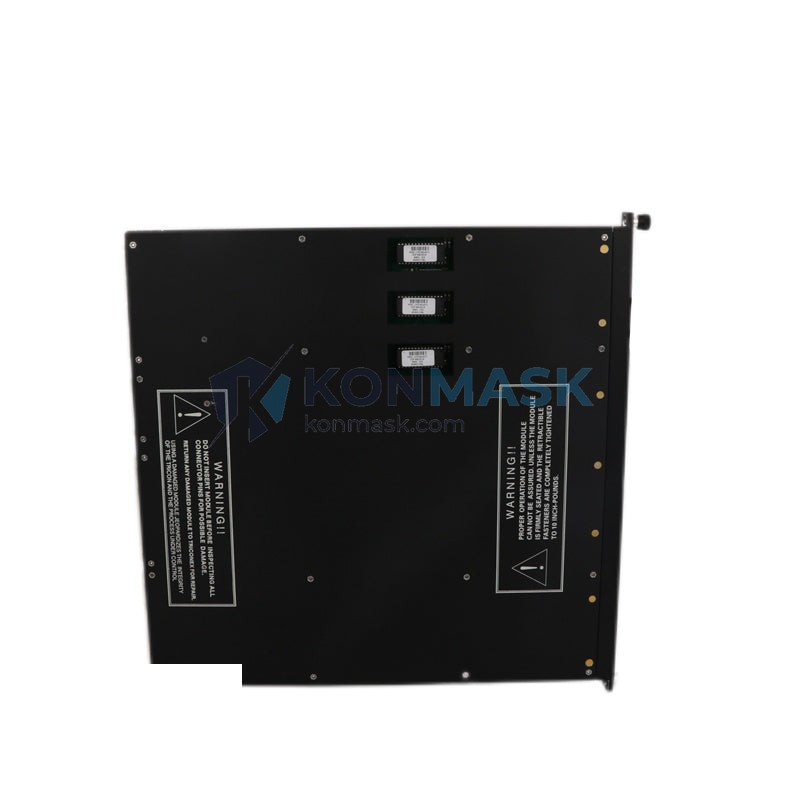

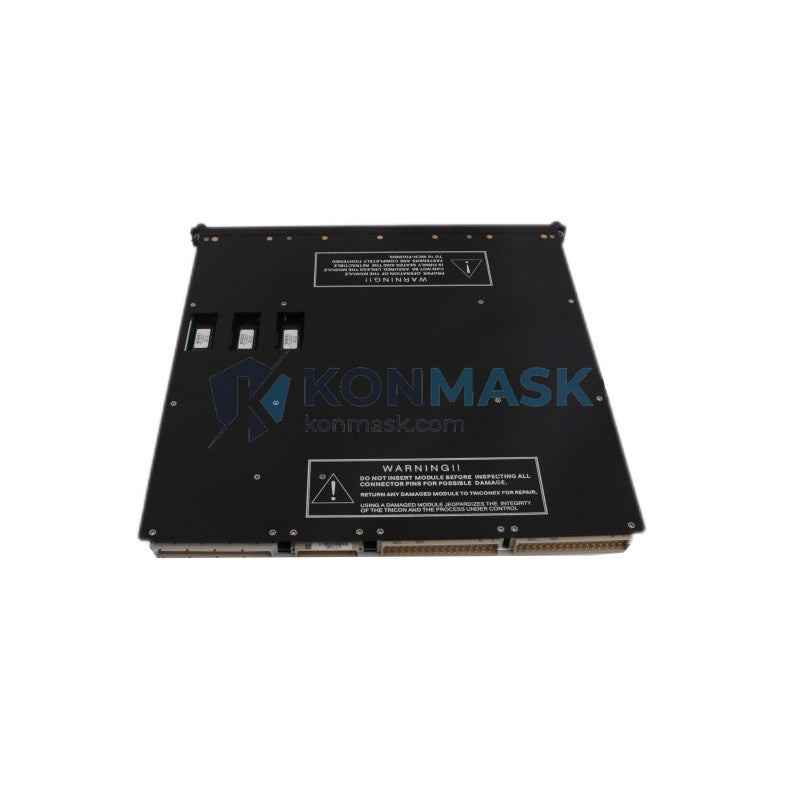

TRICONEX 3501E – 32-Channel Digital Input Module | Tricon TMR Safety Platform
Engineering Background
The TRICONEX 3501E is a 32-channel digital input module designed for the Tricon Triple Modular Redundant (TMR) safety system — one of the most widely deployed Safety Instrumented System (SIS) platforms in the global process industries. Developed by Triconex (now a Schneider Electric brand), the Tricon architecture achieves fault tolerance through three independent processing paths that continuously vote on I/O states, ensuring no single-point failure can compromise system integrity.
Product Positioning
The 3501E serves as the primary discrete input interface between field-level sensing devices and the Tricon safety controller. It is the preferred replacement and upgrade module for legacy 3501 installations, offering enhanced diagnostics and backward-compatible form factor. Procurement engineers sourcing for brownfield SIS upgrades, spare-parts inventory, or new Tricon builds will find the 3501E a direct, specification-matched solution.
Complete Technical Specifications
| Part Number | 3501E |
| Manufacturer | TRICONEX / Schneider Electric |
| Module Type | Digital Input (DI) |
| Channel Count | 32 channels (16 per leg × 2 legs, TMR architecture) |
| Input Voltage Range | 24 VDC nominal (18–32 VDC operating range) |
| Input Current | ≤ 8 mA per channel at 24 VDC |
| Logic State — ON | ≥ 11 VDC |
| Logic State — OFF | ≤ 5 VDC |
| Isolation | Optical isolation, field-to-logic side |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Redundancy Architecture | Triple Modular Redundant (TMR) — 2-out-of-3 voting |
| Diagnostic Coverage | > 99% (internal self-test) |
| Module Weight | Approx. 2.8 kg |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Backplane Interface | Tricon Main Chassis (standard Tricon backplane) |
| Hot-Swap / Online Replacement | Yes — supported without process shutdown |
| Certifications | IEC 61508 SIL 3, TÜV, FM, CE |
| Compatible Platform | Tricon v9.x / v10.x / v11.x systems |
Proven Application Environments
- Oil & Gas: Emergency Shutdown (ESD) systems, High Integrity Pressure Protection Systems (HIPPS), compressor and turbine protection
- Petrochemical & Refining: Reactor safety interlocks, fired heater burner management systems (BMS)
- LNG & Offshore: Platform ESD, fire & gas detection integration, subsea control interfaces
- Power Generation: Turbine overspeed protection, boiler safety systems
- Chemical Processing: Pressure relief interlock logic, toxic gas detection shutdown
- Pipeline & Terminal: Block valve control, leak detection system inputs
Engineering Advantages
- TMR 2oo3 Voting: Three independent input legs continuously cross-check signal states — a single leg failure does not trigger a spurious trip or mask a real fault.
- Online Hot-Swap: Module replacement is performed under live process conditions without requiring a system shutdown, minimizing plant downtime.
- High Diagnostic Coverage (>99%): Continuous internal self-diagnostics detect stuck-at faults, open-circuit field wiring, and power supply anomalies in real time.
- Optical Isolation: Full galvanic isolation between field wiring and logic circuitry protects the safety controller from field-side transients and ground loops.
- Backward Compatibility: The 3501E is a drop-in replacement for the legacy 3501 module — no chassis modification or software reconfiguration required.
- Wide Input Voltage Tolerance: 18–32 VDC operating range accommodates field wiring voltage drops and power supply variations common in large installations.
System Architecture & Signal Flow
In a Tricon TMR chassis, the 3501E occupies a standard I/O slot and interfaces directly with the Tricon Main Processor (MP) via the backplane bus. Field signals enter through the module’s terminal block, pass through optical isolators, and are simultaneously sampled by all three independent legs (Leg A, Leg B, Leg C). The Main Processor executes a 2-out-of-3 (2oo3) voting algorithm on each scan cycle. Disagreement between legs triggers a diagnostic alarm without causing a spurious shutdown, allowing maintenance personnel to identify and replace the degraded module online. The voted result is then passed to the application safety logic executing in the Tricon controller.
Sourcing & Quality Verification
- Origin: Genuine TRICONEX / Schneider Electric manufactured hardware
- Condition: New surplus or refurbished-to-OEM-standard (specified at time of quotation)
- Pre-shipment Testing: Each unit undergoes functional power-on verification and visual inspection before dispatch
- Traceability: Serial number and firmware revision documented; certificates of conformance available on request
- Packaging: ESD-safe anti-static packaging; double-boxed for international freight
- Lead Time: Ex-stock dispatch within 1–3 business days; expedited air freight available
Procurement Process
- Submit RFQ: Contact support@konmask.com with your required quantity, delivery timeline, and any certification requirements.
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Order Confirmation: Issue a Purchase Order (PO) referencing part number 3501E. Proforma invoice issued upon PO receipt.
- Payment & Dispatch: Payment via T/T bank transfer or agreed terms. Shipment with tracking number provided within 1–3 business days of payment clearance.
- Documentation: Commercial invoice, packing list, and certificate of conformance included with every shipment.
Technical FAQ
Q: Is the 3501E compatible with Tricon v9 systems?
A: Yes. The 3501E is compatible with Tricon v9.x, v10.x, and v11.x chassis and firmware versions. No hardware modification is required.
Q: Can the 3501E replace a legacy 3501 module without reconfiguring the Tricon application?
A: Yes. The 3501E is a direct form-fit-function replacement for the 3501. The Tricon application software does not require modification.
Q: What field wiring termination does the 3501E use?
A: The 3501E uses the standard Tricon field termination assembly (FTA). Ensure the correct FTA model is matched to your chassis configuration.
Q: Is online replacement (hot-swap) supported in a live SIS?
A: Yes, provided the Tricon system is in TMR mode with all three legs operational. The replacement procedure must follow the Triconex Module Replacement Procedure documented in the Tricon Hardware Manual.
Q: What certifications does the 3501E carry?
A: The 3501E is certified to IEC 61508 SIL 3, and carries TÜV, FM, and CE marks. Certification documentation is available upon request.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 12-month warranty against manufacturing defects on all verified units. Terms are detailed in our warranty policy.
