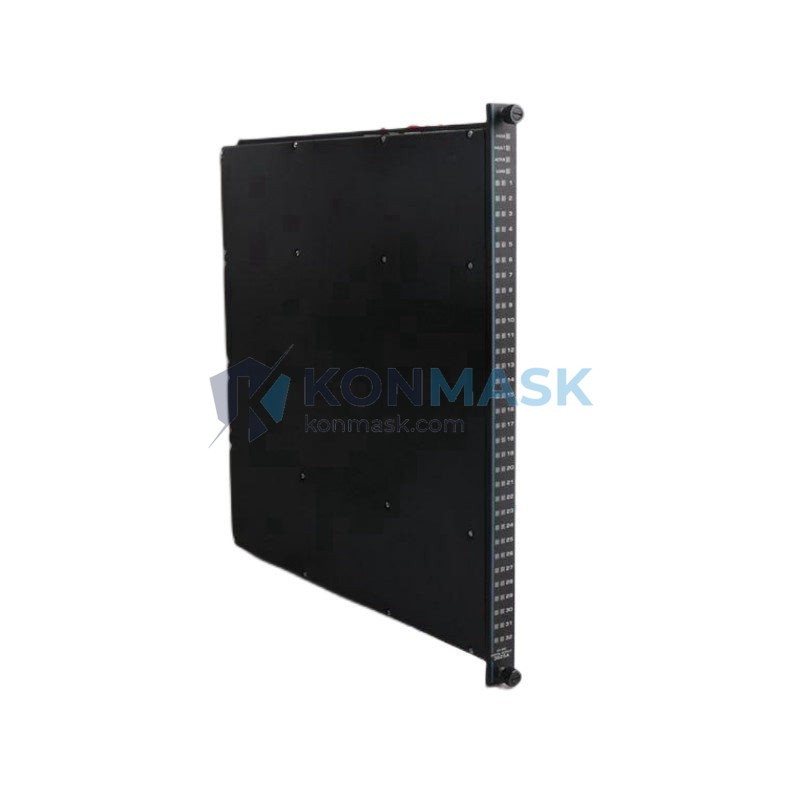

TRICONEX 3533E – 32-Channel Digital Input Module | Tricon TMR Safety Platform
Engineering Background
The TRICONEX 3533E is a 32-channel digital input module designed for the Tricon Triple Modular Redundant (TMR) safety system — one of the most widely deployed Safety Instrumented System (SIS) platforms in the global process industry. Developed under Schneider Electric’s TRICONEX brand, the 3533E is engineered to meet the most demanding functional safety requirements in continuous process environments where unplanned shutdowns carry catastrophic risk.
Product Positioning
The 3533E serves as the primary field-signal acquisition module in Tricon-based Emergency Shutdown (ESD), Fire & Gas (F&G), and Burner Management System (BMS) architectures. Its TMR architecture — three independent processing paths with 2-out-of-3 voting — ensures that a single-channel failure never compromises system integrity or triggers a spurious trip. For procurement engineers sourcing replacement or expansion modules, the 3533E is a direct fit for all Tricon chassis generations supporting the Enhanced Intelligent Module (EIM) backplane.
Complete Technical Specifications
| Part Number | 3533E |
| Manufacturer | TRICONEX (Schneider Electric) |
| Module Type | Digital Input (DI) |
| Channel Count | 32 channels (3 × 32 internal TMR paths) |
| Input Voltage Range | 24 VDC nominal (18–32 VDC operating range) |
| Input Logic Levels | ON: ≥ 11 VDC | OFF: ≤ 5 VDC |
| Input Current (per channel) | Approx. 7 mA @ 24 VDC |
| Isolation | Optical isolation, channel-to-backplane |
| Scan Time | < 1 ms per channel (hardware-level) |
| Diagnostic Coverage | > 99% (internal self-diagnostics) |
| Safety Integrity Level | SIL 3 (IEC 61508 certified) |
| Redundancy Architecture | Triple Modular Redundant (TMR), 2oo3 voting |
| Backplane Compatibility | Tricon EIM chassis (all generations) |
| Module Form Factor | Single-slot, hot-swappable |
| Hot Swap | Yes — online replacement without process interruption |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Weight | Approx. 2,950 g (module + packaging) |
| Certifications | IEC 61508 SIL 3, CE, UL, FM |
| MTBF | > 500,000 hours (per Bellcore TR-332) |
Proven Application Environments
- Oil & Gas: Emergency Shutdown (ESD) systems on offshore platforms, FPSO vessels, and onshore terminals — where SIL 3 compliance and hot-swap capability are non-negotiable.
- Petrochemical & Refining: High-integrity pressure protection systems (HIPPS) and compressor anti-surge control loops requiring sub-millisecond DI response.
- LNG & Pipeline: Fire & Gas detection integration and valve position monitoring across geographically distributed safety zones.
- Power Generation: Turbine protection and boiler safety interlock systems where spurious trip avoidance is critical to plant economics.
- Chemical Processing: Reactor safety interlocks and toxic gas detection systems demanding continuous, fault-tolerant digital signal acquisition.
- Nuclear & Defense: Safety-critical monitoring applications requiring certified TMR redundancy and full audit traceability.
Engineering Advantages
- TMR 2oo3 Voting Logic: Three independent signal paths vote on every input state — a single-channel fault is masked automatically, eliminating both spurious trips and undetected failures simultaneously.
- Hot-Swap Online Replacement: The 3533E can be removed and reinserted while the Tricon system remains in full operation, reducing planned maintenance windows to near zero.
- High Diagnostic Coverage (>99%): Continuous self-test routines detect open-circuit, short-circuit, and stuck-at faults at the hardware level — no external test equipment required during operation.
- Optical Isolation: Full galvanic isolation between field wiring and backplane logic prevents ground loops and transient-induced faults from propagating into the safety controller.
- Deterministic Scan Performance: Sub-millisecond per-channel scan time ensures that fast-acting process events (pressure spikes, flame detection pulses) are captured within the system’s safety response time budget.
- Backward Compatibility: Fits all Tricon EIM chassis generations — no chassis upgrade required when replacing legacy 3533 or 3533E units in existing installations.
System Architecture & Signal Flow
In a Tricon TMR architecture, the 3533E occupies a single module slot in the Tricon chassis. Field wiring connects to the module’s terminal assembly (TA), which distributes each input signal simultaneously to three independent I/O processors (IOPs). Each IOP evaluates the signal state independently. The Main Processor Module (MPM) collects the three IOP outputs and applies 2-out-of-3 (2oo3) voting logic before passing the resolved digital state to the application safety logic running in TriStation 1131.
This architecture ensures:
- A single IOP failure → system continues operating on 2oo2 basis, alarm generated
- A field wiring fault → isolated to the affected channel, remaining 31 channels unaffected
- A complete module failure → hot-swap replacement restores full TMR redundancy without process interruption
Sourcing & Quality Verification
All TRICONEX 3533E modules supplied by Konmask.com are sourced through verified industrial automation distribution channels. Each unit undergoes the following pre-shipment verification protocol:
- Visual inspection: housing integrity, connector pin condition, label legibility
- Firmware version check against TRICONEX compatibility matrix
- Functional power-on test where test bench infrastructure permits
- Anti-static packaging with humidity indicator card
- Shipment with original manufacturer documentation where available
Konmask.com does not supply counterfeit, refurbished-without-disclosure, or grey-market modules. All units are represented accurately as new surplus, tested used, or refurbished — clearly stated at point of sale.
Procurement Process
- Step 1 — Inquiry: Submit your RFQ via the product page or email support@konmask.com with your required quantity, delivery timeline, and destination port.
- Step 2 — Quotation: Konmask.com responds within 1 business day with pricing, lead time, and available stock condition details.
- Step 3 — Order Confirmation: Purchase order accepted via the online store checkout or direct bank transfer (T/T). Pro-forma invoice issued upon request.
- Step 4 — Export & Shipping: Units are packed to ISTA 2A standards. Export documentation (commercial invoice, packing list, COO) provided for customs clearance. DHL / FedEx / sea freight options available.
- Step 5 — After-Sales Support: Technical questions on installation, compatibility, and TriStation configuration supported by our engineering team post-delivery.
Technical FAQ
Q: Is the 3533E compatible with the Tricon v9 and v10 chassis?
A: Yes. The 3533E is compatible with all Tricon EIM-based chassis, including v9.x and v10.x hardware generations. Verify your chassis slot type (EIM vs. legacy) before ordering.
Q: Can the 3533E be replaced online without a system shutdown?
A: Yes. The 3533E supports hot-swap replacement. The Tricon system will continue operating in 2oo2 mode on the remaining two legs during the swap. Full TMR redundancy is restored automatically upon module reinsertion and IOP synchronization.
Q: What TriStation 1131 version is required for 3533E configuration?
A: TriStation 1131 v4.x and above support the 3533E. Consult your project’s TRICONEX system configuration report for the exact firmware baseline.
Q: Does Konmask.com provide a warranty on the 3533E?
A: Yes. A 12-month warranty against manufacturing defects is provided on all new surplus units. Tested-used units carry a 90-day functional warranty. Warranty terms are detailed in the order confirmation.
Q: Can you supply the matching Terminal Assembly (TA) for the 3533E?
A: Yes. Contact us with your wiring configuration requirements and we will quote the appropriate TA part number alongside the module.
