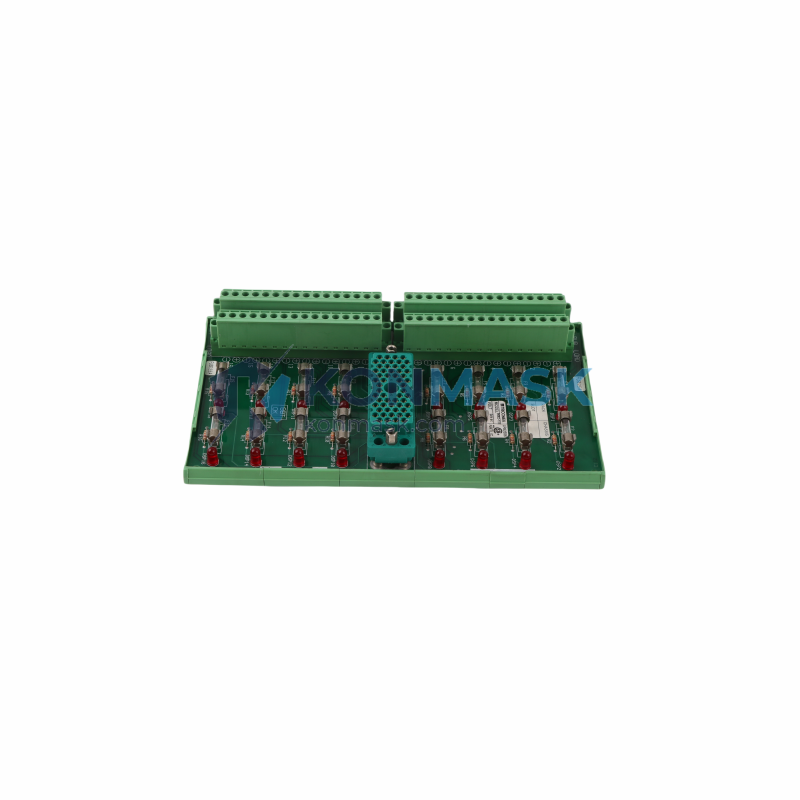

Triconex 7400169-310 (9662-1XX) – Digital Output Module | Tricon TMR Safety System
Engineering Background: The Triconex Tricon platform is the world’s leading Triple Modular Redundant (TMR) safety controller, widely deployed in oil & gas, petrochemical, nuclear, and power generation facilities. The 9662-1XX series output module (assembly part number 7400169-310) provides the critical final-element interface between the Tricon controller and field actuators, executing safety-instrumented functions (SIF) with IEC 61511 / IEC 61508 compliance.
Product Positioning: Designed for procurement engineers sourcing certified replacement or expansion modules for existing Tricon TMR installations. Konmask.com supplies factory-tested, shelf-verified units with full traceability documentation, supporting both emergency replacement and planned maintenance windows.
Complete Technical Specifications
- Manufacturer: Triconex (Schneider Electric)
- Assembly Part Number: 7400169-310
- Module Series / Type Code: 9662-1XX
- Module Function: Digital Output (DO)
- Platform Compatibility: Tricon TMR Safety Controller (v9 / v10 chassis)
- Architecture: Triple Modular Redundant (TMR) – 3 independent output legs voted 2-of-3
- Output Type: Solid-state discrete digital outputs
- Safety Certification: IEC 61508 SIL 3 capable; IEC 61511 compliant
- Operating Voltage: 24 VDC nominal field supply
- Weight: 520 g
- Form Factor: Single-slot Tricon I/O module (hot-swappable)
- Diagnostics: Continuous self-test with per-leg fault isolation and LED status indication
- Communication: Backplane-connected via Tricon main chassis bus
- Country of Origin: United States
Proven Application Environments
- Emergency Shutdown Systems (ESD) – oil & gas wellhead and pipeline
- Burner Management Systems (BMS) – refinery and power plant boilers
- High-Integrity Pressure Protection Systems (HIPPS)
- Turbine & Compressor Control with safety override
- Nuclear plant safety instrumented systems (SIS)
- Chemical reactor interlock and shutdown logic
Engineering Advantages
- TMR Fault Tolerance: Single-leg failure does not interrupt output; system continues operating while fault is annunciated and corrected online.
- Hot-Swap Capability: Module can be replaced under power without process interruption, minimizing planned downtime.
- Deterministic Response: Fixed scan-cycle execution ensures predictable SIF response times for SIL 3 loop calculations.
- Integrated Diagnostics: Per-channel and per-leg self-test coverage exceeds IEC 61508 DC (Diagnostic Coverage) requirements for SIL 3.
- Long Service Life: Triconex modules are designed for 20+ year operational life; Konmask supplies units with verified remaining service life.
System Architecture & Signal Flow
The 9662-1XX module occupies a standard I/O slot in the Tricon main chassis. The Tricon Main Processor (MP) sends voted output commands via the backplane bus to all three legs of the output module simultaneously. Each leg independently drives its assigned output channel. A 2-of-3 hardware voter at the field terminal ensures that a single-leg discrepancy does not cause a spurious trip or a failure to trip. Field wiring connects to the module’s terminal assembly (TA), which is keyed to prevent mis-installation.
Sourcing & Quality Verification
- All units sourced from authorized distributors or decommissioned certified installations with full chain-of-custody documentation.
- Pre-shipment functional test performed on Tricon bench chassis; test report available on request.
- Firmware revision verified and documented prior to dispatch.
- Anti-static packaging with humidity indicator card; shock-watch label on outer carton.
- Counterfeit-prevention inspection: holographic labels, PCB markings, and component date codes verified.
Procurement Process
- Submit RFQ via [email protected] or WhatsApp +0086 19859288691 with your required quantity and delivery timeline.
- Receive quotation with unit price, lead time, and test report availability within 24 hours.
- Confirm purchase order; payment via T/T, PayPal, or credit card accepted.
- Module ships within 1–3 business days via DHL / FedEx with tracking; export documentation (CO, packing list, commercial invoice) included.
- Post-delivery technical support available for installation verification and Triconex TriStation configuration assistance.
Technical FAQ
Q: Is 7400169-310 the same as 9662-1XX?
A: Yes. 7400169-310 is the Triconex assembly part number (APN) used for ordering and traceability; 9662-1XX is the module type/series designation used in TriStation configuration and chassis documentation. Both refer to the same physical module.
Q: Which Tricon chassis versions are compatible?
A: The 9662-1XX is compatible with Tricon v9 and v10 main chassis. Verify your chassis backplane revision with Triconex documentation before installation.
Q: Can this module be used in a non-TMR (simplex or dual) configuration?
A: No. The 9662-1XX is designed exclusively for Tricon TMR architecture. It requires all three legs to be populated and communicating for correct operation.
Q: What is the typical lead time for in-stock units?
A: In-stock units ship within 1–3 business days. Contact us to confirm current stock status before placing your order.
Q: Do you provide a warranty?
A: Yes. Konmask provides a 12-month functional warranty on all tested modules. Warranty terms are included with the shipment documentation.
