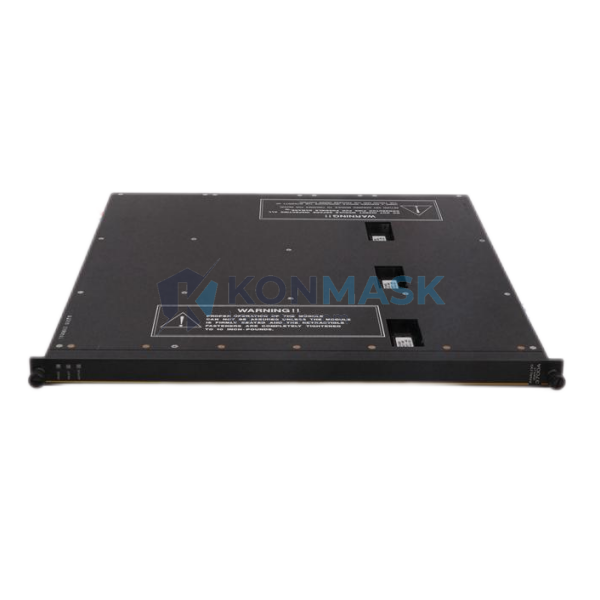

TRICONEX 7400209-030 – Digital Output Module | Tricon TMR Safety System Platform
Engineering Background: The TRICONEX 7400209-030 is a high-integrity Digital Output (DO) module engineered for deployment within Schneider Electric’s Tricon Triple Modular Redundant (TMR) Safety Instrumented System (SIS). Tricon is globally recognized as a leading SIL 3-capable platform, widely adopted across oil & gas, petrochemical, nuclear, and power generation industries where process safety and continuous availability are non-negotiable. The 7400209-030 revision reflects a mature, field-proven hardware iteration with enhanced diagnostic coverage and robust output drive capability.
Product Positioning: Designed for procurement engineers and reliability teams sourcing replacement or expansion modules for existing Tricon SIS installations, the 7400209-030 delivers deterministic digital output control with full TMR voting architecture support. Konmask.com supplies this module through verified industrial channels, ensuring authenticity, traceability, and readiness for critical safety loop integration.
Complete Technical Specifications
- Part Number: 7400209-030
- Manufacturer: TRICONEX (Schneider Electric)
- Module Type: Digital Output (DO)
- Platform Compatibility: Tricon TMR Safety System (Tricon v9/v10/v11 chassis)
- Safety Integrity Level: SIL 3 (IEC 61511 / IEC 61508)
- Architecture: Triple Modular Redundant (TMR) — 2oo3 voting logic
- Output Channels: 32 digital output channels (solid-state)
- Output Voltage: 24 VDC nominal
- Output Current: Up to 0.5 A per channel
- Diagnostic Coverage: >99% (per IEC 61508 requirements)
- Communication: Tricon backplane bus (proprietary TMR)
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% RH, non-condensing
- Power Consumption: Per Tricon chassis power budget
- Weight: Approx. 800 g
- Certifications: TÜV, FM, CE, ATEX (zone 2 when installed in certified enclosure)
- Revision: -030 (latest production revision)
Proven Application Environments
- Oil & Gas: Emergency Shutdown (ESD) systems, High Integrity Pressure Protection Systems (HIPPS), wellhead control, pipeline isolation valves
- Petrochemical & Refining: Burner Management Systems (BMS), compressor anti-surge control, reactor safety interlocks
- Power Generation: Turbine trip systems, boiler protection, generator protection relays
- Nuclear: Reactor protection systems (RPS), engineered safety features actuation (ESFAS)
- LNG & Offshore: Fire & Gas (F&G) system output actuation, deluge valve control, HVAC isolation
- Chemical Processing: Safety instrumented functions (SIF) for exothermic reactor protection
Engineering Advantages
- TMR Fault Tolerance: Continues safe operation with one leg failure — no spurious trip, no loss of control
- Online Replacement: Hot-swap capable within Tricon chassis — zero process downtime during module exchange
- Comprehensive Self-Diagnostics: Continuous internal diagnostics detect open-load, short-circuit, and power supply faults per scan cycle
- Deterministic Scan Time: Guaranteed output response within Tricon system scan cycle — critical for time-sensitive safety functions
- Solid-State Outputs: No mechanical relay wear — extended MTBF for high-cycle applications
- Backward Compatibility: Drop-in replacement for earlier 7400209-xxx revisions within the same Tricon chassis generation
- Certified SIL 3: Third-party certified — simplifies SIL verification and functional safety documentation (FSA)
System Architecture & Signal Flow
Within the Tricon TMR architecture, the 7400209-030 Digital Output module operates across three independent processing legs (Leg A, Leg B, Leg C). Each leg independently evaluates the output command from the Tricon Main Processor Module (MPM). The 2oo3 (two-out-of-three) voting logic ensures that a single-leg disagreement does not cause a spurious output state change. The output signal path is:
Application Logic (TriStation 1131) → MPM (TMR voting) → DO Module 7400209-030 → Field Device (solenoid valve / relay / actuator)
Each output channel is individually fused and monitored. Fault detection is reported back to the MPM and surfaced via TriStation diagnostics and TSAA (Tricon System Access Application) for maintenance visibility. The module interfaces directly with the Tricon I/O bus via the chassis backplane — no external wiring between module and bus is required.
Sourcing & Quality Verification
- Source: Procured through verified industrial surplus and authorized distribution channels — not gray market
- Inspection: Each unit undergoes visual inspection, label verification (part number, revision, serial number), and functional pre-check prior to shipment
- Authenticity: Genuine Schneider Electric / TRICONEX OEM hardware — counterfeit-free guarantee
- Condition: New surplus or refurbished-to-OEM-standard (condition specified at time of quotation)
- Traceability: Full documentation package available on request: test records, revision history, country of origin
- Packaging: ESD-safe anti-static packaging, double-boxed for international freight
Procurement Process
- Step 1 — Inquiry: Submit your RFQ via Konmask.com or email [email protected] with quantity, required condition, and delivery timeline
- Step 2 — Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and available stock confirmation
- Step 3 — Order Confirmation: Issue PO against quotation — we accept T/T wire transfer, L/C, and major corporate procurement terms
- Step 4 — Quality Check & Dispatch: Pre-shipment inspection completed, ESD packaging applied, tracking number issued within 24–48 hours of payment clearance
- Step 5 — Delivery & Support: DHL / FedEx / UPS express available globally; post-delivery technical support provided by Konmask engineering team
Technical FAQ
- Q: Is the 7400209-030 compatible with Tricon v9 and v10 chassis?
- A: Yes. The 7400209-030 is compatible with Tricon v9, v10, and v11 chassis generations. Always verify chassis slot assignment with your Tricon system documentation before installation.
- Q: Can this module be replaced online without shutting down the process?
- A: Yes. Tricon supports hot-swap module replacement. The TMR architecture maintains output integrity during the swap procedure. Follow Schneider Electric’s online replacement procedure (ORP) documented in the Tricon Hardware Manual.
- Q: What is the difference between 7400209-020 and 7400209-030?
- A: The -030 revision incorporates enhanced diagnostic firmware and improved output driver components compared to the -020. The -030 is the current production revision and is backward compatible as a drop-in replacement.
- Q: Do you provide a warranty?
- A: Yes. Konmask.com provides a 12-month warranty on all modules against manufacturing defects. Warranty terms are specified in the sales agreement.
- Q: Can you supply the associated Tricon termination panel or field wiring assembly?
- A: Yes. Konmask.com can source compatible Tricon termination panels, cables, and ancillary hardware. Include your requirements in the RFQ.
- Q: Is a Certificate of Conformance (CoC) available?
- A: Yes. A CoC and inspection report can be provided upon request at time of order.
