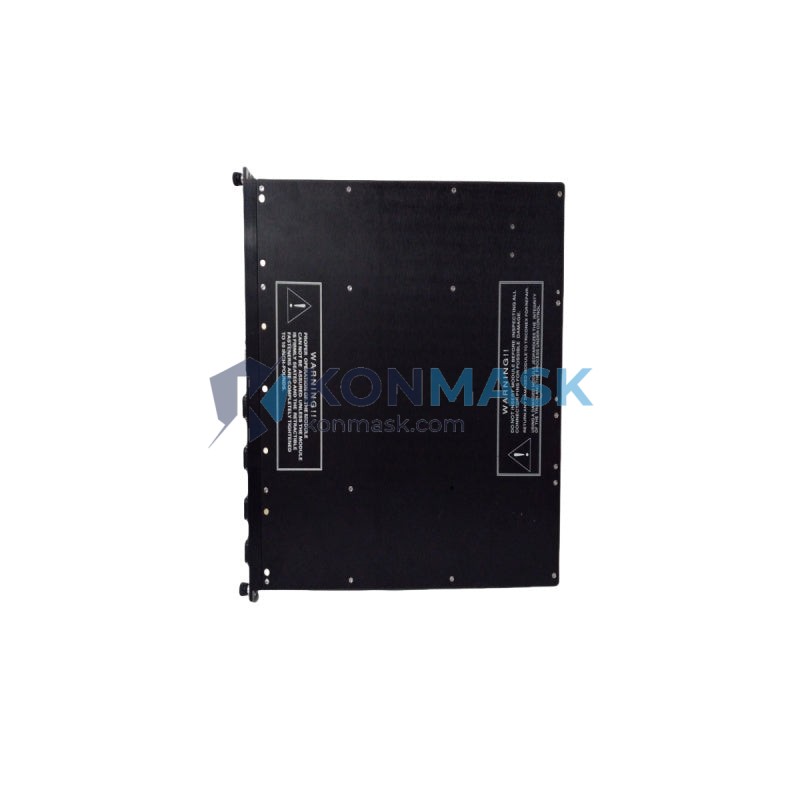

Triconex MP3009X Main Processor – Triple Modular Redundancy Safety Controller | Tricon Platform
Engineering Background: The Triconex MP3009X is the central processing unit of the Tricon Safety System, Schneider Electric’s flagship Triple Modular Redundancy (TMR) architecture. Designed to meet the most demanding functional safety requirements in process industries, the MP3009X executes safety logic across three independent processing legs simultaneously, with continuous cross-comparison and automatic fault tolerance — all without process interruption.
Product Positioning: The MP3009X is purpose-built for Safety Instrumented Systems (SIS) requiring IEC 61511 / IEC 61508 SIL 3 compliance. It serves as the brain of the Tricon chassis, coordinating I/O modules, communication interfaces, and safety logic execution. Procurement engineers sourcing replacement or expansion processors for existing Tricon installations will find the MP3009X a direct, certified fit.
Complete Technical Specifications
- Part Number: MP3009X
- Platform: Triconex Tricon Safety System
- Architecture: Triple Modular Redundancy (TMR) — 3 independent processing legs
- Safety Integrity Level: SIL 3 (IEC 61508 / IEC 61511)
- Processor Type: Main Processor Module
- Communication: Compatible with Tricon chassis backplane; supports TriStation 1131 programming environment
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Power Supply: Supplied via Tricon chassis backplane
- Weight: 2,750 g (approx.)
- Certifications: TÜV, FM, CE — per Triconex Tricon platform certification
- Manufacturer: Triconex (Schneider Electric)
- Country of Origin: USA
- Condition: New / Surplus New / Refurbished (specify at inquiry)
Proven Application Environments
- Oil & Gas — Emergency Shutdown (ESD) and High Integrity Pressure Protection Systems (HIPPS)
- Petrochemical & Refining — Burner Management Systems (BMS) and process safety interlocks
- Power Generation — Turbine protection and reactor safety systems
- Offshore Platforms — Fire & Gas (F&G) detection and suppression control
- Pipeline Infrastructure — Compressor station safety and leak detection
- Chemical Processing — Reactor runaway prevention and SIS integration
Engineering Advantages
- Fault Tolerance Without Shutdown: TMR architecture allows single-leg failure without any process interruption or spurious trip.
- Continuous Self-Diagnostics: The MP3009X performs real-time cross-comparison across all three legs, detecting and isolating faults automatically.
- Hot-Swap Capability: Modules can be replaced under power in most configurations, minimizing maintenance downtime.
- Long Service Life: Tricon platform components are designed for 20+ year operational lifecycles, common in critical infrastructure.
- TriStation 1131 Compatible: Full integration with Schneider Electric’s IEC 61131-3 compliant programming and diagnostic software.
- Backward Compatibility: Designed to integrate within existing Tricon chassis without system-wide upgrades.
System Architecture & Signal Flow
The MP3009X operates within the Tricon chassis as the primary execution engine. Safety logic programmed via TriStation 1131 is loaded onto the processor, which then executes control algorithms across three redundant legs (Leg A, Leg B, Leg C). Each leg independently reads I/O data from field instruments, executes the safety program, and votes on output commands using a 2-out-of-3 (2oo3) voting scheme. This ensures that a single hardware or software fault in any one leg does not affect the safety output. The main processor also manages chassis-level diagnostics, communication with operator interfaces, and coordination with expansion chassis via the Tribus communication bus.
Sourcing & Quality Verification
- All MP3009X units sourced by Konmask.com are inspected prior to shipment.
- Serialization and firmware revision are documented and provided upon request.
- Units are tested for backplane communication integrity and processor self-test pass status.
- Certificates of conformance (CoC) and test reports available for qualified buyers.
- Anti-counterfeit verification: physical markings, label integrity, and board-level inspection performed.
Procurement Process
- Step 1: Submit your RFQ via [email protected] or WhatsApp +0086 19859288691 with your required quantity and delivery timeline.
- Step 2: Receive a formal quotation with unit price, lead time, and available condition grades within 24 hours.
- Step 3: Confirm purchase order — we accept T/T bank transfer, PayPal, and trade assurance.
- Step 4: Units are packed in anti-static ESD-safe packaging and shipped via DHL / FedEx with full tracking.
- Step 5: Post-delivery technical support available for installation and commissioning queries.
Technical FAQ
Q: Is the MP3009X compatible with all Tricon chassis generations?
A: The MP3009X is designed for the Tricon v9/v10 chassis family. Compatibility with earlier chassis versions should be verified against your system’s hardware revision. Contact us with your chassis model for confirmation.
Q: Can the MP3009X be replaced online (hot-swap) without shutting down the process?
A: Yes, in a fully operational TMR system with all three legs healthy, the main processor can typically be replaced under power following Triconex maintenance procedures. Always consult the Tricon System Planning and Installation Guide before performing live maintenance.
Q: What firmware version does the supplied unit carry?
A: Firmware revision is documented per unit. Please specify your TriStation software version when requesting a quote so we can match compatible firmware.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 12-month warranty on all verified surplus and refurbished units. New/sealed units carry OEM warranty terms where applicable.
Q: What is the lead time for MP3009X?
A: In-stock units ship within 3–5 business days. For large quantity orders or specific firmware requirements, lead time is 7–15 business days.
