Triconex SDO3411 S2 Digital Output Module – Tricon Safety System

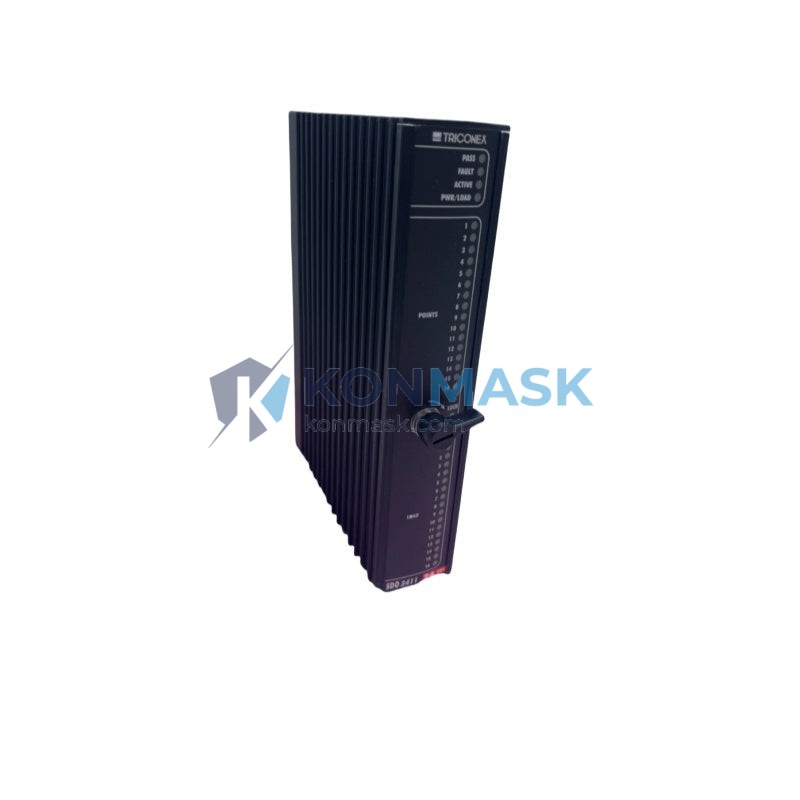

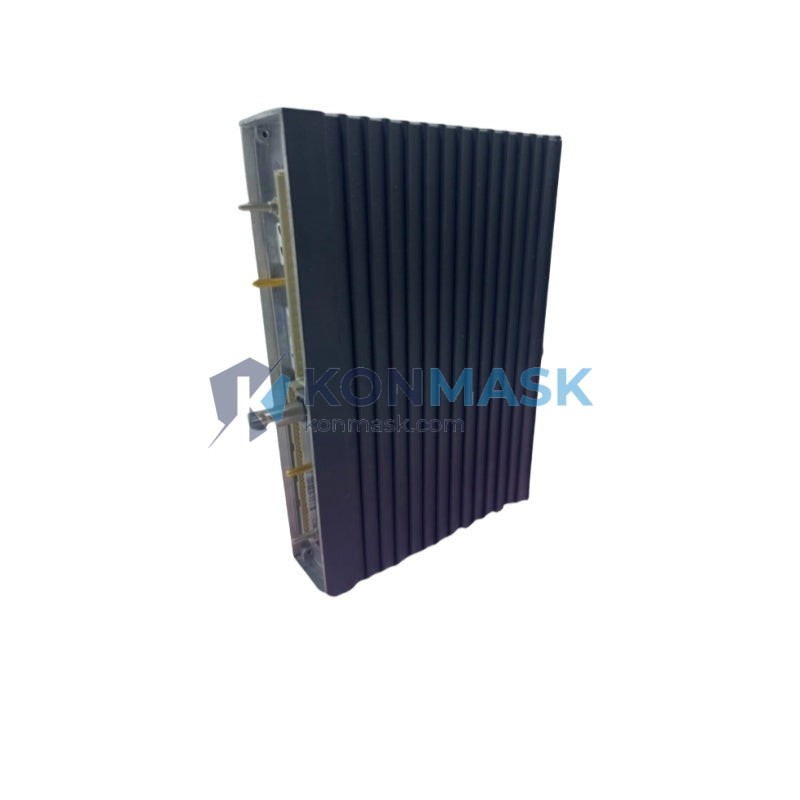

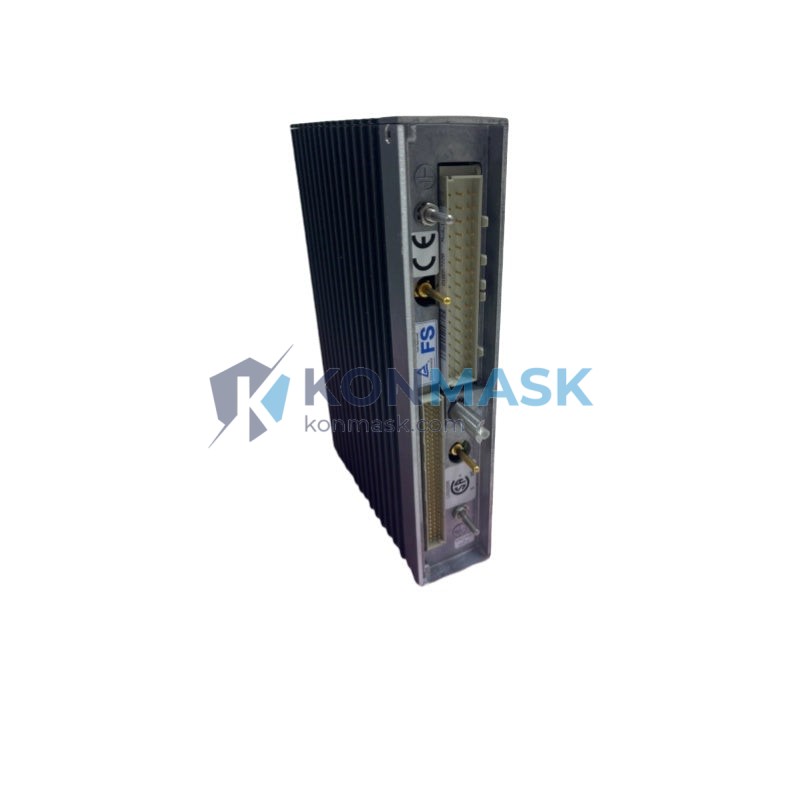

Triconex SDO3411 S2 – 32-Channel Digital Output Module | Tricon Triple Modular Redundancy Platform

Engineering Background: In high-hazard process industries — oil & gas, petrochemical, nuclear, and power generation — a failed or unavailable digital output module can mean the difference between a controlled shutdown and a catastrophic process excursion. When a Safety Instrumented System (SIS) loses its output capability, final control elements such as solenoid valves, shutdown valves, and motor starters cannot receive trip commands. The result: loss of functional safety integrity, potential SIL degradation, and regulatory non-compliance. The Triconex SDO3411 S2 eliminates this single point of failure through its Triple Modular Redundancy (TMR) architecture, ensuring that output commands are always executed — even in the presence of a module fault.

Product Positioning: The SDO3411 S2 is a 32-channel digital output module engineered specifically for the Triconex Tricon TMR Safety Controller platform. As part of Schneider Electric’s industry-leading Tricon product family, it occupies a critical role in SIL 2 and SIL 3 certified safety loops worldwide. Its S2 revision designation reflects enhanced firmware compatibility and improved diagnostic coverage, making it the preferred replacement and upgrade module for installed Tricon base systems across global process facilities.

Complete Technical Specifications

• Part Number / SKU: SDO3411 S2
• Manufacturer: Triconex (Schneider Electric)
• Platform: Tricon Triple Modular Redundancy (TMR) Safety Controller
• Module Type: Digital Output (DO)
• Output Channels: 32 channels
• Output Type: Solid-state discrete digital outputs
• Architecture: Triple Modular Redundancy (TMR) — 1oo2D voting logic
• Safety Integrity Level: SIL 2 / SIL 3 capable (IEC 61511 / IEC 61508)
• Revision: S2
• Form Factor: Plug-in module for Tricon chassis
• Diagnostic Coverage: High — continuous self-diagnostics with fault annunciation
• Hot-Swap Capability: Yes — online replacement without process shutdown
• Communication: Internal Tricon backplane bus
• Certifications: TÜV, IEC 61508, FM, CE (refer to official Triconex datasheet for full certification list)
• Weight: Approx. 150 g
• Compatibility: Triconex Tricon TMR chassis and backplane

Note: Specifications above are based on published Triconex product documentation. Always verify against the official Triconex SDO3411 S2 datasheet for your specific application.

Proven Application Environments

• Oil & Gas: Emergency Shutdown Systems (ESD), High Integrity Pressure Protection Systems (HIPPS), wellhead control panels
• Petrochemical & Refining: Burner Management Systems (BMS), compressor protection, reactor safety interlocks
• Power Generation: Turbine trip systems, boiler protection, generator protection relays
• Nuclear: Reactor protection systems, safety-critical I&C upgrades
• Pipeline & Terminals: Valve actuation control, leak detection system outputs, pump shutdown
• Chemical Processing: Process safety interlocks, toxic gas release prevention systems

Engineering Advantages

• TMR Fault Tolerance: Three independent processing legs vote on every output command — a single leg failure does not impair system output or safety function
• Online Diagnostics: Continuous self-test routines detect output driver faults, wiring faults, and power anomalies without interrupting the process
• Hot-Swap Replacement: Modules can be replaced under power and process, eliminating costly planned shutdowns for maintenance
• High Channel Density: 32 DO channels per module maximizes cabinet space efficiency in large SIS installations
• Proven Field Reliability: Deployed in thousands of safety-critical installations globally across multiple decades of service
• Backward Compatibility: S2 revision maintains backward compatibility with existing Tricon chassis wiring and configuration

System Architecture & Signal Flow

Within the Tricon TMR architecture, the SDO3411 S2 receives voted output commands from the Main Processor Module (MP) via the Tricon backplane. Each of the three TMR legs independently drives its output circuitry; the final output state is determined by 1oo2D (one-out-of-two with diagnostics) voting logic, ensuring that a single-channel failure neither causes a spurious trip nor prevents a demanded safety action. Field wiring connects to the module’s terminal assembly, which interfaces directly with solenoid valves, motor starters, and other final elements. Fault status is reported in real time to the Triconex TriStation 1131 programming environment and to the plant DCS via the Tricon Communication Module (TCM).

Compatible modules and components include: Tricon Main Processor (MP3008, MP3007), Tricon Communication Module (TCM 4351A, TCM 4352A), Tricon Power Supply (PS6201, PS6202), Tricon Digital Input Modules (SDI3300 series), Tricon Analog I/O Modules (AI3351, AO3481 series), and Tricon chassis (3006, 3007, 3008 series).

Sourcing & Quality Verification

At Konmask.com, every Triconex SDO3411 S2 module offered is subject to our multi-stage sourcing and verification process:

• Authorized & Verified Supply Chain: Modules are sourced from documented, traceable supply channels to minimize counterfeit risk
• Visual & Physical Inspection: Each unit undergoes inspection for label integrity, connector condition, revision marking, and physical damage
• Functional Pre-Check: Where applicable, modules are bench-tested for basic power-up and communication response prior to shipment
• Secure Packaging: ESD-safe packaging with moisture barrier and shock-absorbing materials for international freight
• Documentation: Certificate of conformance and traceability documentation available upon request

Procurement Process

1. Submit Inquiry: Contact us via the form below or email support@konmask.com with your required quantity and delivery timeline
2. Receive Quote: Our technical sales team will respond within 24 hours with pricing, lead time, and availability confirmation
3. Order Confirmation: Review and approve the proforma invoice; confirm shipping address and Incoterms
4. Quality Inspection & Dispatch: Module is inspected, packaged, and dispatched with full tracking information
5. After-Sales Support: Our engineering team remains available for installation guidance and compatibility verification

Technical FAQ

Q: Is the SDO3411 S2 compatible with all Tricon chassis versions?

A: The SDO3411 S2 is designed for the Triconex Tricon TMR platform. Compatibility depends on your specific chassis model and firmware version. Please provide your system configuration details when inquiring so our engineers can confirm compatibility.

Q: What is the difference between SDO3411 and SDO3411 S2?

A: The S2 revision designation typically reflects firmware or hardware enhancements for improved diagnostic coverage and compatibility with newer Tricon system software versions. Consult the official Triconex revision history or contact us for a detailed comparison.

Q: Can this module be replaced online without shutting down the process?

A: Yes. The Tricon TMR architecture supports hot-swap module replacement. The system continues to operate on the remaining two legs while the faulty module is replaced, maintaining safety function throughout.

Q: Do you provide a warranty on the SDO3411 S2?

A: Yes. Konmask.com provides a warranty on all supplied modules. Warranty terms are specified in the sales agreement. Contact us for details.

Q: What documentation is available with the module?

A: We can provide a certificate of conformance, inspection report, and traceability documentation. Official Triconex technical manuals are available from Schneider Electric’s documentation portal.

---
